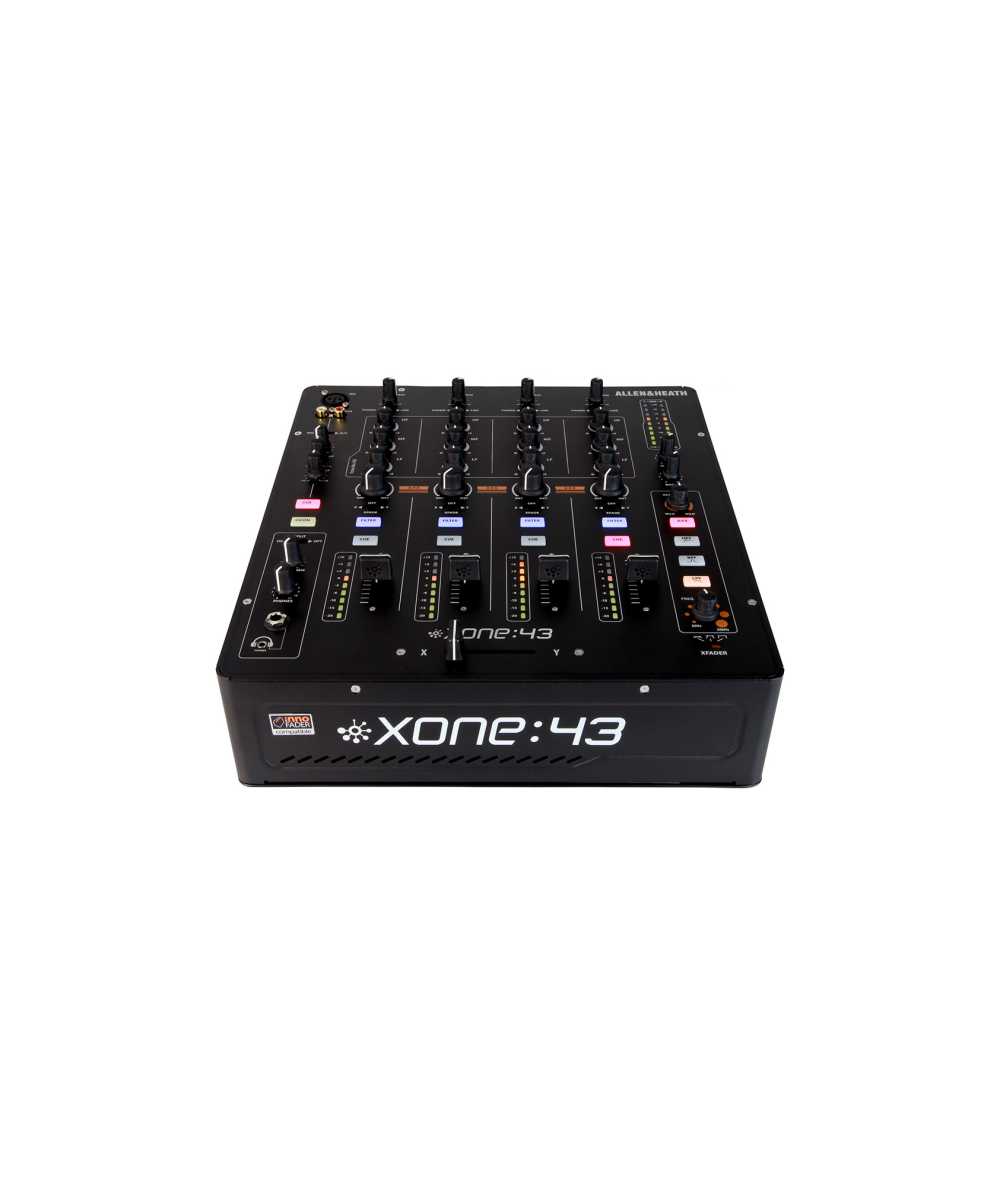

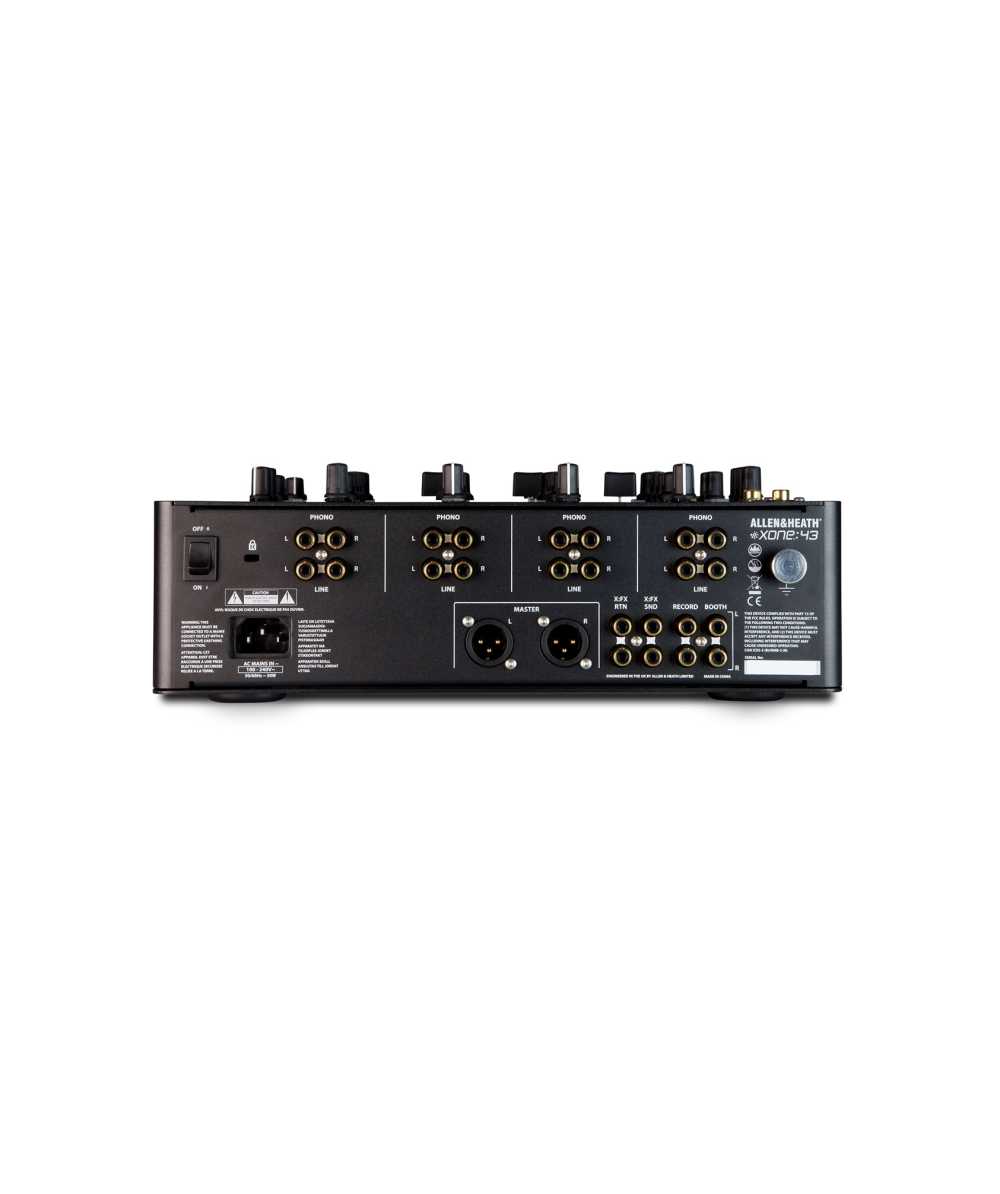

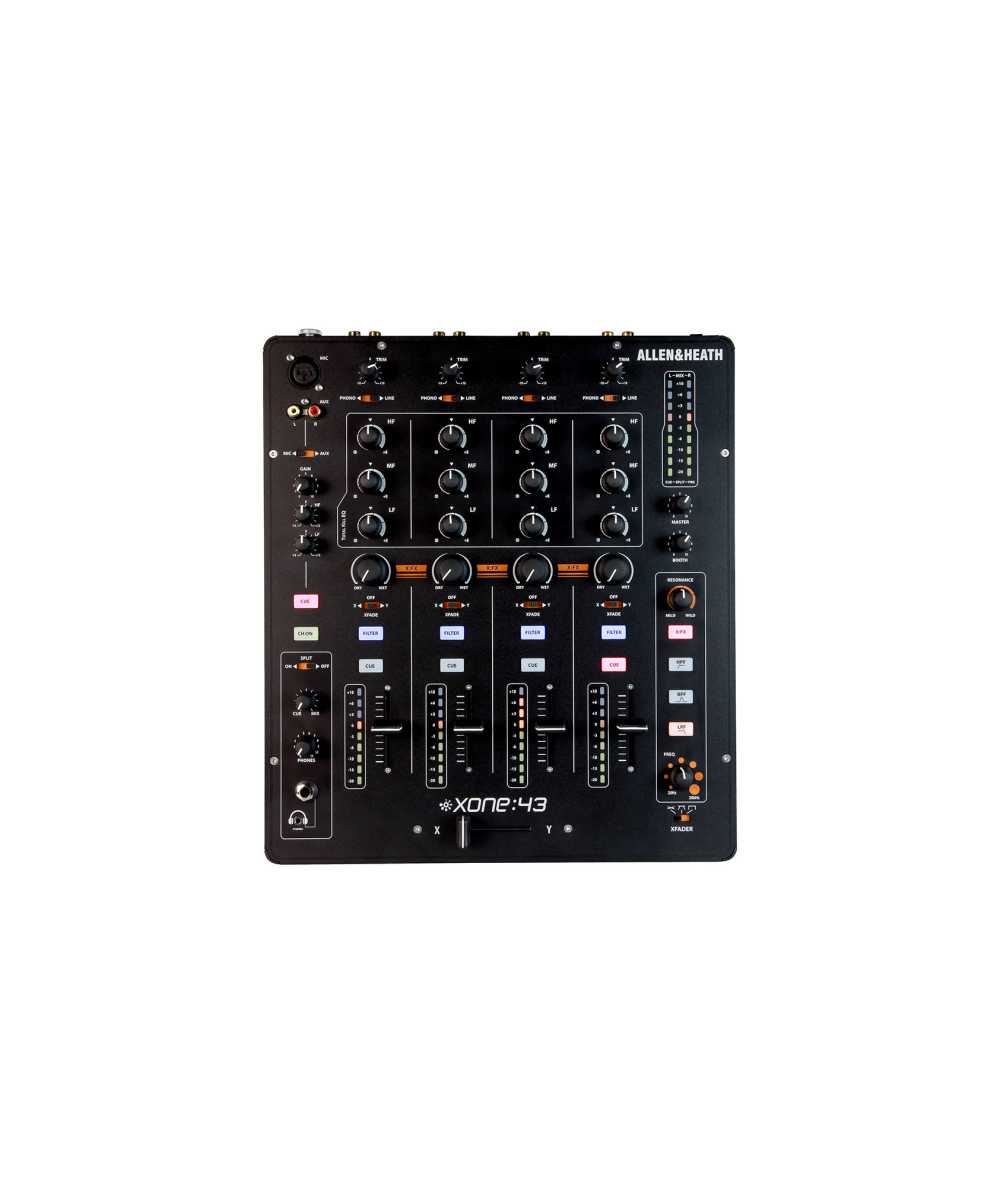

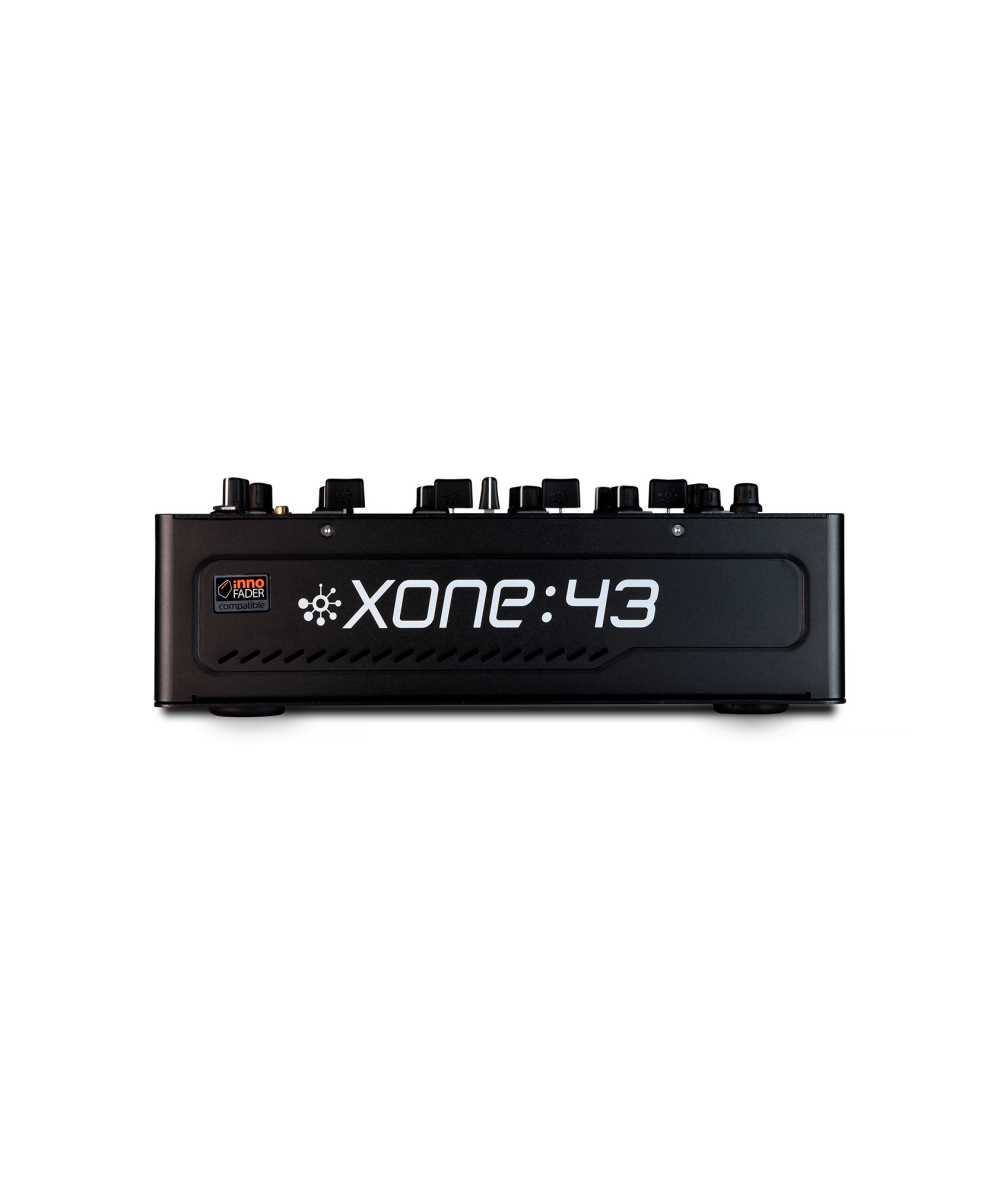

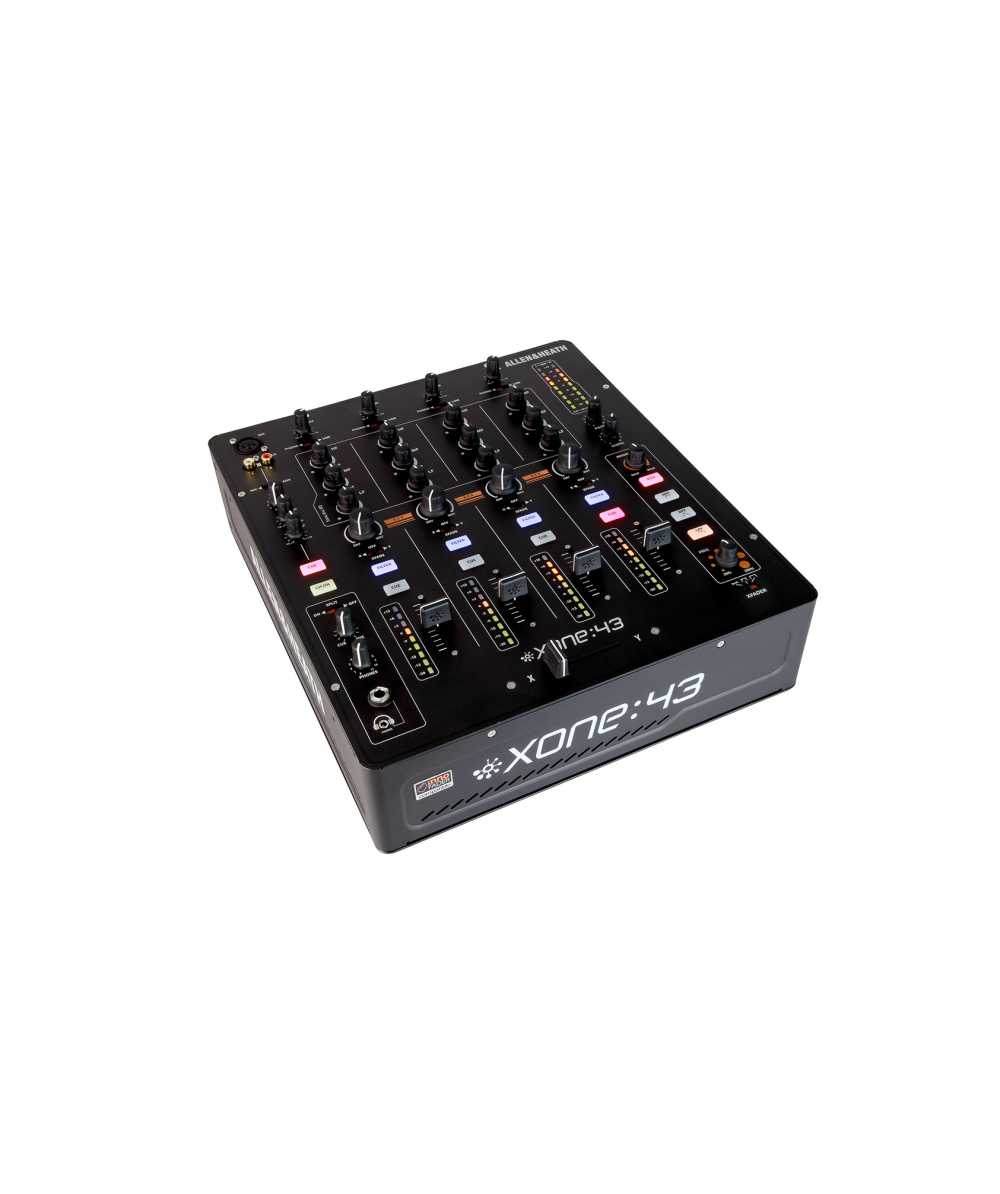

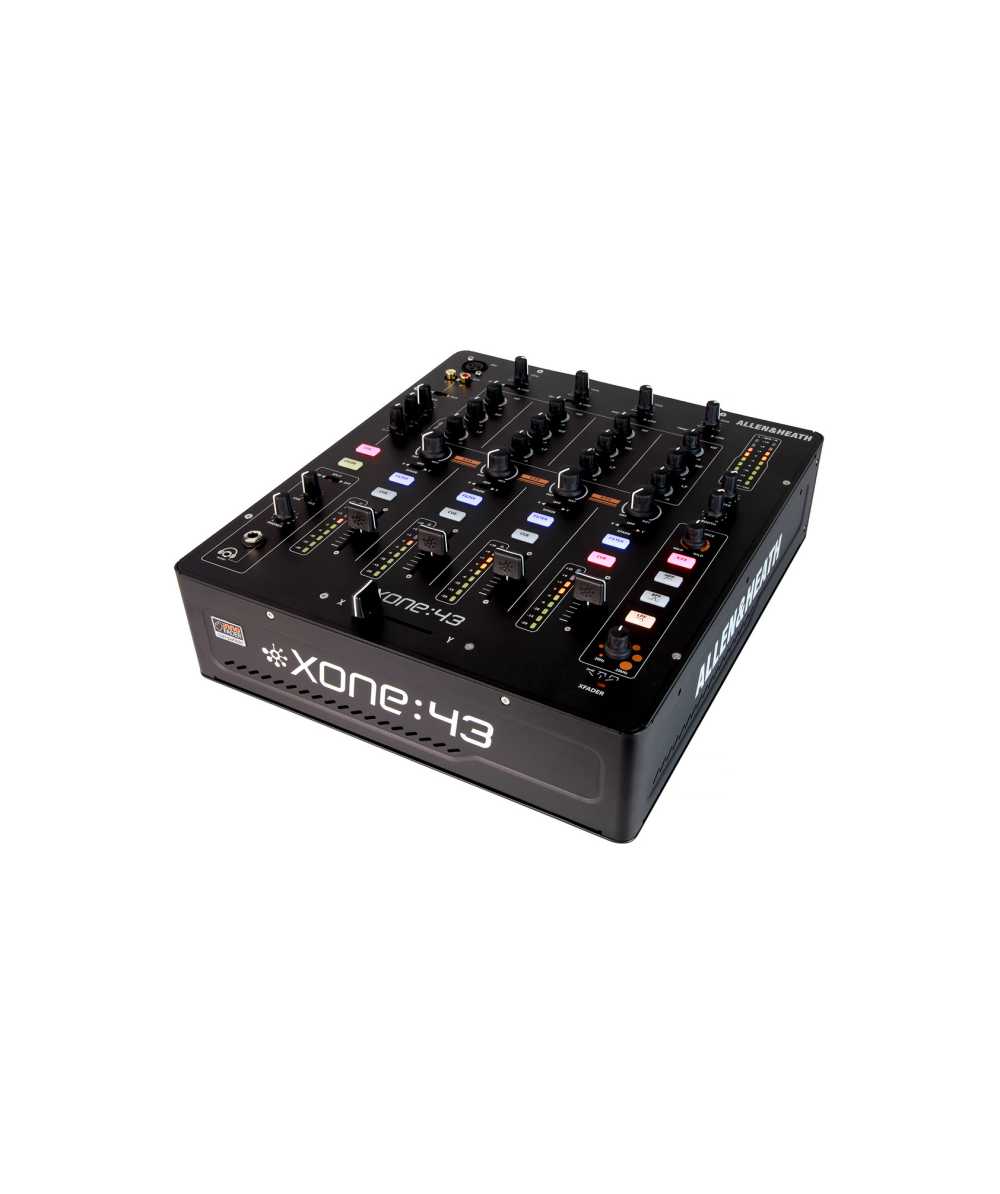

Allen & Heath Xone:43 - 4 Channel Analogue DJ Mixer

Availability: In Stock

Regular Price: $999.00

Special Price: $699.00

Qty:
+ -

Regular Price: $999.00

Special Price: $699.00

free shipping
Free Holiday Shipping
On All Orders Shipping to Continental US!

The No Brainer Destination For All Your Holiday Shopping - Learn the 10 Reasons to Choose TDJH This Holiday Season
Overview

- Created for DJs and electronic music purists
- 4+1 channel DJ mixer
- Offers the very best of analogue audio quality
- Includes the legendary Xone filter with resonance control
- 3 band EQ
- Crossfader with three switchable curve settings
- Easily replace or upgrade to a custom Innofader for ultimate crossfader performance
- Balanced XLR main outputs, independent booth and record outputs


Details

4 CHANNEL ANALOGUE DJ MIXER

Created for DJs and electronic music purists, Xone:43 is a 4+1 channel DJ mixer that offers the very best of analogue audio quality, including the legendary Xone filter with resonance control, 3 band EQ, crossfader with three curve settings and X:FX for send/return to your favourite FX unit.

The crossfader has three switchable curve settings for blending or scratching styles and can be easily replaced or upgraded to a custom Innofader for ultimate crossfader performance.

With balanced XLR main outputs, independent booth and record outputs, Xone:43 excels in the club and in high end personal DJ setups.

FEATURES

  • 4 channels with phono/line inputs
  • VCF Filter system – low-pass, high-pass and band-pass filters plus frequency and resonance controls
  • 3-band EQ
  • External FX loop (Send/Return) system with dry/wet control per channel
  • Mic input on balanced XLR, with 2-band EQ
  • Balanced main mix out on XLR
  • Independent booth out
  • Record out
  • 3.5mm and 1/4″ headphone outputs
  • Touring grade build quality
  • Super smooth VCA channel faders
  • User changeable crossfader
  • Innofader compatible
  • Crossfader curve switch
  • 20dB pro standard headroom
  • 9-segment signal level monitoring
specifications



SPECIFICATIONS
Nom / max output levels Main Mix +4dBu +27dBu
Booth 0dBu +22dBu
X:FX Send 0dBu +20dBu
Record Out 0dBu +20dBu
Internal headroom Channels +20dB
Frequency response +/-0.5dB 20Hz - 20kHz
Distortion < 0.05% THD+noise @1kHz Crosstalk
Crosstalk < -83dB inter-channel
Residual noise Mix 1 -89dBu
Booth -93dBu
X:FX -77dBu
Rec -92dBu
Mix noise Mix 1 -82dBu
Booth  -84dBu
X:FX -77dBu
Channel meters Peak reading 9 LED -20dB to +10dB
Main meters Peak reading 9 LED -20dB to +10dB
Mic EQ 2-Band +/-12dB
Channel EQ 3-Band +6dB / total kill
Channel fader 45mm stereo VCA, < -85dB shutoff
Crossfader 45mm stereo VCA - replaceable
Filters Stereo VCF, analogue
Consumption 30W max
DIMENSIONS AND WEIGHTS
Width 320 mm
Height 110mm
Depth 370mm
Weight 5.1 kg
what's included
  • Xone:43 mixer
  • Spare knobs and buttons
  • Mains Lead
  • User Guide
