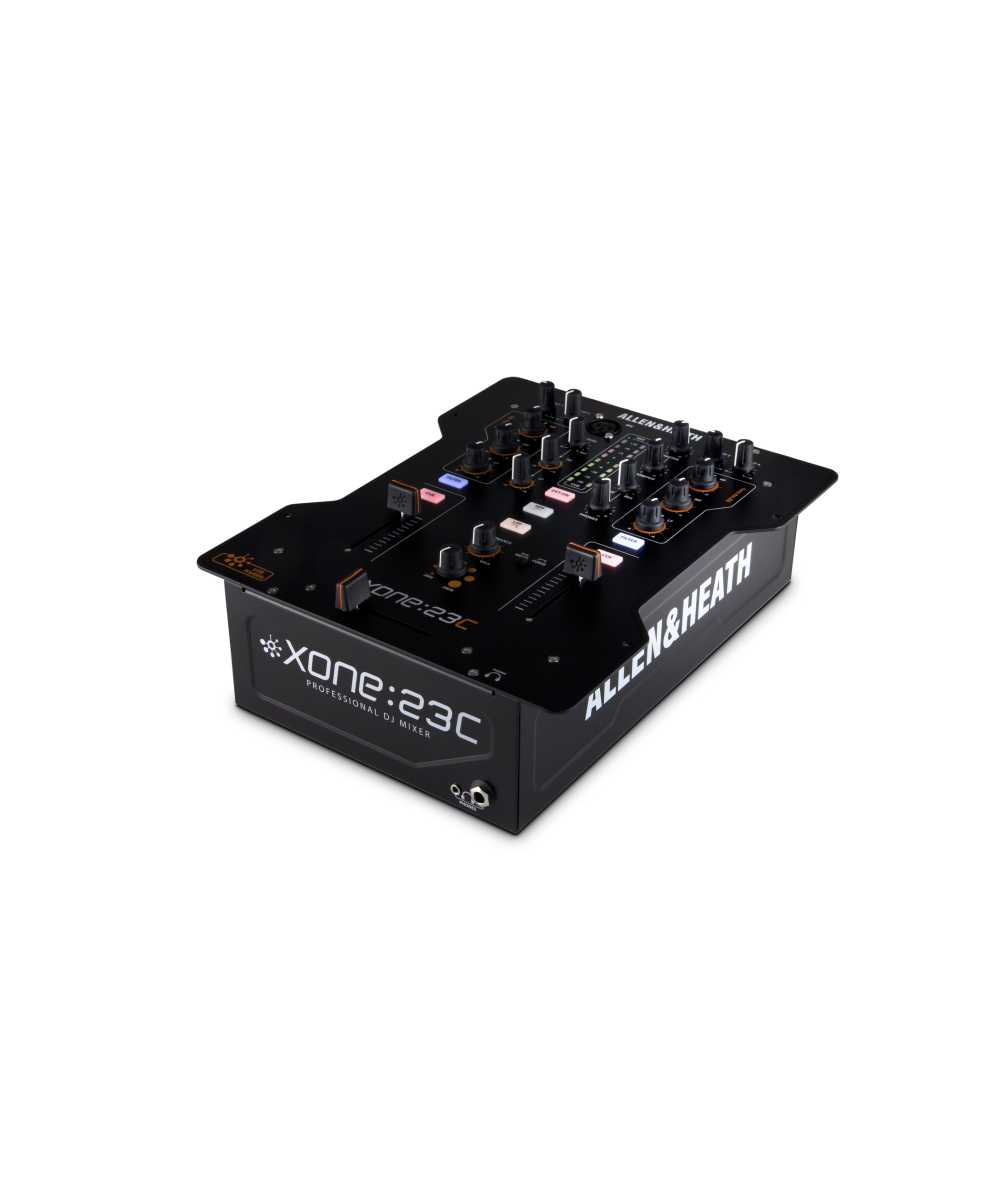

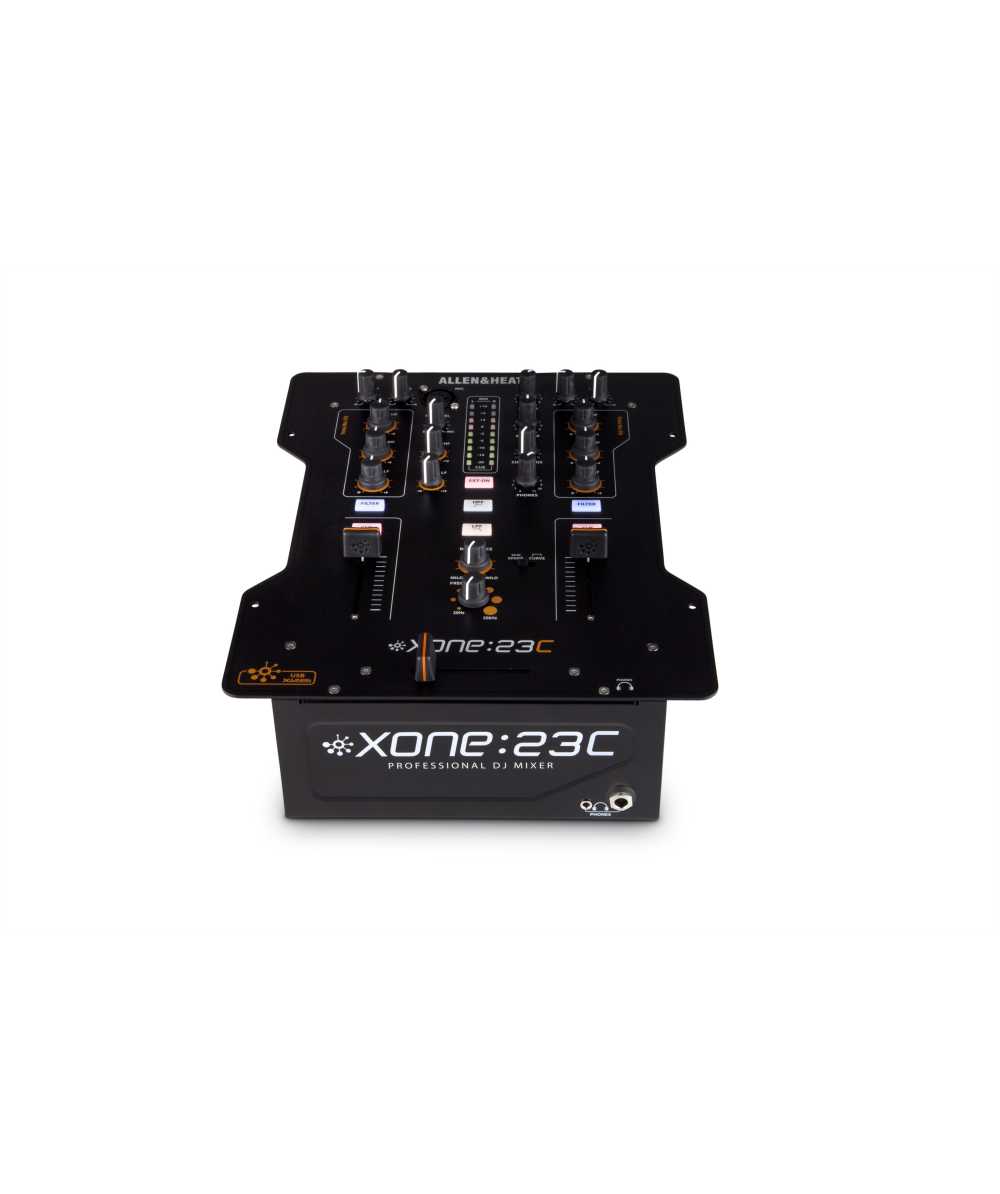

Allen & Heath Xone:23C - High Performance DJ Mixer and Soundcard

Availability: Only 1 Left

Regular Price: $499.00

Special Price: $399.00

Qty:
+ -

Regular Price: $499.00

Special Price: $399.00

free shipping
Free Holiday Shipping
On All Orders Shipping to Continental US!

The No Brainer Destination For All Your Holiday Shopping - Learn the 10 Reasons to Choose TDJH This Holiday Season
Overview

- Cutting edge 2+2 stereo channel mixer for the modern DJ
- Ideal companion for the digital DJ seeking to retain their hands-on mixings skills
- Use standalone or hooked up to Xone:K series controllers over X:LINK
- 24bit 96kHz 4 stereo Channel USB SoundCard
- Includes Mixvibes Cross LE DJ software

Details

The Xone:23C brings together the best of digital DJing and conventional mixing in a compact accessible format.  This high performance DJ mixer is equipped with a premium quality, 4 stereo channel 96kHz 24bit internal soundcard and offers plug n’ play connection via X:LINK to Xone:K series controllers, making it perfect for performers looking to combine the convenience of digital DJing and recording with the hands-on control and visual appeal of a real mixer.

Xone:23C includes an enhanced version of the legendary Xone filter with resonance control, VCA faders, 3 band total kill EQ, illuminated switches, crossfader curve selector and styling inspired by the flagship Xone:DB4.

KEY FEATURES:

  • 24bit 96kHz 4 stereo Channel USB SoundCard
  • Mixvibes Cross LE Software
  • 2+2 stereo channels with dual levels for phono/line inputs
  • Up to 4 sources can be mixed simultaneously
  • 3 Band full cut equalizer
  • Voltage Controlled Filter system
  • Send/Return loop for external FX
  • Accurate signal level monitoring with peak hold
  • Main mix outputs on professional balanced XLR connectors
  • Dedicated local monitor (booth monitor)
  • Pro standard headroom (+20dB) to prevent overload
  • +28dBu maximum output level (balanced XLR)
  • Low audio distortion (typically 0.01% at +10dBu output)
  • Dedicated record output
  • Crossfader curve switch
  • Innofader crossfader option
  • Cue mix control with illuminated Cue switches
  • UV sensitive ink screen for improved low light legibility
  • Universal voltage power supply (works anywhere in the World)

At the heart of the mixer is the renowned analogue Voltage Control Filter (VCF) system offering Low-Pass and High-Pass filters, frequency sweep and ‘mild to wild’ resonance control. There is also an FX loop to connect to third party FX units, which route back in through the filter system.

Xone:23C features 2+2 stereo channels with dual levels for phono and line inputs, allowing four music sources to be connected at the same time, including turntables and CD/media players. Additionally, the internal soundcard enables replay and recording from DJ software, offering users all the benefits of digital DJing whilst using hands-on mixer controls.

The main mix output and mic input are on professional standard balanced XLR’s, and there is a dedicated record output. The Xone:23C is equipped with comprehensive monitoring facilities, including a dedicated booth output with its own volume control, a cue mix control, and signal levels clearly displayed on the 9 segment peak hold  meters.

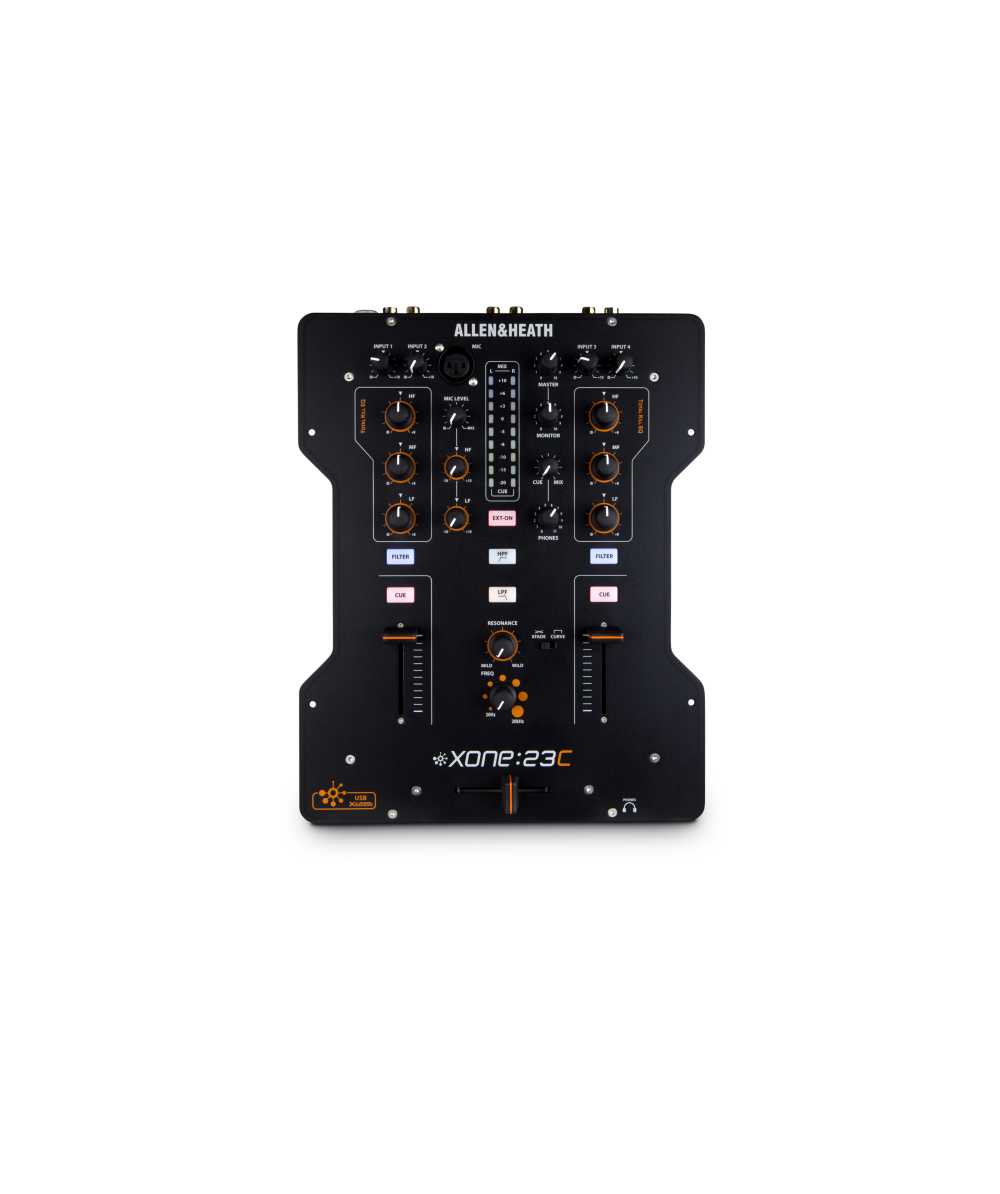

Styled on the flagship Xone:DB4, the Xone:23C includes soft touch, backlit controls, light-piped meters and a distinctive new shaped steel faceplate. The mixer can also be upgraded with the latest Innofader for enhanced scratch performance, available as an accessory.

Xone:23C comes with Mixvibes Cross LE Software, providing DVS control* and plug n’play mapping for Xone:K series controllers.

4 Stereo Channel USB SoundCard

96kHz 24bit 4 stereo channel USB soundcard which enables replaying and recording from your chosen DJ software, offering digital DJing with a real  mixer.

USB X:Link

X:LINK provides power and MIDI data over ethernet connection to our Xone:K Series controllers, saving USB ports on computers and offering extended software control.

VCF Filter System

At the heart of the mixer is the renowned analogue Voltage Control Filter (VCF) system offering Low-Pass and High-Pass filters, frequency sweep and ‘mild to wild’ resonance control. There is also an FX loop to connect to third party FX units, which route back in through the filter system.

External FX Loop

Seamlessly integrate your favourite external FX unit into your setup with send and return connections plus FX loop switching.

3 Band total kill EQ

Both channels feature 3 band EQ Isolator, allowing you to creatively eliminate frequencies and bring them back into the mix with complete control.

*Requires reconfiguration of internal jumpers.

specifications

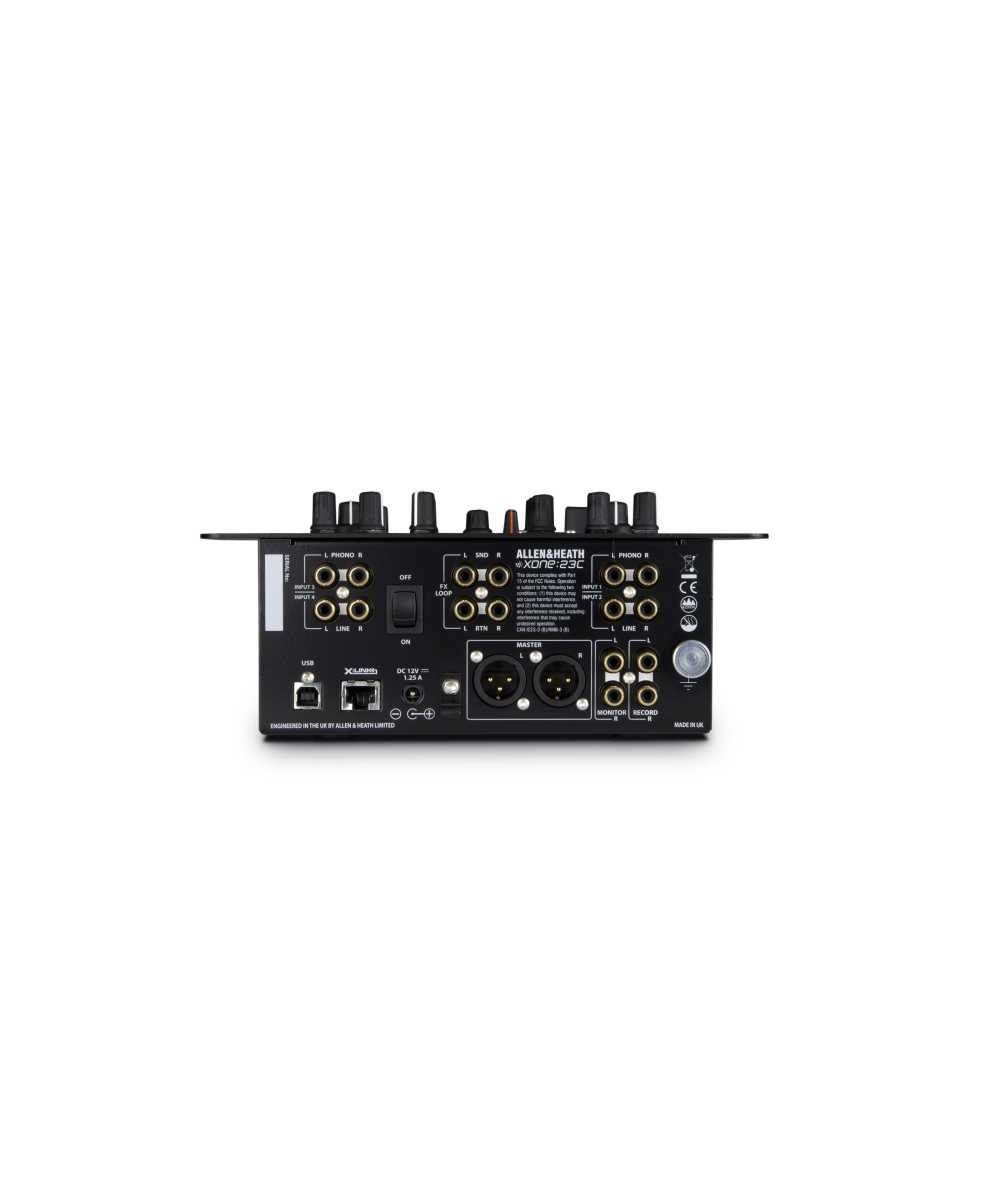

Connections

   Connection    Impedance     Nominal Level    Maximum Level
INPUTS

Phono RCA 47K/330pF 7mV 100mV
Line RCA 20K ohm -10dBu +20dBu
FX RTN RCA 10K ohm 0dBu +20dBu
Mic XLR <2K ohm -42dBu -12dBu

OUTPUTS

Main Mix Balanced XLR 100 ohms +4dBu +28dBu
Monitor RCA 100 ohms -2dBu +22dBu
Record RCA 100 ohms -2dBu +19dBu
FX SND RCA 100 ohms -2dBu +19dBu
Headphones 3.5mm and 1/4” TRS Jacks              1 ohm   200mW RMS into 30 ohms



Performance

Distortion           Main Mix out +10dBu 0.01% THD+N
Noise 22-22Khz       Main Mix out unity -85dBu un-weighted
Fader shut off Channel fader                 >-80dB
Xfade shut off Xfader   >-80dB
Frequency Response            10Hz to 50kHz             +/- 0dB



Xone:23 Sound Card

       Sample Rate       Bit Depth
4 Stereo Channel USB2       96kHz 24 bit
what's included
  • Xone:23C mixer
  • Power Supply (12V - 2.5 Amps)
  • Power supply IEC Lead
  • Type A-B USB Lead To connect the Xone:23C to your computer.
  • Two 17cm, three-way harnesses ( to configure the soundcard for DVS)
  • MixVibes Software Voucher (contains the license number that allows to download and use Mixvibe)
  • Safety Sheet
