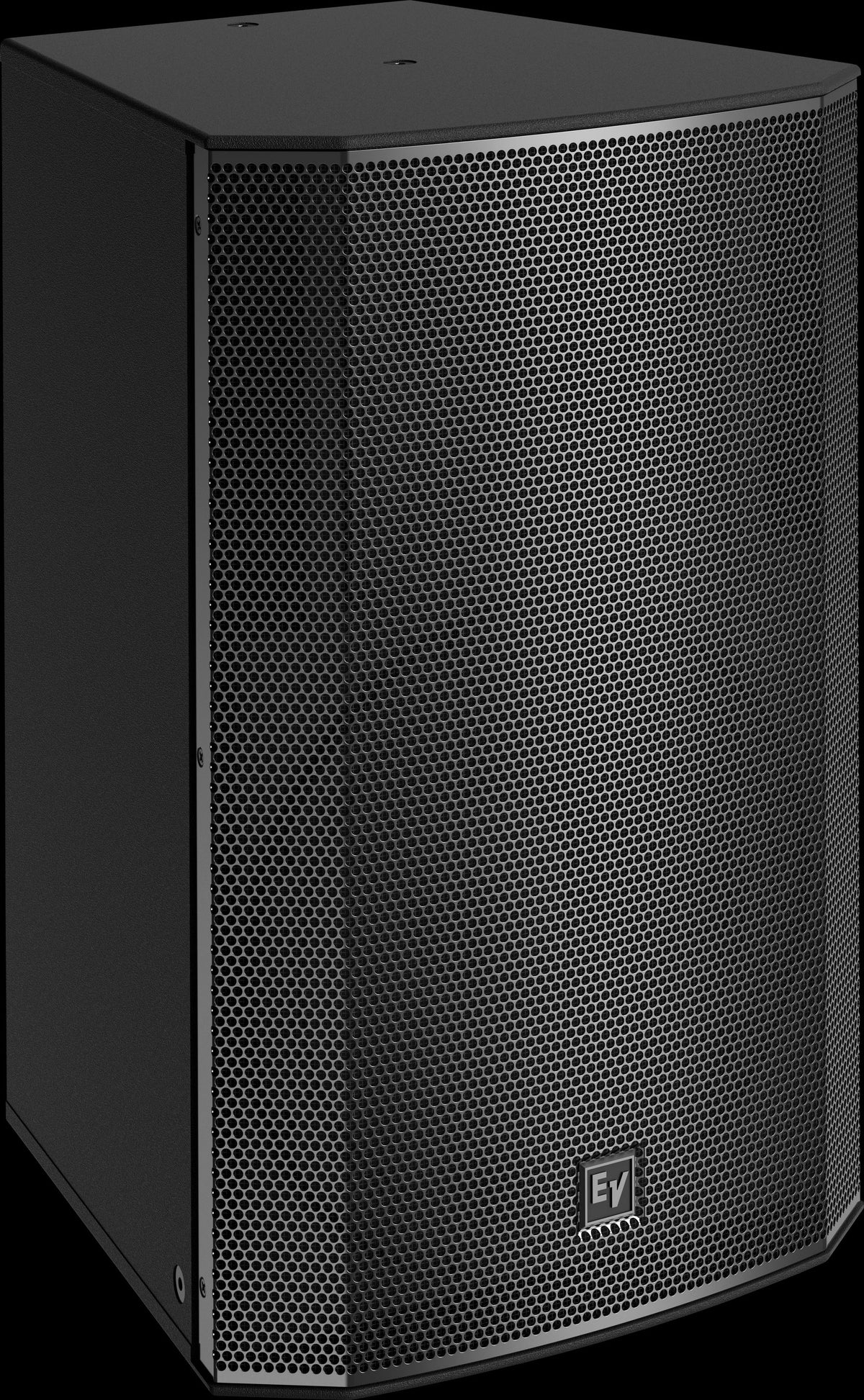

Electro-Voice EVC-1152-64PIB - 15" Speaker, 60x45 Weatherized, Black

• 15-inch, two-way loudspeaker, with 60° x 45° constant directivity, rotatable waveguide
• Power rating: 350 W Continuous, (1400 W Peak)
• Passive system: 98 dB, 129 dB maximum
• Gland nut cover and stainless steel grille on PI versions
• Optional high quality transformer and patented Automatic Saturation Control (ASC) preserve low end over 70V/100V lines

EVC loudspeakers from Electro-Voice are two-way systems that can be used in a broad range of applications where wide bandwidth, vertical and horizontal directivity control, and high efficiency are required in a compact, cost-effective package. EVC loudspeakers are voiced to complement other EV-Innovation models (EVF, EVH, EVA, and EVU).

The high frequency section of EVC loudspeakers comprises a single 1¼-inch pure titanium dome compression driver directly coupled to a rotatable constant directivity waveguide that delivers uniform pattern control and smooth, linear response. The low frequency section employs a high-output woofer that was developed using state-of-the-art, computer aided optimization to provide low distortion, high efficiency, and maximum intelligibility at high sound pressure levels. The passive crossover implements a modified fourth-order design with slopes of 24 dB per octave for smooth off axis response and improved definition through the critical vocal range.

The EVC series is an extremely cost-effective solution for many fixed-install applications. The enclosures are constructed of 15-mm plywood and finished with EVCoat for enhanced durability. The loudspeakers have been designed with multiple M10 suspension points as well as attachment points for an optional U-bracket or multi-mount style pan/tilt wall mount. All EVC series loudspeakers accept wire gauges up to 10 AWG (6 mm). The input panel also accepts optional covers with NL4-type connectors or weatherized gland-nuts.

For 70V/100V operation, the input panel has an internal landing pad for mounting EV's high-quality TK-150 audio transformer. Adding a TK-150 to the EVC input panel engages EV's patented Automatic Saturation Compensation (ASC), which preserves low frequency performance while presenting a stable load to the amplifier regardless of how many loudspeakers are connected in parallel. An EVC loudspeaker with a transformer installed sounds virtually identical to the same model without a transformer.

Type: 15-inch two-way loudspeaker with 60° x 45° constant-directivity, rotatable waveguide, Fully Weatherized (PI) Frequency Response (-3 dB): 70 Hz – 20 kHz Frequency Range (-10 dB): 50 Hz – 25 kHz Coverage (rotatable): 60° x 45° Max. Calculated SPL: 129 dB Axial Sensitivity (1 W/1 m): 98 dB Power Handling (Continuous/Program/Peak): 350/700/1400 W Nominal Impedance: 8 Ohm Minimum Impedance: 6.7 Ohm LF Transducer: EVS-15M HF Transducer: DH-3, 1.25 in titanium dome compression driver Passive Crossover Frequency: 1.6 kHz Connectors: Dual four-pin 10 AWG (6 mm) Phoenix/Euro Block screw-terminals; weatherized gland-nut cover Enclosure: 15mm weather-resistant plywood with EVCoat Grille: 18 GA stainless steel with hydrophobic cloth (PI) Suspension: Eight M10 suspension points, optional U-bracket or pan/tilt wall mount Environmental Rating: IEC 60529, IP55 (PI) Recommended High-Pass Frequency (4th Order): 40 Hz for 8Ω (50 Hz with TK-150 transformer) Dimensions (H x W x D): 684 x 433 x 451 mm (26.93 x 17.05 x 17.76 in) Weight Net: 25.0 kg (55.1 lb) Shipping Weight: 27.7 kg (61.1 lb) Color: Black

Electro-Voice EVC-1152-64PIB 15" Weatherized Loudspeaker (Black)
