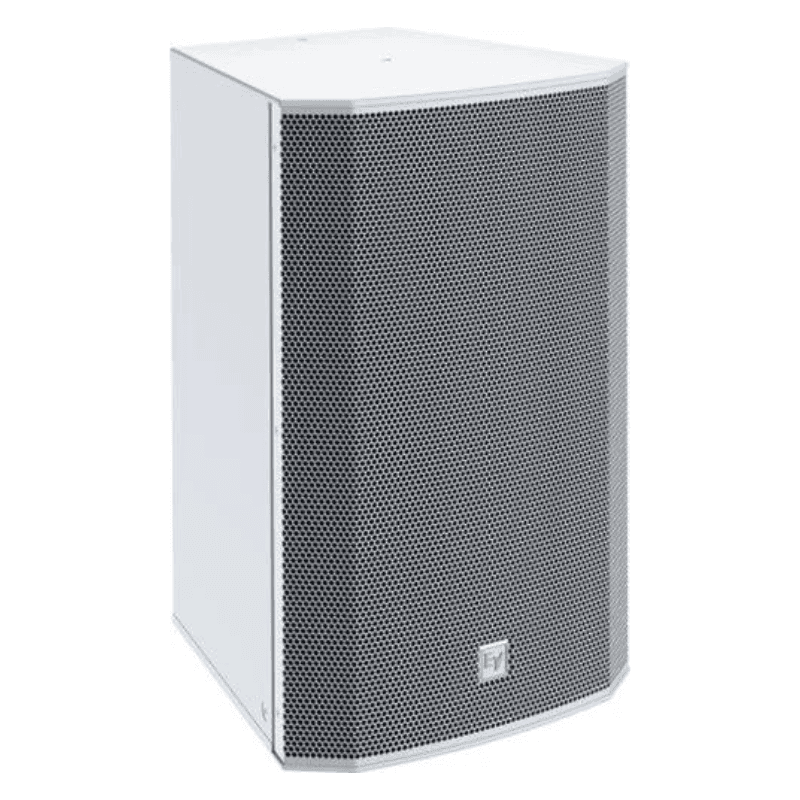

Electro-Voice EVC-1152-95W - 15" 90x55 Two-Way Loudspeaker, White

EVC loudspeakers from Electro-Voice are two-way systems that can be used in a broad range of applications where wide bandwidth, vertical and horizontal directivity control, and high efficiency are required in a compact, cost-effective package. EVC loudspeakers are voiced to complement other EV-Innovation models (EVF, EVH, EVA, and EVU).

The high frequency section of EVC loudspeakers comprises a single 1¼-inch pure titanium dome compression driver directly coupled to a rotatable constant directivity waveguide that delivers uniform pattern control and smooth, linear response. The low frequency section employs a high-output woofer that was developed using state-of-the-art, computer aided optimization to provide low distortion, high efficiency, and maximum intelligibility at high sound pressure levels. The passive crossover implements a modified fourth-order design with slopes of 24 dB per octave for smooth off axis response and improved definition through the critical vocal range.

The EVC series is an extremely cost-effective solution for many fixed-install applications. The enclosures are constructed of 15-mm plywood and finished with EVCoat for enhanced durability. The loudspeakers have been designed with multiple M10 suspension points as well as attachment points for an optional U-bracket or multi-mount style pan/tilt wall mount. All EVC series loudspeakers accept wire gauges up to 10 AWG (6 mm). The input panel also accepts optional covers with NL4-type connectors or weatherized gland-nuts.

For 70V/100V operation, the input panel has an internal landing pad for mounting EV's high-quality TK-150 audio transformer. Adding a TK-150 to the EVC input panel engages EV's patented Automatic Saturation Compensation (ASC), which preserves low frequency performance while presenting a stable load to the amplifier regardless of how many loudspeakers are connected in parallel.

• 15-inch, two-way loudspeaker, with 90˚ x 55˚ constant directivity, rotatable waveguide
• Power rating: 350 W Continuous, (1400 W Peak)
• Passive system: 98 dB, 129 dB maximum
• Gland nut cover and stainless steel grille on PI versions
• Optional high quality transformer and patented Automatic Saturation Control (ASC) preserve low end over 70V/100V lines

Max Calculated SPL: 129 dB Rotatable Coverage: 90 x 55 degrees Frequency Range (-10 dB): 50Hz-25kHz Suspension: Eight M10 Suspension Points, optional U Bracket or pan/tilt wall mount Minimum Impedance: 6.7 ohms HF Transducer: DH-3 Frequency Response (-3 dB): 70Hz-21kHz LF Transducer: EVS-15M Grille: 18 GA cold-rolled steel with rotatable logo (18 GA stainless steel with hydrophobic cloth on PI models) Weight Net: 25 kg (55.1 lb) Shipping Weight: 27.7 kg (61.1 lb) Color: Black or White Dimensions (H x W x D): 684 x 433 x 451 mm (26.93 x 17.05 x 17.76 in) Passive Crossover Frequency: 1.6 kHz Recommended High-Pass Frequency, 4th Order: 40 Hz for 8 ohm (50 Hz with TK-150 transformer) Environmental Specs: IEC 60529, IP44 (IP55 for PI versions) Nominal Impedance: 8 ohms Axial Sensitivity (SPL, 1 W @ 1 m): 98 dB Power Handling (Continuous / Peak): 350/700/1400 W Connectors: Dual four-pin 10 AWG (6 mm) Phoenix/Euro Block screw-terminals Enclosure: 15mm weather-resistant plywood with EV Coat

Electro-Voice EVC-1152-95W 15" Two-Way Loudspeaker (White)
