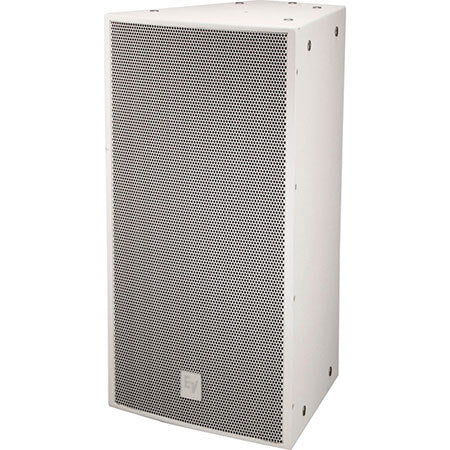

Electro-Voice EVF-1122D/96-WHITE - 12” 2-Way Loudspeaker with 90 x 60, white

The Electro-Voice EVF-1122D/96 is a high-power, two-way loudspeaker system that can be used in a variety of applications where high-quality sound reinforcement is required in a compact, lightweight package.

The EVF-1122D/96 utilizes the DH7N, a high-output 3” titanium compression driver, coupled to a Constant Directivity™ 90° x 60° waveguide. The DVX3121A 12” woofer was developed using FEA optimization for motor, suspension, and electrical design to ensure very low distortion, high efficiency, and maximum intelligibility at high SPL. The crossover uses steep, 24-dB-per-octave slopes with equalization for very smooth response in the vocal range, linear off-axis response, and a protection circuit for long-term reliability.

The EVF-1122D/96’s features make it ideal for many fixed-install applications. The trapezoidal enclosure is constructed of weather-resistant birch, and coated with EVCoat™ for maximum protection from the elements. The unique acoustic and rigging design allows for vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF and EVH series. With seven horn patterns to choose from, along with an assortment of low-frequency and subwoofer loudspeakers, you have the tools to maximize flexibility of system design, no matter what the application and budget. The innovative input panel provides a choice of Phoenix-style connector (included in all standard models) or the ability to add a dual NL4-type connector cover plate or gland-nut cover plate (for weatherizing applications). An externally accessible jumper selects passive or active operation. An available 70.7/100-V transformer kit may be easily mounted to the input panel for use in distributed systems.

• 3-inch DH7N titanium/neodymium HF compression driver
• Rotatable Constant-directivity waveguide
• Six available patterns with coverage from 60º to 120º
• 97 dB sensitivity, 131 dB maximum SPL
• Power handling: 600 W continuous, 2400 W peak
• 4th-order passive crossover with HF protection
• Trapezoidal 13-ply plywood enclosure in three finishes: EVCoat, PI, and fiberglass (FG)

Frequency Range (-10 dB): 49 Hz – 21 kHz Suspension: 22 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included) Weatherized: No Minimum Impedance: 6 Ω Nominal Impedance (Passive): 8 Ω HF Transducer: 3" DH7N diaphragm compression driver Speaker Type: Full-Range, Two-Way Frequency Response (-3 dB): 57 Hz – 18 kHz LF Nominal Impedance: 8 Ω Max. SPL/1m (calc): 131 dB Coverage (Nominal -6 dB) H: 90° LF Transducer: 12" DVX3121A woofer Coverage (Nominal -6 dB) V: 60° System Power Handling (Continuous/Program/Peak): 600 W / 1200 W / 2400 W Crossover Frequency: 1300 Hz Enclosure Material: 13-ply weather-resistant birch Grille: Standard versions: 16 ga Galvanneal, Powdercoat with screen behind. PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind Sensitivity 1 W/1 m: 97 dB Height: 768.6 mm Width: 406.3 mm Recommended High-Pass Frequency: 65 Hz Depth: 413.3 mm Weight Net: 29.7 kg Shipping Weight: 34.4 kg Available Coverage Patterns (Nominal -6 dB) HxV: 90 x 60 Environmental Specs: Standard versions: IEC 60529 IP44. PI and FG versions: IEC 60529 IP55 Internal Passive Crossover Frequency: 1300 Hz Passive Power Handling: 2400 W Net Weight: 65.5 lb (29.7 kg) Dimensions (H x W x D): 30.26" x 16.00" x 16.27" (768.6 x 406.3 x 413.3 mm) Input Connections: Euroblock; PI and FG versions include dual-gland-nut input-panel cover

EVF-1122D/96-WHITE loudspeaker
EBK-M10-EVI rigging kit (four forged eyebolts)
Owner's manual
