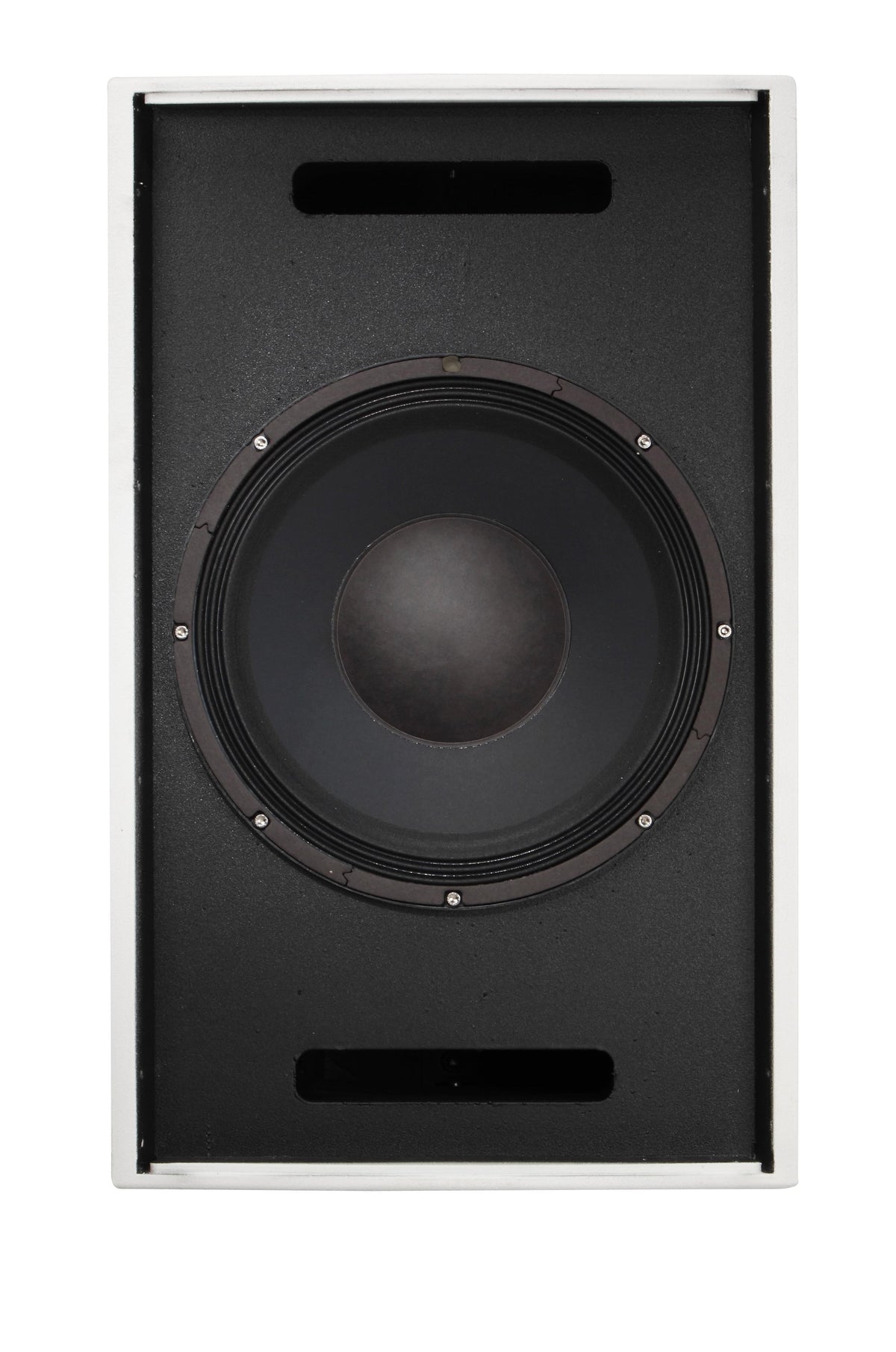

Electro-Voice EVF-1151S-WHT - 15” 400W Passive Subwoofer, EVCoat White

The EVF-1151S single 15" woofer bass system is designed to work as a low frequency reinforcement unit for EVF Series products, with equal footprint as the full range models, allowing for perfect clustering in vertical and horizontal groupings. The trapezoidal enclosure is constructed out of weather resistant birch, and coated with EVCoat for maximum protection from the elements.

• Enhanced bass for installations
• Low-distortion EVS15SB woofer
• 99 dB sensitivity, 131 dB maximum SPL
• Power: 400 W continuous, 1600 W peak
• Trapezoidal 13-ply plywood enclosure
• M10 threaded suspension points (22)

Frequency response (-3 dB): 67-95 Hz Frequency range (-10 dB): 46-125 Hz Recommended hi-pass frequency: 35 Hz Axial sensitivity: 99 dB (1W/1m) Max. calculated SPL: 131-135 dB Coverage: Omnidirectional Power handling: 400 W continuous, 800 W program, 1600 W peak LF transducer: EVS15SB, 15 in (381 mm) driver Nominal impedance: Passive 4 Ohm, Bi-amp 8 Ohm Minimum impedance: 3.4 Ohm passive, 6.4 Ohm bi-amped Connectors: Euroblock, 10 AWG Enclosure material: 13-ply weather resistant birch Grille: 16 GA Galvanneal, powdercoat, rotatable logo Suspension: (22) M10 threaded points Dimensions (H x W x D): 30.26 in x 18.50 in x 18.39 in (768.6 x 470 x 467 mm) Net weight: 62.6 lb (28.4 kg) Color: White

EVF-1151S-WHT subwoofer
EBK-M10-EVI eyebolt kit (4 forged eyebolts)
