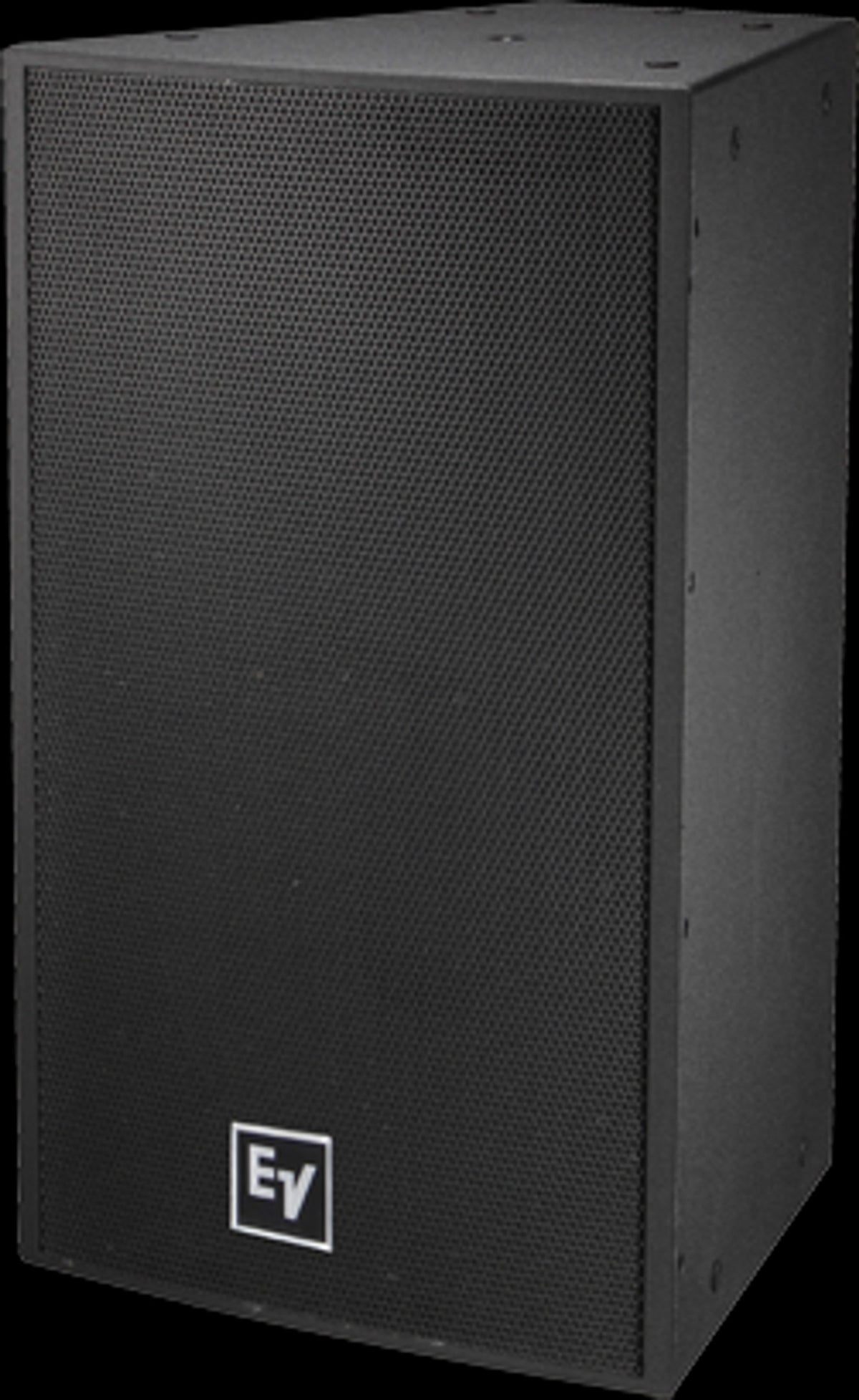

Electro-Voice EVF-1152D/99-FGB - Evf-1152d/99-Fgb Outdoor 15" Arrayable Point Source, Black

The EVF-D 15 is a premium arrayable 15" loudspeaker built around a DVX3151A woofer with fully symmetric drive and a 3-inch DH7N titanium/neodymium HF compression driver mounted to a rotatable Constant-Directivity waveguide, with six coverage patterns from 40° to 90°. Sensitivity is rated at 100 dB with a maximum SPL of 134 dB, and the system handles 600 W continuous / 2400 W peak power through a 4th-order crossover with HF protection. Compact, lightweight, and ideal for fixed installations, the trapezoidal 13-ply plywood enclosure is available in EVCoat, PI-weatherized, and fiberglass (FG) finishes, with 22 M10 threaded suspension points and an optional transformer kit for distributed 70V/100V systems.

Speaker Type: Full-Range, Two-Way Frequency Response (-3 dB): 70 Hz - 18,000 Hz Frequency Range (-10 dB): 40 Hz - 21,000 Hz Max. SPL/1m (calc): 134 dB Sensitivity (1 W/1 m): 100 dB Coverage (Nominal -6 dB): 90° x 90° LF Transducer: 15" DVX3151A woofer HF Transducer: DH7N 3" (76 mm) diaphragm compression driver System Power Handling (Continuous/Program/Peak): 600 W / 1200 W / 2400 W Crossover Frequency: 1300 Hz Nominal Impedance (Passive): 8 ohms Minimum Impedance: 6 ohms Enclosure Material: 13-ply weather-resistant birch Grille: 18-ga Stainless, Powdercoat, with hydrophobic cloth behind Dimensions (H x W x D): 30.26 in x 18.5 in x 18.37 in (768.6 x 469.8 x 466.6 mm) Net Weight: 75.8 lb (34.4 kg) Recommended High-Pass Frequency: 45 Hz Environmental Specs: IEC 60529 IP55 Suspension: 22 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included) Input Connections: Euroblock; dual-gland-nut input-panel cover included

Electro-Voice EVF-1152D/99-FGB Loudspeaker
EBK-M10-EVI Eyebolt Kit (4 Forged Eyebolts)
Dual-Gland-Nut Input Panel Cover
