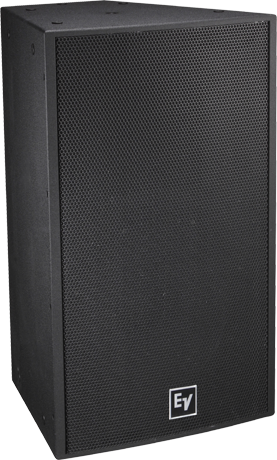

Electro-Voice EVF-1152S/43-BLK - Speaker Single 15" 2way 45x30, Black

Marca:Electro-Voice

Electro-Voice EVF-1152S/43-BLK - Speaker Single 15" 2way 45x30, Black

$2,050.46
Weather-resistant, arrayable 15" two-way point-source loudspeaker with rotatable 45°x30° coverage and a 2-inch titanium compression driver, built for touring and fixed installation.
In-Stock!

Ships in 1-2 Business Days.

Detalles del producto

Características del producto

Every EVF trapezoidal enclosure is constructed out of weather-resistant plywood, and coated with EVCoat for maximum protection from the elements. EVF's unique acoustic and rigging designs allow for vertical and horizontal clusters to be built using any combination of loudspeakers from both the entire EVF & EVH Series. With an assortment of full-range, low-frequency, and subwoofer loudspeakers, the EVF Series provides the tools to maximize the flexibility of system design, no matter what the application and budget. EVF's innovative input panels provide the choice of Phoenix-type connectors (included in all standard models), or allow the easy addition of a dual NL4-type connector cover plate or gland nut cover plate (for weatherizing applications). An externally accessible jumper also selects passive or active operation, and an available 70.7/100V transformer kit simply mounts to the input panel for use in distributed systems.

  • 2-inch ND2B titanium HF compression driver
  • Rotatable Constant-directivity waveguide
  • Six available patterns with coverage from 40º to 90º
  • 101 dB sensitivity, 134 dB maximum SPL
  • Power handling: 500 W continuous, 2000 W peak
  • 4th-order crossover with HF protection
  • Trapezoidal 13-ply plywood enclosure in three finishes: EVCoat, PI, and fiberglass (FG)
Especificaciones del producto

HF Transducer: 2 in (51 mm) titanium diaphragm, ND2B compression driver Coverage Pattern: 45° x 30° (rotatable waveguide; six patterns available from 40° to 90°) Sensitivity: 101 dB Max SPL: 134 dB Peak Power Handling: 500 W continuous / 2000 W Peak Crossover: 4th-order, with HF protection Nominal Impedance: 8 Ohms Enclosure: Trapezoidal 13-ply plywood, EVCoat finish Input Connector: Phoenix-type (dual NL4 or gland nut cover plate optional) Transformer: Optional 70.7/100V kit Height: 768.6 mm (30.26 in) Width: 469.8 mm (18.5 in) Depth: 466.6 mm (18.37 in) Suspension: Multiple M10 threaded suspension points [note: exact point count unclear due to a table-rendering artifact on manufacturer site] Available Finish: EVCoat (black), PI, or fiberglass (FG)

Qué incluye

EVF-1152S/43 loudspeaker (black)
Rigging hardware (forged M10 eyebolts)
Owner's manual
