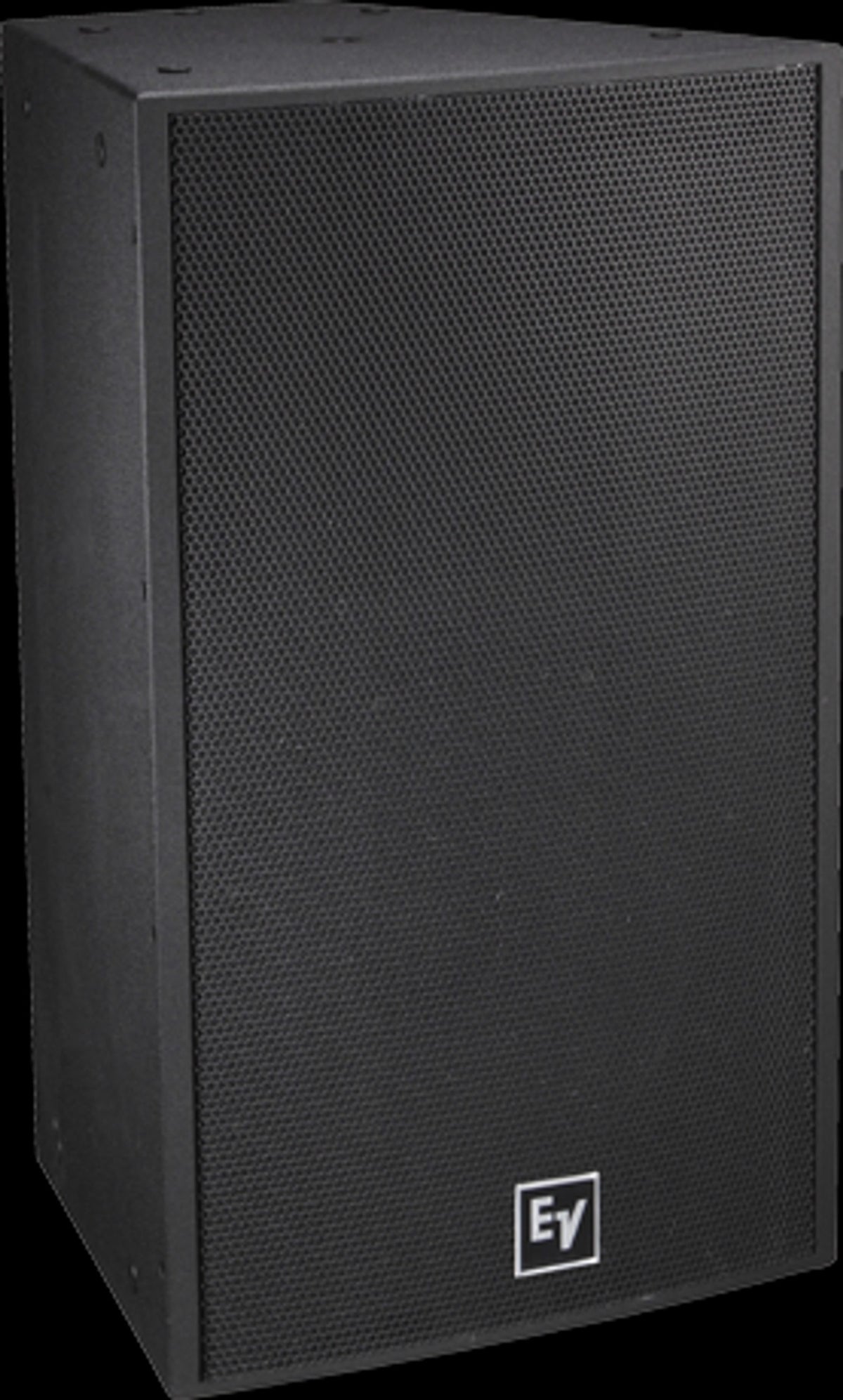

Electro-Voice EVF-1152S/96-PIB - Evf-1152s/96-Pib Outdoor 15" Arrayable Point Source, Black

The EVF-S 15 is an arrayable point-source 15" loudspeaker featuring a 2-inch ND2B titanium HF compression driver and a rotatable Constant-Directivity waveguide, with six available coverage patterns ranging from 40° to 90°. Sensitivity is rated at 101 dB with a maximum SPL of 134 dB, and the system handles 500 W continuous / 2000 W peak power through a 4th-order crossover with HF protection. The trapezoidal 13-ply plywood enclosure is available in EVCoat, PI-weatherized, and fiberglass (FG) finishes.

Speaker Type: Full-Range, Two-Way Frequency Response (-3 dB): 70 Hz - 14,000 Hz Frequency Range (-10 dB): 41 Hz - 18,000 Hz Max. SPL/1m (calc): 134 dB Sensitivity (1 W/1 m): 101 dB Coverage (Nominal -6 dB): 90° x 60° LF Transducer: 15" SMX2151 driver HF Transducer: ND2B 2" (51 mm) diaphragm compression driver System Power Handling (Continuous/Program/Peak): 500 W / 1000 W / 2000 W Crossover Frequency: 1450 Hz Nominal Impedance (Passive): 8 ohms Minimum Impedance: 6 ohms Enclosure Material: 13-ply weather-resistant birch Grille: 18-ga Stainless, Powdercoat, with hydrophobic cloth behind Dimensions (H x W x D): 30.26 in x 18.5 in x 18.37 in (768.6 x 469.8 x 466.6 mm) Net Weight: 70.8 lb (32.1 kg) Recommended High-Pass Frequency: 45 Hz Environmental Specs: IEC 60529 IP55 Suspension: 22 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included) Input Connections: Phoenix/Euroblock style screw terminals; dual-gland-nut input-panel cover included

Electro-Voice EVF-1152S/96-PIB Loudspeaker
EBK-M10-EVI Eyebolt Kit (4 Forged Eyebolts)
Dual-Gland-Nut Input Panel Cover
