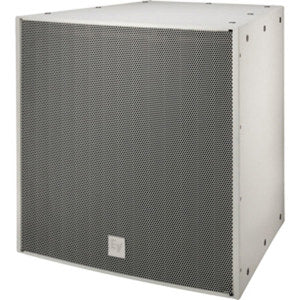

Electro-Voice EVF-1181S-WHT - 18” 400W Passive Subwoofer, EVCoat White

The Electro-Voice EVF-1181S is a high power, front-loaded bass element that can be used in a variety of applications where high quality sound reinforcement is required in a lightweight package. The EVF-1181S utilizes the EVS18SB 18” woofer, FEA optimized for motor, suspension, and electrical design for very low distortion and maximum intelligibility at high SPL levels. The trapezoidal enclosure is constructed out of weather resistant birch, and coated with EVCoat for maximum protection from the elements. The unique acoustic and rigging design allows for vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF & EVH Series.

• EVS18SB 18” (457mm) LF transducer
• 99 dB sensitivity, 131 dB maximum SPL
• System rating: 400W continuous, 1600W peak
• (28) M10 threaded suspension points

Frequency response (-3 dB): 35 Hz - 100 Hz Frequency range (-10 dB): 28 Hz - 650 Hz Recommended hi-pass frequency: 33 Hz Axial sensitivity: 99 dB (1W/1m) Max. calculated SPL: 131 dB Coverage: Omnidirectional Power handling: 400 W continuous, 1600 W peak LF transducer: EVS18SB, 18 in (457 mm) driver Nominal impedance: 8 Ohm Minimum impedance: 6.0 Ohm Connectors: (2) 4-contact 10 AWG Phoenix/Euroblock screw terminal Enclosure material: 13-ply weather resistant birch Grille: 16 GA Galvanneal, powdercoat, rotatable logo Suspension: (28) M10 threaded points Dimensions (H x W x D): 30.26 in x 26.60 in x 28.60 in (768.6 x 675.6 x 726.4 mm) Net weight: 101.2 lb (46.0 kg) Shipping weight: 114.7 lb (52.1 kg) Color: White

EVF-1181S-WHT subwoofer
EBK-M10-EVI eyebolt kit (4 forged eyebolts)
