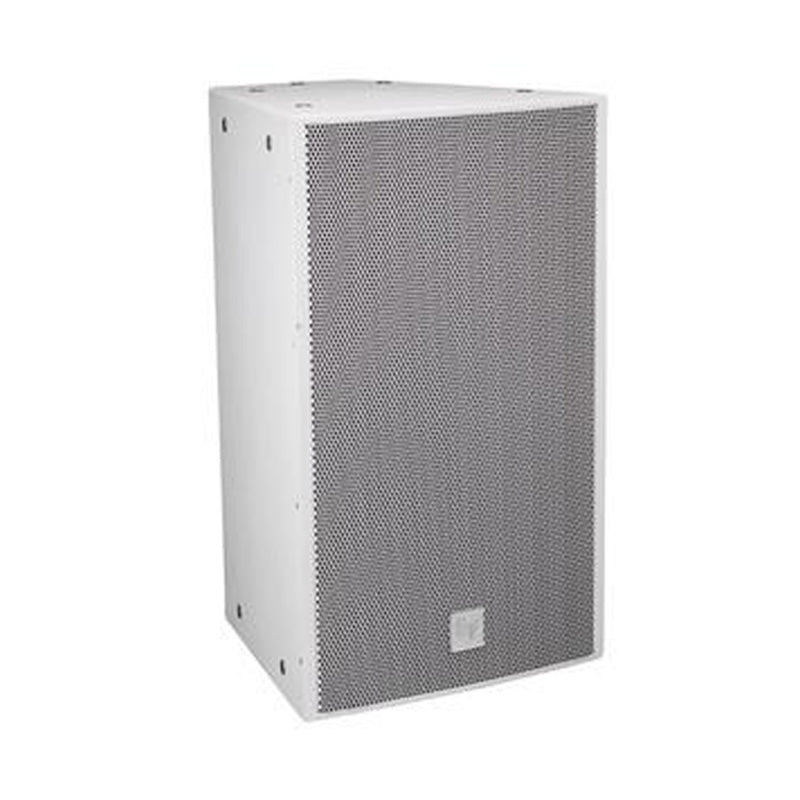

Electro-Voice EVF1152D/99-WHITE - Premium Arrayable Point-Source 15" Loudspeaker, White

Marca:Electro-Voice

Electro-Voice EVF1152D/99-WHITE - Premium Arrayable Point-Source 15" Loudspeaker, White

$3,093.91
Premium 15-inch arrayable point-source loudspeaker with a 90°x90° Constant Directivity waveguide and DVX3151A woofer, delivering near-field wide-throw coverage for demanding fixed-install applications.
In-Stock!

Ships in 1-2 Business Days.

Detalles del producto

Características del producto

EVF-1152D/99 features a 90° x 90° rotatable waveguide, design for near field wide throw raw spread coverage pattern.

  • Compact and lightweight
  • Low distortion, high efficiency
  • Ideal for fixed installations
  • DVX3151A woofer with fully symmetric drive
  • 3-inch DH7N titanium/neodymium HF compression driver
  • Rotatable Constant-directivity waveguide
  • Six available patterns with coverage from 40º to 90º
  • 100 dB sensitivity, 134 dB maximum SPL
  • Power handling: 600 W continuous, 2400 W peak
  • 4th-order crossover with HF protection
  • Trapezoidal 13-ply plywood enclosure in three finishes: EVCoat, PI, and fiberglass (FG)
  • M10 threaded suspension points (22)
  • Transformer kit available for distributed systems
Especificaciones del producto

Frequency Range (-10 dB): 40 Hz – 21 kHz Suspension: 22 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included) Weatherized: No Minimum Impedance: 6 Ω Nominal Impedance (Passive): 8 Ω HF Transducer: 3" DH7N diaphragm compression driver Speaker Type: Full-Range, Two-Way Frequency Response (-3 dB): 70 Hz – 18 kHz LF Nominal Impedance: 8 Ω Max. SPL/1m (calc): 134 dB Coverage (Nominal -6 dB) H: 90° LF Transducer: 15" DVX3151A woofer Coverage (Nominal -6 dB) V: 90° System Power Handling (Continuous/Program/Peak): 600 W / 1200 W / 2400 W Crossover Frequency: 1300 Hz Enclosure Material: 13-ply weather-resistant birch Grille: Standard versions: 16 ga Galvanneal, Powdercoat with screen behind. PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind Sensitivity 1 W/1 m: 100 dB Height: 768.6 mm Width: 469.8 mm Recommended High-Pass Frequency: 45 Hz Depth: 466.6 mm Weight Net: 34.4 kg Shipping Weight: 39.1 kg Available Coverage Patterns (Nominal -6 dB) HxV: 90 x 90 Environmental Specs: Standard versions: IEC 60529 IP44. PI and FG versions: IEC 60529 IP55 Internal Passive Crossover Frequency: 1300 Hz Passive Power Handling: 2400 W Net Weight: 75.7 lb (34.4 kg) Dimensions (H x W x D): 30.26" x 18.5" x 18.37" (768.6 x 469.8 x 466.6 mm) Input Connections: Euroblock; PI and FG versions include dual-gland-nut input-panel cover

Qué incluye

EVF-1152D/99-WHITE loudspeaker
EBK-M10-EVI rigging kit (four forged eyebolts)
Owner's manual
