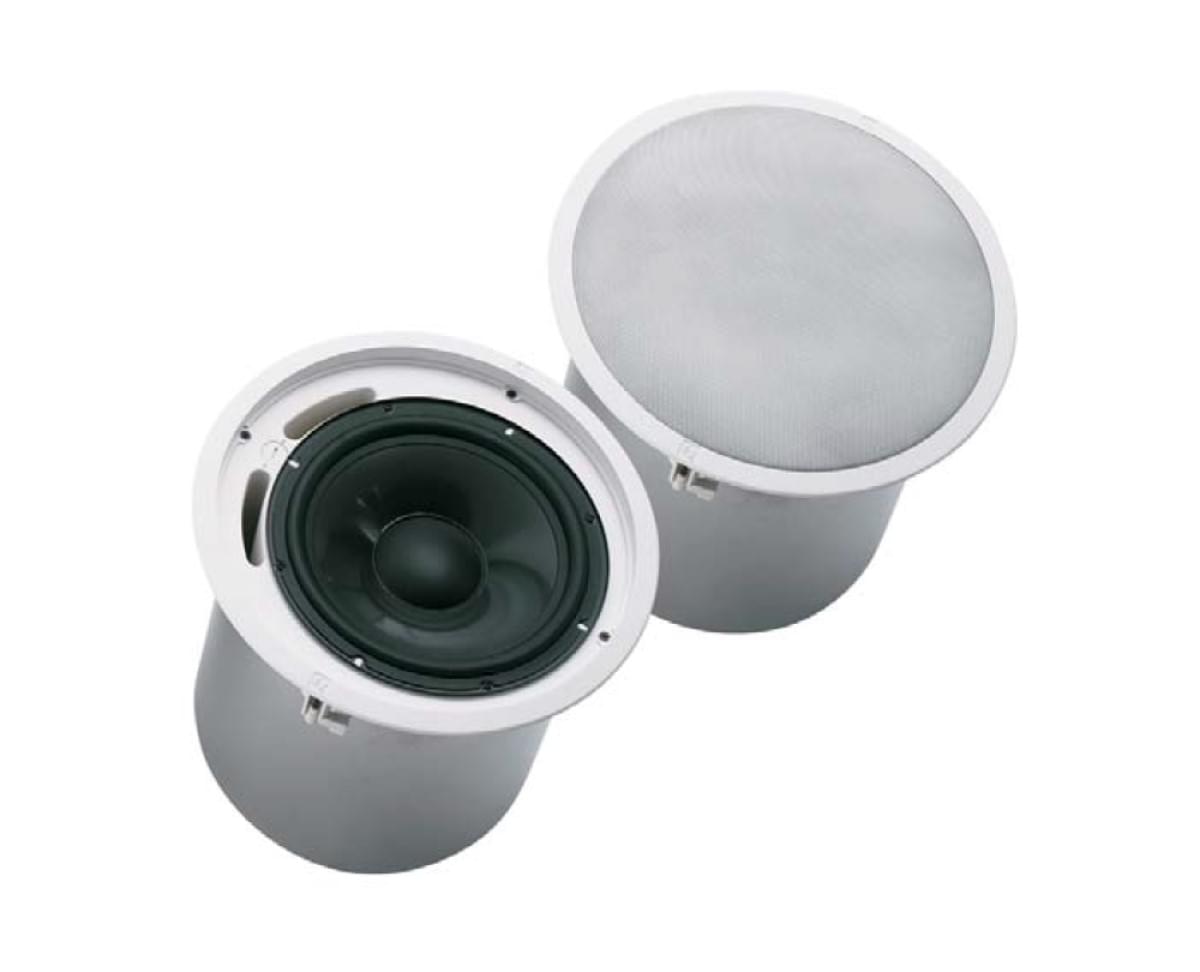

Electro-Voice EVID C10.1 - Pair of 10" Ceiling Subwoofers

• Supplemental LF for ceiling systems
• High-excursion woofer in ported enclosure for extended lows
• Low pass network with overload protection
• Integrated transformer for 70 V, 100 V, or 8 Ω use
• Front-panel mode/wattage selector
• Internally damped heavy-gauge steel enclosure
• Safe, easy installation with included tile bridge and mounting ring
• White semi-gloss perforated grille
• Complete package, requires no additional accessories

Frequency Range (-10 dB): 45 Hz - 180 Hz Speaker Type: Dual ported cabinet, internally damped Max. SPL/1m (calc): 122 dB LF Transducer: 10-inch polypropylene cone Power Rating (Peak): 600 W System Power Handling (Continuous): 150 W Enclosure Material: Steel enclosure with UL94V-0 rated baffle and bezel Grille: Perforated powder-coated steel with safety tether Sensitivity (1W/1m): 94 dB Available Color: White (paintable surface) Height: 303 mm (11.9 in) Diameter (Max): 320 mm (12.6 in) Weight Net (each): 7 kg (15.5 lb) Input Formats: 8 Ohm, 70 V, 100 V Nominal Impedance: 8 Ohms (transformer bypass) Coverage (Nominal -6 dB): 180 degrees, conical Mounting Systems: Integrated 3-point toggle anchors Cutout Diameter: 12.7 in (324 mm) Transformer Taps: 70V: 7.5, 15, 30 or 60W; 100V: 15, 30 or 60W; Bypass: 8 Ohms Crossover: 2nd Order (12 dB/Octave) Low-Pass Network Inputs: Removable 4-Pin Euroblock with screw terminals and loop-thru Maximum Wire Gauge: 12 AWG Transformer: Yes Weatherized: No Flying: No

Electro-Voice EVID C10.1 Passive 10" 100W Ceiling Subwoofers (Pair, White)
2 x Tile Bridges
2 x Mounting Rings
2 x Backing Plate Supports
2 x Cutout Templates
2 x Paint Shields
Limited 5-Year Manufacturer Warranty
