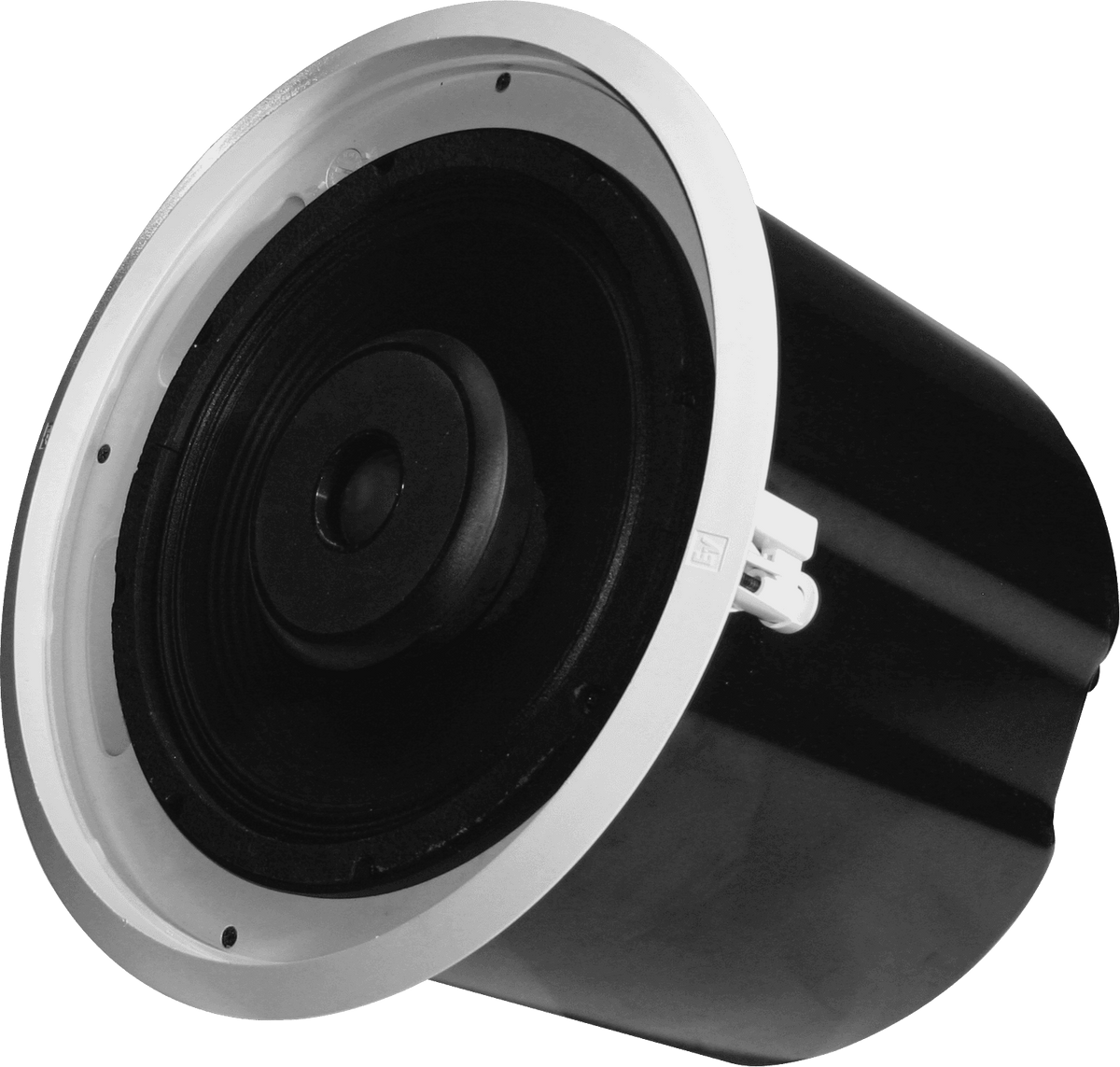

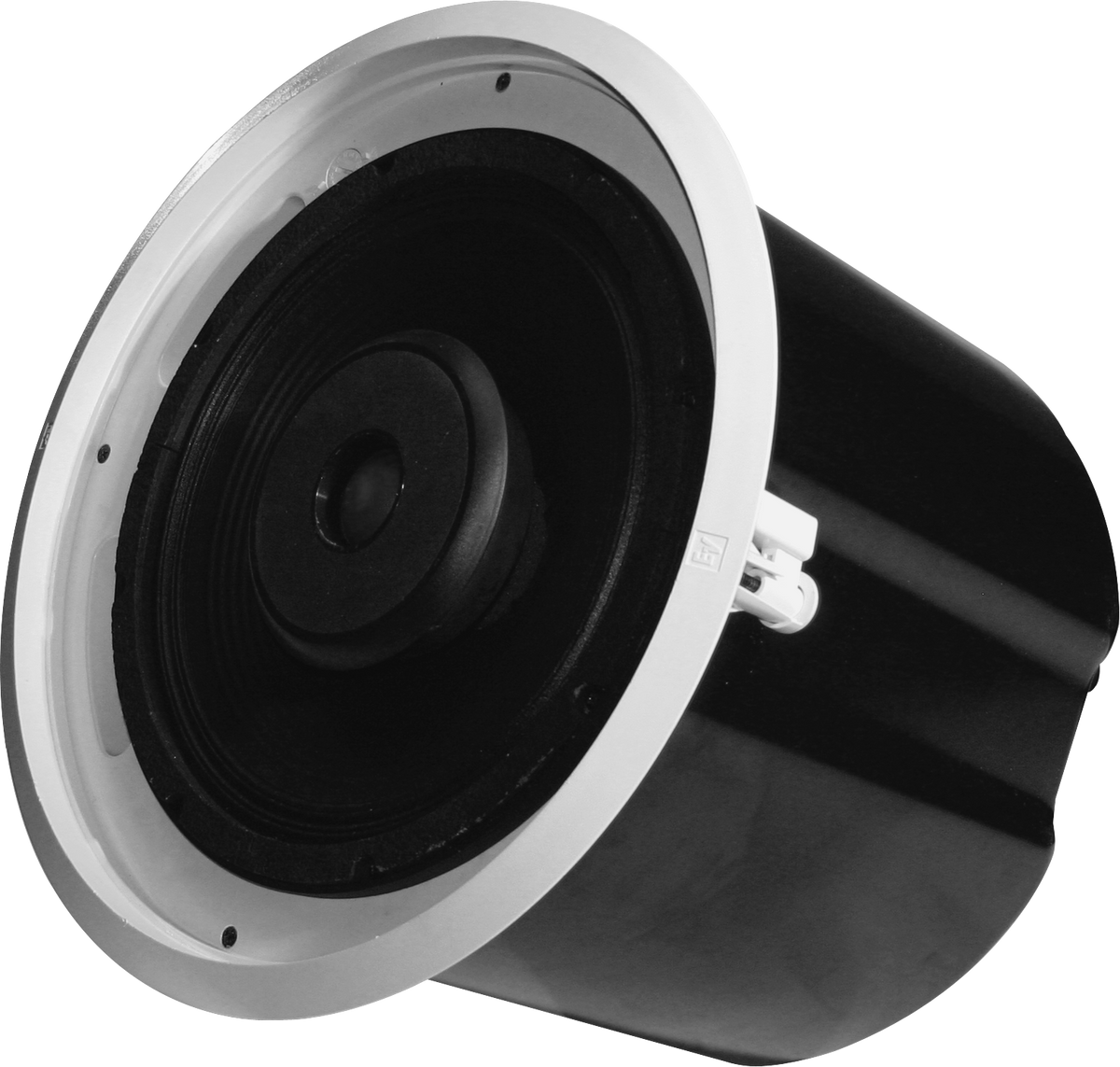

Electro-Voice EVID C12.2 - Integrated 12" Ceiling Mounted Speaker System

EVID C12.2 delivers full-range power for high ceilings and large spaces with high sensitivity and high power-handling. It features an integrated transformer with automatic saturation compensation for distortion-free 70V, 100V, or 8 Ohm use, a front-panel mode/wattage selector, and a white semi-gloss perforated grille housed in a heavy-gauge black steel enclosure. It includes 3/8-inch threaded-rod mount points for open ceilings, and ships as a complete package with a tile bridge and mounting ring, requiring no additional accessories.

• Full-range power for high ceilings, large spaces
• High sensitivity, high power-handling
• Integrated transformer with automatic saturation compensation for distortion free 70V, 100V, or 8 Ohm use
• Front-panel mode/wattage selector
• White semi-gloss perforated grille
• Heavy-gauge steel enclosure
• 3/8-inch threaded-rod mount points for open ceilings
• Safe, easy installation with included tile bridge and mounting ring
• Complete package, requires no additional accessories

HF transducer: 1 in (25mm) Speaker type: Ported cabinet, internally damped two-way Frequency response (-3 dB): 65-20,000 Hz Max. calculated SPL: 126 dB LF transducer: 12-inch EVID 920-8B Power rating: 64 W (transformer taps) System power handling: 100 W Crossover frequency: 2000 Hz Enclosure: Steel enclosure with UL94V-0 rated baffle and bezel Grille: Powder-coated steel Sensitivity: 100 dB (1W/1m) Color: White (paintable surface) Height: 333 mm (13.11 in) Diameter: 414 mm (16.30 in) Weight: 12.3 kg (27.1 lb) Input formats: 8 Ohm / 70V / 100V Coverage: 90 degrees Transformer taps: 4, 8, 16, 32, 64 W (ASC protected, 70V only)

EVID C12.2 ceiling speaker
Tile bridge
Mounting ring
Integrated 70V/100V transformer
