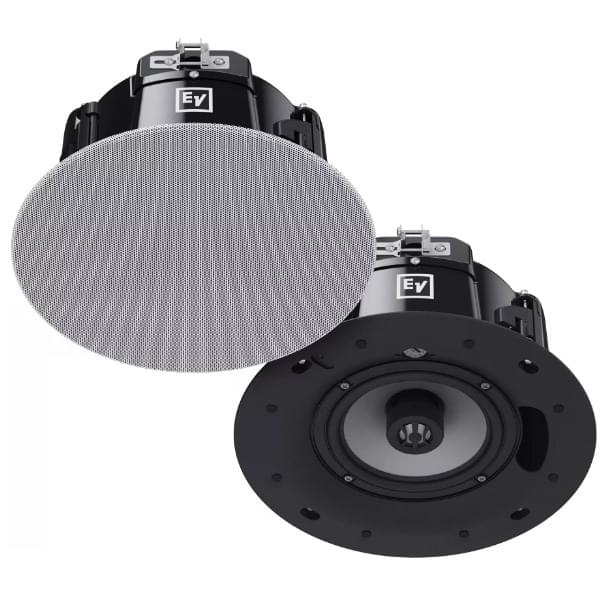

Electro-Voice EVID-C6.2-G2 - 6" 2-Way Coaxial Ceiling Speaker w/ Multi-Tap 70/100V Transformer

• SwiftLock mounting system for quick, safe, and reliable installation.
• Bezel-less design with easy-attach grille.
• Front baffle wattage tap adjustment.
• Includes tile bridge and mounting ring for easy installation.
• UL 1480A, UL 2043 and CSA 22.2 205 certified.

The Electro-Voice EVID-C6.2-G2 is a complete 6.5-inch coaxial two-way loudspeaker that offers excellent sound quality and outstanding reliability with first-class aesthetics. It includes the SwiftLock mounting system for quick and easy installations that are fast and reliable without compromising on safety. The loudspeaker features a point-source design to improve off-axis response and overall uniform coverage. The EVID-C6.2-G2 utilizes a transformer that offers a selection of 1.9 (70-V only), 3.8, 7.5, 15 or 30 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8-ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle is constructed from UL 94V-0 rated ABS. The rear enclosure is constructed from heavy gauge coated steel. The low-profile enclosure makes it easy to mount in very tight spaces. A side terminal-cover provides access to a 4-pin terminal block that allows direct connection to the speaker with 12-gauge and 3.3 mm2-wire and provides pass through to additional speakers. A mounting ring and a tile bridge are included for safe suspension of the EVID-C6.2-G2 ceiling systems in a drop ceiling that uses mineral wool, or other fiber-based ceiling tiles. The wide range of EVID ceiling speakers has been designed to work together as a complete system in a variety of different ceiling constructions, and to be used in combination with other EVID surface-mount and in-wall speakers.

Frequency range (-10 dB): 65 Hz – 20,000 Hz Maximum SPL (continuous): 109 dB Maximum SPL (peak): 115 dB Sensitivity (1 W, 1 m): 90 dB SPL Coverage angle conical: 110° Power handling (continuous): 80 W Power handling (peak): 320 W Long term power handling (continuous): 70 W Long term power handling (peak): 280 W Nominal impedance (Low Z): 8 Ω Recommended high pass: 60 Hz Transformer taps 70 V line: 30 W; 15 W; 7.5 W; 3.75 W; 1.88 W Transformer taps 100 V line: 30 W; 15 W; 7.5 W; 3.75 W LF transducer size: 6 in HF transducer size: 1 in Material: Steel Grille material: Powder coated steel Connector type: 4-pin Euroblock Wire size: 12AWG (maximum), 3.3 mm2 (maximum) Color: White (RAL 9003 Signal white); Customized colors available Mounting cutout: 10.7 in (272 mm) Dimensions (Ø x D): 11.9 in x 6 in (302 mm x 153.8 mm) Mounting depth: 5.9 in (163 mm) Ceiling thickness: 0.5 in - 1.5 in (12.5 mm - 38 mm) Weight: 9 lb (4.1 kg) Shipping weight: 22 lb (10 kg) per pair IP rating: IP34 Weatherization: Indoor Operating temperature: 32°F - 122°F (0°C - 50°C) Safety agency ratings: UL 1480A, safe for use in air-handling spaces per UL 2043, CSA 22.2 205 certified, IEC 62638

Electro-Voice EVID-C6.2-G2 6.5" Ceiling Speaker (White, Pair)
2 x Connection Cover (Installed)
Magnet Grille
4 x Ceiling Tile Rails
2 x C-Ring
4 x Screws
Cutout Template
2 x Paint Shields
Limited 5-Year Manufacturer Warranty
