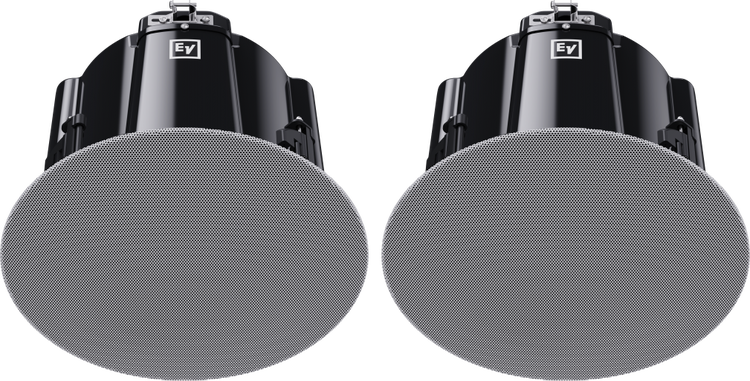

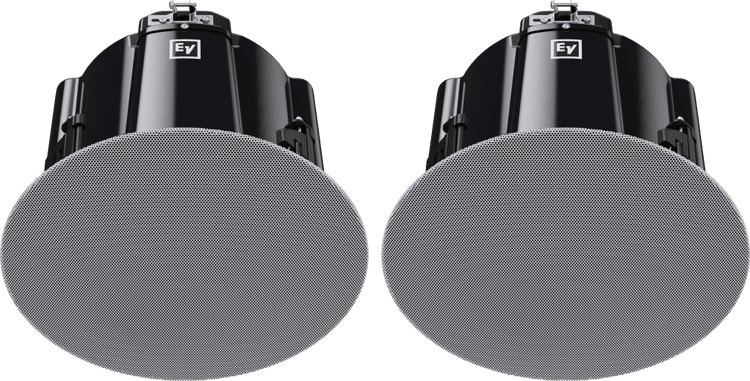

Electro-Voice EVID-C8.1S-G2 - 8" In-Ceiling Subwoofer with 70/100V Transformer

The Electro-Voice EVID-C8.1S-G2 is a complete 8-inch subwoofer that offers excellent sound quality and outstanding reliability with first-class aesthetics. It includes the SwiftLock mounting system for quick and easy installations that are fast and reliable without compromising on safety. The subwoofer features a point-source design to improve off-axis response and overall uniform coverage.

The EVID-C8.1S-G2 utilizes a transformer that offers a selection of 3.75 (70-V only), 7.5, 15, 30 or 60 watts delivered to the subwoofer system using either 70-V or 100-V lines, or 8-ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle is constructed from UL 94V-0 rated ABS. The rear enclosure is constructed from heavy gauge coated steel. The low-profile enclosure makes it easy to mount in very tight spaces. A side terminal cover provides access to a 4-pin terminal block that allows direct connection to the speaker with 12-gauge and 3.3 mm2 wire and provides pass through to additional speakers.

A mounting ring and a tile bridge are included for safe suspension of the EVID-C8.1S-G2 ceiling systems in a drop ceiling that uses mineral wool, or other fiber-based ceiling tiles.

• SwiftLock mounting system for quick, safe, and reliable installation
• Bezel-less design with easy-attach grille
• Front baffle wattage tap adjustment
• Includes tile bridge and mounting ring for easy installation
• UL 1480A, UL 2043 and CSA 22.2 205 certified

Frequency Range (-10 dB): 45 Hz - 380 Hz Maximum SPL (Continuous): 113 dB Maximum SPL (Peak): 119 dB Sensitivity (1 W, 1 m): 90 dB SPL Coverage Angle: 360 degrees conical Power Handling (Continuous): 180 W Power Handling (Peak): 720 W Long Term Power Handling (Continuous): 150 W Long Term Power Handling (Peak): 600 W Nominal Impedance: 8 ohms Transformer Taps 70V Line: 60W, 30W, 15W, 7.5W, 3.75W Transformer Taps 100V Line: 60W, 30W, 15W, 7.5W LF Transducer Size: 8 in Material: Steel Grille Material: Powder coated steel Connector Type: 4-pin Euroblock, Input + Pass through Wire Size: 12 AWG maximum (3.3 mm2) Color: White (RAL 9003 Signal White); Customized colors available Mounting Cutout: 12.7 in (322 mm) Dimensions (Diameter x Depth): 13.9 in x 9.9 in (353 x 350.7 mm) Mounting Depth: 9.5 in (240 mm) Ceiling Thickness: 0.5 in - 1.5 in (12.5 mm - 38 mm) Weight: 16 lb (7.25 kg) Shipping Weight: 40.8 lb (18.5 kg, pair) IP Rating: IP34 Operating Temperature: 32F to 122F (0C to 50C) Safety Agency Ratings: UL 1480A, UL 2043, CSA 22.2 205, IEC 62638

Electro-Voice EVID-C8.1S-G2 In-Ceiling Subwoofer
Mounting Ring
Tile Bridge
