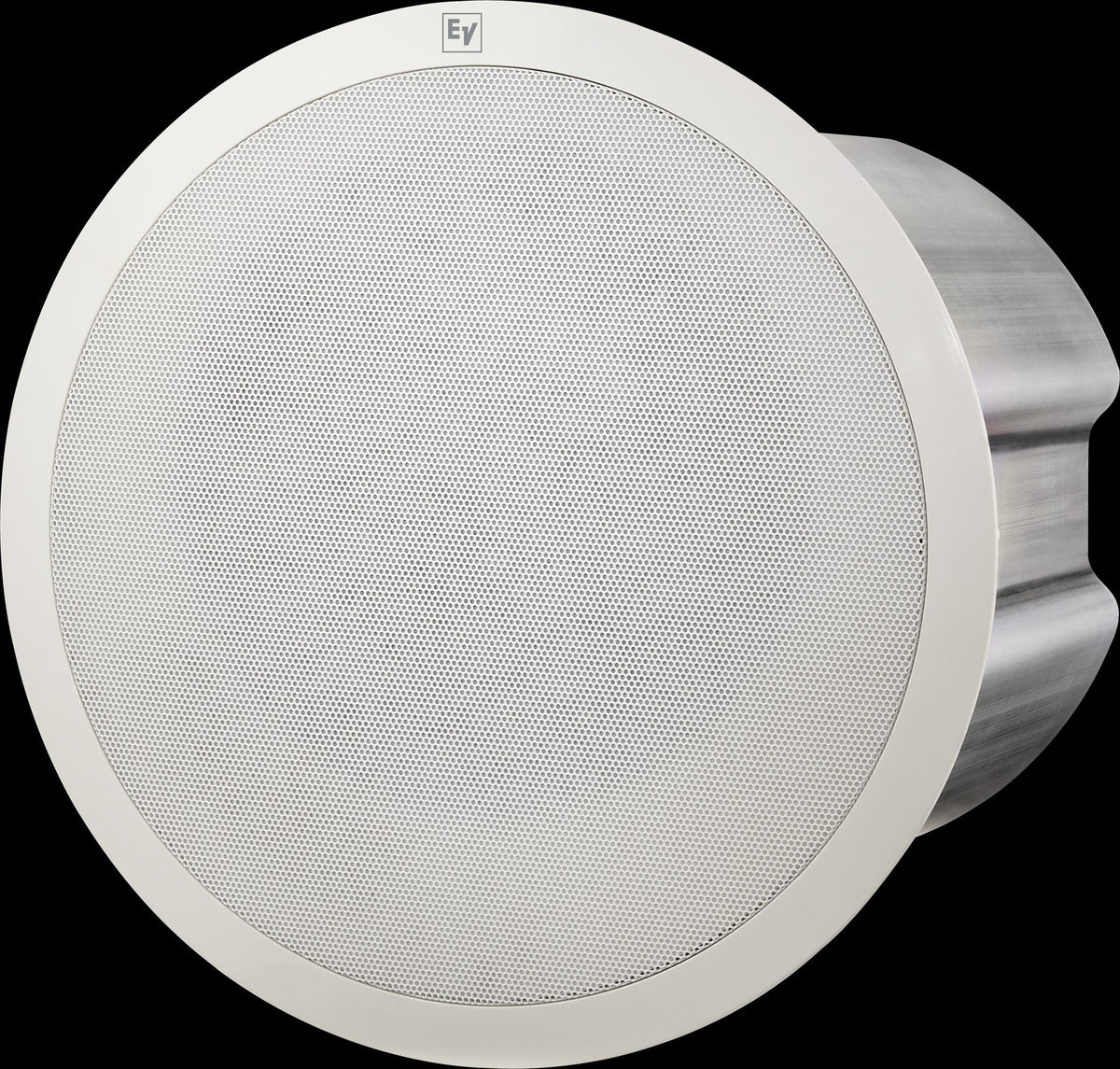

Electro-Voice EVID-PC8.2 - 8” 2-Way Ceiling Speaker with Compression Driver, Pair

Marca:Electro-Voice

Electro-Voice EVID-PC8.2 - 8” 2-Way Ceiling Speaker with Compression Driver, Pair

$978.94
Pair of 8-inch two-way ceiling speakers with a dedicated Electro-Voice compression driver, 100W transformer tap selection (70V/100V/8Ω), and quick four-point mounting hardware for commercial background and foreground music applications.
In-Stock!

Ships in 1-2 Business Days.

Detalles del producto

Características del producto

The PC8.2 (8-inch two-way) is designed to be the most advanced ceiling speaker available today, with superior performance across every detail. Each self-contained unit features a dedicated compression driver for enhanced high-frequency performance and coverage control in comparison to current EVID ceiling speaker offerings. Simplified wiring and innovative new integrated mounting hardware allows for quicker installation into a wide range of ceiling cavities and construction formats.

The model adds increased power handling (100 W), higher output (113 dB / 114 dB), and wider coverage angles (120˚ / 105˚) to the user-friendly installation and low-profile looks that contractors expect from EVID products, complimenting the range as a new, high-end option. Ideal for retail spaces, restaurants, theater and stadium concourses, shopping malls, and a wide range of applications where premium-quality distributed audio is required.

  • High-performance EV-engineered compression driver. Ultra-wide HF dispersion provides extremely even coverage through room.
  • High-excursion woofer provides dramatic low-end frequency extension. Reinforced steel back can provides rigid enclosure to minimize acoustic loss.
  • Four-point clamp mechanism and integrated mounting legs enable quick ceiling installation.
  • Detachable pass-thru Phoenix-style signal connections simplify installation wiring. Tap selector with 8Ω / 70 V / 100 V operation.
  • Fully reinforced ABS UL-rated baffle ensures long life. Fully compliant with UL 1480, and 2043 standards.
Especificaciones del producto

Weatherized: No HF Transducer: 35 mm compression driver Frequency Range (-10 dB): 40 Hz - 20 kHz Max. SPL/1m (calc): 108 dB avg, 114 dB peak LF Transducer: 200 mm (8 in) Power Rating: 200 W HF Power Handling: 200W program, 100W pink noise Connector Type: Removable locking 4-pin (Phoenix), 12 AWG (2.5 mm) max wire size Enclosure Material: ABS plastic (UL94V-0) baffle, steel back can Grille: Color-matched steel grille with fabric Sensitivity (1W/1m): 88 dB Available Color: White Height: 324 mm Weight Net: 8 kg Shipping Weight: 20.23 lb Diameter (Max): 327 mm Transformer Taps: 70V: 60W, 30W, 15W, 7.5W, 8Ω; 100V: 60W, 30W, 15W, 8Ω Coverage (Nominal -6 dB): 100° Mounting Systems: C-ring, tile bridge Impedance: 8 Ω Cutout Size: 294.3 mm Regulatory Approvals: UL1480, UL2043

Qué incluye

Electro-Voice EVID-PC8.2 8" 2-Way Ceiling Speakers (Pair, White)
C-Ring Mounting Hardware
Tile Bridge
Installation Manual
