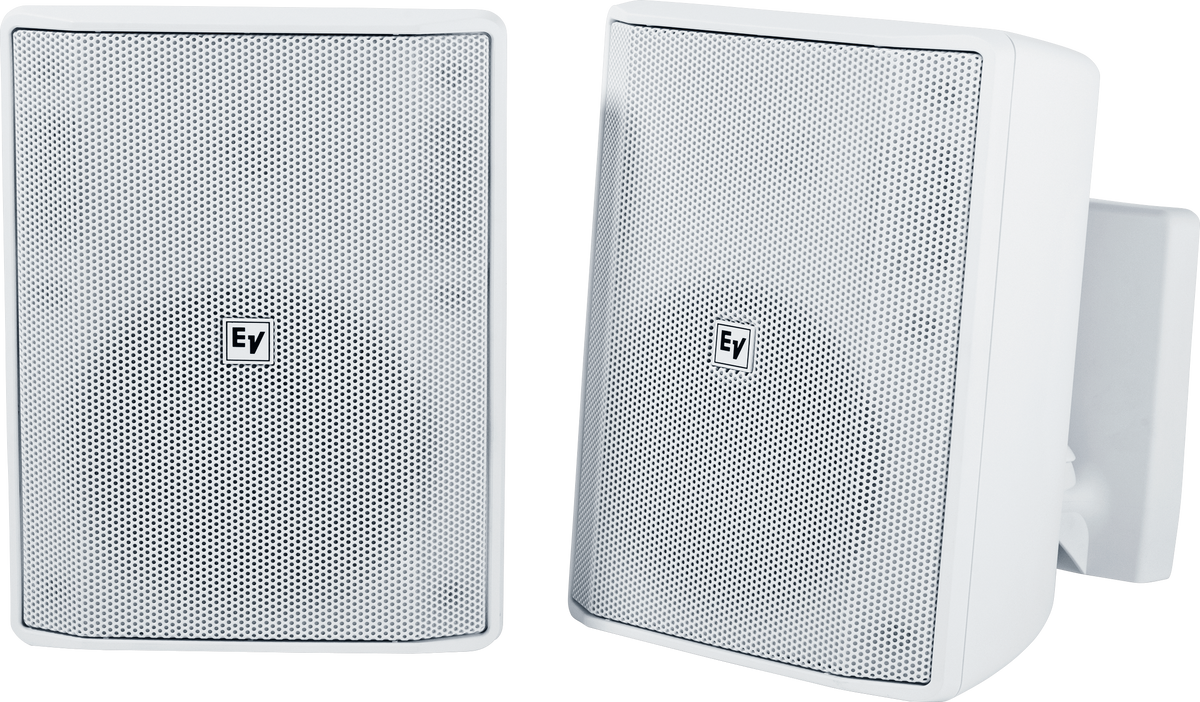

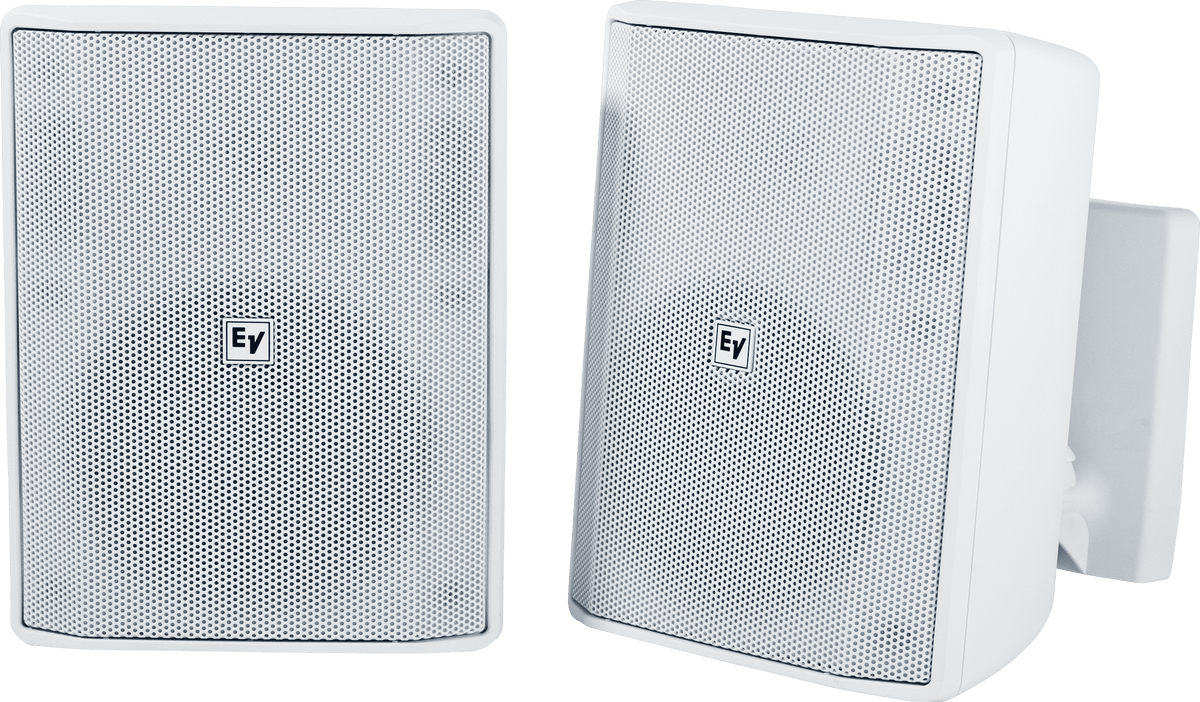

Electro-Voice EVID-S5.2TW - Speaker 5” Cabinet 70/100v Ip54. Pair Only, White

The EVID-S5.2T from Electro-Voice is a high-performance, two-way, full-range, 5.25" (133 mm) surface mount speaker with excellent wide, uniform coverage, and outstanding performance. It is designed for background and foreground music, paging, and sound reinforcement, and it's ideal for a wide variety of indoor and outdoor applications, such as restaurants, bars, patios, retail, fitness clubs, hospitality, theme parks, leisure venues, and others.

With unparalleled ease-of-installation, sturdy weather resistance, modern and delicate look, and its flexible mounting options, the EVID-S5.2T is the perfect solution for a wide variety of surface mount applications.

The EVID-S5.2T includes the unique and innovative mounting system, from Electro-Voice, making every installation quick, simple, and reliable. The mounting system allows for 90 degrees of rotation horizontally, and 45 degrees of rotation vertically, and it can be easily installed on walls and ceilings. The mounting system comes already assembled and ready to be used, ready to make any job easier.

The EVID-S5.2T utilizes a 30 W transformer, that offers a selection of 3.7 W (70 V only), 7.5 W, 15 W, or 30 W delivered to the speaker system using either 70 V or 100 V lines, or 8 Ω bypass for low impedance lines. Selection is done with a convenient switch on the input panel located on the rear of the speaker.

The EVID-S5.2T has been carefully engineered to excel in both indoor and outdoor environments. With an impressive IP54 rating, the EVID-S5.2T demonstrates exceptional weather resistance, guarding against sun, salt, and moisture for reliable operation even in challenging outdoor conditions.

All EVID-S models are available in black or white, and can be easily painted to match the décor. Transformer versions are also available for constant voltage systems.

Frequency Range (-10 dB): 60 Hz – 20 kHz Weatherized: Yes Minimum Impedance: 6 Ω HF Transducer: 0.75 inch (20 mm) Frequency Response (-3 dB): 85 Hz – 20 kHz Max. SPL/1m (calc): 109 dB Coverage (Nominal -6 dB) H: 90° Coverage (Nominal -6 dB) V: 90° LF Transducer: 5.25 inch (133 mm) Connector Type: Captive screws on wall bracket. Removable locking 4-pin connector (Euroblock) – (2) for connection to additional speakers in a distributed line. Max. wire size 12AWG (2.5 mm) Sensitivity 1 W/1 m: 90 dB Available Color: Black or White Height: 255 mm (10.04 in) Width: 180 mm (7.09 in) Depth: 151 mm (5.94 in) Recommended High-Pass Frequency: 60 Hz Weight Net: 3.2 kg (7.05 lb) Shipping Weight: 7.9 kg (17.4 lb) Transformer: 70V/100V (30W) Environmental Specs: IP54 (per IEC-60529) Nominal Impedance: 8 Ω

Electro-Voice EVID-S5.2T 5.25" 2-Way 70/100V Commercial Loudspeaker (Pair, White)
2 x Wall-Mount Brackets
2 x Dust Covers
Allen Wrench
2 x Spare Grille Logos
2 x Safety Screws for Mounting Brackets
2 x Safety Screw Caps for Mounting Brackets
2 x Covers for Locking Bolts
2 x Flush Input Covers
8 x Screws for Flush Input Covers
Limited 5-Year Manufacturer Warranty
