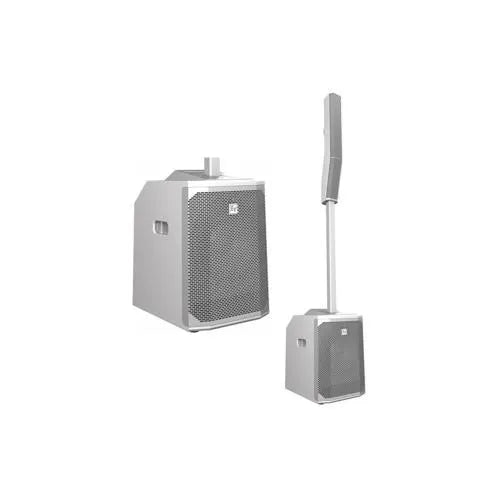

Electro-Voice Evolve 50 KW - Portable Column Array PA System, White

Pure, accurate Electro‑Voice audio performance in a sleek new form factor. The perfect choice for DJs, mobile entertainers, bands, singer/songwriters and any venue where high‑output portable sound is needed — no other column system currently available sounds as good, looks as good, or is as easy to use. Acoustically powerful, aesthetically discreet: column sound evolves to the next level.

Ergonomically designed handles on both the array and the sub enhance portability. Integrated speaker wires allow quick, clean connection. Angled interface gives user easy access to make adjustments and connections on input panel.

Legendary EV audio quality via eight 3.5‑inch full‑range neodymium drivers and a 12‑inch subwoofer, powered by a three‑channel amp for high output. Cutting‑edge components and tuning provide full‑sized sound in a super‑streamlined, plug‑and‑play format.

Proprietary waveguides provide ultra‑wide 120° horizontal coverage and array‑formed 40° asymmetrical vertical pattern control. No energy is wasted — exceptional audience coverage and clarity from front to back.

Best‑in‑class processing via EV’s signature single‑knob user interface with LCD. Easy operation via four presets (Music, Live, Speech, Club), threeband EQ, five user‑programmable presets, output delay, phantom power, input level control and metering, and master volume control to optimize gain structure.

New Bluetooth QuickSmart Mobile makes it easy to dial‑in settings in real‑time from in front of the system. Quickly configure, control and monitor of up to six EVOLVE 50 systems simultaneously, and receive immediate notification during critical performance conditions.

The EVOLVE 50 Portable Column System is a three component loudspeaker system powered by a 1000 W Class-D amplifier and driven by Electro-Voice's QuickSmartDSP.

The system consists of a 15 mm wooden, ported, powered subwoofer enclosure that houses a 12” subwoofer capable of a functional frequency output down to 37 Hz.

The bi-directional aluminum pole’s connection to the subwoofer is secured using a magnet, and the column array is gravity-held to the sub pole. The signal is internally routed to the components.

Eight 3.5" neodymium drivers in the column array coupled with the 12" subwoofer delivers up to 127 dB SPL. The eight composite waveguides control high frequencies with 120° of horizontal coverage, and 40° of asymmetrical (down-facing) vertical coverage to ensure suitable output for sitting and standing audiences. The sub pole and column array come prepackaged in a carrying bag.

The processing engine allows for easy setup via four presets (Music, Live, Speech, and Club), three-band EQ, five user-programmable presets (Store and Recall settings), output delay, phantom power (+15V), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure.

The new Electro-Voice QuickSmart Mobile application utilizes Bluetooth Low Energy (BTLE) technology for the wireless configuration, control, and monitoring of up to six EVOLVE 50 systems simultaneously. High resolution Bluetooth audio streaming adds convenience for wireless music playback in breakout rooms, intermission, and musical accompaniment.

Bluetooth is available in select countries.

Frequency response (-3 dB): 43 Hz-20 KHz Frequency range (-10 dB): 37 Hz-20 KHz Maximum SPL: 127 dB Coverage (H x V): 120° x 40° Amplifier rating: 1000 W LF channel rating: 500 W HF channel rating: 500 W Crossover frequency: 200 Hz Connectors: 2x XLR/TRS Combo Jack Input, 1x 3.5 mm Input, 1x Stereo RCA Input, 1x Wireless Bluetooth Audio Input, 1x XLR THRU Output, 1x XLR MIX OUT Output Enclosure: Sub: 15 mm plywood; Column: Composite; Pole: Aluminum Grille: Steel with black or white powder coat Color: Black or white Dimensions Sub (HxWxD): 530 x 345 x 471 mm (20.9 x 13.6 x 18.5 in) Dimensions Column (HxWxD): 825 x 102 x 172 mm (32.5 x 4.0 x 6.9 in) Dimensions Pole (HxWxD): 929 x 48.5 x 55 mm (36.6 x 1.9 x 2.2 in) Net weight Sub: 44.66 lb (20.3 kg) Net weight Column: 10.34 lb (4.7 kg) Net weight Pole: 2.75 lb (1.25 kg) Shipping weight Sub box: 50.71 lb (23 kg) Shipping weight Column box: 18.30 lb (8.3 kg) Power consumption: 100-240 V AC, 50-60 Hz, 1.5-0.6 A

EVOLVE50-TW Column Speaker Array, Sub Pole, and Carrying Bag (White)
EVOLVE50-SW Column Speaker Subwoofer, Global (White)
