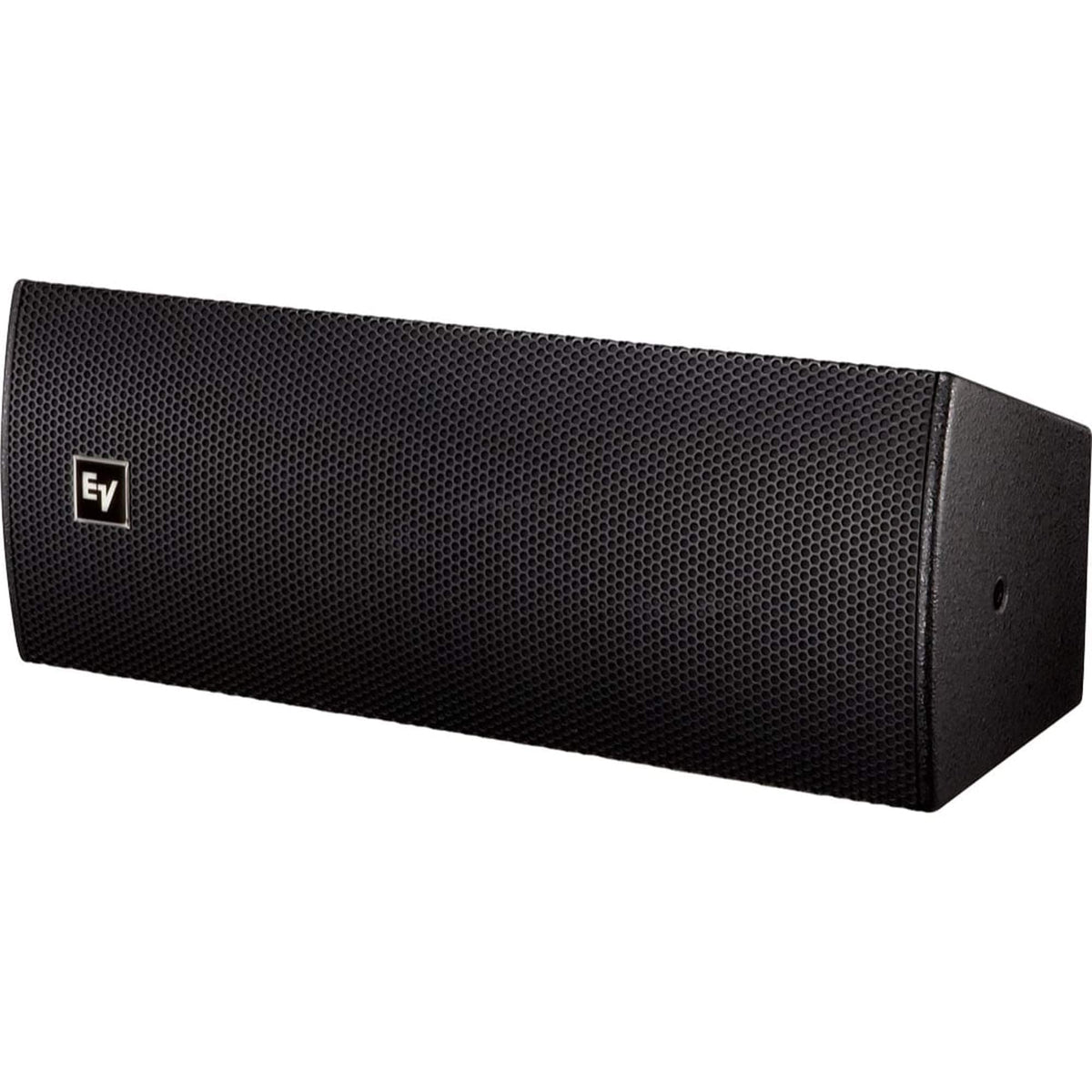

Electro-Voice EVU-2062/95 - Dual 6.5" 2-Way Loudspeaker, Black

• Sonically matched to all EV-Innovation lines
• Sophisticated 18-dB-octave passive crossover/EQ networks
• Asymmetrical enclosure for ideal under-balcony and stage-lip aiming
• Optional Neutrik Speakon® connector panel
• One 1.3-inch (33 mm) diaphragm compression driver
• U-bracket included
• Optional 70 V and 100 V operation
• OmniMount®-compatible rear mounting points
• Available in black or white (interior use)
• Ultracompact 8 x 21 inch enclosure
• 90º x 50º rotatable waveguide
• Ultra-high power handling for size: 300 W continuous
• 125 dB Max SPL
• Asymmetrical trapezoidal enclosure design
• Compatible with OmniMount

Frequency Range (-10 dB): 70 - 20,000 Hz Frequency Response (-3 dB): 100 - 16,000 Hz Suspension: Six M8 threaded points Weatherized: No Minimum Impedance: 6 Ohms Nominal Impedance: 8 Ohms HF Transducer: One 1.3-inch (33 mm) diaphragm ICT-1-8 compression driver Speaker Type: Full-Range, Two-Way Max. SPL/1m (calc): 125 dB Coverage (Nominal -6 dB) H x V: 90 x 50 degrees LF Transducer: Two 6.5-inch (165 mm) ICT-6.5-8 woofers System Power Handling (Continuous/Peak): 300 / 1200 W Connector Type: 4-pin Phoenix/Euroblock screw terminals (up to 10 AWG wire) Enclosure Material: 9-ply hardwood plywood Grille: 18-gauge steel with cloth behind Available Color: Black or white Height: 209 mm Width: 533 mm Depth: 207 mm Weight Net: 11.3 kg Shipping Weight: 14.2 kg Recommended High-Pass Frequency: 90 Hz Waveguide: 6 in. x 6 in., rotatable Axial Sensitivity (SPL, 1 W @ 1 m): 94 dB Finish: Textured paint

Electro-Voice EVU-2062/95 Dual 6.5" 2-Way Loudspeaker
U-Bracket
