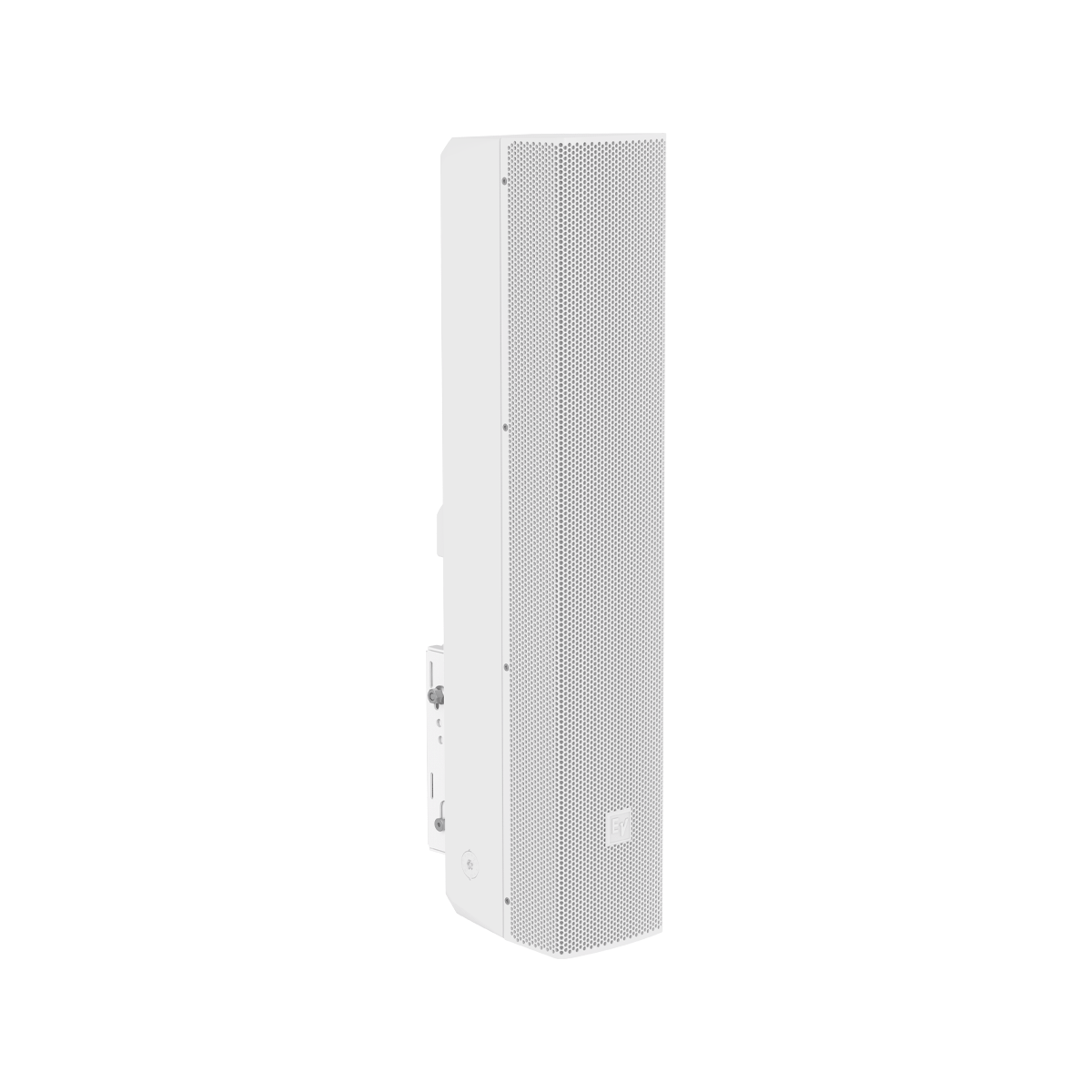

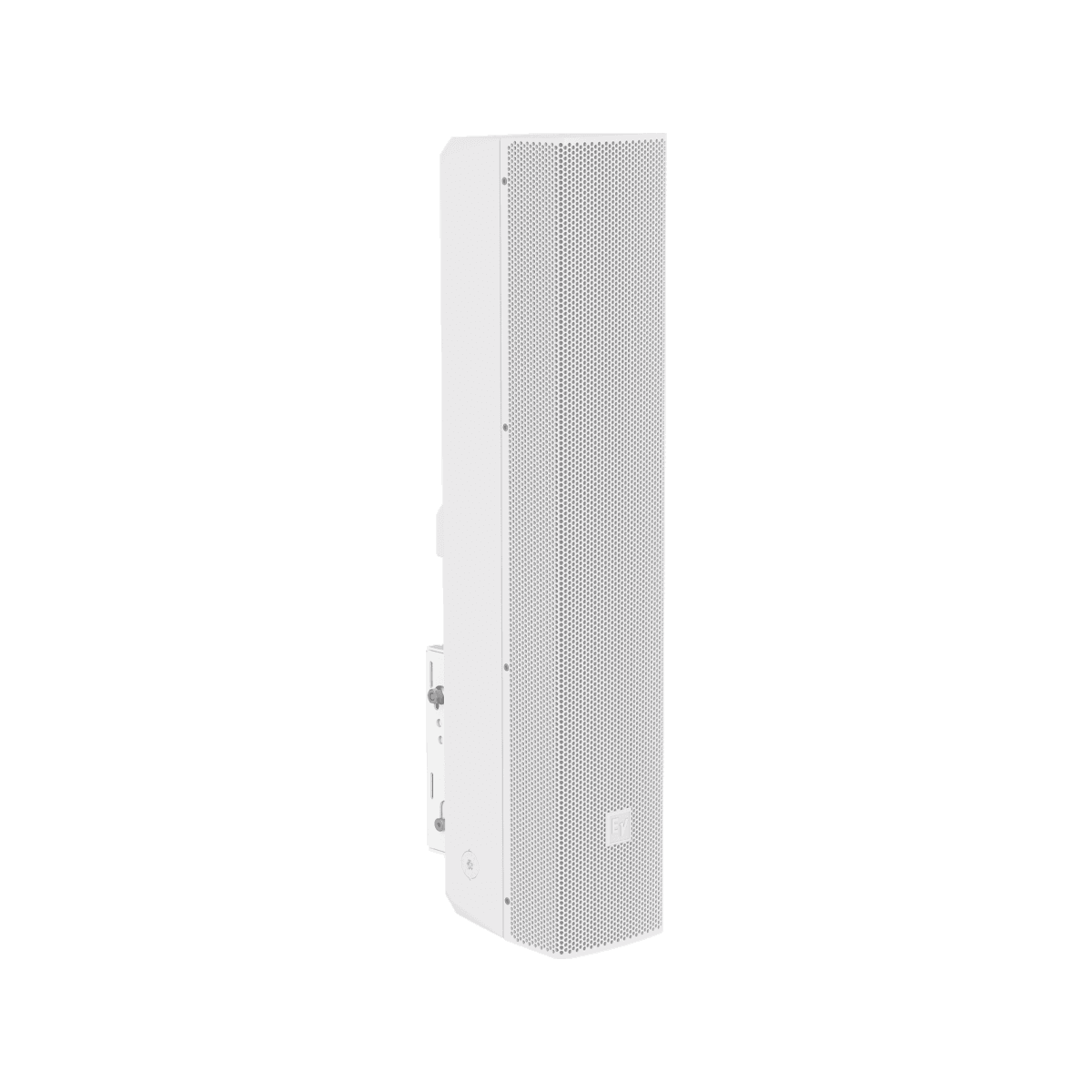

Electro-Voice LRC-1060-W - Column speaker .6m, 70/100V transformer, white

LRC Line Radiator Column is a line of passive column loudspeakers engineered specifically for installation. LRC loudspeakers are simple, practical, and easy to install, offering a sleek, neutral industrial design that blends into a wide range of settings. LRC loudspeakers can play a role in any install as main speakers, support speakers, and foreground and background speakers.

LRC-1060 loudspeakers include a pre-installed transformer for connection to 70- or 100-volt lines. These models include EV's patented Automatic Saturation Compensation (ASC) technology, which preserves low frequency response and protects system electronics from improper electrical loads when the transformer is engaged - regardless of the number of speakers connected to the line.

An integral part of LRC offering is the mounting bracket that ships with each loudspeaker. It has been carefully designed to cover most mounting situations, whether the column needs to be positioned with no tilt and as close to the wall as possible, tilted downward, inverted for up-tilt, panned to either side, or aimed with a combination of pan and tilt.

LRC Line Radiator Columns are engineered for use on any system using the recommended high-pass filter, but deliver their best performance when paired with Dynacord DSP matrix processors and amplifiers. These provide dedicated presets which ensure the optimal balance of sound quality, output, and system protection. All models are available in black and white and are suitable for indoor or outdoor use.

LRC-1060 loudspeakers are EN54-24 certified, and all models are supported by EASE/EASE Focus3, PREVIEW Loudspeaker Software and by SONICUE System Software.

• 22.8” (580 mm) high
• 6x 2.5” (63.5 mm) full-range drivers
• 2x 2.5” (63.4 mm) passive radiators
• 20° symmetrical vertical coverage
• 130° horizontal coverage
• 75 Hz-15 kHz
• 122 dB SPL (peak)
• Lo-Z, 8 ohms, 200W program
• 70/100V

Frequency Range (-10 dB): 70 Hz - 15,000 Hz Maximum SPL: 122 dB Axial Sensitivity: 90 dB SPL 1W/1m Coverage (H x V): 130° x 20° Power Handling (Continuous): 100 W Power Handling (Program): 200 W Peak Input Voltage (Lo-Z): 80 V Nominal Impedance (Lo-Z): 8 Ω Recommended High-Pass: ≥70 Hz Butterworth, 24 dB/oct Transformer Taps 70V Line: 60/30/15/8/4 W Transformer Taps 100V Line: 60/30/15/8 W Transducers: (6) 2.5 in active drivers, (2) 2.5 in passive radiators Connector Type: 4-pin Euroblock, Input + Pass Through IP Rating: FW (outdoor full exposure), IP55c Color: RAL 9003 Signal White Dimensions (H x W x D): 22.83 x 4.13 x 5.67 in (580 x 105 x 144 mm) Weight: 9.7 lb (4.4 kg) Shipping Weight: 14.33 lb (6.5 kg)

Electro-Voice LRC-1060 Column Loudspeaker (White)
SwifTilt Pan-Tilt Bracket
Gland Nut Weather Cover
Dual-Ended Allen/TR20 Key
M8x20mm Eyebolt (pre-installed)
Limited Manufacturer Warranty
