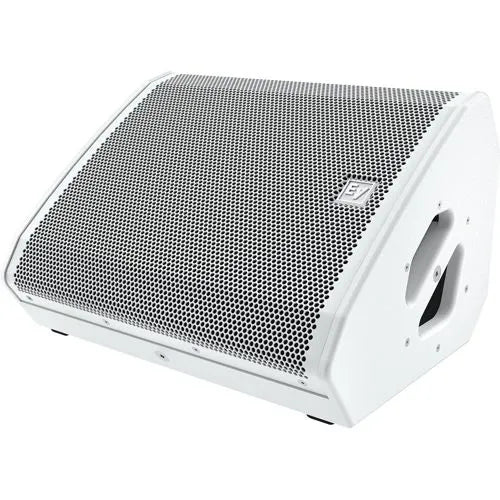

Electro-Voice MFX-12MC-W - 12" Multi-Use Coax Monitor, White

MFX Multi-Functional Monitors deliver a new level of reference performance from compact, two-way, coaxial designs. In addition to their primary use as live sound stage monitors, they can also serve as short-throw, full range sound reinforcement speakers (with or without subwoofer) and are appropriate for a wide range of permanent installations. The input panel is recessed into the rear of the speaker, protecting connectors within the cabinet envelope. The panel includes NL4 input and loop-through connections, along with a passive/biamp switch.

MFX Multi-Function Monitors are an attractive investment for live sound companies because they can be deployed in multiple system roles. EV has created a library of DSP settings to optimize the speakers for specific uses. The recommended MFX monitor amplifier match is the Dynacord TGX or IPX amplifier series.

The constant directivity waveguide has a narrow pattern when the speaker is used horizontally as monitor, and a wide pattern when the cabinet is oriented vertically for use as a short-throw loudspeaker. This configuration contributes to excellent gain-before-feedback performance.

The coaxial driver and horn assembly can be uninstalled and re-installed with a 90° rotation, which also rotates the coverage pattern. Both models feature an integrated pole cup and four M10 suspension points to attach custom U brackets for wall-mount or flown use.

• Multi-functional, coaxial, short-throw point source for stage monitoring, FOH, front fill, and side fill
• Rugged tour-grade durability in a lightweight, ergonomic design
• Low profile maximizes audience sight lines
• Switched passive or biamp operation with factory presets for any application
• Range of mounting accessories for live sound and fixed installation

Frequency response (-3 dB): 62 Hz - 18 kHz Frequency range (-10 dB): 50 Hz - 19 kHz Rotatable coverage: 60° x 40° FOH, 40° x 60° Monitor Recommended high-pass frequency: Use factory preset Axial sensitivity: 97 dB (1 W/1 m) Max. SPL: 135 dB Power handling: 450 W (Continuous), 3000 W (Peak) Nominal impedance passive: 8 Ω Nominal impedance biamp LF: 8 Ω Nominal impedance biamp HF: 8 Ω Transducer: CXCA3128-1CA Connectors: Neutrik NL4 input with NL4 pass through Enclosure: 12-18-mm Baltic plywood with EVCoat Logo: Rotatable Monitor angles: 35° and 55° Grille: 1.5-mm zinc plated steel with corrosion resistant coating Handles: Two with integrated cup for standard 35-mm pole Suspension: Four M10 suspension points Color: Black (RAL 9005) or white (RAL 9003) Dimensions (H x W x D): 500 mm x 420 mm x 298 mm (19.7 in x 16.5 in x 11.7 in) Net weight: 19 kg (41.9 lb) Shipping weight: 21.2 kg (46.7 lb)

MFX-12MC monitor (white)
Owner's manual
