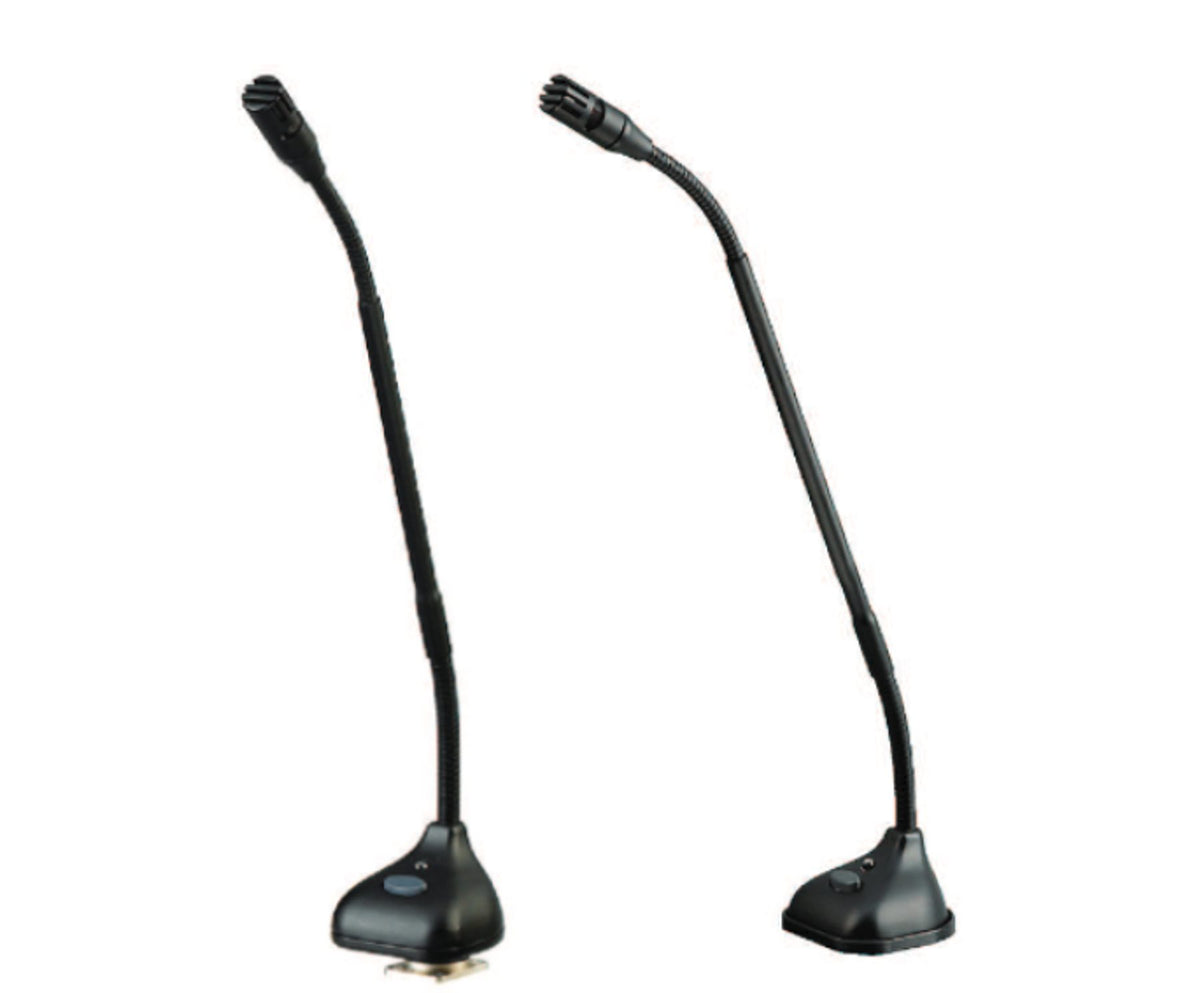

Electro-Voice PC PLUS-12 - 12" Gooseneck Multi-Pattern Condenser Microphone

The PolarChoice PC-Plus is the first miniature gooseneck microphone to combine the features and functionality of a desktop mic, with the small unobtrusive size of an XLR mounted gooseneck microphone.

The unique profile of the PC-Plus housing places the push button switch and status LED in a more natural position and also creates a lower profile housing. You can even go one step further: the lower half of the PCPlus (with XLR connector) can be removed and the PC-Plus can be flush mounted. Electro-Voice supplies all the necessary mounting hardware.

The push-button can be configured for either toggle (push on/off), or as PTT or PTM. You can also configure the microphones' state when power is first applied in toggle mode.

The PC-Plus is also an EV PolarChoice multi-pattern microphone, and is highly shielded from RFI/GSM thanks to EV's exclusive RF Shield technology. With 3 directional and one non-directional polar pattern available, the PolarChoice microphone is ideal for virtually any installation.

• RF Shield provides superior RFI/GSM shielding
• Dual Capsule Design with four polar patterns: omnidirectional, cardioid, supercardioid, and hypercardioid
• Configurable push-button switch with status LED
• XLR mounted or flush mounted
• Available in 12, or 18-inch versions

Generating Element: Dual condenser, back-electret Frequency Response: 50Hz to 20,000Hz Polar Patterns: Omnidirectional, Cardioid, Supercardioid, Hypercardioid Switches and Controls: Top mounted momentary push button; Push on/off or PTT/PTM selector; Power up on/off selector; High pass enable; 4-position polar pattern selector Sensitivity: Open circuit voltage, 1kHz: 5.6mV/Pascal Clipping Level (1% THD): >127dB SPL Equivalent Noise: <26dB SPL A-weighted Dynamic Range: >101dB Output Impedance, 1 kHz: 200 Ohms Power Requirements: Phantom, 12-52VDC Current Consumption: <5mA with P48 supply Polarity: Pin 2 positive, referenced to Pin 3, with positive pressure on the diaphragm Gooseneck Length (PC Plus-12): 305 mm (12 in) Maximum Head Diameter: 14.6 mm (0.58 in) Color: Non-reflecting black Shipping Weight (PC Plus-12): 201 grams (7.1 oz)

Windscreen, Two-piece shock mount, Flush mount parts kit
