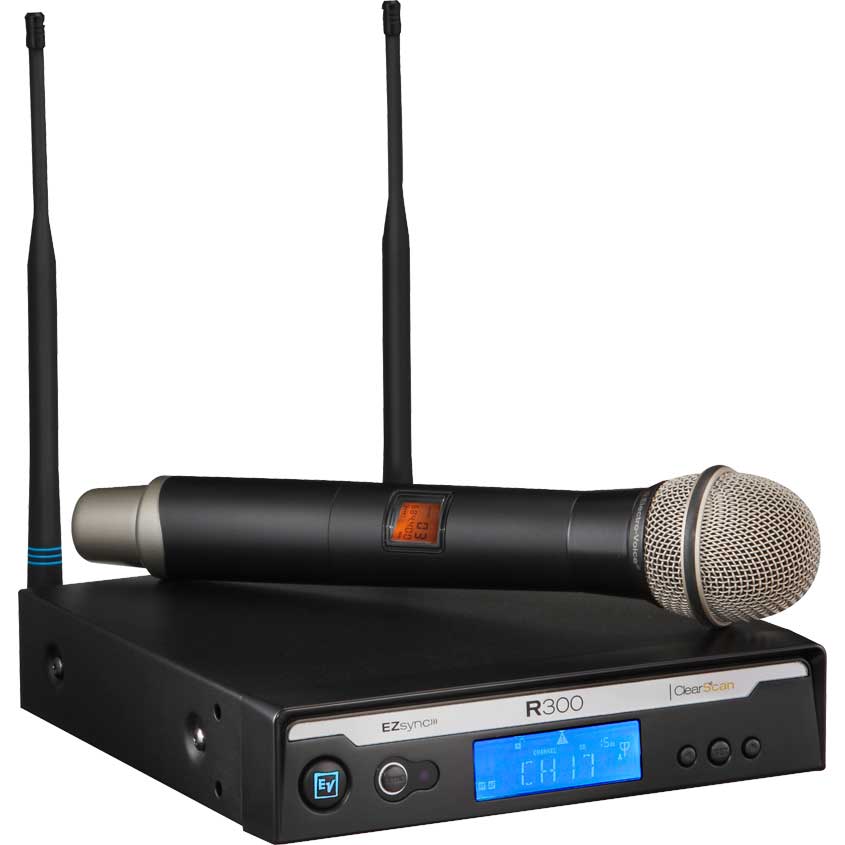

Electro-Voice R300-HD - Wireless Handheld Microphone System

The Electro-Voice R300-HD is a cost-effective, all-metal handheld wireless microphone system well suited for tabletop use, or as part of an AV installation, in small- to medium-sized conference centers, educational facilities, and performance spaces.

The R300-HD includes the R300 antenna-diversity receiver and the HT300 handheld microphone transmitter with a PL22 cardioid, dynamic capsule. The system has a 150' operating range and features 32 pre-progammed frequencies to scan for optimal transmission, along with removable antennas that allow the user to rackmount the receiver (with separately available rackmount kit and antenna cables).

The ClearScan feature on the R300 receiver automatically searches for the ideal operating frequency, while the EZ Sync button locks the transmitter to the correct channel via infrared. The system's antenna-diversity technology helps to reduce noise and interference by comparing the incoming signals on the two antennas and using the stronger one. The receiver features both 1/4" phone and XLR outputs on the rear, and a power supply is included. The HT300 transmitter operates for up to 14 hours on a pair of AA alkaline batteries.

• Designed for small venues and educational, conference, and performance spaces
• ClearScan—finds the clearest channel available with the touch of a button
• EZsync—infrared channel transfer from receiver to transmitter for easy and error-free setup
• PL22 cardioid dynamic microphone element for clear vocals with less background sound
• Rugged metal transmitter with Mute/On/Off switch, backlit LCD display, and battery gauge
• 14-hour battery life from two AA alkaline batteries
• 32 preset channels, with compatible groups of 8 channels for simultaneous use
• Detachable half-wave TNC antennas enable use with optional APD4+ antenna distribution system, which can provide antennas and power for up to 4 receivers
• Metal receiver chassis with optional rackmount ears and front-mount antenna cables

Wireless Technology: Analog UHF Diversity: Yes RF Frequency Band: C: 516 to 532 MHz Number of RF Channel Frequencies: 32 Max Operating Range: 150 ft / 45.7 m (Line of Sight) Max Transmitters per Band: 8 Dynamic Range: >95 dB Receiver Antenna: 2x Removable TNC 1/2 Wave Flexible Whip (Rear-Mount) Receiver Audio I/O: 1x XLR 3-Pin Balanced Mic Output; 1x 1/4" TS Unbalanced Line Output Receiver Gain Range: 0 to +8 dB Receiver Frequency Response: 80 Hz to 18 kHz +/-2 dB Receiver Display: Backlit LCD Receiver Power Requirements: AC/DC Power Adapter, 12 to 16 VDC Transmitter RF Output Power: 8 mW Transmitter Antenna: Internal Transmitter Muting: Off/On Switch Transmitter Sync Method: IR Microphone Type: Handheld, Cardioid Transmitter Battery Type: 2x AA Transmitter Battery Life: 14 Hours (Alkaline) Housing: Metal Receiver Dimensions: 8.3 x 8.1 x 8.1 in (210 x 206 x 206 mm) Transmitter Length: 10.5 in (26.7 cm)

Electro-Voice R300-HD Wireless Handheld Microphone System (C: 516 to 532 MHz)
R300 Receiver
Electro-Voice HT300C Dynamic Microphone Transmitter and PL22 Cardioid Head (C: Band)
2 x 1/2 Wave Antennas
Universal Power Adapter
2 x AA Batteries
Mic Holder
Soft Sided Carry Case
Limited 1-Year Manufacturer Warranty
