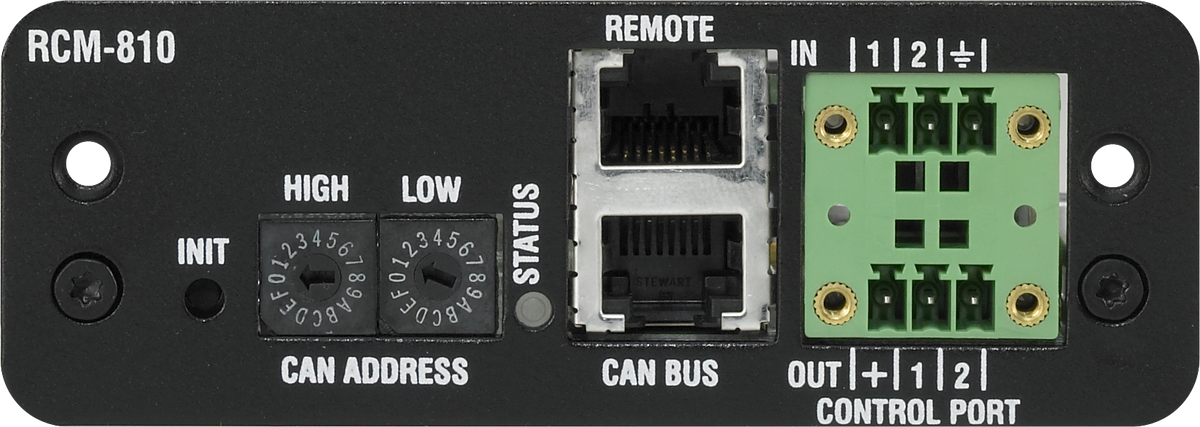

Electro-Voice RCM-810 - IRIS-Net Remote Control Retrofit Module for CPS Amplifiers

The RCM-810 Remote Control Module is an optional module for supervision and remote control of power amplifiers. RCM-810 modules allow the amplifiers to be integrated into a remote control network with up to 100 devices. Up to 250 amplifiers can be used in an IRIS-Net project when multiple networks are used. Apart from the network port, the RCM-810 also offers freely programmable control inputs and control outputs.

• Enable powerful control and supervision capabilities
• Integrate up to 100 devices in each remote control network, 250 with multiple networks
• Support for 2-, 4-, and 8-channel CPS models
• Freely programmable control inputs and outputs
• Load-monitoring for each channel
• Variable Load Drive for independent channel impedance on 4- and 8-channel amps (2-10 Ohm in 0.1 Ohm steps)

Remote control and software: IRIS-Net, multiple PCs possible, MS Windows 2000/XP/Vista/7/8 Maximum configuration: 250 amplifiers total, 100 amplifiers per CAN bus, 1000 meter cable run CAN interface: 10-500 kbaud, 2x RJ-45 (IRIS-Net Control) GPIO control port: 2x 3-pole Euroblock - 2 control inputs, 2 control outputs (max. 18V/250mA per output), 2 reference outputs (+5V, 200mA/GND) Supply voltage/current: +5V DC/320mA, +15V DC/80mA, -15V DC/80mA Power consumption: 4 W Operating temperature: 0 C to 40 C Dimensions (H x W x D): 37 mm x 103.5 mm x 103 mm (1.46 x 4.07 x 4.06 in) Net weight: 115 g (4.06 oz)

RCM-810 module
34-pole ribbon cable (60mm)
Euroblock connector, 6-pole
4x Torx M3x10 screws
Data sheet
