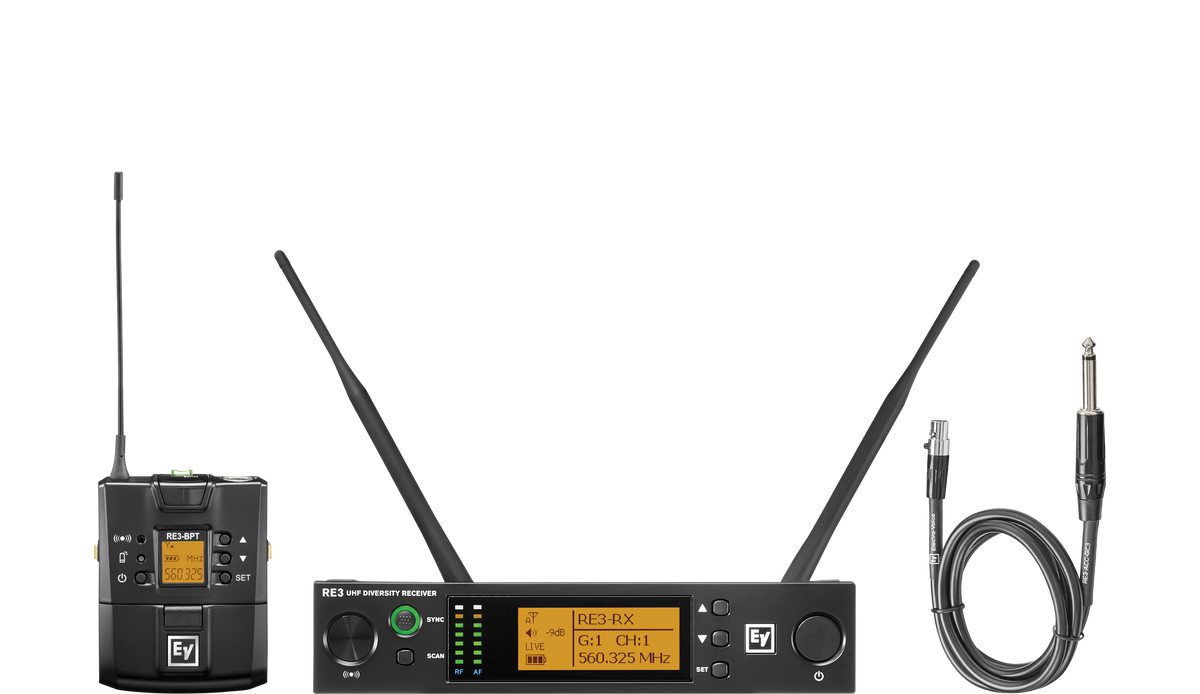

Electro-Voice RE3-BPGC - UHF Wireless Instrument System

Bodypack UHF wireless set featuring the GC3 instrument cable for wireless music performance. The GC3 is a special purpose cable for connecting instruments or line level signal sources with ¼" output jacks to the RE3-BPT bodypack transmitter. Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust bodypack transmitter and diversity receiver delivers rock-solid system performance.

• GC3 Instrument Cable: robust cable connects instrument to RE3-BPT; easy-to-grip ¼" plug; 4-pin mini plug adapts to other EV bodypack transmitters
• RE3-BPT Bodypack Transmitter: robust metal body; sync function for easy frequency setup; selectable low/high output power; up to 36 MHz tuning bandwidth; magnetic latch and lock for easy battery access
• RE3-RX Diversity Receiver: diversity reception minimizes dropouts; frequency scanning; sync function; easy-to-read LCD display

Input Device: GC3 instrument cable, 1/4-inch to 4-pin mini plug Transmitter: RE3-BPT bodypack transmitter Receiver: RE3-RX half-rack diversity receiver Band (as configured): 5H (560-596 MHz), 36 MHz tuning bandwidth, 1440 selectable frequencies Transmit Output Power: 10 mW / 50 mW selectable Setup: Clear frequency scan and ultrasonic sync between transmitter and receiver

RE3-BPT Bodypack Transmitter
RE3-RX Diversity Receiver
GC3 Instrument Cable
Two Receiver Antennas
Universal Power Supply
Two AA Batteries
Receiver Rack Mounting Hardware
Owner's Manual
Documentation Packet
Declaration of Conformity
