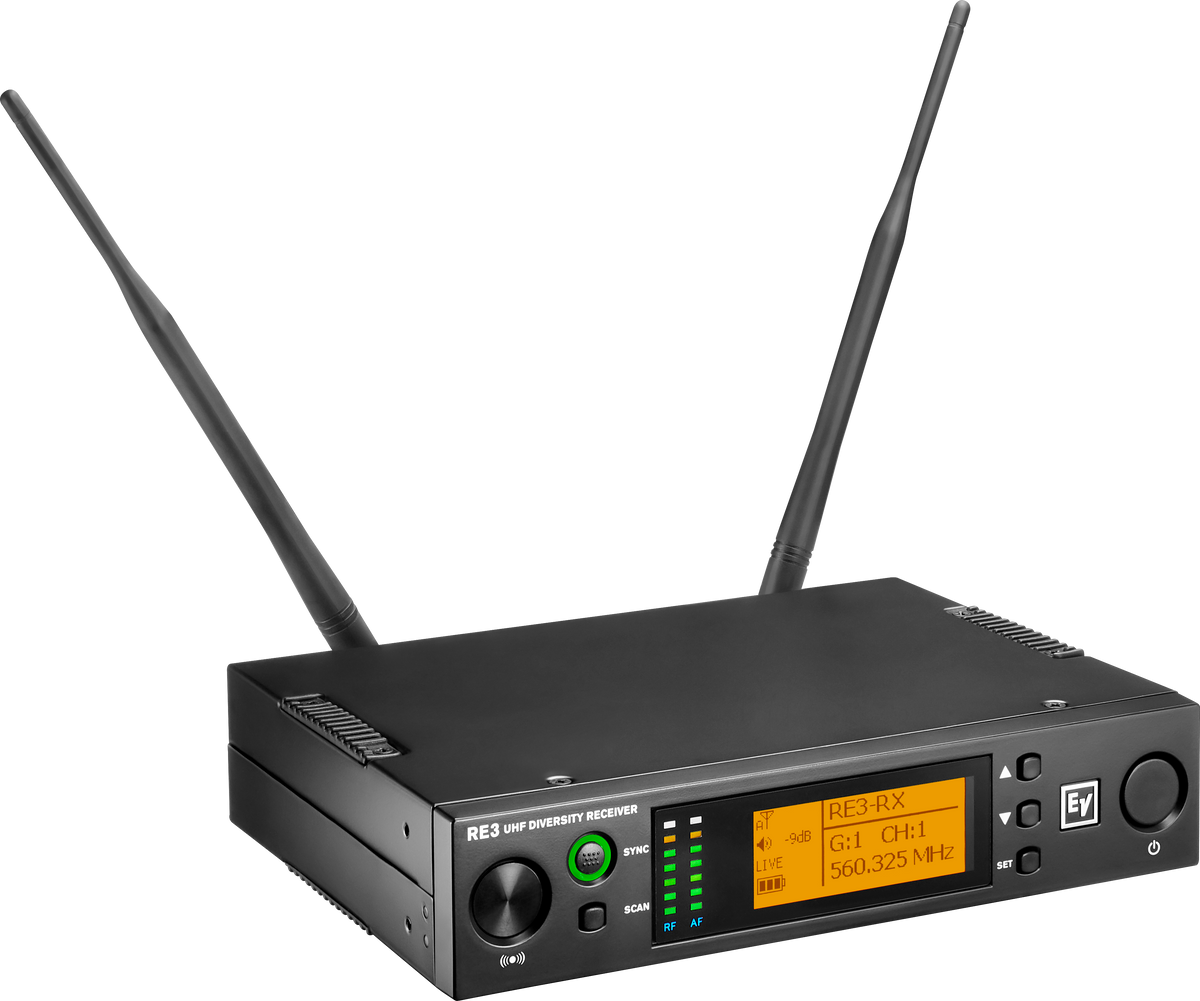

Electro-Voice RE3-RX - RE3 Half-Rack-Space Diversity Receiver

UHF wireless diversity receiver featuring clear frequency scanning, wireless synchronization to transmitter, balanced XLR and unbalanced ¼" TRS outputs. The receiver pairs perfectly with any RE3-HHT handheld or RE3-BPT bodypack transmitter within the same band. The RE3-RX is a professional rack-mountable, ½ space diversity receiver, designed to function as the control center for an RE3 wireless set, featuring frequency scanning and synchronizing, as well as full transmitter control settings which synchronize to a mated transmitter.

The diversity reception technology minimizes the chances of signal dropouts by providing two separate antenna locations which are electronically chosen moment-by-moment based on signal strength and stability. The easy-to-use frequency scanning function simplifies locating and tuning to a clear operating frequency. The sync function wirelessly synchronizes all operating parameters to the mated transmitter. The wide tuning bandwidth provides access to a wide range of frequencies, selectable in 25kHz steps.

• Diversity reception minimizes dropouts
• Frequency scanning for selecting open frequencies
• Sync function links transmitter to receiver for easy setup
• Up to 36 MHz tuning bandwidth (band specific) for trouble-free operation
• Easy-to-read LCD display

Frequency Oscillation Mode: Phase-locked loop (PLL) Carrier Frequency Range: 470-865 MHz (band-dependent) Sync Frequency: Ultrasonic 40 kHz Diversity: Antenna diversity Bandwidth: 36 MHz Signal/Noise Ratio: >100 dB(A) THD: <0.6% @ 1kHz Receiving Sensitivity: -81 dBm for -12dB SINAD Antenna Type: Detachable 1/2 wave with BNC connector Output Ports: 1x balanced XLRM jack, 1x unbalanced 1/4-inch TS jack Power Supply: DC 12-15V / 500mA Finish: Black polyurethane paint Dimensions: Width 8.27 in, Height 1.85 in (with feet), Depth 6.89 in (incl. antenna jack) Net Weight: 2.71 lb (1.23 kg) Gross Weight: 3.28 lb (1.49 kg)

RE3-RX Diversity Receiver
Two Receiver Antennas
Universal Power Supply
Receiver Rack Mounting Hardware
Owner's Manual
Documentation Packet
Declaration of Conformity
