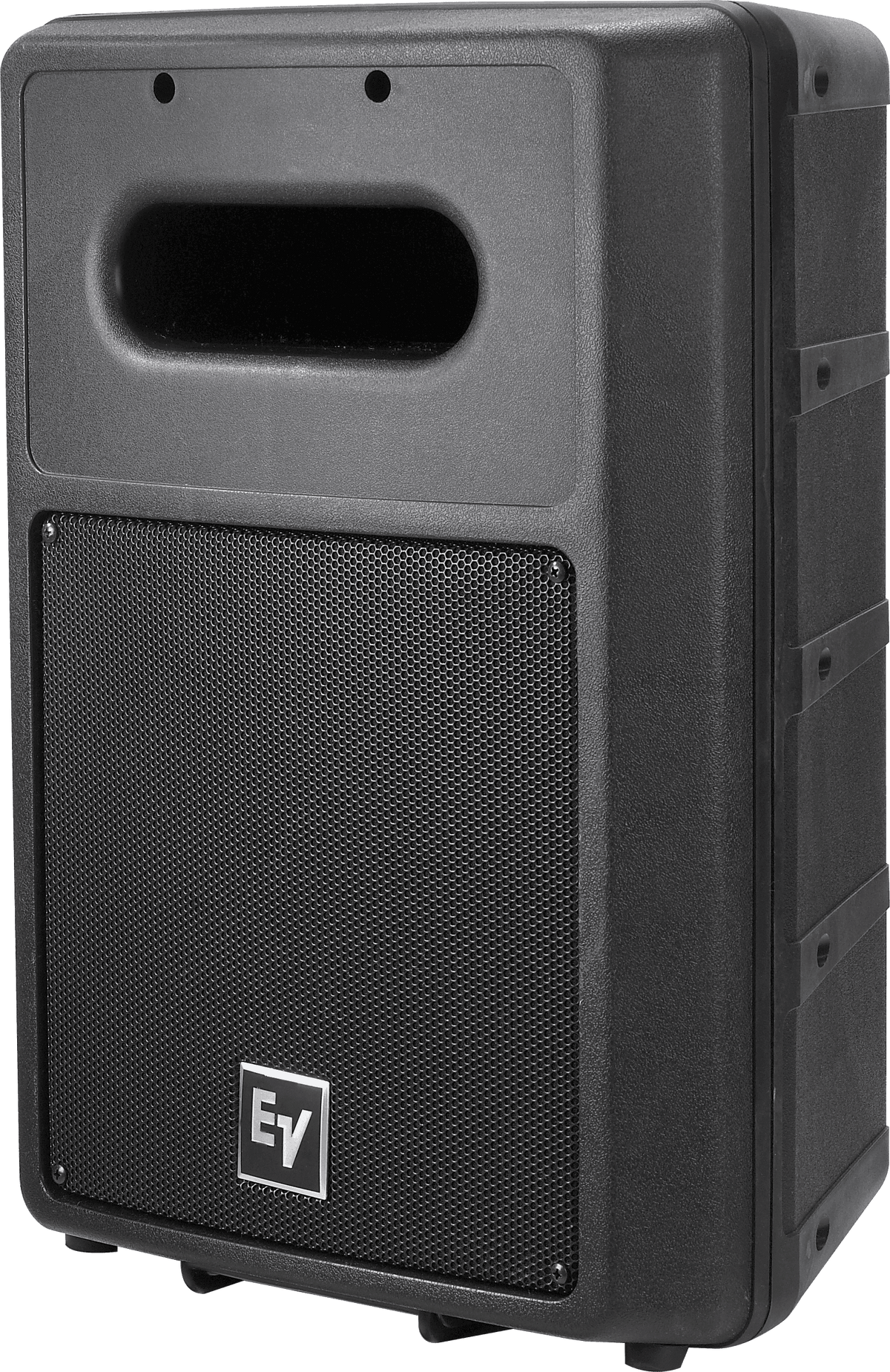

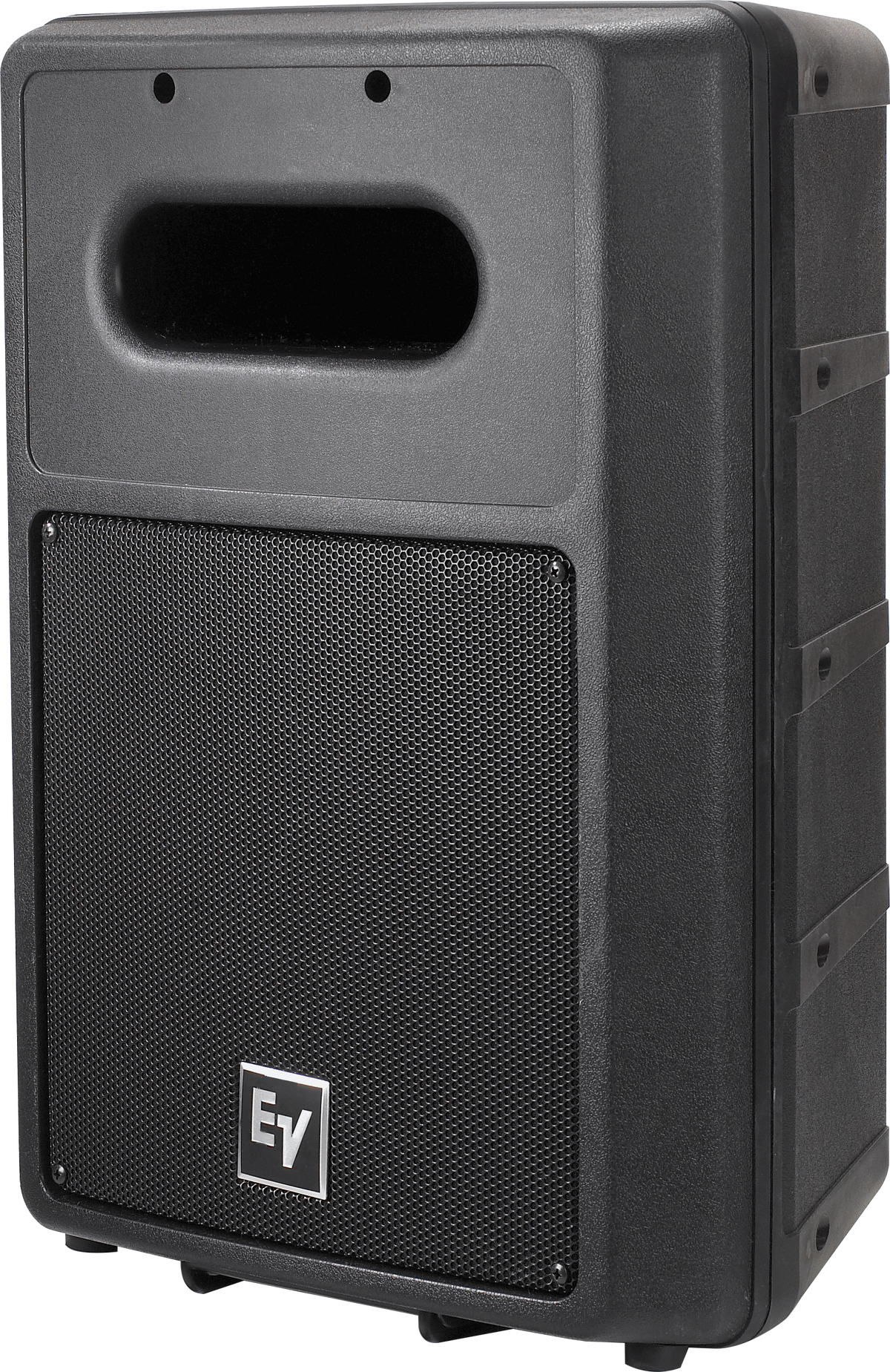

Electro-Voice SB122 - 12" Passive Subwoofer with 400W Power Handling

The Electro-Voice Sb122 bass module is a very compact, lightweight subwoofer system that is designed to add bass enhancement to EV Sx and Zx Series speaker systems. The Sb122 combines the advantages of a long-throw 12" woofer with a strong, lightweight composite enclosure. The large vent provides less vent compression and turbulence for increased low frequency output. The EVS12SB cast frame transducer created for the Sb122 uses the same motor and suspension design as the EVS18S used in EV's larger systems. An integral low-pass filter allows the Sb122 to be directly connected in parallel with a full-range speaker for truly impressive low-end output without the need for an additional amplifier and processor.

• Very Compact and Lightweight -- Only 33 lbs/15.0 kg
• Integral handle
• 400 Watt continuous, 1,600 Watt peak power handling
• Parallel Neutrik Speakon high current input connectors
• Cast frame EVS12SB 12-inch high excursion subwoofer driver
• Integral low-pass filter -- No additional amplifier or processor needed

Speaker Type: Subwoofer Woofer Size: 12 in Frequency Range (-10 dB): 43Hz - 200Hz LF Transducer: EVS12SB, 12 in (305mm) Crossover Frequency: 80Hz - 160Hz Connector Type: (2) Neutrik Speakon NL4 Enclosure Material: Composite Sensitivity 1 W/1 m: 99 dB Height: 586 mm Width: 429 mm Depth: 312 mm Recommended High-Pass Frequency: 40 Hz Weight Net: 15 kg Frequency Response (-3 dB): 52Hz - 145Hz Shipping Weight: 16.5 kg Power Handling (Continuous / Peak): 400/1600 W Maximum SPL: 131 dB Impedance: 8 ohms

Electro-Voice Sb122 Subwoofer
