JMAZ MAD PAR RUBIX 6-Pack 20W RGBA + 36 × 0.5W RGBWW SMD LED IP65 Outdoor Battery-Powered Dual-Effect Par Wash Lights with Wireless DMX, Diffusers, Remotes & Charging Transport Case

The MAD PAR RUBIX 6 Pack was designed for production companies, event professionals, rental houses, DJs, and installers who need a complete battery-powered uplighting system capable of delivering layered lighting effects and exceptional creative versatility. Combining six dual-source IP65 uplights with a rugged injection-molded case, the MAD PAR RUBIX 6 Pack provides a professional all-in-one solution for weddings, architectural lighting, concerts, corporate events, and outdoor productions.

Each fixture is powered by a 38W dual-source LED engine, featuring a 20W RGBA LED paired with an 18W RGB + Warm White SMD LED array (36 × 0.5W LEDs). This unique combination allows the center LED and outer SMD ring to operate independently, creating vibrant color washes, dynamic layered effects, and adjustable white light from 2300K to 8500K. The fixture features a 40° primary beam angle, expanding to 60° with the included diffuser, while the 120° outer SMD array delivers broad ambient coverage and eye-catching visual effects. With up to 16 hours of battery operation (40 hours in battery-saving mode), Wireless DMX, IR remote control, 73 preset color programs per light source, 99 preset color combinations, 80 advanced sound-active modes, 72 built-in auto programs, four dimming modes, and fanless operation, the MAD PAR RUBIX offers unmatched flexibility for a wide range of applications. The included IP65 waterproof injection-molded case securely stores all six fixtures and accessories for organized transport and dependable protection between events.

Whether illuminating architectural features, enhancing wedding venues, creating layered stage lighting, or producing colorful outdoor displays, the JMAZ MAD PAR RUBIX 6 Pack delivers professional-grade performance, innovative dual-source effects, and the convenience of a complete production-ready lighting system.

• Complete six-fixture lighting system includes six MAD PAR RUBIX uplights housed in a rugged IP65 injection-molded charging case, providing a portable solution for professional event production.
• Innovative 38W dual light-source engine combines a 20W RGBA LED with an 18W RGB+WW SMD LED array in each fixture, delivering vibrant color mixing, warm white output, and layered lighting effects.
• Versatile optics feature a 40° primary beam, included 60° diffusers for wider wash coverage, and a 120° outer SMD LED ring for immersive ambient lighting and eye-catching visual effects.
• Integrated lithium-ion batteries provide up to 16 hours of runtime on a single charge, or up to 40 hours in battery saver mode, with fast 4-hour recharging for maximum event readiness.
• Wireless DMX and IR remote control, together with 73 preset color programs per light source, 99 dual-source color combinations, 80 sound-active modes, and 72 built-in auto effects, provide exceptional creative flexibility.
• IP65-rated construction, fanless operation, and the included injection-molded carrying case make the MAD PAR RUBIX 6PK an ideal all-in-one solution for weddings, outdoor events, touring productions, architectural lighting, and rental applications.

20W RGBA LED
18W (36 x 0.5W) RGB + WW SMD LED
LED Life Expectancy: 50,000 hrs

RGBA Color Mixing 8/16 bit
RGB+WW SMD LED
CCT: 2300K to 8500K

Advanced Lens Optic: 40° Beam Angle
Diffuser Angle (Included): 60° Beam Angle
SMD LED: 120° Beam Angle
Dynamic Effect
Max 16 Hour Battery Life / 40 Hour In Battery Saving Mode
Charging Time: 4 Hours
Selectable Battery Saving Mode: 25%, 50%, 75%, 100%
73 Preset Color Programs per light source (LED & SMD)
99 Preset Color Combinations for LED + SMD
80 Advanced Sound Active Mode
72 Auto / Fade Built-In Programs
Stand Alone Color Mixing
Electronic Dimmer
Fading/Jumping Macros Light Change And Jump
Shutter/Strobe: Electronic
Strobe Rate: 0-25 Hz
Preset Color Temperature
4 Favorite Color Customization Triggered via DMX / IR Remote

Control Protocol: Wireless DMX, IR Remote
Personalities: 5/8/12/20/25 CH DMX Modes
OLED Graphical Display

Strobe Shutter: 1-25Hz
Dimming Modes: 4

Die-Cast Aluminum and Steel Structure

Adjustable Tilt Base: 0-40 Degree
Cooling: Fanless
Certification / Qualifications
RoHS, CE, FCC
IP Rating: IP 65
Operating Temperature: –10 ° C ( 14 ° F) To 60 ° C ( 140 ° F)

Input Voltage: 100 V – 240 V AC, 50/60 Hz
Power Consumption: 60W
PWM: 1.5KHz
Battery Voltage: 11.1V
Battery Capacity: 10,400 mAH, 115.5 Wh/hour
Charger: 12.6V, 3A ***UL Listed***
Rechargeable Battery Type: Lithium Ion ***UL Listed***

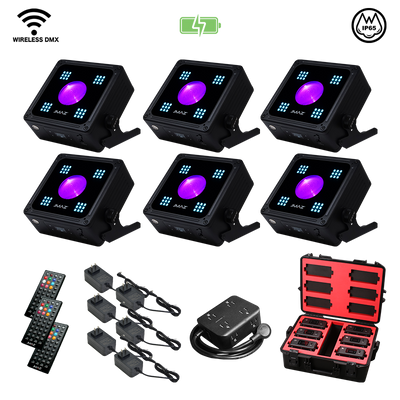

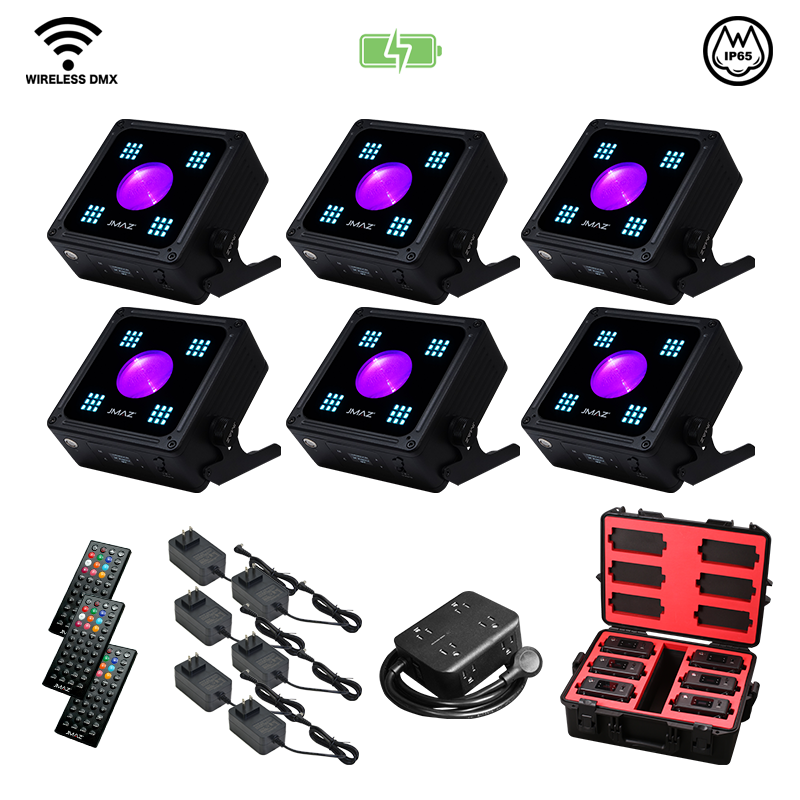

1 x IP65 Waterproof Injection Mold Case (Holds 6 Units)
6 x Mad Par RUBIX
6 x Diffuser
6 x A/C Charger
3 x IR Remote
1 x 6in1 Power Charger
1 x User Manual
1x QSG

Dimensions: 7.2″ x 5.9″ x 3″
Weight: 4.4 lbs

618528599137

- 1 x 120 Degree Diffuser
- 1 x External Charger
- 1 x User Manual
- 1 x IR Remote
