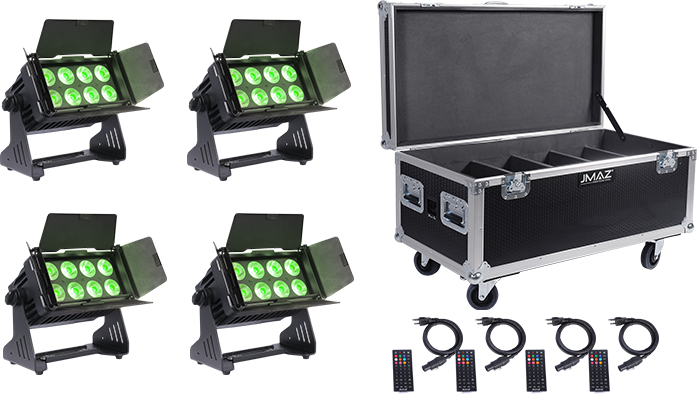

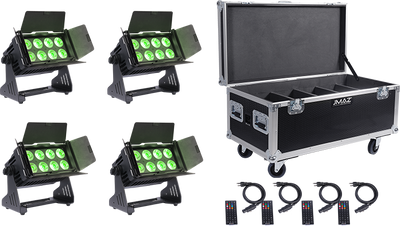

JMAZ PROFESSIONAL Electro Panel W8 4PK RGB+LIME Battery-Powered Outdoor LED Panel Light Kit w/ Charging Road Case

The Electro Panel W8 4-Pack with Charging Road Case provides a compact and versatile wireless lighting package engineered for mobile productions, corporate events, houses of worship, and rental inventories. This all-in-one system includes four Electro Panel W8 fixtures paired with a durable charging road case, offering convenient transportation, secure storage, and simultaneous charging in a single professional solution.

Designed to maximize efficiency both on the road and at the venue, the charging road case keeps all fixtures organized, protected, and ready for immediate deployment. Whether illuminating stages, walls, décor, or event spaces, the Electro Panel W8 4-Pack delivers reliable wireless performance while reducing setup time and simplifying event preparation.

• All-in-one package combines four Electro Panel W8 fixtures with a dedicated charging road case for convenient transport, storage, and charging.
• Simultaneous in-case charging keeps fixtures organized, protected, and ready for immediate deployment at every event.
• Compact package design maximizes portability while reducing setup time and simplifying event logistics.
• Durable road case construction safeguards fixtures from the rigors of transportation, production environments, and rental applications.
• Versatile lighting solution suitable for uplighting, wall washing, stage accents, décor lighting, and temporary event installations.
• Designed for mobile entertainers, production companies, rental providers, houses of worship, and corporate event professionals requiring dependable wireless lighting solutions.

96W (8 x 12W) RGBL LEDs
LED Life Expectancy: 50,000 hrs

RGBL Color Mixing 8/16 bit
CTO: 2300K – 8500K

Advanced Optics Beam Angle: 20 Degree
Diffuser Angle (included): 40 Degree

Max 16 Hour Battery Life / 40 Hour In Battery Saving Mode
Charging Time: 4.5 Hours
Selectable Battery Saving Mode: 20%, 30%, 40%, 50%, 60%, 70%, 80%, 90%, 100%
73 Preset Color Programs
72 Auto / Fade Built-In Programs
Stand Alone Color Mixing
Electronic Dimmer
Fading/Jumping Macros Light Change And Jump
Shutter/Strobe: Electronic
Strobe Rate: 0-25 Hz
Preset Color Temperature: 2300K – 8500K
4 Favorite Color Customization Triggered via DMX / IR Remote

Control Protocol: Wireless DMX, IR Remote
Wireless DMX: CRMX by LumenRadio
Personalities: HSV/HSI/3/4/6/11/16 DMX Channel Modes
OLED Graphical Display

Strobe Shutter: 1-25Hz
Dimming Modes: 4

Die-Cast Aluminum and Steel Structure
External Finish: Black

IP Rating: 65
Cooling: Fanless
Certifications / Qualifications:
RoHS, CE, FCC, cETL (Pending)
Operating Temperature: -10° C to (14°F) to 60° C (140° F)
Power Connection: US Edison (UL listed) plug to Seetronic Powercon IP65 True1
Power Input: Seetronic Powercon IP65 True1
Power Output: Seetronic Powercon IP65 True1
Data Connectors: Seetronic 5pin XLR IN/OUT
Cable Length: Power 4.1 feet (1.25 meter)

Input Voltage: 100V –240V AC, 50/60 Hz
Power Consumption: 120W
PWM: 1.5KHz
Battery Voltage: 18.5V
Battery Capacity: 15600mAh, 288.6Wh
Charger: 21V, 3.5A
Rechargeable Battery Type: Lithium Ion***UL Listed***
Power Linking for connecting fixtures in daisy-chain:
Up to 18 units @110V with a 20A circuit
Up to 30 units @208V with a 20A circuit
Up to 40 units @230V with a 20A circuit

1 x Charging Road Case
4 x Electro Panel W8
4 x Powercon IP65 TRUE1 Power Cable
1x Quick Start Guide
1 x User Manual
4 x IR Remote
4 x Barn Door
4 x 40 Degree Diffuser

Dimensions: 38.6″ x 20.9″ x 22″
Weight: 145lbs

618528600017

- 1 x Charging Road Case
- 4 x Electro Panel W8
- 4 x Powercon IP65 TRUE1 Power Cable
- 1x Quick Start Guide
- 1 x User Manual
- 4 x IR Remote
- 4 x Barn Door
- 4 x 40 Degree Diffuser
