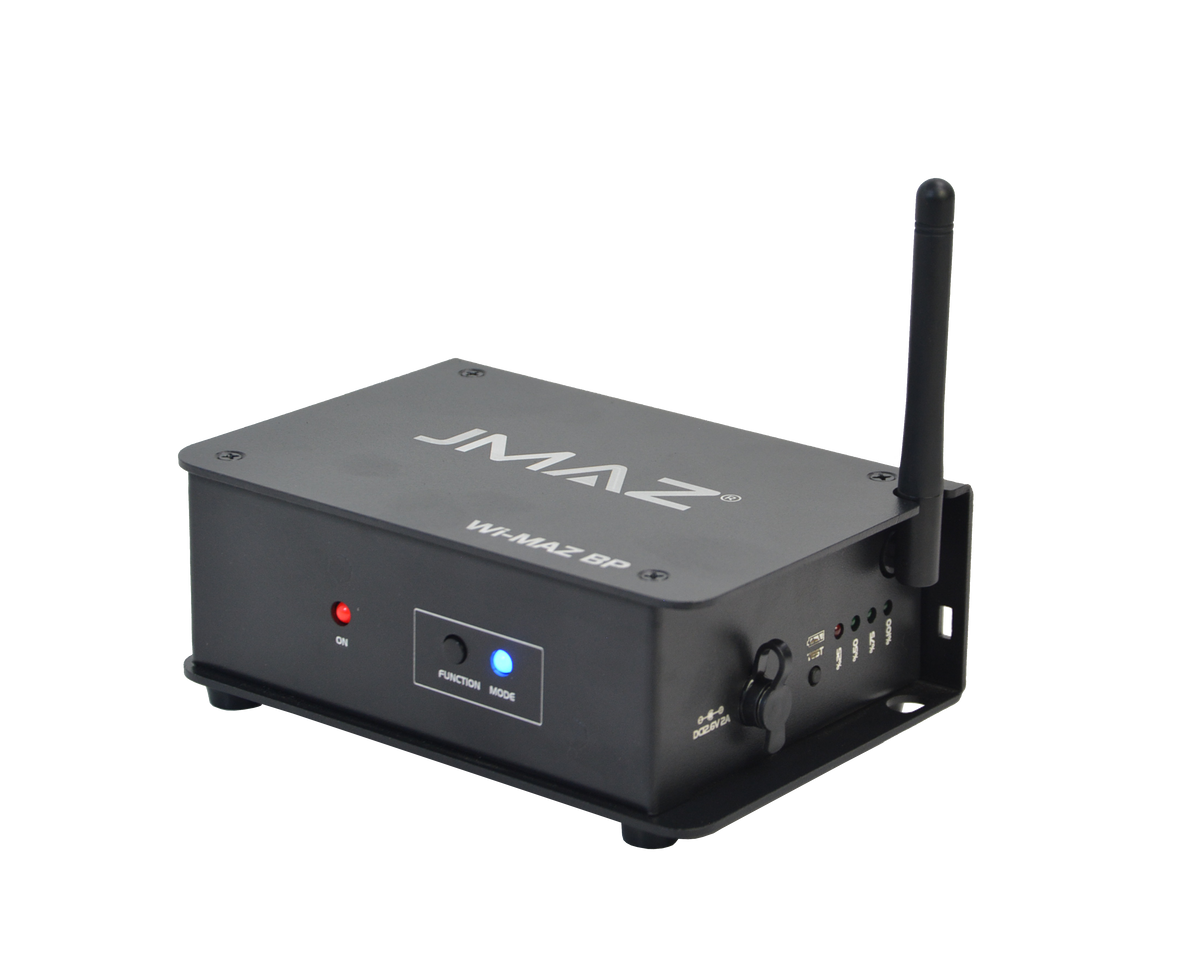

JMAZ Wi-MAZ BP - Battery-Powered Wireless DMX Transceiver with Transmitter/Receiver Modes, DMX Input/Output & WI-MAZ/Generic Protocol Support

The Wi-MAZ BP is a versatile, battery-powered wireless DMX transceiver built for professional lighting setups on the go. Designed to operate as either a transmitter or receiver, it supports Wireless DMX512 over a stable 2.4GHz frequency with auto-select frequency hopping for interference-free performance. With 7 selectable DMX ID groups, multiple units can run simultaneously without signal overlap.

This compact unit features a quick 2-hour charging time and offers exceptional battery life—up to 80 hours in receiver mode and 20 hours in transmitter mode—making it ideal for all-day or multi-day events. The included 3-pin DMX in/out converter allows for seamless integration with wired DMX systems.

Housed in a durable, travel-friendly form factor, the Wi-MAZ BP includes a USB power cable, AC to USB power adapter, transmit/receive converter, and manual. Its UL-listed lithium-ion battery ensures both safety and reliability in demanding environments.

Whether you're a mobile DJ, lighting tech, or installer, the JMAZ Wi-MAZ BP provides a simple and powerful solution for wireless DMX control anywhere.

• Professional battery-powered wireless DMX transceiver operates as either a transmitter or receiver, providing flexible cable-free DMX control for touring, events, and permanent installations.
• Reliable Wireless DMX communication supports WiDMX, W-TRN, W-RCV, and Generic protocols with a transmission range of up to 1,600 feet (500 meters) line of sight using stable 2.4GHz frequency technology.
• Exceptional battery performance delivers up to 80 hours of operation in receiver mode or 20 hours in transmitter mode, with a rapid 2-hour recharge for uninterrupted multi-day use.
• Supports wired 3-pin DMX IN/OUT alongside wireless operation, allowing seamless integration with existing DMX systems while seven selectable DMX ID groups prevent interference between multiple wireless systems.
• Compact aluminum housing features fanless silent operation, Kensington lock security, M10 threaded mounting for clamps, and an IP20 rating for dependable professional use.
• Low 2W power consumption, UL-listed lithium-ion battery, and included AC-to-USB power adapter make the Wi-MAZ BP an ideal wireless DMX solution for DJs, production companies, theaters, houses of worship, and lighting professionals.

Wired: 3-Pin DMX IN/OUT
Wireless DMX Protocol: WiDMX, W-TRN, W-RCV, Generic
Range: 1600ft (500 Meters) Line of Sight

Input Voltage: 100V – 240V AC, 50/60Hz
Power Consumption: 2W
Battery Voltage: 11.1V
Battery Capacity: 2500mAh, 28.86 Wh/Hour
Rechargeable Battery Type: Lithium Ion **UL LISTED**
Charging Time: 2 Hours
Battery Time (Receiver): 80 Hours
Battery Time (Transmitter): 20 Hours
Antenna Gain: 3dBi
Carrier Frequency: 2.4GHz
Modulation: GFSK
Sensitivity: -93dBm

Aluminum

Cooling: Fanless
Theft Protection: Kensington Lock
Attachment System: M10 Thread for Clamp Connection
IP Rating: IP20
RoHS, CE, FCC
Operating Temperature: -10° °C (14° F) to 60° C (140° F)

1 x A/C to USB Power Adaptor
1 x Manual

Dimensions: 5.5″ x 3.8″ x 2.2″
Weight: 1.8lbs (0.8kg)

618528599045

- 1 x A/C to USB Power Adaptor
- 1 x Manual
