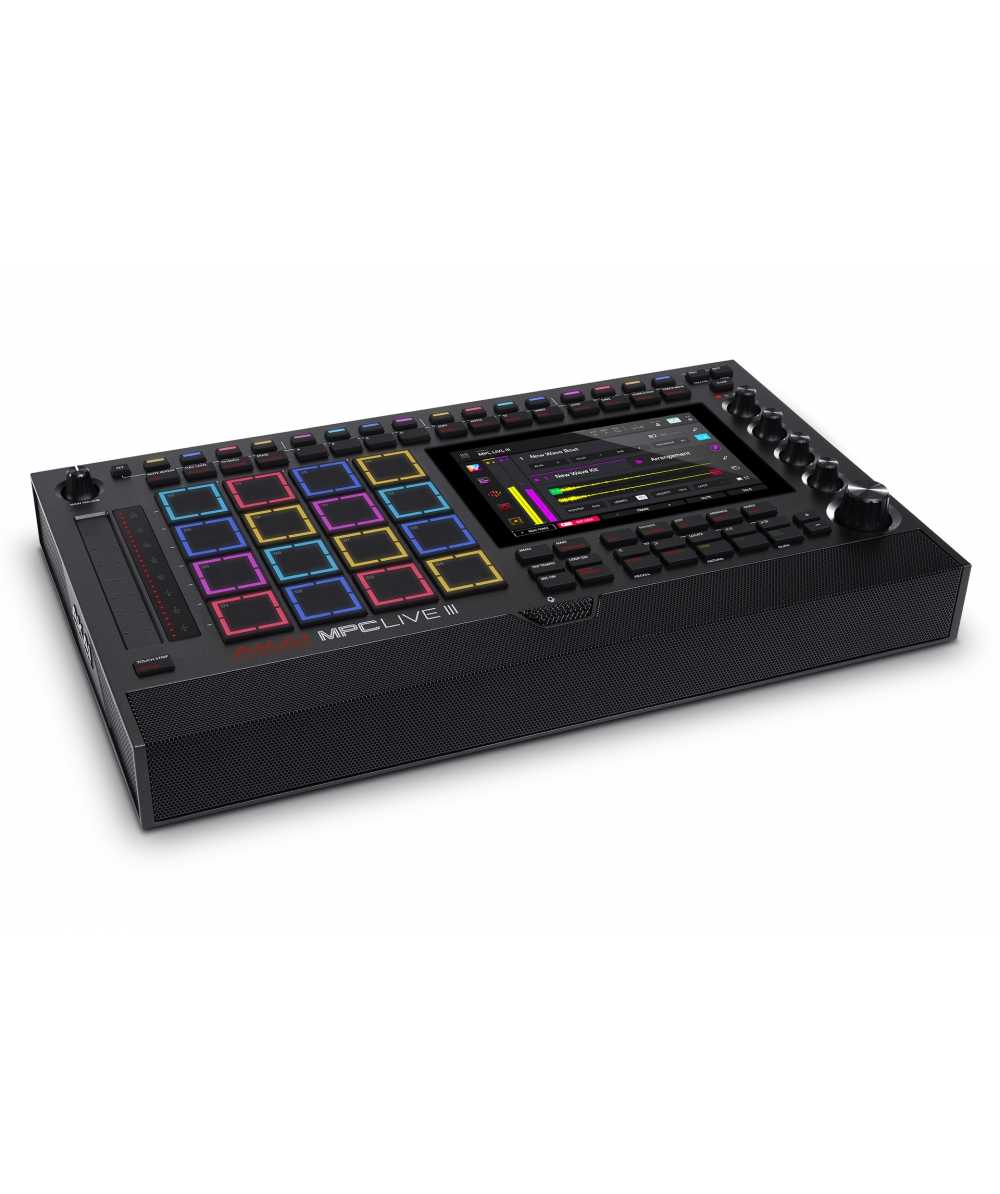

Digital Audio System
|
|
• ADCs
|
◦ 24-bit @ 44.1, 48, or 96 kHz
|
|
• DACs
|
◦ 24-bit @ 44.1, 48, or 96 kHz
|
|
• Digital Signal Processing
|
◦ 32-bit floating point
|
|
Mic Inputs 1–2
|
• (2) balanced XLR+1/4” (6.35 mm)
|
|
Mic Inputs 1–2
|
|
• (2) balanced XLR+1/4” (6.35 mm) TRS
|
|
• Frequency Response
|
◦ 20 Hz – 20 kHz (+0.2 / -1.2 dB)
|
|
• Dynamic Range
|
◦ 110.0 dB (A-weighted)
|
|
• SNR
|
◦ 101.8 dB (1 kHz, +4 dBu, A-weighted)
|
|
• THD+N
|
◦ 0.002% (1 kHz, +4 dBu, -1 dBFS)
|
|
• Preamp EIN
|
◦ -131 dBu (max gain, 40 Ω source, A-weighted)
|
|
|
◦ -127 dBu (max gain, 150 Ω source, unweighted)
|
|
• Maximum Input Level
|
◦ +13 dBu (XLR-Pad ON), -1 dBu (XLR-Pad OFF)
|
|
• Sensitivity
|
◦ -46 dBu (XLR-Pad ON), -60 dBu (XLR-Pad OFF)
|
|
• Gain Range
|
◦ 59 dB
|
|
Line Inputs 1–2
|
|
• (2) balanced XLR+1/4” (6.35 mm) TRS
|
|
• Frequency Response
|
◦ 20 Hz – 20 kHz (+0.2 / -1.1 dB)
|
|
• Dynamic Range
|
◦ 110.6 dB (A-weighted)
|
|
• SNR
|
◦ 98.6 dB (1 kHz, +4 dBu, A-weighted)
|
|
• THD+N
|
◦ 0.002% (1 kHz, +3 dBu, -1 dBFS)
|
|
• Maximum Input Level
|
◦ +16 dBu
|
|
• Sensitivity
|
◦ -20 dBu
|
|
• Gain Range
|
◦ 36 dB
|
|
Phono Inputs
|
|
• (2) unbalanced RCA
|
|
• Dynamic Range
|
◦ 92 dB (A-weighted, 135 mVrms @ 1 kHz, -1 dBFS, 20 Ω source)
|
|
• SNR
|
◦ 79 dB (A-weighted, 4 mVrms @ 1 kHz, 20 Ω source)
|
|
• THD+N
|
◦ 0.1% (1 kHz, -46 dBu, -1 dBFS)
|
|
• Maximum Input Level
|
◦ 135 mVrms (1kHz)
|
|
• Sensitivity
|
◦ 2.1 mVrms (1 kHz)
|
|
Line Outputs 1–6
|
|
• (6) impedance-balanced 1/4” (6.35 mm) TRS
|
|
• Frequency Response
|
◦ 20 Hz – 20 kHz (+0.03 / -0.18 dB)
|
|
• Dynamic Range
|
◦ 113.8 dB (A-weighted)
|
|
• THD+N
|
◦ 0.003% (1 kHz, -1 dBFS)
|
|
• Maximum Output Level
|
◦ +12 dBu
|
|
• Output Impedance
|
◦ 100 Ω
|
|
Headphone Output
|
|
• (1) 1/4” (6.35 mm) stereo headphone
|
|
• Dynamic Range
|
◦ 111.2 dB (A-weighted)
|
|
• THD+N
|
◦ 0.006% (1 kHz, -1 dBFS, 10 mW/channel into 32 Ω headphones)
|
|
• Frequency Response
|
◦ 20 Hz – 20 kHz (+0.03 / -0.19 dB)
|
|
• Maximum Power Delivered
|
◦ +50 mW (<1% THD, 32 Ω headphones)
|
|
• Maximum Output Level
|
◦ +11 dBu
|
|
• Output Impedance
|
◦ 32
|
|

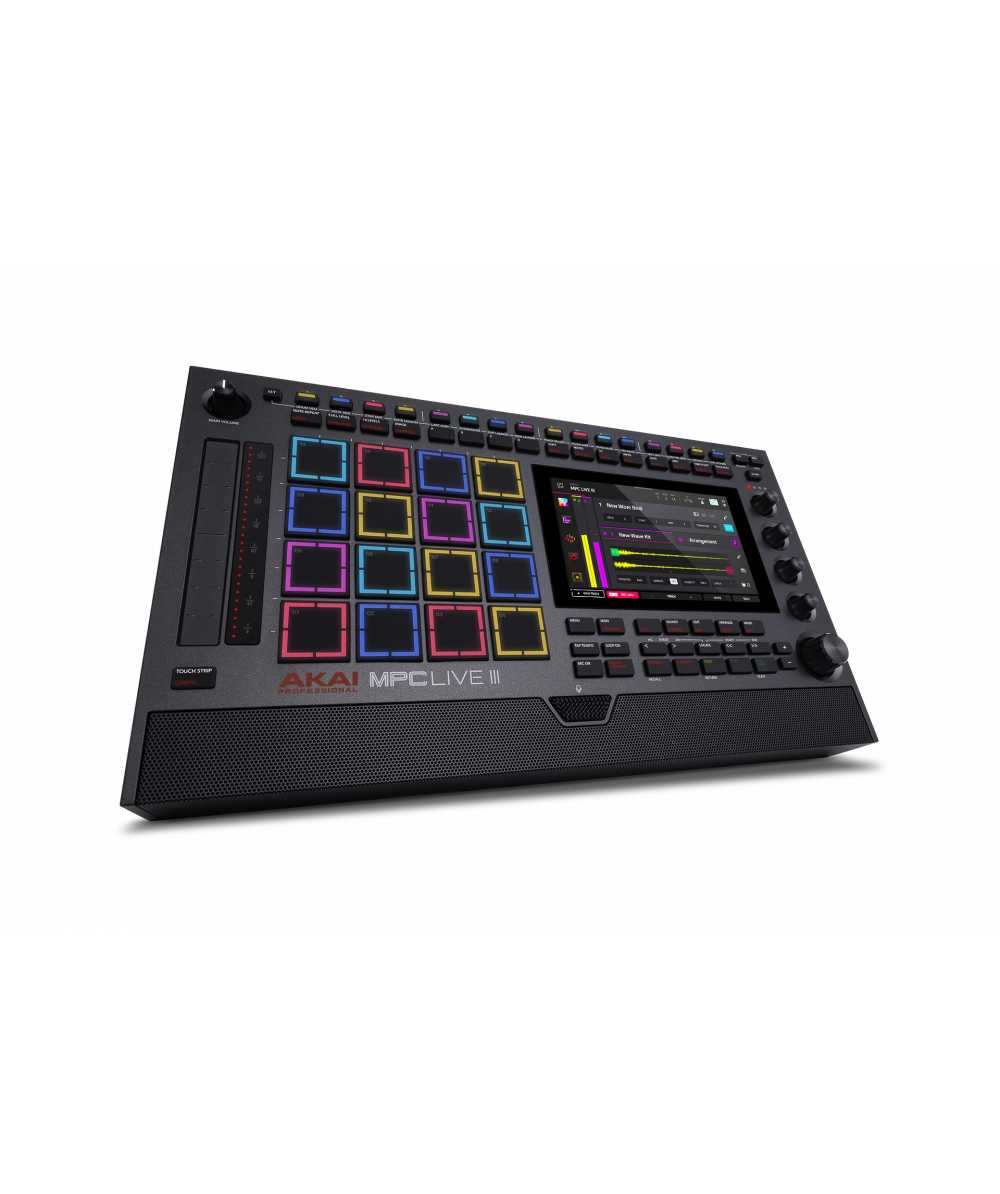

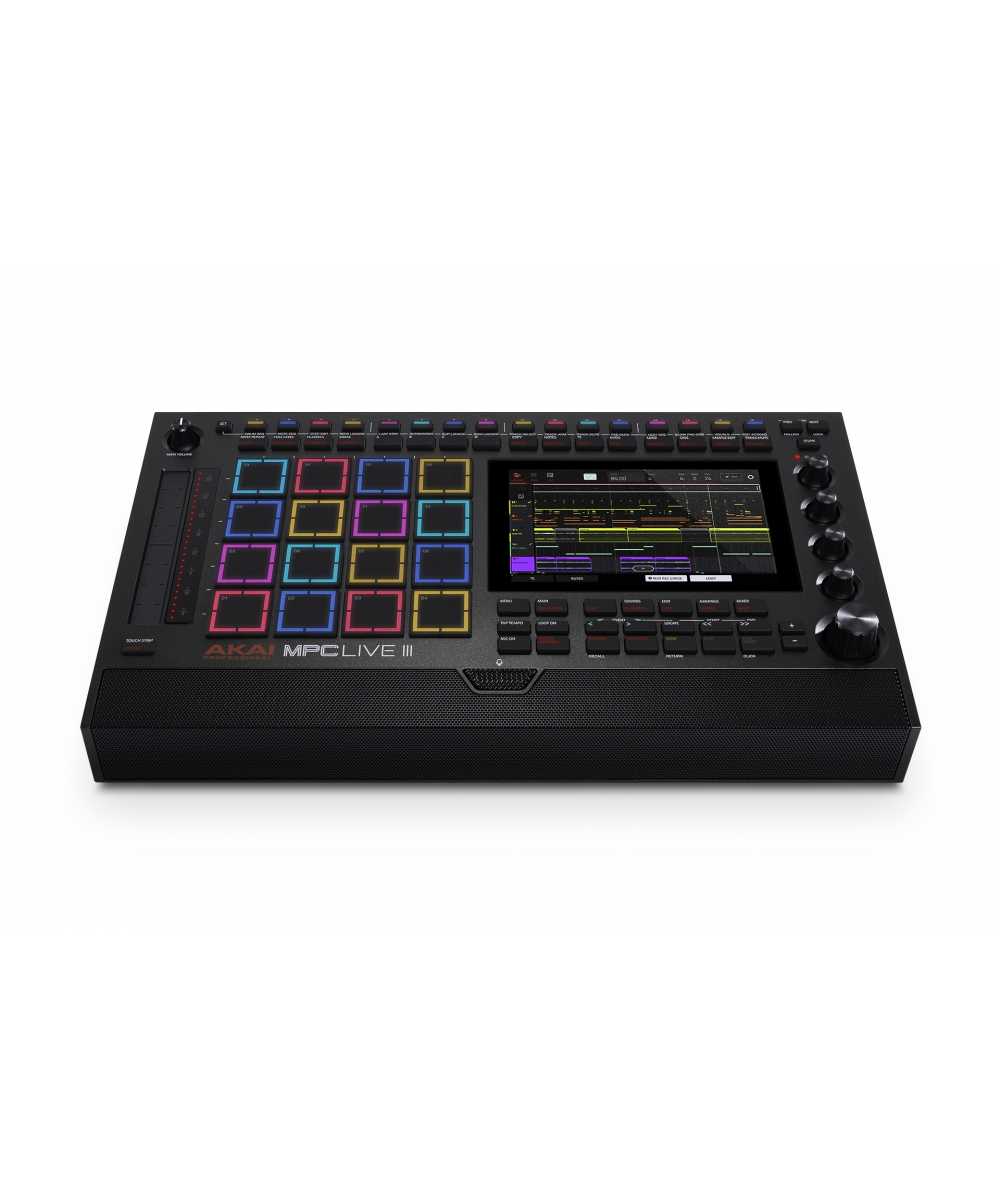

Pads
|
|
|

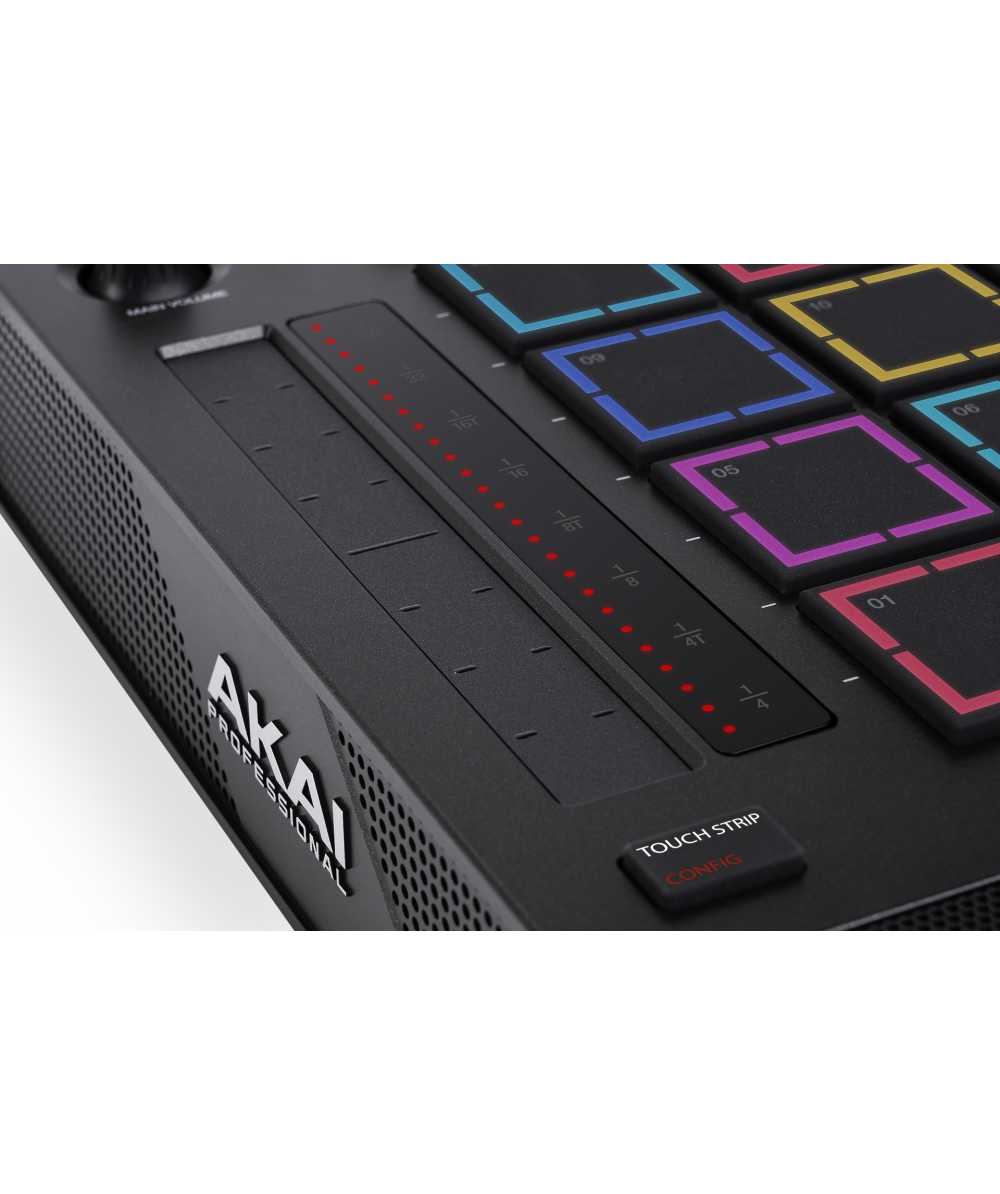

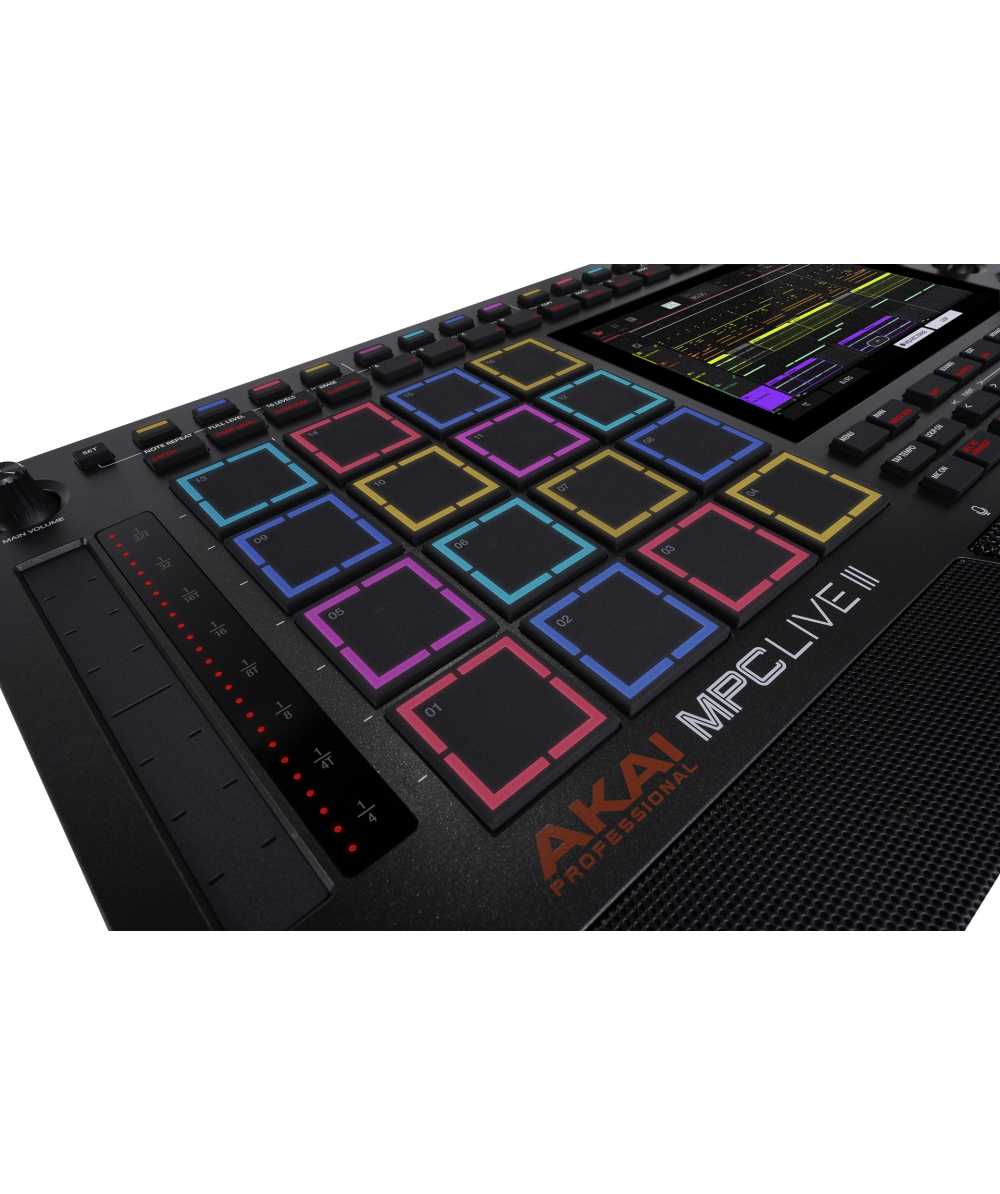

• (16) velocity- and pressure-sensitive pads with 3D-sensing technology
|
|
• (8) banks accessible via Pad Bank buttons
|
|
Knobs
|
|
|
• (4) 360° touch-sensitive Q-Link Knobs
|
|
• (4) Q-Link Knob columns accessible via Q-Link button
|
|
• (1) 360° encoder for display navigation and selection via push
|
|
• (1) 270° volume contro
|
|

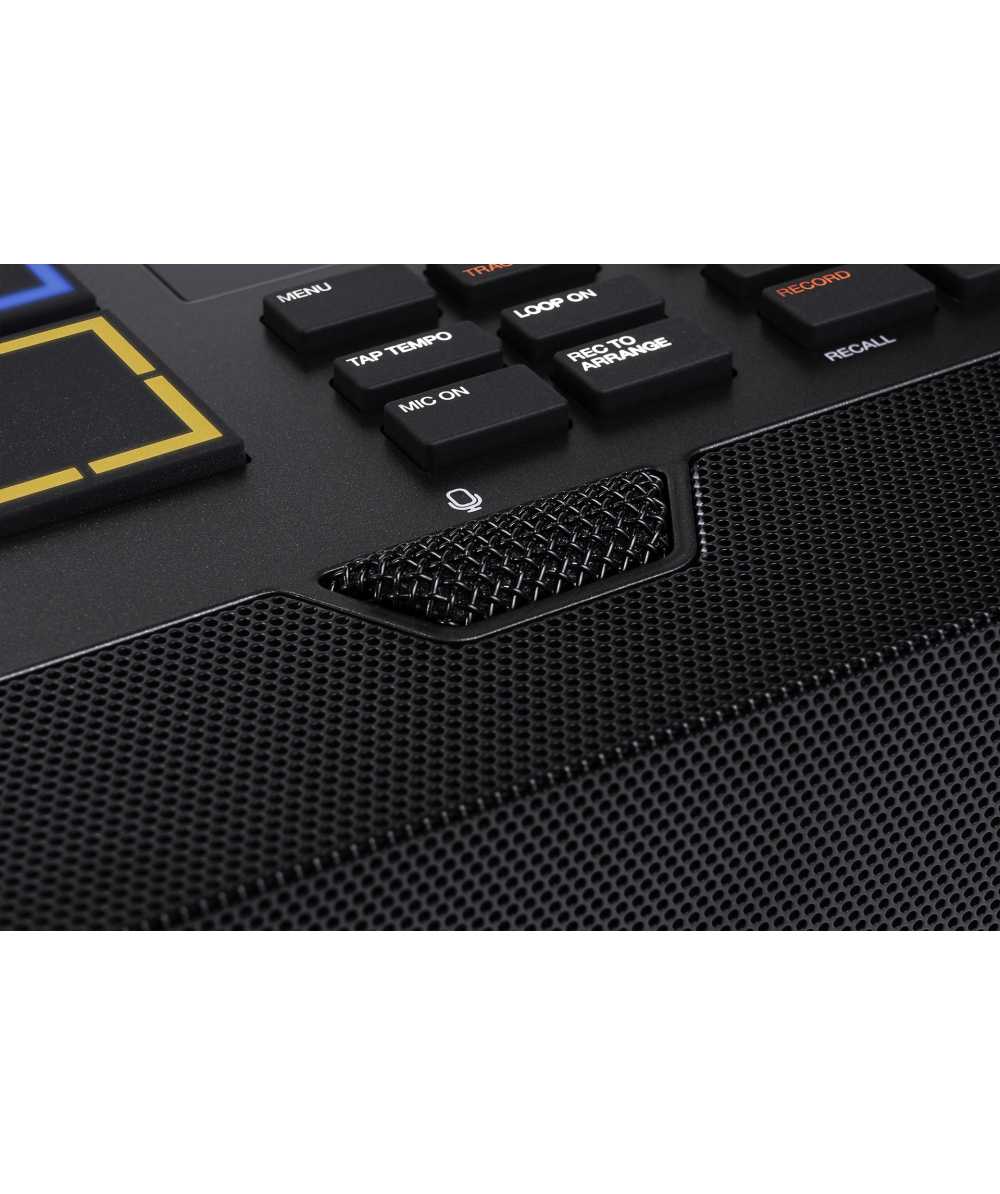

Buttons
|
|
|
• (60) dedicated function buttons; red-, amber-, or green-backlit
|
|

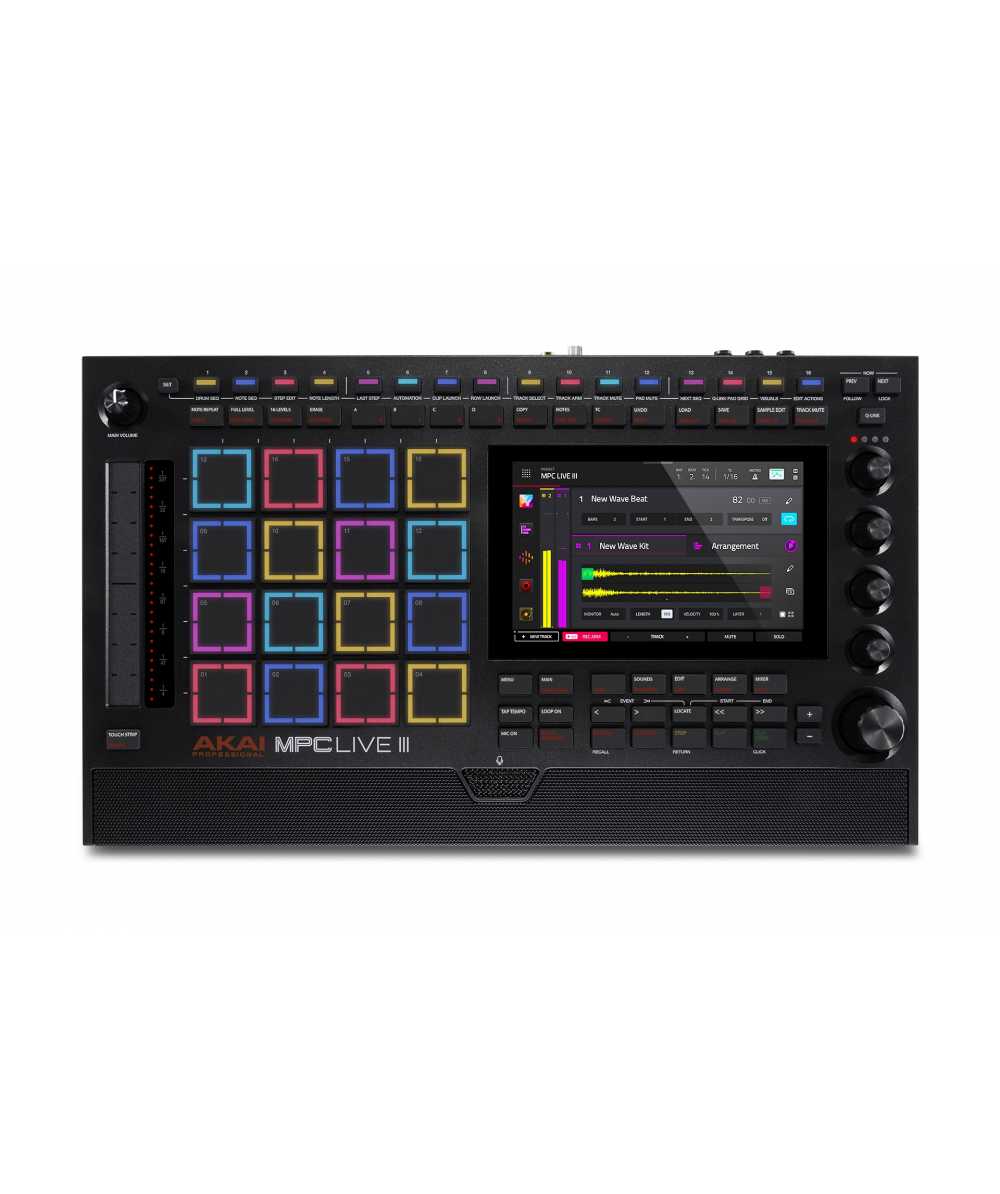

Display
|
|
|
• 6.9” / 176 mm (diagonal)
|
|
• 5.9” x 3.7” / 150 x 93 mm (width x height)
|
|
• Full-color LED-backlit display with touch interface
|
|
CPU
|
|
|
• Processor: Quad-core ARM® processor
|
|
• RAM: 8 GB
|
|
|
• Storage: 128 GB, expandable via SATA connections
|
|

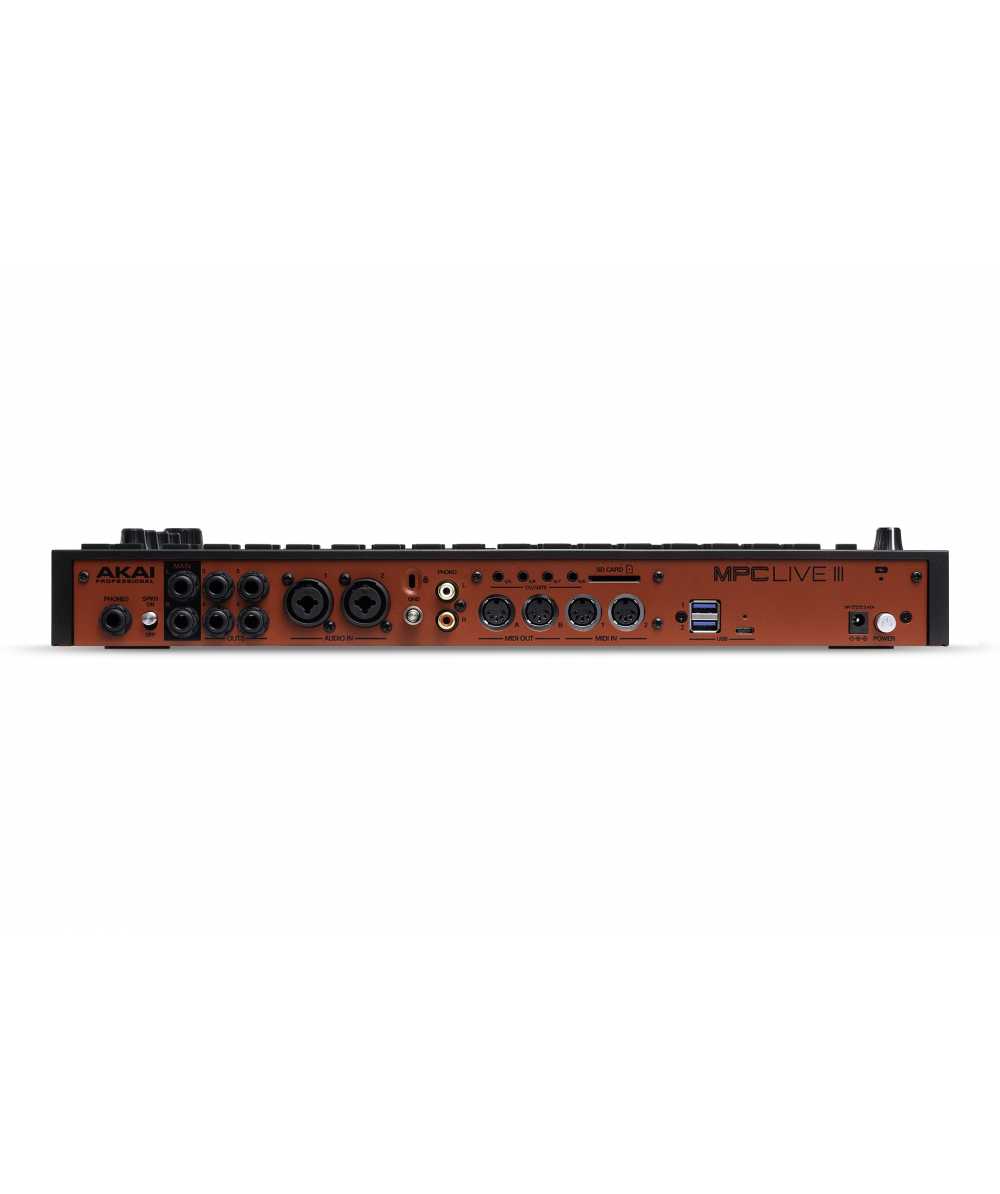

Connections
|
|
• (2) 1/4” (6.35 mm) Combo XLR/TRS inputs (1 stereo pair)
|
|
• (6) 1/4” (6.35 mm) TRS outputs (3 stereo pairs)
|
|
• (1) 1/4” (6.35 mm) stereo headphone output
|
|
• (2) RCA inputs (1 stereo pair)
|
|
• (2) 5-pin MIDI inputs
|
|
• (2) 5-pin MIDI outputs
|
|
• (4) Stereo 1/8” (3.5 mm) CV/Gate outputs
|
|
• (2) USB Type-A ports
|
|
• (1) USB Type-C® port
|
|
• (1) SD card slot
|
|
• (1) power adapter input
|
|
• (1) drive bay for 2.5” (63.5 mm) SATA drive
|
|
Power
|
|
|
• via power adapter: 19 V, 3.42 A, center-positive, included
|
|
• via battery: lithium-ion, rechargeable, up to 3 hours of battery life with typical use
|
|
Dimensions
|
|
|
• 17.2” x 10.1” x 2.6”
|
|
• 435.9 x 256.0 x 67.1 mm
|
|
Weight
|
|
|
• 8.6 lbs
|
|
|
• 3.9 kg
|
|
