Vendor:JMAZ

JMAZ ATTCO BEAM 230 - OSRAM Moving Head

Sale price$999.95Regular price $1,399.95

- 231W OSRAM SIRIUS HRI Discharge Lamp
- Lux: 164,230 lx @ 10m , 73,170 lx @ 15m
- Color Wheel: 11 Colors + Open
- Static Gobos: 16 + Open
- Dual Prism Wheel: Frist Prism 16 Facet , Second 8 Facet + 16 w/ Variable Speed
- Frost Filter
- Electronic Focus: 2.5m-30m
- Beam Angle: 2.5°
- Protocols: 3-Pin In/Out DMX512, Wireless DMX, RF Remote
- 9 Built-In Auto/Sound Programs
- powerCON In/Out

Product Details

Product Specifications

Light Source

231W OSRAM SIRIUS HRI Discharge Lamp



Lux: 164,230 lx @ 10m , 73,170 lx @ 15m



Life Expectancy: 2,000 hrs





Color System

Color Wheel: 11 colors + Open





Optics

Beam Angle: 2.5°



Electronic Motorized Focus: 2.5m-30m



Lens Diameter: 136mm



Lens Type: Anti-Reflections

Dynamic Effect

Static Gobos: 16 + Open

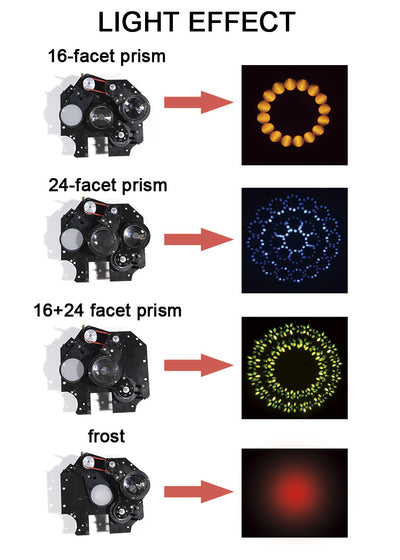

Dual Prism Wheel: Frist Prism 16 Facet , Second 8 Facet + 16 w/ Variable Speed



9 Built-In Auto/Sound Programs



Frost Filter



Dual Flag Mechanical Dimming

Control

Protocols: 3-Pin In/Out DMX512, Wireless DMX



Personalities: 2 Modes 14/16



Wireless Control:  RF Remote



Display: 2.4″ TFT LCD Display

Electronics

Dimmer:0-100% Linear Dimmer



Operating Temperature:-35° C to 45° C

Body

Quick-Lock Omega Bracket



Pan Angle: 630°



Title Angle: 270°



High Temperature Engineered Plastic and Cast Aluminum Casing

Physical

Cooling: Fan



Pan/Tilt: 8/16 bit smooth



powerCON In/Out

Electrical

Max Power Consumption: 190W



Input Voltage: AC91-260V, 50/60Hz

Box Content

2 x Omega Brackets



1 x DMX Cable



1 x powerCON Cable



1 x RF Remote



1 x Safety Cable



1 x User Manual

Item Dimensions & Weight

Dimensions: 15.2″ x 15″ x 8.7″



Weight: 30.6 lbs

Warranty

2 Years

Product Features

The JMAZ ATTCO BEAM 230 features a powerful 231W OSRAM SIRIUS HRI discharge lamp, delivering up to 164,230 lux at 10m. It includes an 11-color wheel, 16 static gobos, dual prism wheels, and a frost filter for versatile effects. With a 2.5° beam angle, electronic focus (2.5m-30m), and DMX512 or RF remote control, it’s ideal for impactful lighting. Includes RF remote, Omega bracket, powerCON, DMX cable, and safety accessories.

What's included

JMAZ ATTCO BEAM 230 2 x Omega Brackets 1 x DMX Cable 1 x powerCON Cable 1 x RF Remote 1 x Safety Cable 1 x User Manual
