JMAZ PIXL TRON 740Z - 280W RGBW LED Zoom Moving Head
JMAZ PIXL TRON 740Z - 280W RGBW LED Zoom Moving Head
JMAZ PIXL TRON 740Z - 280W RGBW LED Zoom Moving Head
JMAZ PIXL TRON 740Z - 280W RGBW LED Zoom Moving Head

Vendor:JMAZ

JMAZ PIXL TRON 740Z - 280W RGBW LED Zoom Moving Head

Sale price$1,499.95Regular price $1,999.95

- 280W (7 x 40W) RGBW LEDs Zoom Moving Head
- Honeycomb Tron Effect: 18W (90 x 0.2W) RGB SMD LEDs
- Electronic Zoom: 6° to 60°
- CCT: 2700K -8000K
- Honeycomb Tron Overlay
- Individual Pixel Control, Graphic Effect Macro
- Protocols: 3-Pin In/Out DMX512, Wireless DMX, RF Remote
- 9 Built-In Auto/Sound Programs
- powerCON In/Out

Product Details

Product Specifications

Light Source

280W (7 x 40W) RGBW LEDs



Honeycomb Tron Effect: 18W (90 x 0.2W) RGB SMD LEDs

Color System

Color LEDs: RGBW



Color SMDs: RGB



CCT: 2700K -8000K

Optics

Electronic Zoom: 6° to 60°

Dynamic Effect

Honeycomb Tron Overlay



Individual Pixel Control, Graphic Effect Macro



9 Built-In Auto/Sound Programs

Control

Protocols: 3-Pin In/Out DMX512, Wireless DMX



Personalities: 3 Modes 25/31/59



Wireless Control:  RF Remote



Display: 2.4″ TFT LCD Display

Electronics

Dimmer: 0-100% Linear Dimmer

Body

Quick-Lock Omega Bracket



Pan Angle: 630°



Title Angle: 270°



High Temperature Engineered Plastic and Cast Aluminum

Physical

Cooling: Fan



Pan/Tilt: 8/16 bit smooth



powerCON In/Out

Electrical

Mains Power Supply:AC Mains



Max Power Consumption: 350W



Input Voltage: 110-240V, 50HZ/60HZ

Box Content

2 x Omega Brackets



1 x DMX Cable



1 x powerCON Cable



1 x RF Remote



1 x Safety Cable



1 x User Manual

Item Dimensions & Weight

Dimensions: 12″ x 15.6″ x 15.6″



Weight: 21 lbs

Warranty

2 Years





Product Features

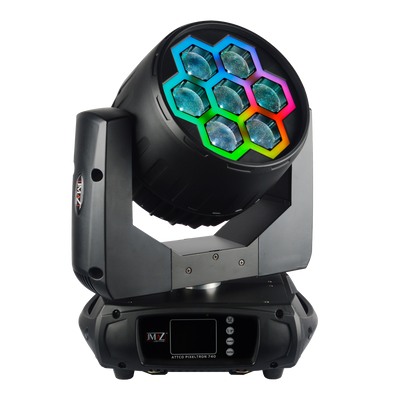

The JMAZ PIXL TRON 740Z is a 280W RGBW LED Zoom Moving Head with an impressive 6° to 60° electronic zoom and a Honeycomb Tron effect powered by 18W RGB SMD LEDs. With individual pixel control, graphic effect macros, and a color temperature range of 2700K-8000K, it delivers versatile lighting effects. Supports DMX512, wireless DMX, and RF remote control, and includes an RF remote, Omega bracket, powerCON, and DMX cables for professional setups.

What's included

JMAZ PIXL TRON 740Z 2 x Omega Brackets 1 x DMX Cable 1 x powerCON Cable 1 x RF Remote 1 x Safety Cable 1 x User Manual
