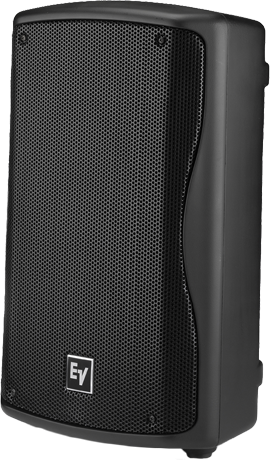

Electro-Voice ZXA1-90B-120V - 800W, 8" 2-Way Powered Full-Range Speaker
- Powerful 8" 2‑way powered full‑range loudspeaker
- Selectable high-pass filter for use with subwoofers
- Lightweight (< 20 lbs) with integral handle for easy carrying
Product Details
Product Specifications
|
Freq. Response (-3dB) |
60Hz-20kHz¹ |
|
Freq. Range (-10dB) |
48Hz-20kHz¹ |
|
Max. Measured SPL |
126dB¹, ³ |
|
Coverage (Horiz. x Vert.) |
90° x 50° |
|
Power Rating |
800W |
|
LF Transducer |
(1) EV-8L, 204mm (8") Woofer |
|
HF Transducer |
DH-2005, 25mm (1") Exit Compression Driver |
|
Crossover Frequency |
1.8kHz |
|
Connectors |

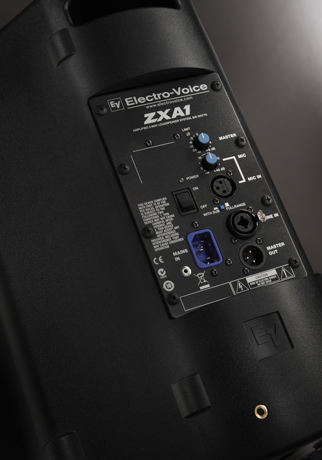

(1) XLR Mic Input with Gain Control, (1) XLR/TRS Combo Jack, (1) XLR Link Output |
|
Enclosure Material |
ABS |
|
Grille |
18GA Steel with Black Powdercoat |
|
Mains Requirements |
100V: 80V-110V, 0.7A⁴, 50-60Hz |
|
120V: 95V-132V, 0.6A⁴, 50-60Hz |
|
|
230V: 190V-264V, 0.4A⁴, 50-60Hz |
|
|
Dimensions (H x W x D) |
457mm x 282mm x 264mm (17.99" x 11.10" x 10.39") |
|
Net Weight |
8.6kg (19.0lbs) |
|
Shipping Weight |
10.3kg (22.7lbs) |
Product Features
Electro-Voice engineers have raised the bar for portable sound once again, adding to the award-winning ZX loudspeaker family with the new ZXA1 – the self-powered version of the best-selling ZX1 compact two-way loudspeaker. ZXA1 is powered by an 800-watt amplifier module derived from EV’s world-tour-class Tour Grade series – amplifiers with audio quality and reliability proven at the very highest levels
Key Features:
- Integrated 800 watt power amplifier
- Bi-amplified design with transducer protection
- EV8L 8” high-output LF transducer
- DH2005 1” exit true compression driver
- 90° x 50° coverage pattern
- Rotatable horn design
- 126 dB maximum SPL
- Selectable high-pass filter for use with subwoofers
- Line and microphone inputs

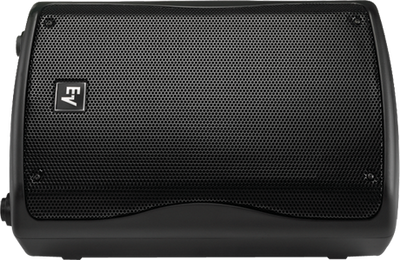

- Integral monitor angle on enclosure

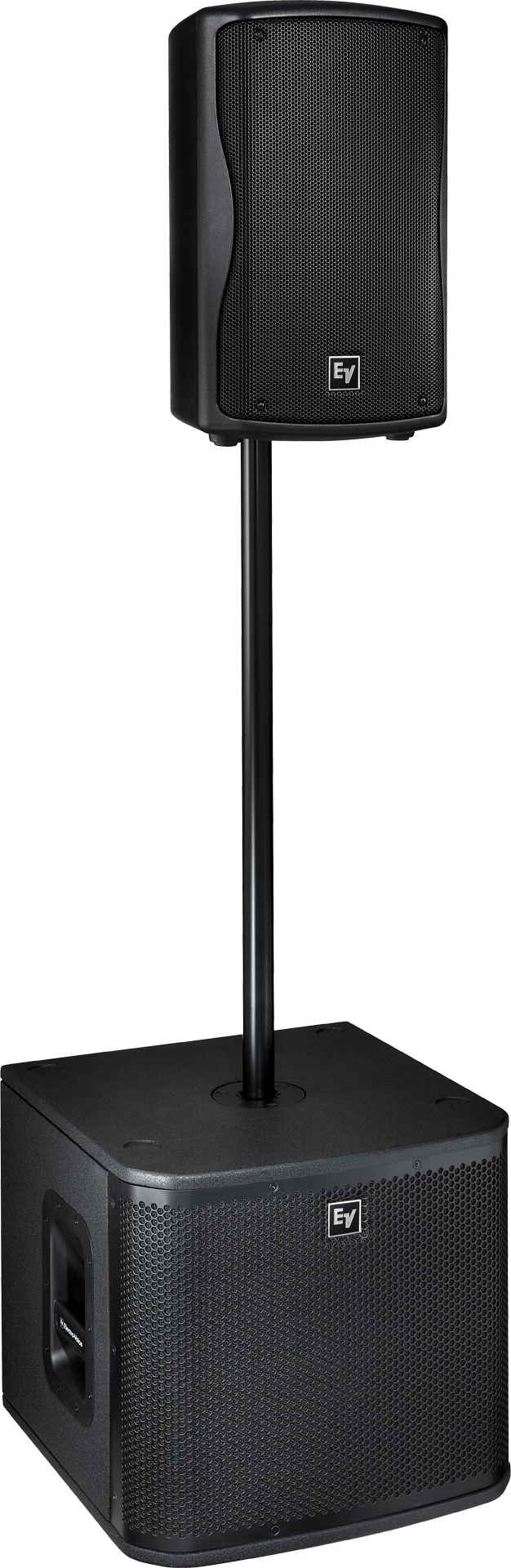

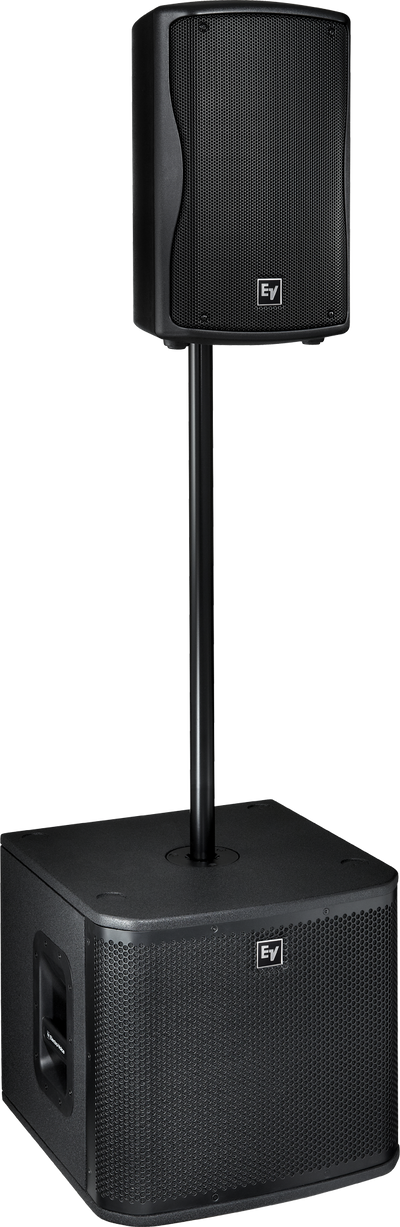

- Built-in pole mount
- Lightweight (< 20 lbs) with integral handle for easy carrying
