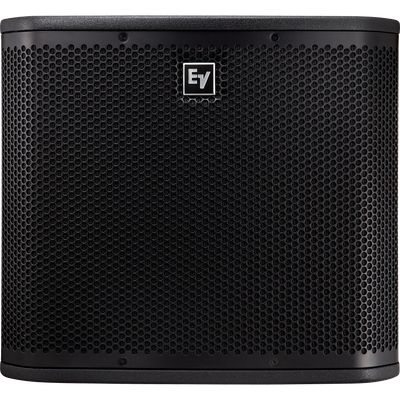

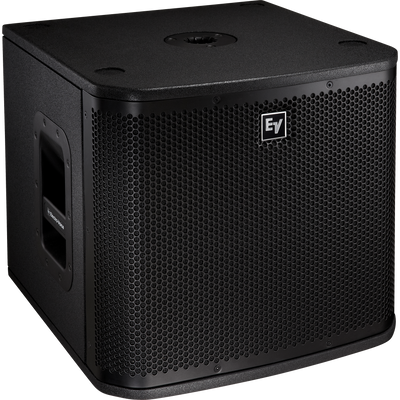

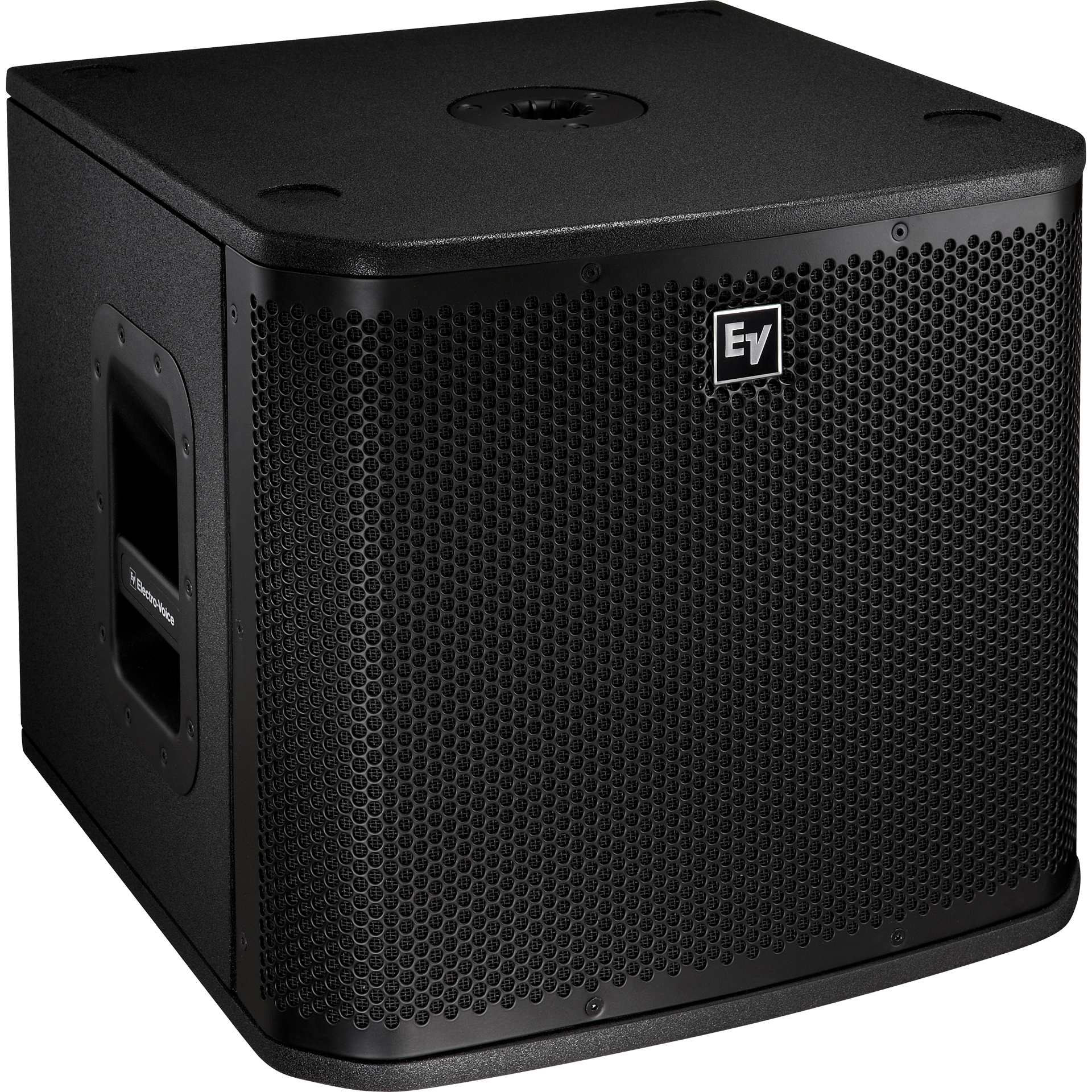

Electro-Voice ZXA1-SUB-120V - 700W 12" Powered Subwoofer
Electro-Voice ZXA1-SUB-120V - 700W 12" Powered Subwoofer
Electro-Voice ZXA1-SUB-120V - 700W 12" Powered Subwoofer
Electro-Voice ZXA1-SUB-120V - 700W 12" Powered Subwoofer

Vendor:Electro-Voice

Electro-Voice ZXA1-SUB-120V - 700W 12" Powered Subwoofer

Sale price$899.00Regular price $1,167.00

- Low-profile, self-powered 12" subwoofer
- Perfect compliment to the ZXA1 speaker
- 15mm Plywood Enclosure
- EVS-12S 305mm (12”) Woofer

Product Details

Product Specifications

Amplifier Power 800 Watts (RMS)
Color Black
Coverage (Nominal -6 dB) Omnidirectional
Input Connections (2) XLR Stereo Input, (2) XLR Stereo Output
Power Requirement 120V: 90V-132v, 1.0 A, 50-60Hz 230V: 190V-264V, 0.6A, 50-60Hz
Speaker Type Powered Subwoofer
Frequency Response (-3 dB) 53–93 Hz Half Space
Frequency Response (-10 dB) 44–118 Hz Half Space
Max. SPL/1m (calc) 126 dB Half Space
System Power Handling (Continuous/Program/Peak) 700 Watts
LF Transducer (1) EVS-12S, 305mm (12”) Woofer
Crossover Frequency 100 Hz
Enclosure Material 9-ply, 15mm Plywood, Internally Braced, with Textured Paint
Outdoor No
Grill 16GA Steel with Black Powdercoat
Height 400 mm (15.75")
Width 444.5 mm (17.5")
Depth 457.2 mm (18")
Weight Net 20.9 kg (46.08 lbs)
Shipping Weight 26.5 kg (58.42 lbs)

Product Features

ZXA1-Sub 12" Powered Subwoofer

Extending the ZXA1’s size-defying performance and sleek styling into the low-end realm, the ZXA1-Sub packs 700 W of self-powered punch into a low-profile wood enclosure. Match ZXA1 with ZXA1-Sub and hear just how big a small rig can sound, whether you want to add a tight thump to a DJ set or give the highs and mids some breathing room in a live performance

Features:

  • 15mm Plywood Enclosure, Internally Braced, with Textured Paint
  • EVS-12S 305mm (12”) Woofer for Powerful, Engaging Bass Response
  • Class D Lightweight Amplifier

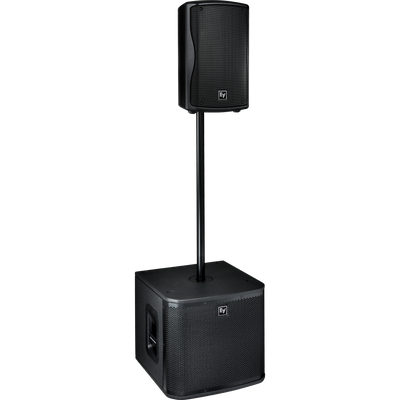

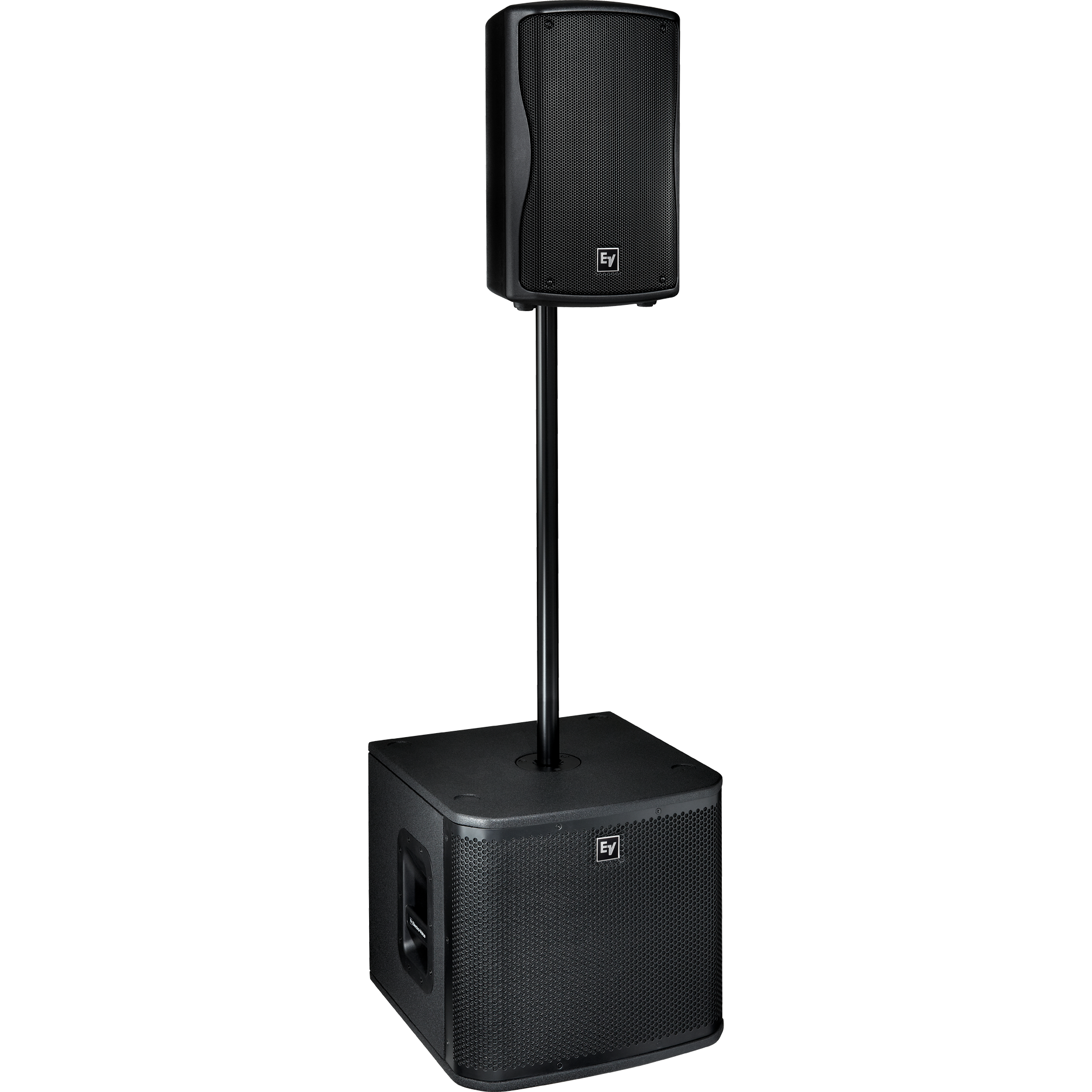

  • Pole Mount for Full-Range Systems

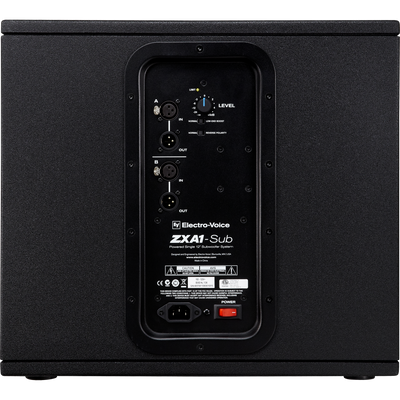

  • Dual XLR Inputs and Outputs
  • Switchable EQ Modes for Different Applications
  • LED indicators for Power On and Limit
What's included

Electro-Voice ZXA1-Sub Power Cord Owners Manual
