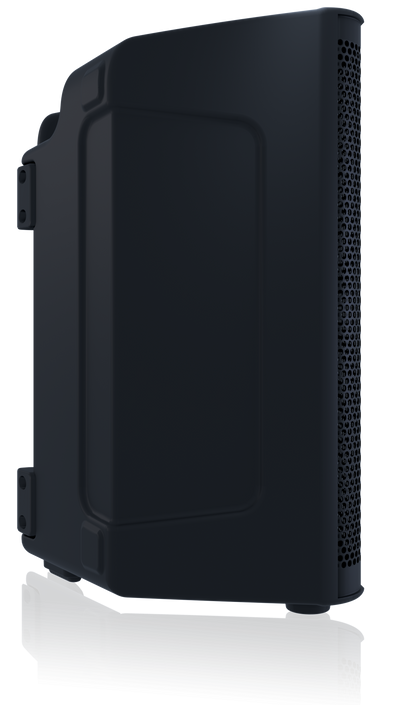

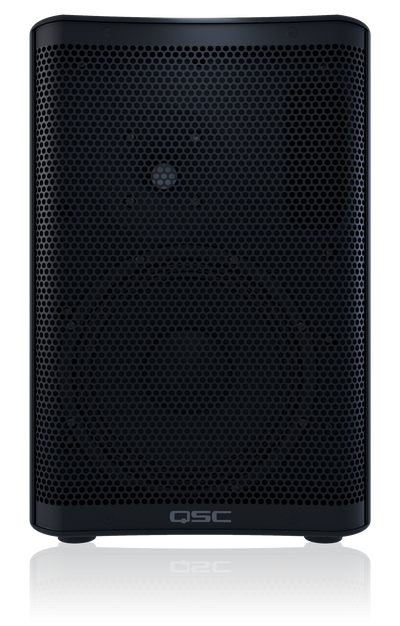

QSC CP8 - 1000 Watt 8-inch 2-Way Compact Powered Loudspeaker (Single)
- Compact 8" active 1000 watt loudspeaker
- Lightweight and very portable
- Can be used as a main PA, stage monitor or instrument amplifier
- Advanced DSP with Intrinsic Correction and one-touch selectable contour
- Directivity Matched Transition (DMT) for consistent frequency response
QSC CP8 - 1000 Watt 8-inch 2-Way Compact Powered Loudspeaker (Single)
Product Details
Product Specifications
|
|
CP8 |
|
Configuration: |
Two-way active loudspeaker |
|
LF Transducer: |
8 in (203 mm), cone |
|
HF Transducer |
1.4 in (35.6 mm) compression driver |
|
Frequency Response (-6 dB): |
56 - 20 kHz |
|
Frequency Range (-10 dB): |
53 - 20 kHz |
|
Nominal Coverage Angle: |
90° Axisymetric |
|
Maximum Rated SPL1 |
124 dB |
|
Amplifier: |
Class D, Peak: 800 W (LF), 200 W |
|

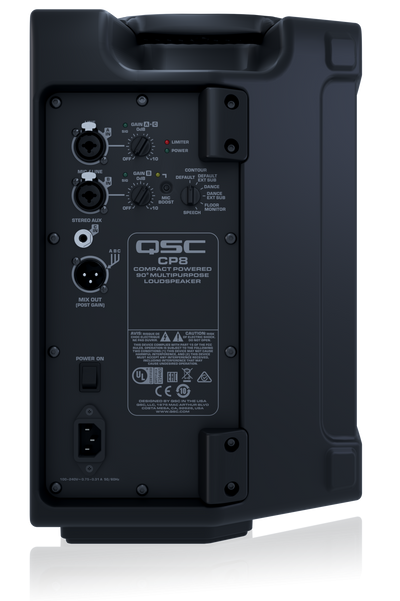

Controls: |
Power, 2 x Gain, Mic Boost Push Switch |
|
Indicators: |
Power LED, 2 x Input Signal, Input B MIC selected, Limiter active LED |
|
Connectors: |
2 x locking XLR/F ¼” combo (Line Input and Mic/Line input) |
|
AC Power Input: |
Universal power supply 100 – 240 VAC, 50 – 60 Hz |
|
AC Power Consumption 1/8th Power: |
100 VAC, 0.75A / 120VAC, 1.0A / 240VAC 0.31A |
|
Enclosure Material: |
Polypropylene |
|
Attachment Points: |
M10 threaded insert |
|
Color: |
Black (RAL 9011) |
|
Grille: |
18 Gauge powered coated steel |
|
Net Weight: |
21.0 lbs (9.5 kg) |
|
Shipping Weight: |
25.5 lbs (11.4 kg) |
|
Regulatory: |
EMC, UL, CB |
|
Optional Accessories: |
CP8 Tote, CP8 Outdoor Cover, CP8 Yoke |
Product Features
CP Series Compact Powered Loudspeakers
The CP Series offers QSC performance, quality and reliability, in a highly compact package. CP is remarkably lightweight, making it easy to load, carry, lift and deploy in a wide range of portable and installed applications. CP’s 1000-watt power amplifier, matching transducers and advanced DSP deliver stunning performance for such a small loudspeaker. You can mix up to three input sources (mic/line, line and music playback device) making CP a great single-box PA system, or it can be deployed on a speaker
pole, as a floor monitor or musical instrument amplifier as part of a larger system. One-touch DSP with preset contours for the most common applications is also provided.
Features:
- Compact and powerful performance
- 1000 Watt peak power Class-D amplifier module
- Easily selectable contours for commonly used applications
- Advanced DSP with Intrinsic Correction for superior sound quality and speaker protection
- Directivity Matched Transition (DMT) for consistent frequency response across the entire coverage area
- Lightweight and highly portable
- Professional appearance looks great in any application
- Use for main PA, stage monitor, or instrument amplifier
- 35 mm pole socket
- Optional yoke, tote, and outdoor cover accessories
- Complete EASE and CAD information available online
- 6-Year Warranty*
* 1-year warranty may be extended by an additional 5 years, with QSC Product Registration
