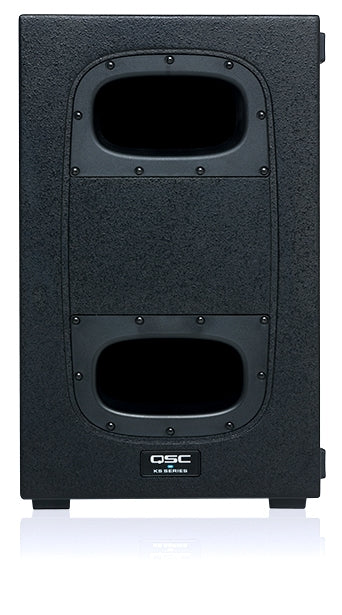

QSC KS112 - 2000 W Active Subwoofer
- 12" inches bandpass subwoofer
- 2000 W Class D amplifier module
- M20 fittings available for either horizontal or vertical position
- Low-noise and effective cooling system

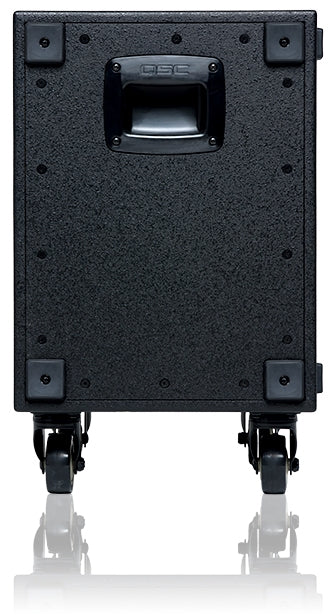

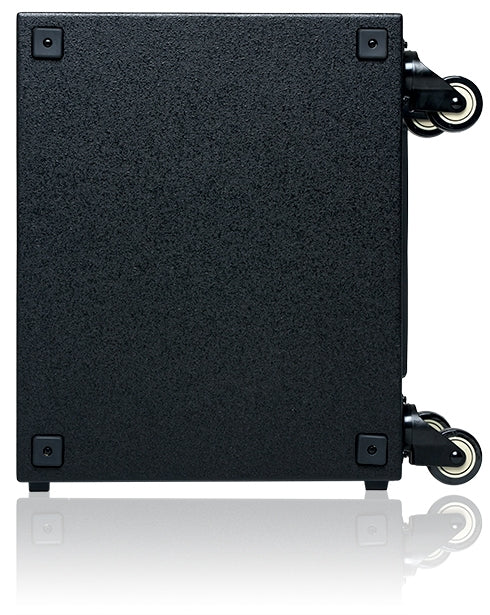

- Four low-noise, heavy-duty casters

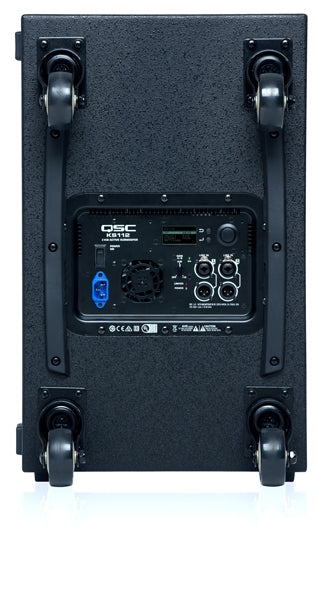

- Amplifier protection rails – protects the amplifier when the unit is rolled off
- 15 mm Birch Plywood design
QSC KS112 - 2000 W Active Subwoofer
Product Details
Product Specifications
| Configuration | 6th-Order Bandpass Subwoofer |
| LF Transducer | 12-inch (305 mm), Cone |
| Frequency Response (-6 dB) | 41 Hz - 108 Hz |
| Frequency Range (-10 dB) | 38 Hz - 121 Hz |
| Maximum Rated SPL1 | 128 dB @ 1 m (peak) |
| Amplifier | Class D 2000W (peak) |
| Cooling | Low-noise, variable speed fan |

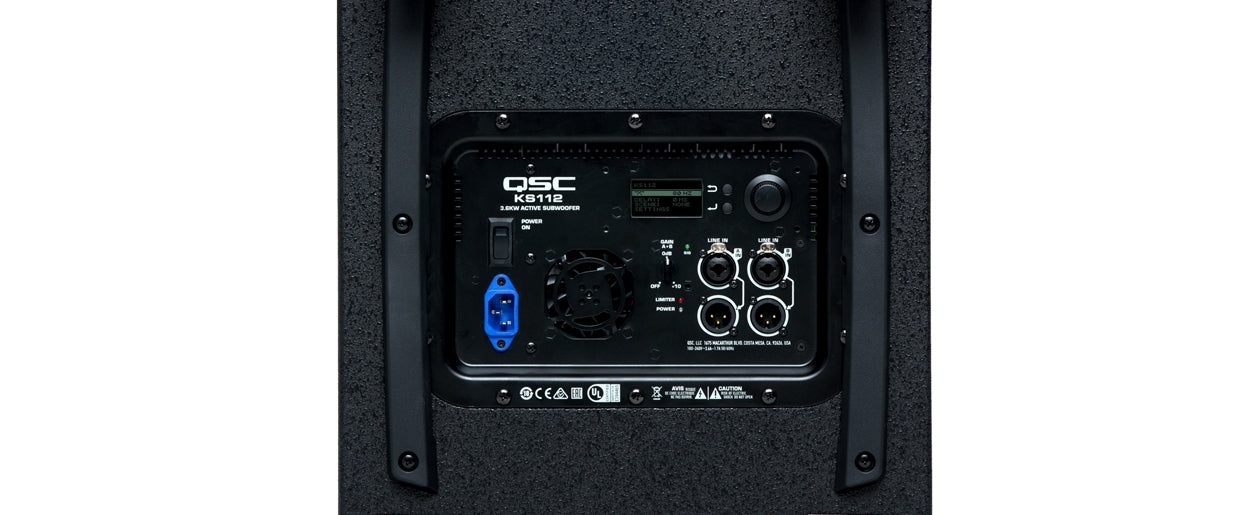

| Controls | Power On/Off Gain Control Rotary encoder 2 x selection buttons |
| Indicators | 2 x Power LED (front and rear) Input Signal LED Limiter Active LED |
| Connectors | 2 x locking XLR/F 1/4-inch combo 2 x XLR/M (Loop-thru Output) 1 x locking IEC power connector |
| AC Power Input | Universal power supply 100 - 240 VAC, 50 - 60 Hz |
| AC Power Consumption | 100 VAC, 2.4 A / 120 VAC, 2.0 A / 240 VAC, 1.3 A |
| Enclosure Details | |
| Enclosure | 15 mm Birch Plywood |
| Color | Black (RAL 9011) |
| Grille | Internal woofer cover |
| Dimensions (HWD) inches | 24.5 x 15.5 x 24.25 |
| Dimensions (HWD) mm | 622 x 394 x 616 |
| Net Weight | 28.4 kg (62.6 lbs) |
| Shipping Weight | 34.5 kg (76 lbs) |
| Regulatory | CE, WEEE, UL, China RoHS, RoHS II, FCC Class B |
| Included Accessories | 4 x Low-Noise, Heavy Duty Casters |
| Optional Accessories | KS112 CVR Transport Cover, KS-LOC Lock-Out Cover SP-16X Extension Pole, SP-36 Extension Pole |
Product Features

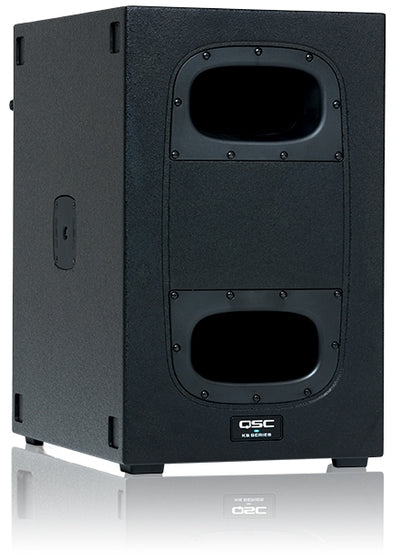

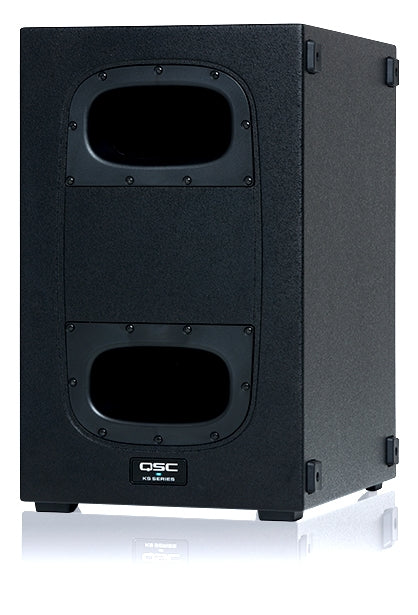

The KS112 is an ultra-compact powered subwoofer for installation and highly portable entertainment applications. The KS112 is a highly portable, single 12-inch bandpass design subwoofer, powered by a 2000 Watt peak power Class D amplifier module. The cabinet is constructed of premium birch and includes high-quality, low noise casters.

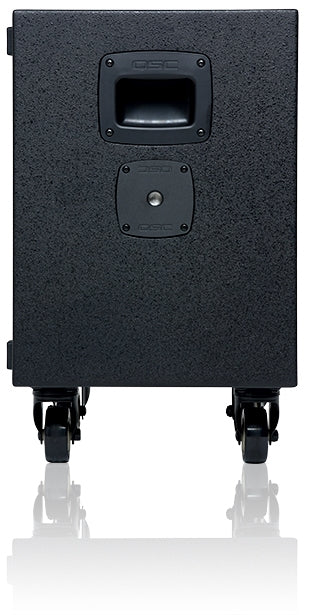

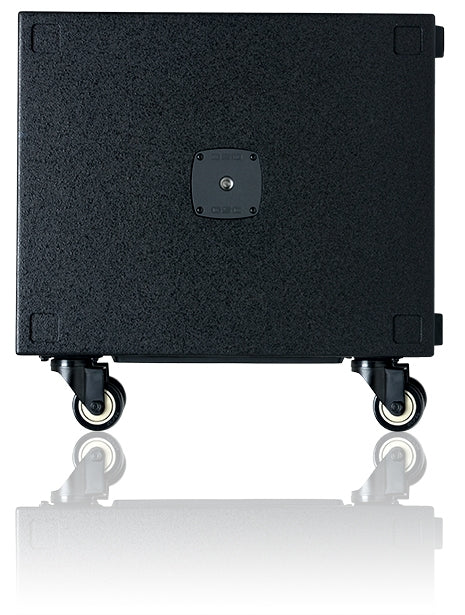

Two M20 threaded pole receptacles are available for a positive, wobble-free connection to a threaded speaker pole in either vertical or horizontal deployment (pole not included).
Key Features:
- High Output in an ultra-compact form factor
- 2000 Watt Class D amplifier module
- 12-inch, long-excursion driver; 6th order bandpass design
- Intrinsic Correction tuning and loudspeaker management
- Refined, professional appearance looks great in any application
- Rugged painted wood enclosure for long life and lasting durability
- Deployment in either vertical or horizontal positions with dual M20 speaker pole fittings
- Optional KS-LOC security cover prevents unauthorized tampering of controls
- Complete EASE & CAD information available online
- 6-Year Warranty (with product registration)
