Electro-Voice EKX-12P - 1500W, 12" Powered Loudspeaker (Black)
-12" powered loudspeaker
- Features high-efficiency Class-D power amplifiers (up to 1500 W)
- Ideal for portable and installed applications
- QuickSmart Mobile wireless control and monitoring application integrated
Electro-Voice EKX-12P - 1500W, 12" Powered Loudspeaker (Black)
Product Details
Product Specifications
|
Frequency Response (-3 dB) |
60 Hz - 18 kHz¹ |
|
Frequency Range (-10 dB) |
50 Hz - 20 kHz¹ |
|
Maximum SPL |
132 dB² |
|
Coverage (H x V) |
90" x 60" |
|
Power Rating |
1500 W |
|
LF Transducer |
EVS-12M 300 mm (12 in) |
|
HF Transducer |
DH-1M 1-inch titanium compression driver |
|
Crossover Frequency |
1.7 kHz |
|

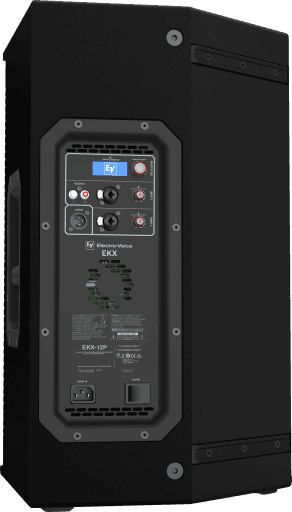

Connectors |
(1) Stereo RCA input, (2) XLR/TRS combo jack, and (1) XLR link output |
|
Enclosure |
15 mm plywood with EVCoat |
|
Grille |
18 AWG steel with powdercoat |
|
Suspension |
(8) M10 threaded mounting points |
|
Dimensions (H x W x D) |
607 mm x 375 mm x 356 mm (24 in x 15 in x 14 in) |
|
Net Weight |
18.8 kg (41.4 lb) |
|
Shipping Weight |
22.9 kg (50.4 lb) |
|
Power Consumption |
1.8 A³ |
|
¹ Full space measurement using the music DSP preset. |
|
|
² Maximum SPL is measured at 1 m using broadband pink noise at maximum output. |
|
|
³ Current rating is 1/8 power. |
|
Product Features
12" Powered Loudspeaker
QuickSmartDSP features best-in-class processing, EV’s signature single-knob user interface, and intuitive menu navigation via LCD. High-efficiency 1500 W Class D power amplifier delivers up to 132 dB peak SPL on the EKX-12P via high-sensitivity transducers designed and engineered by EV. Intelligent thermal management with a variable-speed fan controlled by multiple onboard sensors, ensuring superior performance and reliability in demanding environmental conditions. EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage. Lightweight, compact 15-mm wood enclosure with internal bracing, durable EVCoat finish, eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.
