Antari LCU-2S - Universal Liquid Control System - Fog & Snow

The Antari LCU-2S, an advanced upgrade from the LCU-1S, supports all Antari fog, fazer, and snow machines. It seamlessly supplies fluid to multiple machines using the same liquid type, ensuring continuous operation and preventing fluid shortages, perfect for keeping your effects running smoothly without interruption.

• Supports all Antari fog, fazer and snow machines
• Supplies multiple machines using the same fluid type
• Automatic fluid supply control
• Supply Fluid 35M Horizontal and 12M Vertical at Maximum

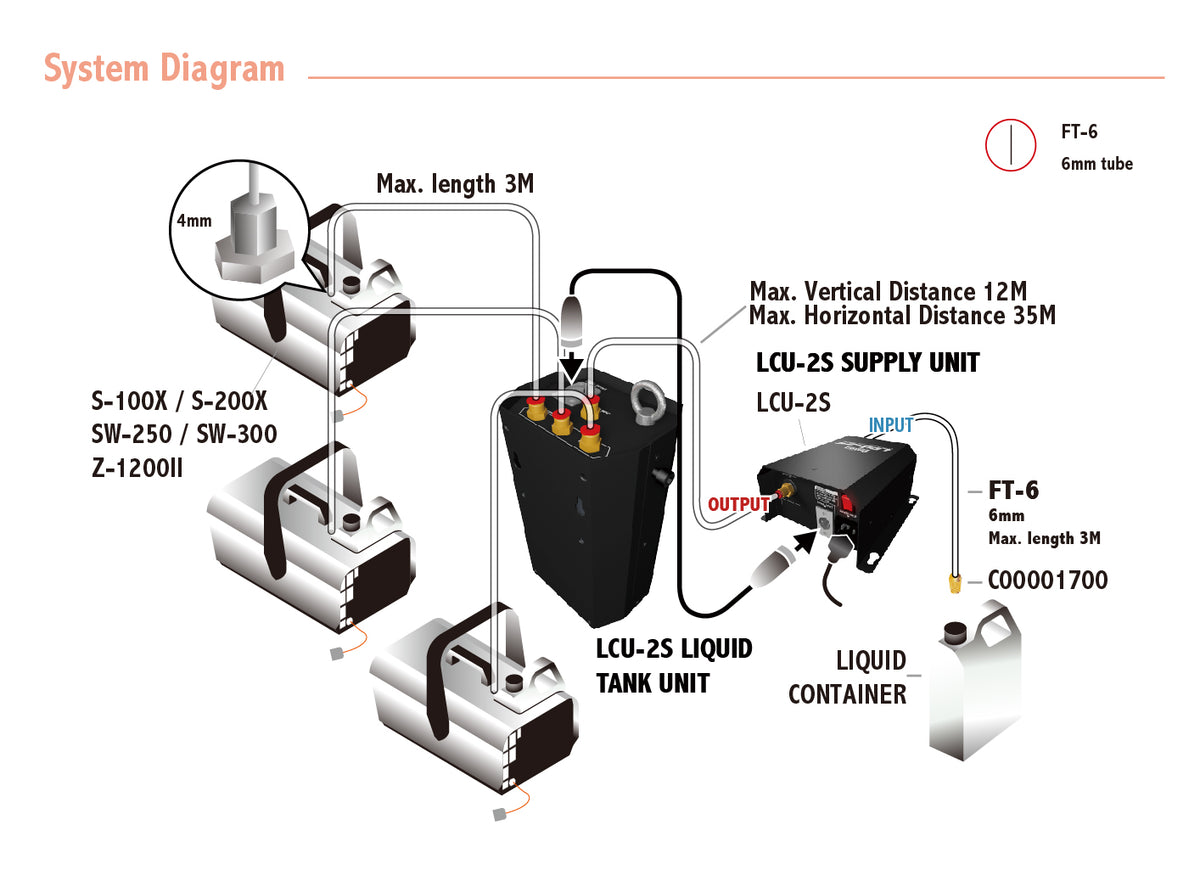

• Two-part system: supply unit plus 0.8 Liter tank/dispenser unit

Input Voltage: US Model: AC 100-120V, 50/60 Hz 0.5A; EU Model: AC 220-240V, 50/60 Hz 0.5A
Rated Power: 55W

Fluid Tank Capacity: 0.8 Liters (0.21 Gallon)
Compatible Fluid: Antari Fluid
Supply Distance: 35M Horizontal and 12M Vertical at Maximum
Compatible Machines: All Antari fog, fazer and snow machines

Ambient Temp. Range: 5°C - 40°C (41°F - 104°F)

Control Methods: Auto
Interface: IEC (Power); XLR 3-Pin (Data Cable)

Included Accessories: XLR 3-Pin Data Cable; FT-6 (12 Meter 6mm x 4mm Tube); FT-4 (10 Meter 4mm x 2.5mm Tube); FTA-44 Adapter (4mm to 4mm) x3; FTA-64 Adapter (6mm to 4mm) x3; FLF-6 Fluid Filter
Optional Accessories: N/A

Dimensions (Supply Unit): L179 x W168 x H84 mm (L7.05 x W6.62 x H3.31 in)
Dimensions (Tank Unit): L158 x W103 x H312 mm (L6.22 x W4.06 x H12.29 in)
Weight (Supply Unit): 2.0 kg (4.40 lbs)
Weight (Tank Unit): 1.8 kg (3.97 lbs)

Manufacturer: Antari
Model: LCU-2S
UPC: 4719850652760

1x Antari LCU-2S Main Unit
1x LCU-2S Liquid Dispenser Unit
1x IEC Power Cable
1x 3-Pin Data Cable
1x 12 Meter 6mm x 4mm Tube
1x 10 Meter 4mm x 2.5mm Tube
3x 4mm to 4mm Adaptor
3x 6mm to 4mm Adaptor
1x Fluid Filter
1x Quick Start Guide
