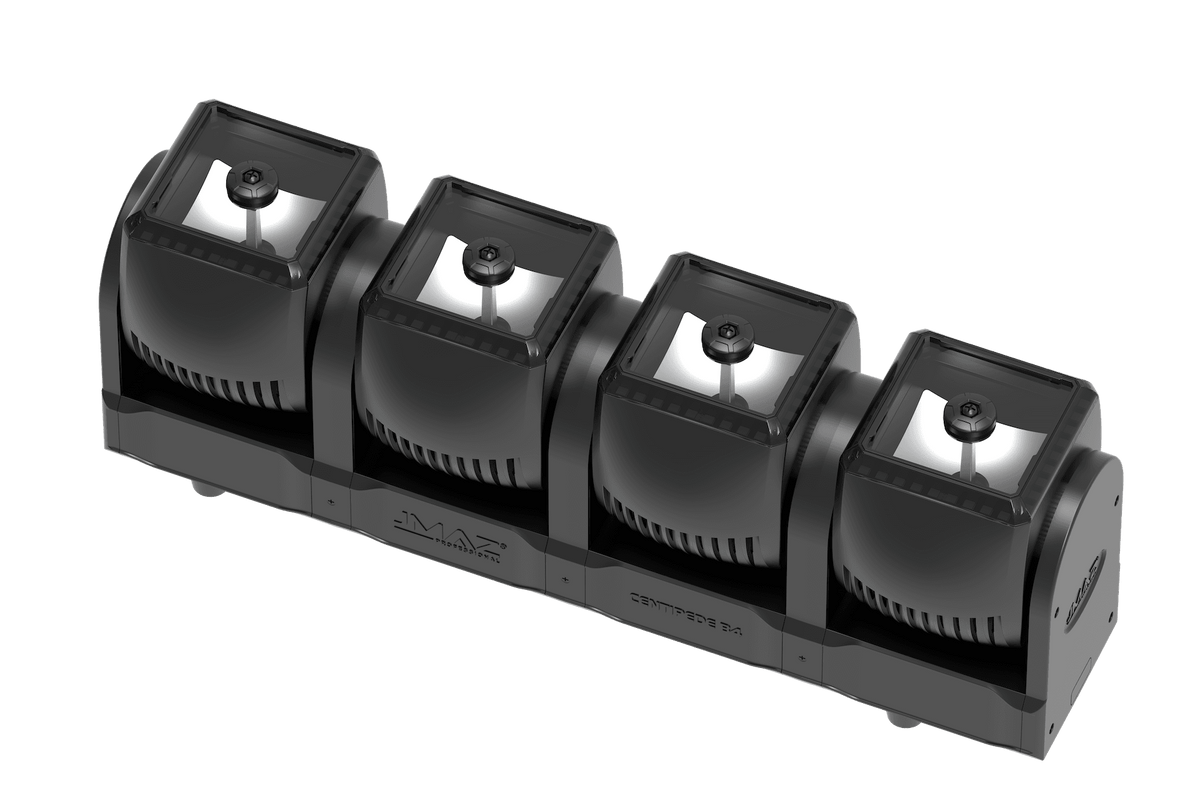

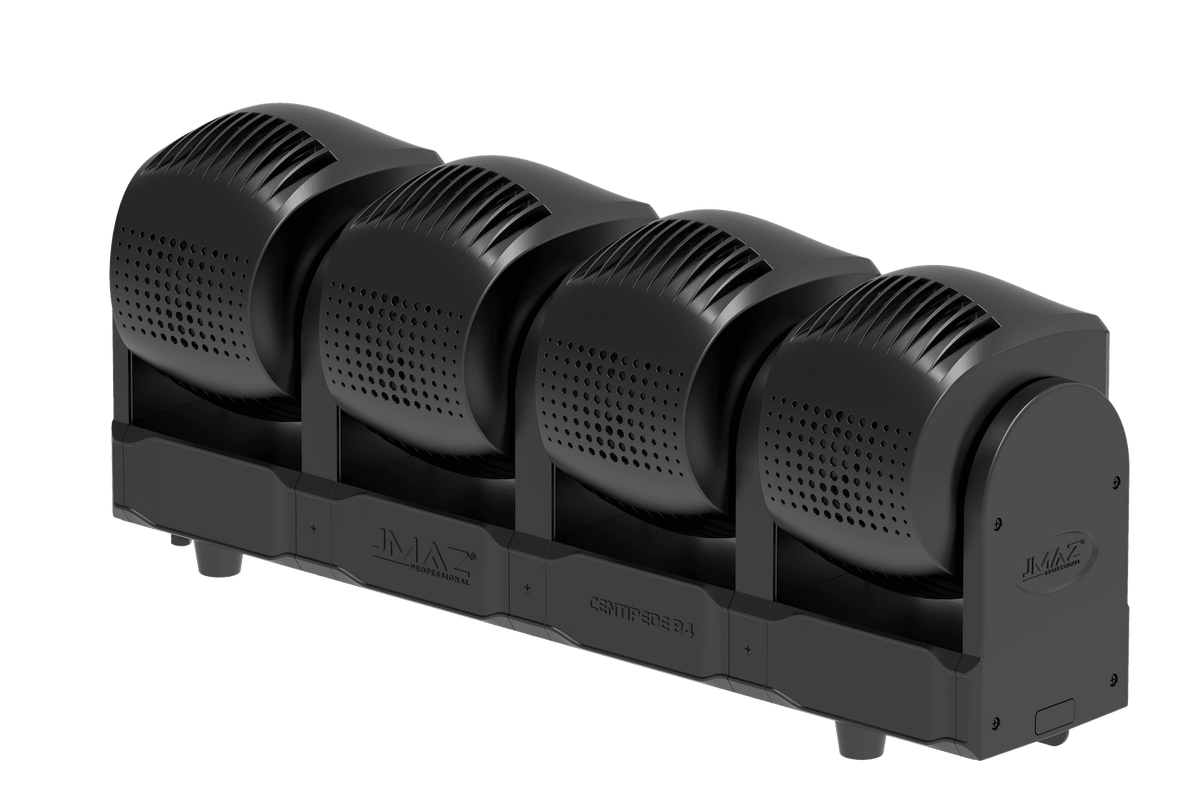

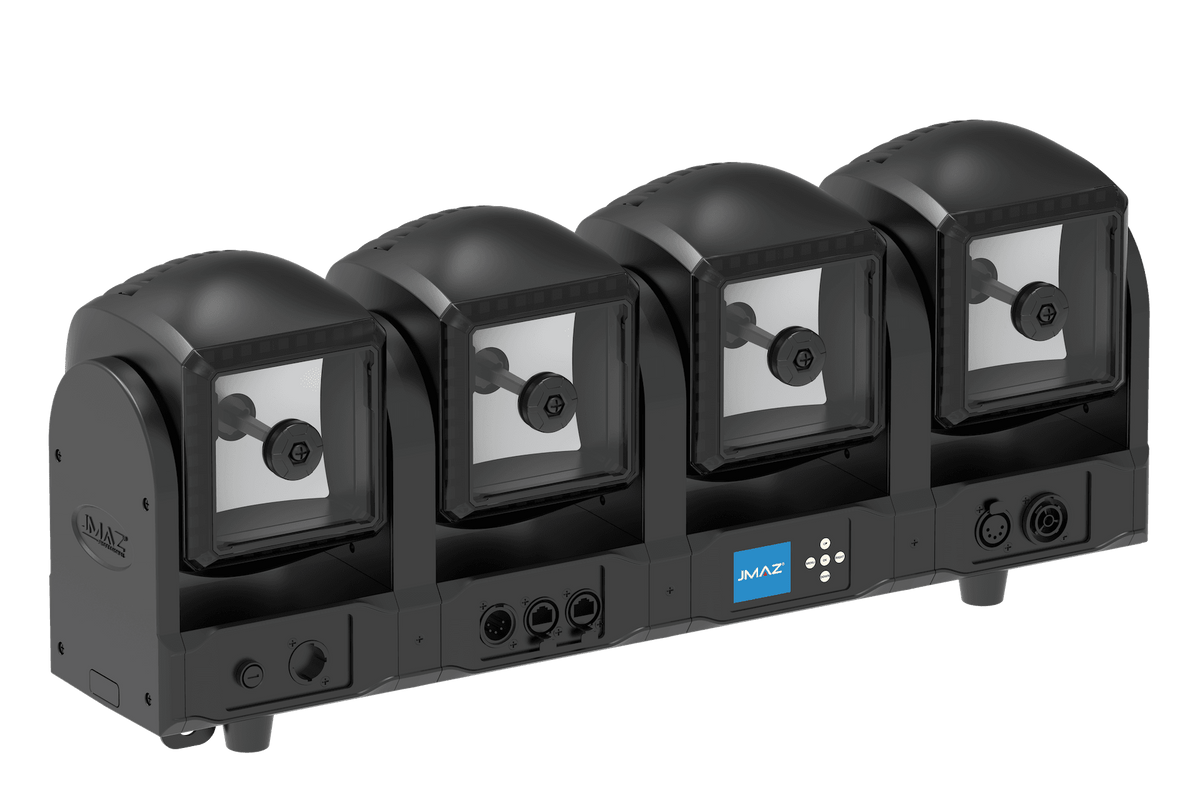

JMAZ PROFESSIONAL CENTIPEDE B4 - 270W LED Intelligent Bar RGBW LED

The JMAZ Professional Centipede B4 is a compact, high-performance moving head bar equipped with four 60W RGBW LEDs and 120 RGB SMD LEDs for dynamic beam and ring effects. Each head features 360° infinite tilt control and independent pixel control, offering flexible and precise movement. With built-in virtual color presets, movement macros, and foreground/background color control, the Centipede B4 enables advanced visual effects with minimal programming. The 3.5° beam angle provides tight, punchy beams, while 16-bit RGBW color mixing and CTO from 2500K to 8000K ensure smooth transitions and color accuracy. Ideal for clubs, stages, and touring rigs, it supports four personality modes (24/55/66/86 channels) and integrates easily with leading protocols including 5-pin DMX512, Art-Net, RDM, sACN, and Kling-Net. Power is delivered via TRUE1 In/Out, ensuring a secure and reliable connection. Each fixture includes a TRUE1 power cable, 5-pin DMX cable, two omega brackets, two safety cables, and a manual. CE, cETL, FCC, and RoHS certified.

• Four high-output 60W RGBW LEDs deliver intense 3.5° beam effects with exceptional brightness, punch, and long-throw aerial performance.
• Compact moving head bar design combines four independently controllable beam sources in a streamlined fixture ideal for stages, clubs, and touring productions.
• Continuous 360° tilt movement on each head creates sweeping beam arrays, fluid motion effects, and dynamic aerial looks with virtually unlimited positioning.
• Individual head pixel control enables dynamic beam chases, wave effects, and custom pixel-mapped animations for maximum creative flexibility.
• Integrated RGB LED ring effects feature built-in color and animation macros with variable speed control, adding vibrant eye-candy effects and layered visual impact.
• Advanced 16-bit RGBW color mixing with variable CTO adjustment from 2500K–8000K delivers smooth fades, accurate color reproduction, and seamless integration with DMX512, Art-Net, RDM, sACN, and Kling-Net control systems.

LIGHT SOURCE - 240W (4 x 60W) RGBW LED; Ring Effect: 24W (120 x 0.2W) RGB SMD LED; LED Life: 50,000 Hours COLOR SYSTEM - 16-bit RGBW Color Mixing; CTO: 2500K-8000K; Linear 16-bit Color Temperature - Individual Head Pixel Control; Individual Dynamic Ring Color And Effect Macro OPTICS - Beam Angle: 3.5° DYNAMIC EFFECT - Movement: Tilt 2 Modes - 360° Continuous & 240° (8-bit/16-bit) - Selectable preset home position macros by DMX function channel - Selectable movement speed by DMX function channel; scan position memory w/ auto tilt correction - Linear Dimmer 0-100%; High Speed Electronic Shutter/Strobe 0-25Hz variable - Preset Pulse Strobe, Random Strobe, Sharp Beam Effect - Dynamic Ring Effect with built-in macros, variable speed CONTROL - Protocol: 5-Pin DMX512, Art-Net, RDM, sACN, Kling-Net; Personalities: 3 Modes 21/39/61 BODY - Die-cast Aluminum and Steel w/ PA6 GF30 flame retardant plastic; Exterior finish: Black PHYSICAL - Cooling: Fan; Power Connection: TRUE1 (UL listed) In/Out - Protocol Connectors: 5-Pin DMX512 In/Out, Art-Net RJ45 - Cable Length: Power 5 ft, DMX 5 ft; IP Rating: 20 ELECTRICAL - Input Voltage: 100-240V AC 50/60Hz (auto-ranging, active PFC); Power Consumption: 320W - Power Linking: up to 6 units @110V/20A, 12 units @208V/20A, 12 units @230V/20A - Fuse: F12A 250V; Certifications: CE, cETL, FCC, RoHS - Operating Temp 40°C(104°F); Min -10°C(14°F); Max 60°C(140°F) BOX CONTENT - 1 x CENTIPEDE B4, 1 x TRUE1 Power Cable, 1 x 5-pin DMX Cable, 1 x User Manual, 2 x Omega Brackets, 2 x Safety Cables ITEM DIMENSIONS & WEIGHT - Dimensions: 23" x 9.3" x 5" - Weight: 42.1 lbs UPC: 618528598673 WARRANTY: 3 Years

- JMAZ PROFESSIONAL CENTIPEDE B4
- Powercon IP65
- Power cable
- 5-pin DMX Cable
- User Manual-
- Omega Brackets
- Safety Cable
