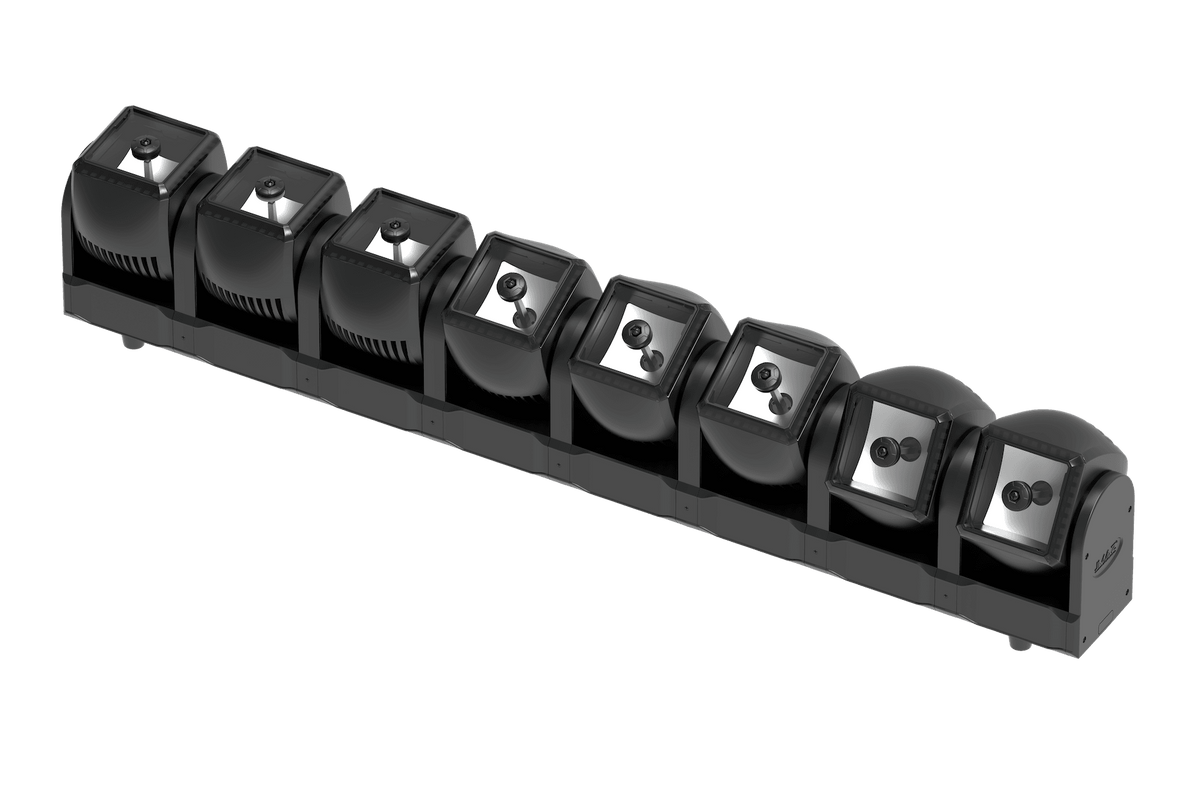

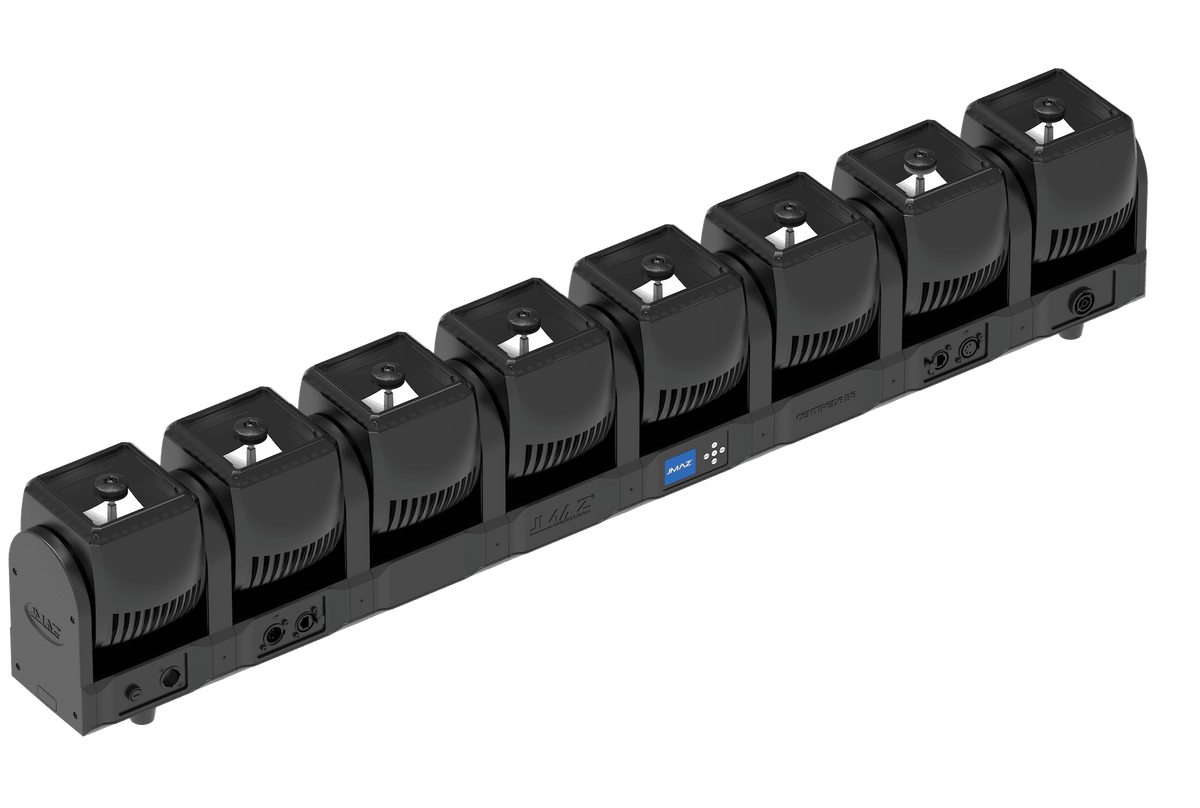

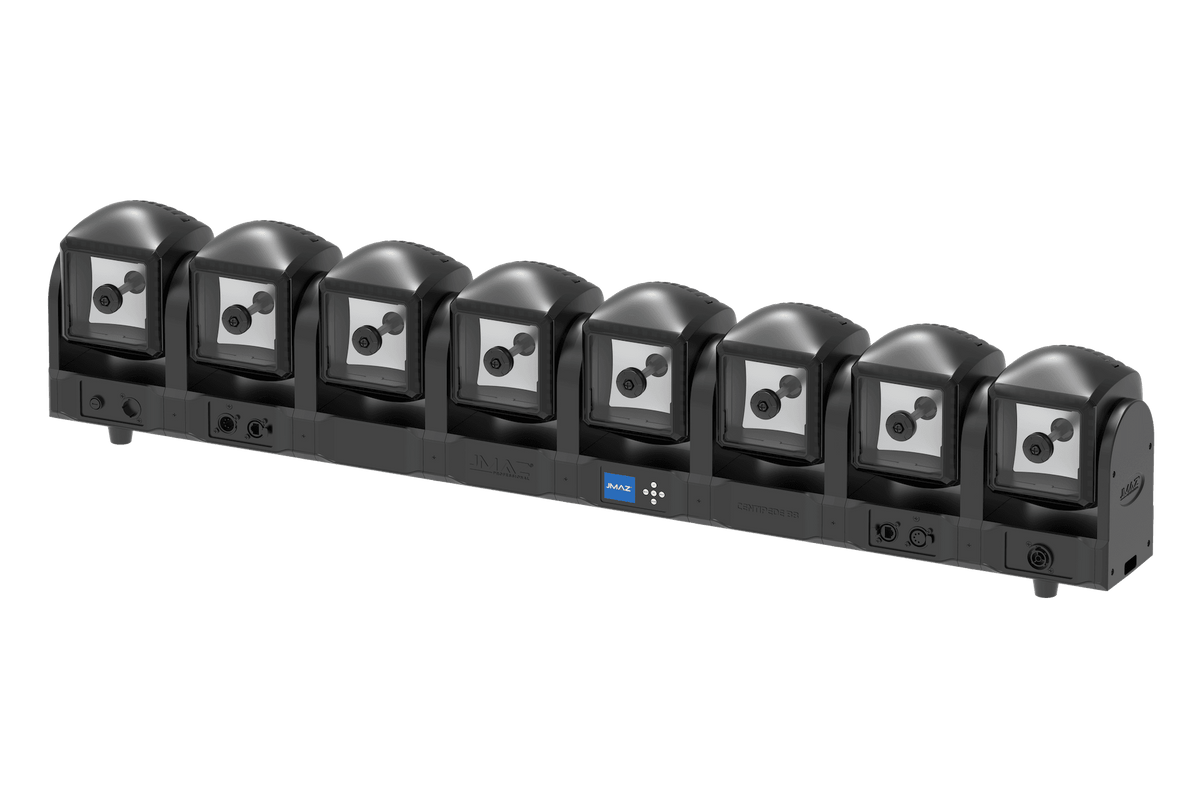

JMAZ PROFESSIONAL CENTIPEDE B8 - RGBW LED Intelligent 8 Head Bar

The JMAZ Professional Centipede B8 is an advanced moving head bar featuring eight powerful 60W RGBW LEDs and 240 RGB SMD LEDs for captivating multi-beam and ambient ring effects. Each head offers 360° infinite tilt and full pixel control, giving lighting designers the flexibility to create complex, high-impact visual sequences. With built-in virtual color presets and movement macros—plus foreground and background color separation—the Centipede B8 enables rich, layered effects without complex programming. Its narrow 3.5° beam angle ensures intense, focused output, while 16-bit RGBW color mixing and a CTO range of 2500K to 8000K allow for precise color control across any environment. Operate in four DMX personality modes (24/58/90/130 channels) and integrate effortlessly with major protocols including 5-pin DMX512, Art-Net, RDM, sACN, and Kling-Net. Designed for professional use, it features TRUE1 IN/OUT power connections and includes essential accessories: a TRUE1 power cable, 5-pin DMX cable, 2 omega brackets, 2 safety cables, and a manual. CE, cETL, FCC, and RoHS certified for global compliance.

Control	Protocol: 5-Pin DMX512, Art-Net, RDM, sACN, Kling-Net
	Personalities: 4 Modes 24/58/90/130
Body	Die-cast Aluminum and Steel structure with high impact flame retardant PA6 GF 30 (Polyamide 6) with 30% glass fiber
	Exterior finish: Black
Physical	Cooling: Fan
	Power Connection: True1 (UL listed)
	Power In/Out: True1
	Protocol Connectors: 5-Pin DMX512 In/Out, Art-Net RJ45
	Cable Length: Power 5 feet (1.5 meter); DMX 5 feet (1.5 meter)
	IP Rating: 20
Electrical	Input Voltage: 100 – 240V AC, 50/60Hz (Auto ranging with active PFC)
	Power Consumption: 640W
	Power Linking for connecting fixture in daisy-chain
	Up to 3 units @110V with a 20A circuit
	Up to 6 units @208V with a 20A circuit
	Up to 6 units @230V with a 20A circuit
	Fuse: F12A, 250V
Certification / Qualifications	CE, cETL, FCC, Rohs
	Operating Temperature: 40 ° C ( 104 °F)
	Minimum Temperature: – 10 ° C ( 14 ° F)
	Maximum Temperature: 60 ° C ( 140 ° F)
Item Dimensions & Weight	Dimensions: 47.3″ x 9.3″ x 6.6″
	Weight: 42.1 lbs.
Warranty
3 Years

- JMAZ PROFESSIONAL CENTIPEDE B8
- 1 Power cable
- 5-pin DMX Cable
- User Manual
- 2 x Omega Brackets
- 2 x Safety Cable
