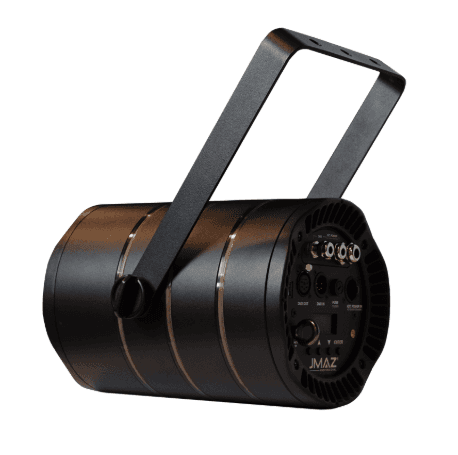

JMAZ PROFESSIONAL ZONA 5S - Zona 5S RGBA+LIME PAR LED House Light

The JMAZ Professional ZONA 5S redefines modern house lighting by combining exceptional white light quality, full-spectrum color mixing, silent operation, and creative versatility in a compact, installation-friendly fixture. Designed for theaters, worship spaces, broadcast environments, and multipurpose venues, it delivers beautifully balanced whites with a CRI of 95+, vibrant saturated colors, and smooth dimming that enhances the audience experience without distraction. Its full-spectrum RGBA+L LED engine provides precise color temperature control from 2000K to 12000K while generating a virtually unlimited palette of colors to support architectural lighting, audience illumination, themed environments, and immersive venue experiences. Integrated RGB LED ring effects offer an additional layer of visual creativity when the application calls for it. Whether illuminating an audience, enhancing architectural spaces, or transforming a venue with dynamic color, the ZONA 5S delivers refined performance with professional reliability in a compact form factor.

• Powerful 210W full-spectrum RGBA+L COB LED delivers vibrant color output, exceptional white light quality, and a CRI of ≥95 for theaters, houses of worship, and architectural applications.
• Advanced 16-bit RGBA+L color mixing with adjustable CTO from 2000K–12000K provides precise color temperature control and smooth transitions from warm incandescent tones to crisp daylight whites.
• Integrated three-ring RGB effect system featuring 150 SMD LEDs, 31 ring color macros, and dynamic ring effects adds visual impact beyond traditional house lighting fixtures.
• Wide 60° beam angle delivers smooth, even coverage for audience lighting, wall washing, and general area illumination, with an optional 30° lens available for more focused applications.
• Fanless cooling system ensures completely silent operation, making the fixture ideal for theaters, broadcast environments, houses of worship, and other noise-sensitive venues.
• Professional control features including DMX, RDM, six DMX personalities, virtual color wheels with 81 COB color macros, and optional CRMX wireless DMX support provide maximum programming flexibility.

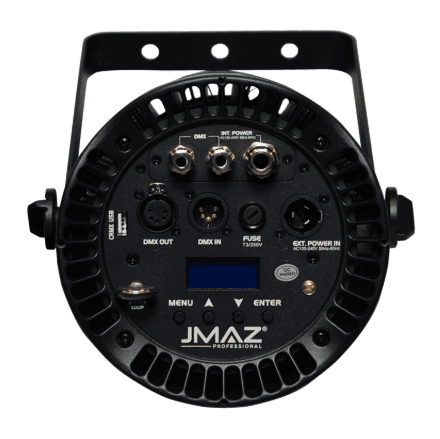

LIGHT SOURCE - Full Spectrum 210W COB RGBA+L (Red, Green, Blue, Amber, Lime) LED - 3-Ring Effect: (150) 0.3W RGB SMD LEDs - LED Life: 50,000 hours COLOR SYSTEM - 8/16-bit RGBA+L Color Mixing; CTO: 2000K-12000K; CRI: ≥95 OPTICS - Beam Angle: 60°; Optional Lens: 30° DYNAMIC EFFECT - Virtual Color Wheel: 81 Preset Color Macros on COB, 31 Preset Color Macros on LED Rings - Color Temperature Presets: 2000K-12000K - Linear Dimmer 0-100% Electronic Dimming CONTROL - Control Protocol: DMX, RDM; Optional Add-On Wireless DMX: CRMX USB by LumenRadio (SKU JP5001) - Personalities: 6 Modes 4/8/13/20/26/35; LED Graphical Display; Standalone Mode BODY - Die-Cast Aluminum and Steel Structure; External Finish: Mute Black; Optional Half Snoot Kit Available PHYSICAL - IP Rating: 20; Cooling: Fanless (Silent) - Bare Wire Block Terminal Connection (power & DMX) for permanent install - Power Connection: US Edison (UL) plug to Seetronic Powercon IP65 TRUE1 - Data Connectors: Seetronic 5-Pin XLR IN/OUT; Cable Length: Power Cable 5 ft ELECTRICAL - Input Voltage: 100-240V AC 50/60Hz; Power Consumption: 90W; Fuse: T3A 250V - Power Linking: up to 24 units @110V/20A, 47 units @208V/20A, 52 units @220V/20A BOX CONTENT - 1x ZONA 5S, 1x Hanging Yoke, 1x Powercon IP65 TRUE1 Power Cable, 1x 5-Pin DMX Cable, 1x Safety Cable, 1x Manual ITEM DIMENSIONS & WEIGHT - Dimensions: 10.3" x 7.1" x 7.1" - Weight: 11.12 lbs UPC: 618528598925 WARRANTY: 3 Years

- JMAZ PROFESSIONAL ZONA 5S
- Hanging Yolk
- TRUE1 Power Cable
- 5-Pin DMX Cable
- Safety Cable
- Manual
