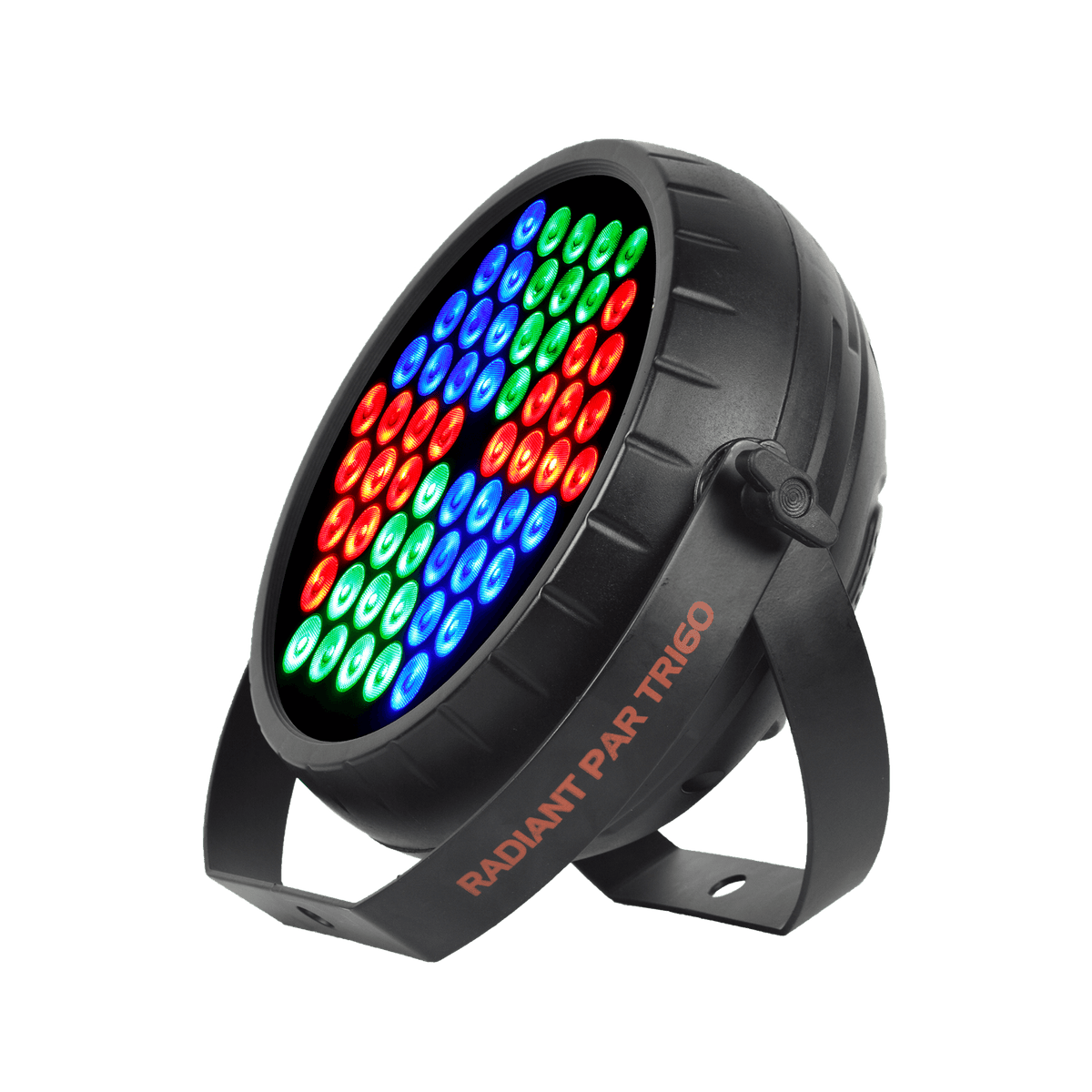

JMAZ RADIANT PAR TRI60

The RADIANT PAR TRI60 was designed for production companies, venues, houses of worship, mobile entertainers, and lighting professionals who need a high-output LED wash fixture capable of delivering vibrant color, dynamic effects, and exceptional versatility. Combining a powerful RGB LED engine with zone control and creative built-in effects, the RADIANT PAR TRI60 provides professional wash lighting for stages, concerts, architectural applications, and live events.

Powered by a 180W RGB LED engine (60 × 3W LEDs), the RADIANT PAR TRI60 delivers rich, saturated color mixing and a smooth 26° wash beam angle for even stage and venue coverage. With 6-zone individual control, lighting designers can create dynamic chases, color transitions, and animated effects, while the integrated propeller effect, 25Hz electronic strobe, 16 preset color programs, 37 built-in auto programs, and 20 advanced sound-active modes provide exceptional creative flexibility. Featuring 5-pin DMX512 control, multiple DMX personalities, IR remote compatibility, smooth 0–100% linear dimming, and powerCON In/Out for easy power linking, the RADIANT PAR TRI60 delivers dependable performance for both programmed productions and standalone operation.

Whether washing stages with vibrant color, creating dynamic pixel-style effects, energizing live performances, enhancing houses of worship, or illuminating architectural spaces, the JMAZ RADIANT PAR TRI60 delivers powerful RGB output, advanced zone control, and professional wash performance for today's demanding lighting applications.

• High-output 180W RGB LED engine featuring 60 × 3W LEDs delivers vibrant color mixing, brilliant wash effects, and adjustable white light from 2800K–8000K.
• Wide 26° wash beam angle with six-zone control allows for dynamic color chases, pixel-style effects, and creative segmented lighting designs.
• Built-in effects include 16 preset color programs, 37 automatic programs, 20 sound-active modes, plus propeller and high-speed 25Hz strobe effects for impressive standalone performance.
• Professional control options include 5-pin DMX512 with three personality modes (3/11/31 channels) and the included IR remote for flexible standalone or console-controlled operation.

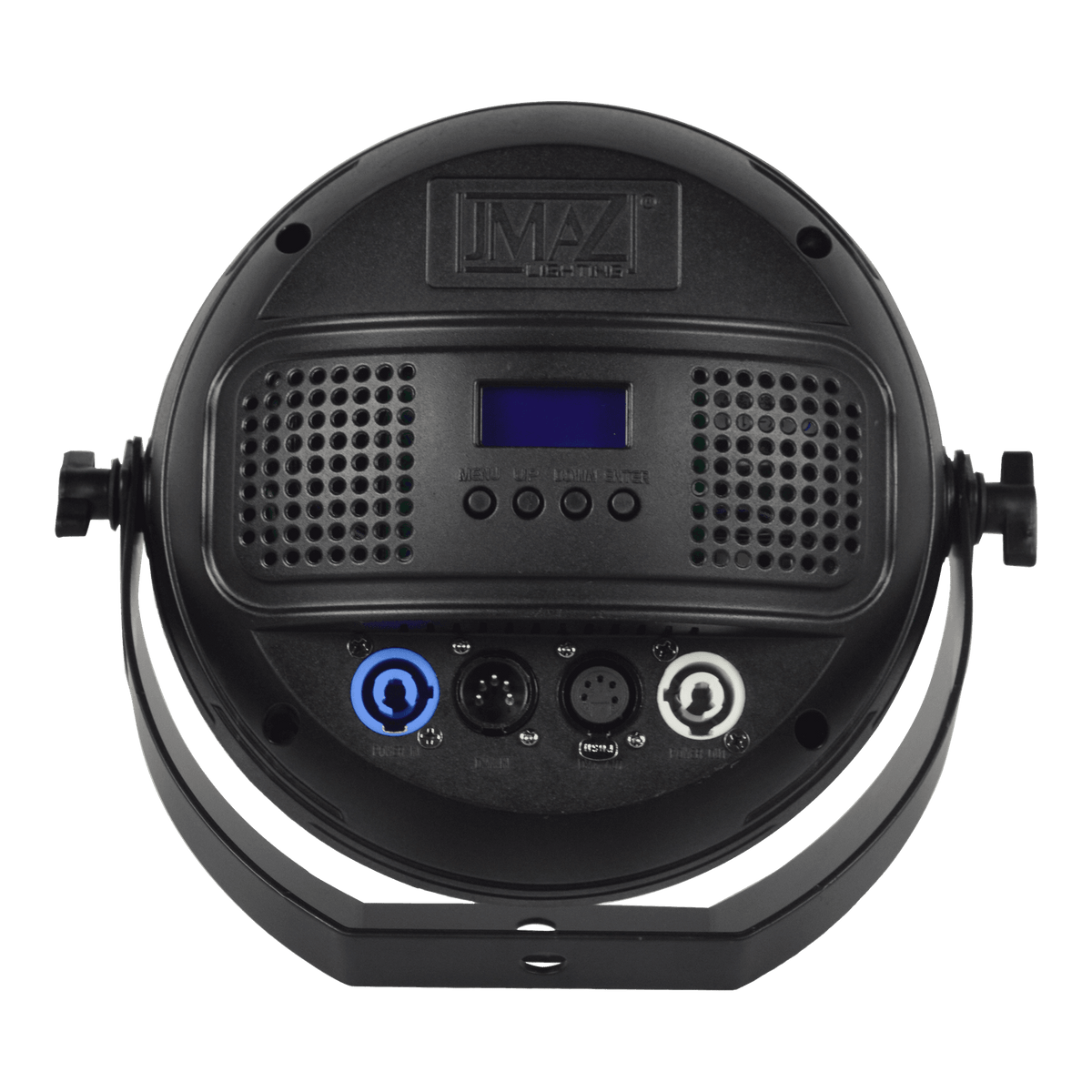

• Smooth 0–100% linear dimming, powerCON IN/OUT, and 5-pin DMX IN/OUT provide reliable integration into professional lighting systems for touring, production, and permanent installations.
• Compact ABS and aluminum construction with efficient fan cooling makes the RADIANT PAR TRI60 an excellent choice for concerts, clubs, houses of worship, mobile entertainment, and event production.

LIGHT SOURCE - 60 x 3W RGB LEDs - CCT: 2800K – 8000K COLOR SYSTEM - RGB LEDs OPTICS - Beam Angle: 26° DYNAMIC EFFECT - 6 Zone Controllable - 16 Preset Color Programs - 37 Auto Built In Programs - 20 Advanced Sound Active Mode - Propeller And Strobe 25Hz Effect - Wash Effect CONTROL - Protocols: 5-Pin In/Out DMX512 - Personalities: 3 Modes 3/11/31 - Wireless Control: IR Remote ELECTRONICS - Dimmer: 0-100% Linear Dimmer BODY - ABS Die-Cast Plastic w/ Aluminum Structure PHYSICAL - Cooling Fan - 5-Pin DMX In/Out - powerCON In/Out ELECTRICAL - Max Power Consumption: 180W - Input Voltage: AC 90-260V, 50HZ/60HZ BOX CONTENT - 1 x User Manual - 1 x 5-pin DMX Cable - 1 x powerCON Cable - 1 x IR Remote ITEM DIMENSIONS & WEIGHT - Dimensions: 10.4" x 8.3" x 4.6" - Weight: 5.2 lbs UPC: 618528607016 WARRANTY: 2 Years

- JMAZ RADIANT PAR TRI60
- User Manual
- 5-pin DMX Cable
- powerCON Cable
- IR Remote
