ProX Top Loading Lifting tower - Capacity 330 lbs Max Height 17.15 ft - Made in Spain by Fantek

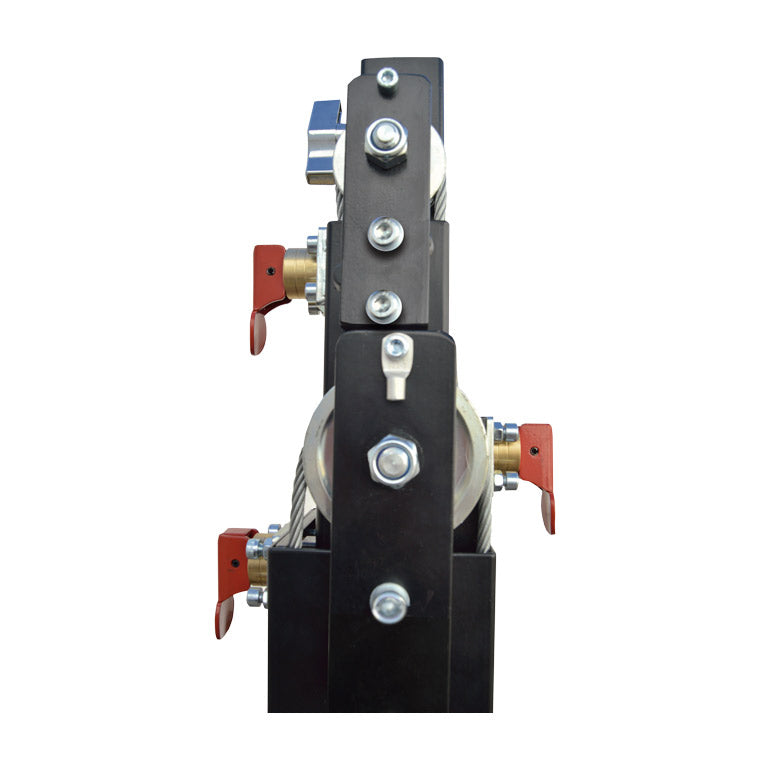

The XTF-T103D Top Loading Lifting tower - is ready to lift a Max load of 330 lb / 150 kg at a Max height of 17.15 ft / 5,23 meters. It is composed of four extensible steel profiles, lifted by high-strength steel cable with ribbed driven pulleys with SELOIL bearings. Fixing section of the tower to the height desired by automatic locking pin steel. Legs with non-slip rubber feet and levelers that allow its location on uneven terrain. The entire system is operated by a manually operated winch. The T 105 D performs as the best at intense use. Made in Spain by Fantek

Use with:
XT-ATCOB Mobile Support for Trusses and towers from T-1

Maximum Height 17.15 ft
Minimum Height 5.91 ft
Folded Height 5.83 ft
Maximum Load 330.69 lb
Minimum Load 55.12 lb
Unfolded Base 14.57 ft (diameter)
Winch 1102.31 lb
