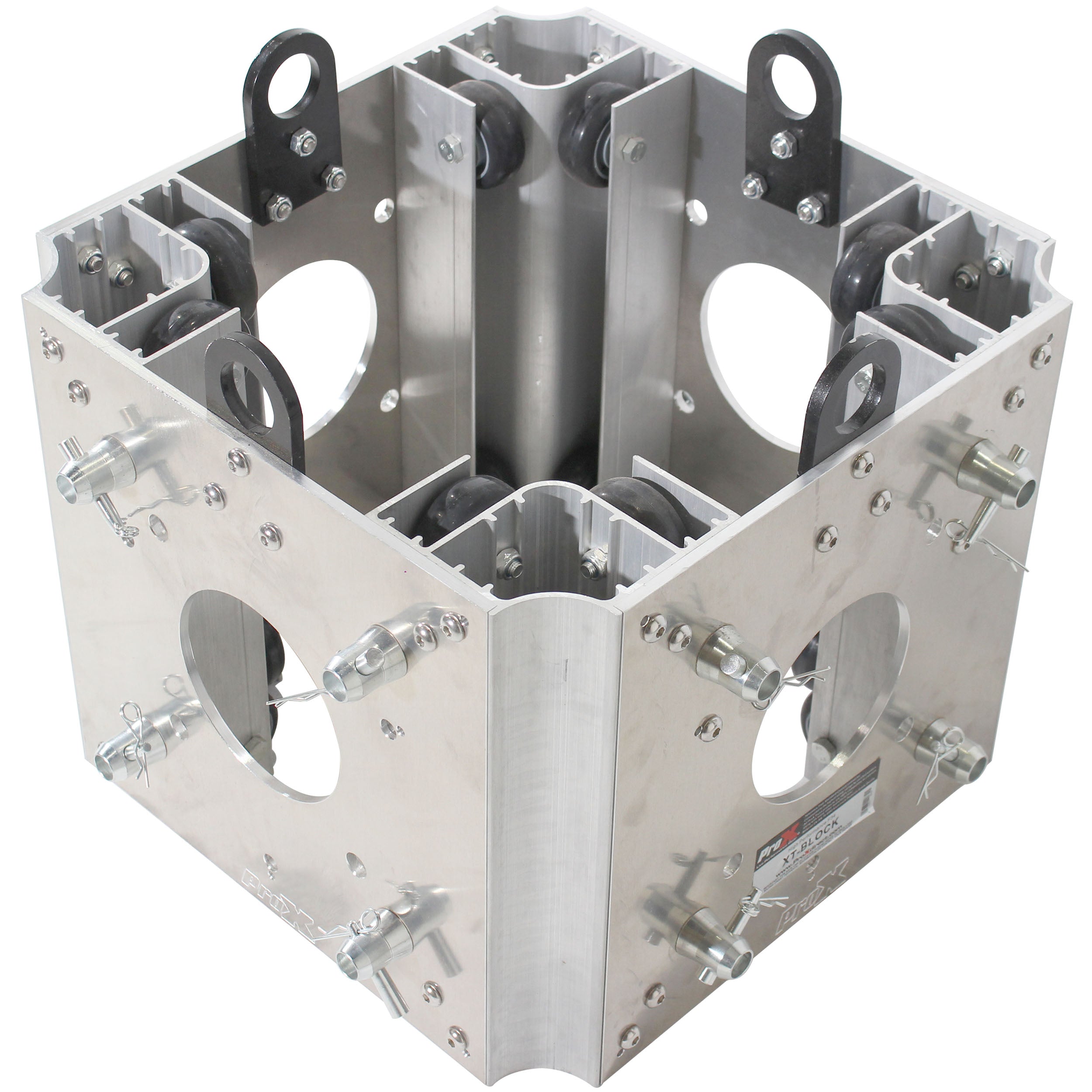

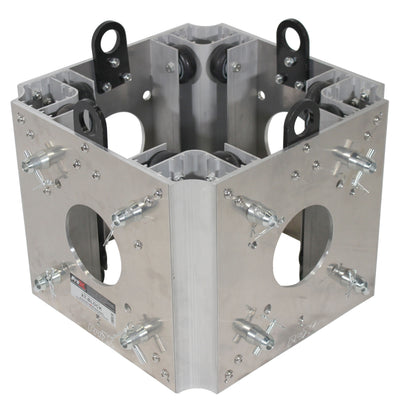

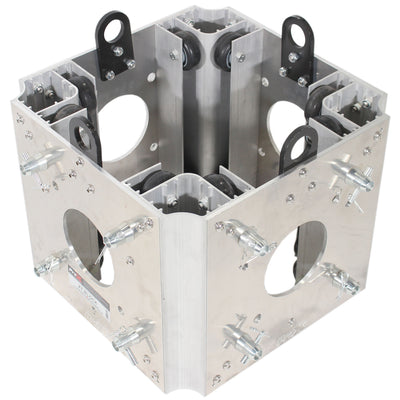

ProX Ground Support Sleeve Block 4 way corner for F34 Truss Segment Systems for roof system Structure Hoists Applications

The ProX XT-BLOCK MK2 Truss Ground Support Sleeve Block corner is designed for F34 Series 12" Trussing and it includes 4 connecting sides and is one the most trusted staging support systems in the industry and is built to the highest standards of safety and performance. It's a rugged and durable trussing solution perfect for live outdoor productions, nightclubs, and permanent installations.  ProX XT Series Truss compares favorably to the other major trussing manufacturers. We manufacture with EN-AWT6 6082 Aluminum for safety and strength.  Our XT series F34 square truss utilizes a standard conical connector system, which easily mates with other brands of the truss of the same size and connector type, and is available in a variety of lengths to suit your designs --  while our outstanding quality control and manufacturing techniques assure excellent fitment at every connection. ProX offers a wide variety of corners, base plates, connectors and accessories that add stability while expanding on limitless design configurations.

Always know your load weight for your equipment: VERY IMPORTANT - CLICK HERE for Truss Loading Chart.

• Tolerance Free Standard Conical connector

Fits  ProX XT-SQ SERIES F34 Standard or other manufacturers' F34 Trussing Series.

DIMENSIONS:

• Height: 11.42in / 290mm
• Width: 11.42in / 290mm
• Weight: 21lb per 3.28 ft / 9,5kg per meter
• Main Tube: 2in / 50mm
• Wall Thickness:  .08in / 2mm
• Braces: .75in / 20mm
• Top Loop Size: 1.75"

• Manufactured in our Own Factory!
• Material: EN-AWT6 6082 Aluminum
• TUV Certified Aluminium Welding
• Built to exacting specifications
• Includes tapered shear pins with clips
• Includes 4 side chain hooks, each hook holds 1000 lbs
• For maximum load capacity, connect the chain hoist to the truss using an appropriate rigging sling.
