ProX Truss Tower Stage Roofing System Package

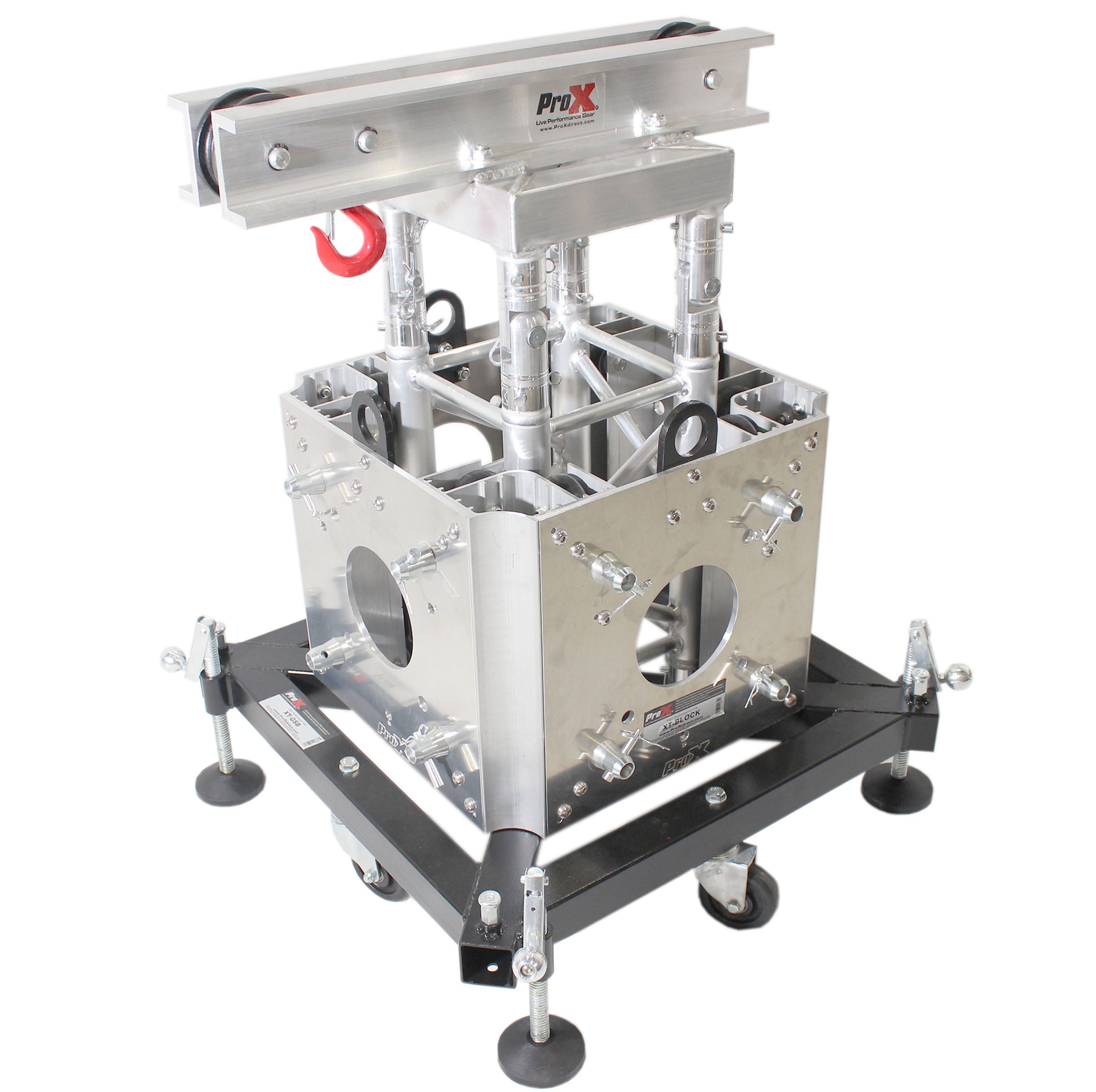

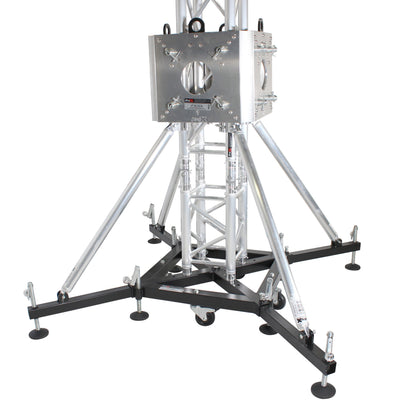

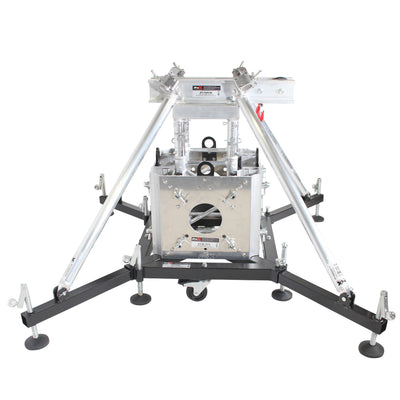

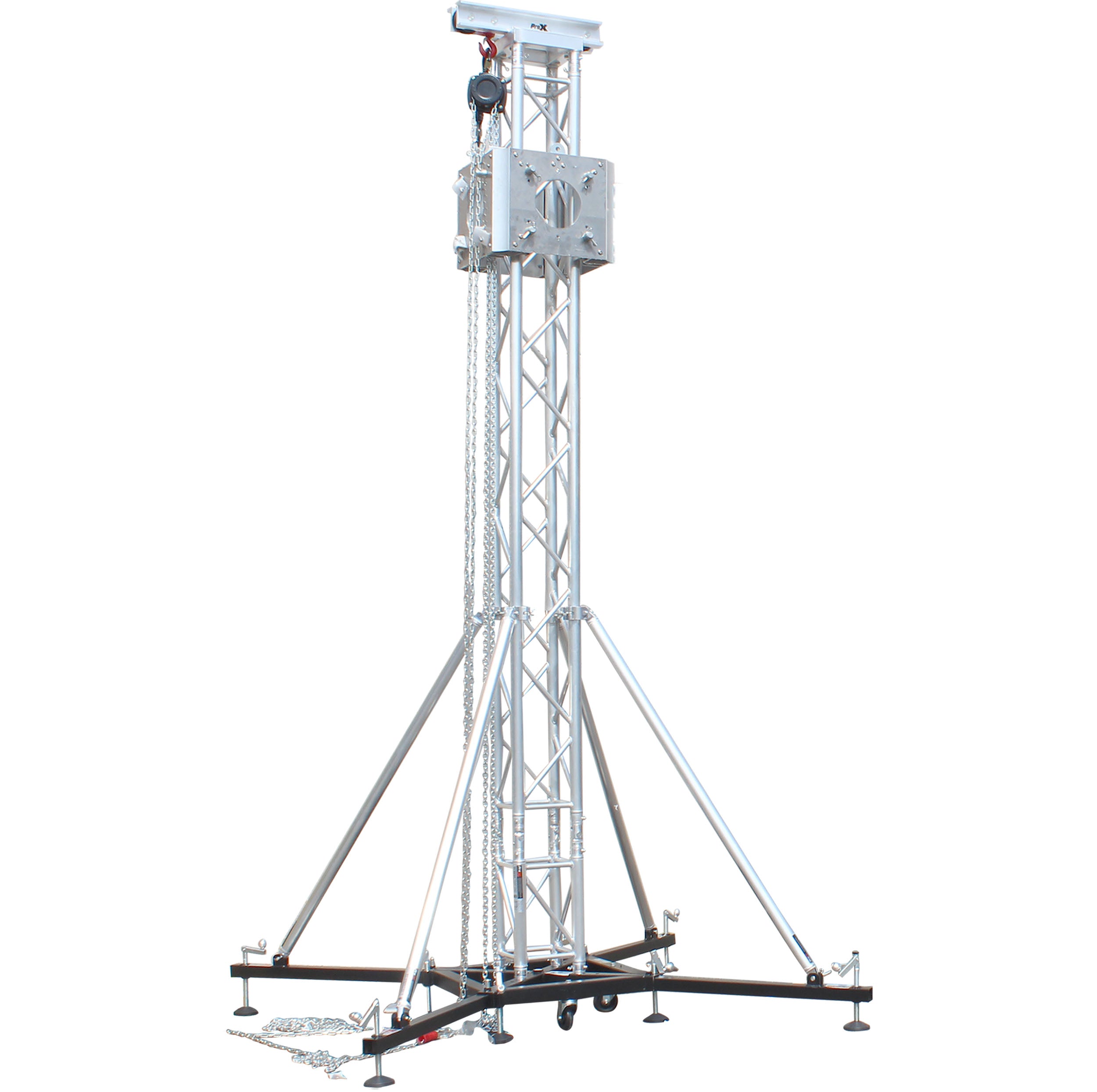

The ProX XTP-GSBPACK164 is a Full Package of four-legged outrigger Truss base, with a 4-way Square Truss junction box Sleeve Block,  on a 1.64' long square Truss. Complete with the Rigging Top.  In this package, you have everything you need (except for lift hoist) for one complete leg in the building and flying a large scale truss, supporting mid to heavy-grade level stage installations.  You get:

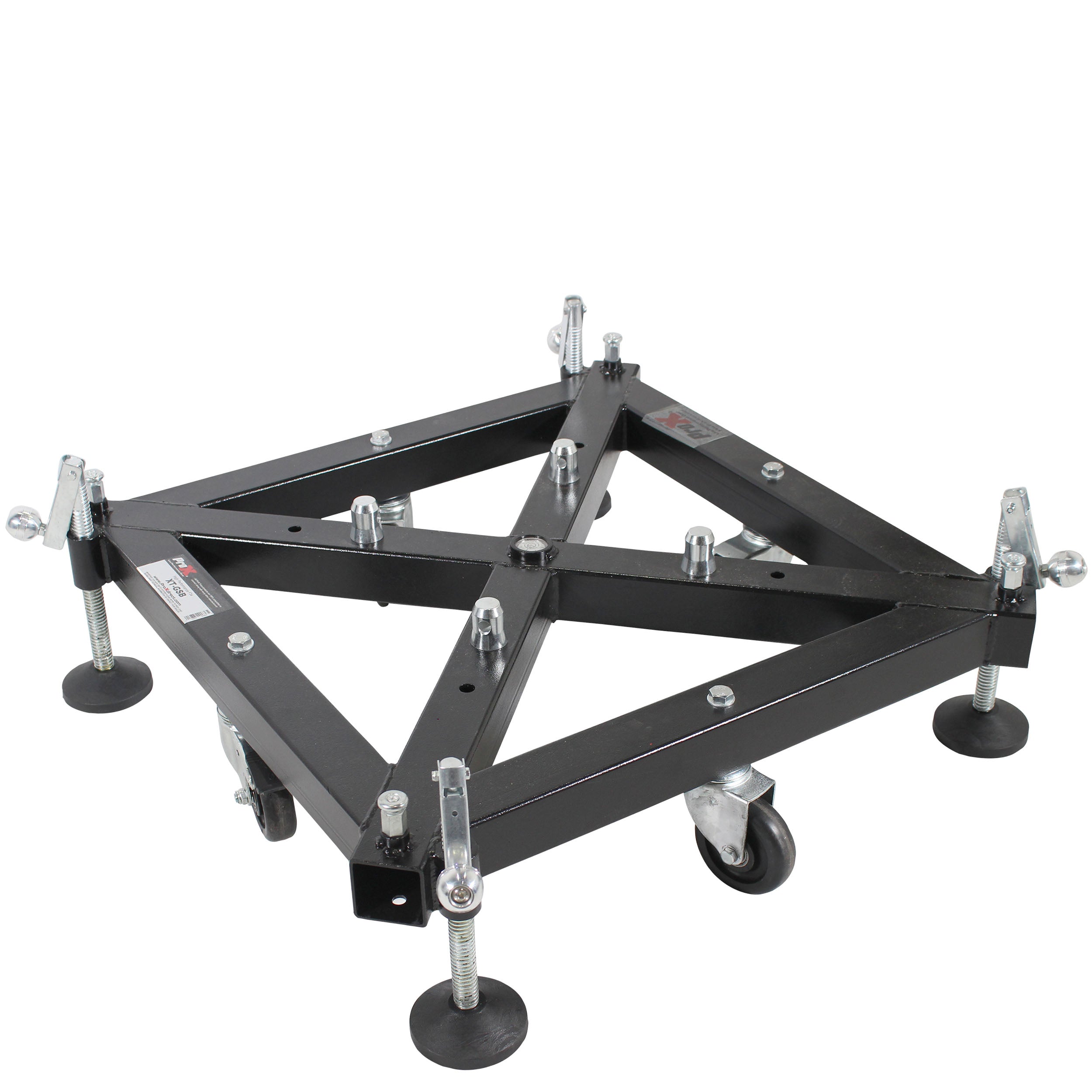

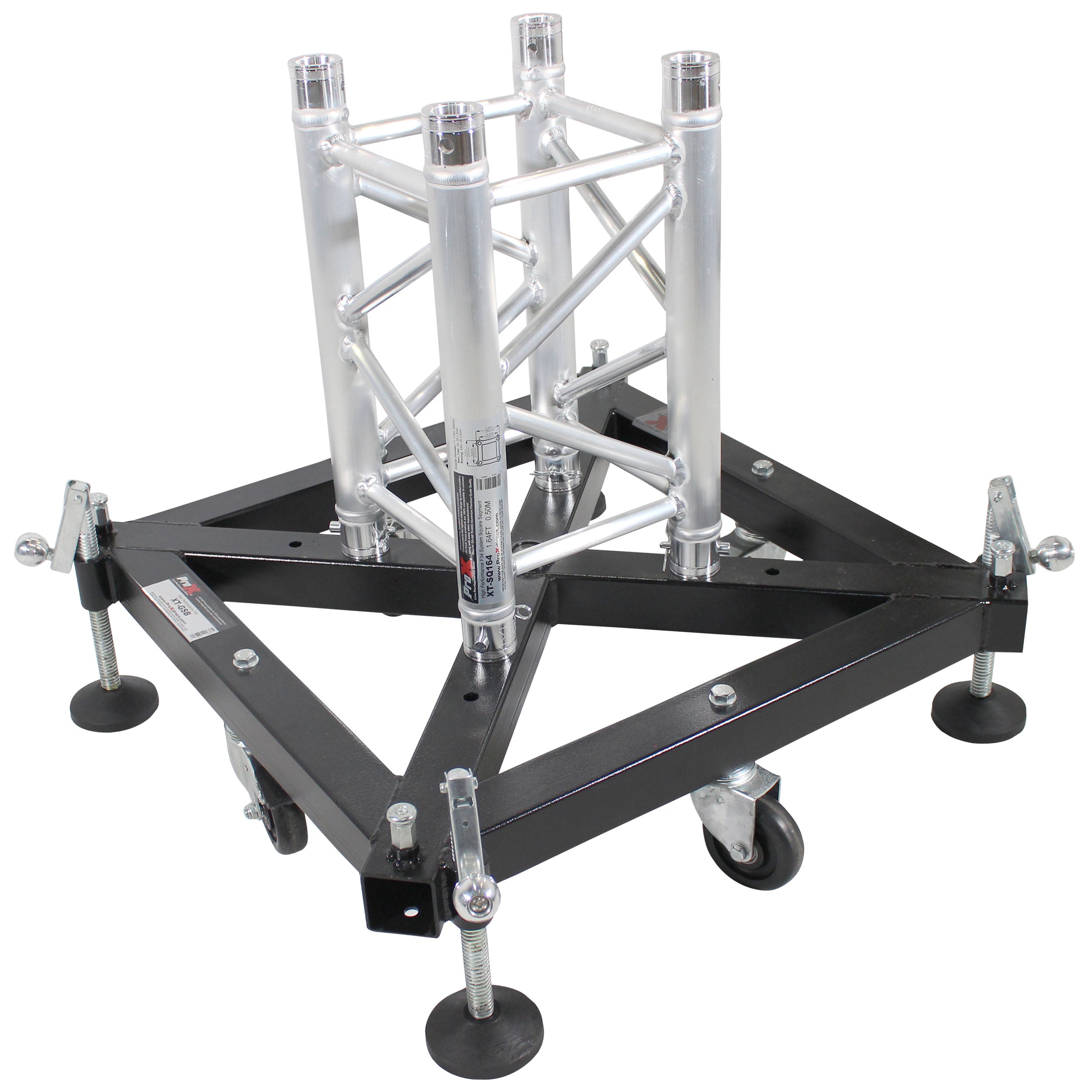

• XT-GSB MK2  Rigger Base, with extending legs
• XT-SQ164  1.64 ft Long Truss segment (Longer segments available separately)

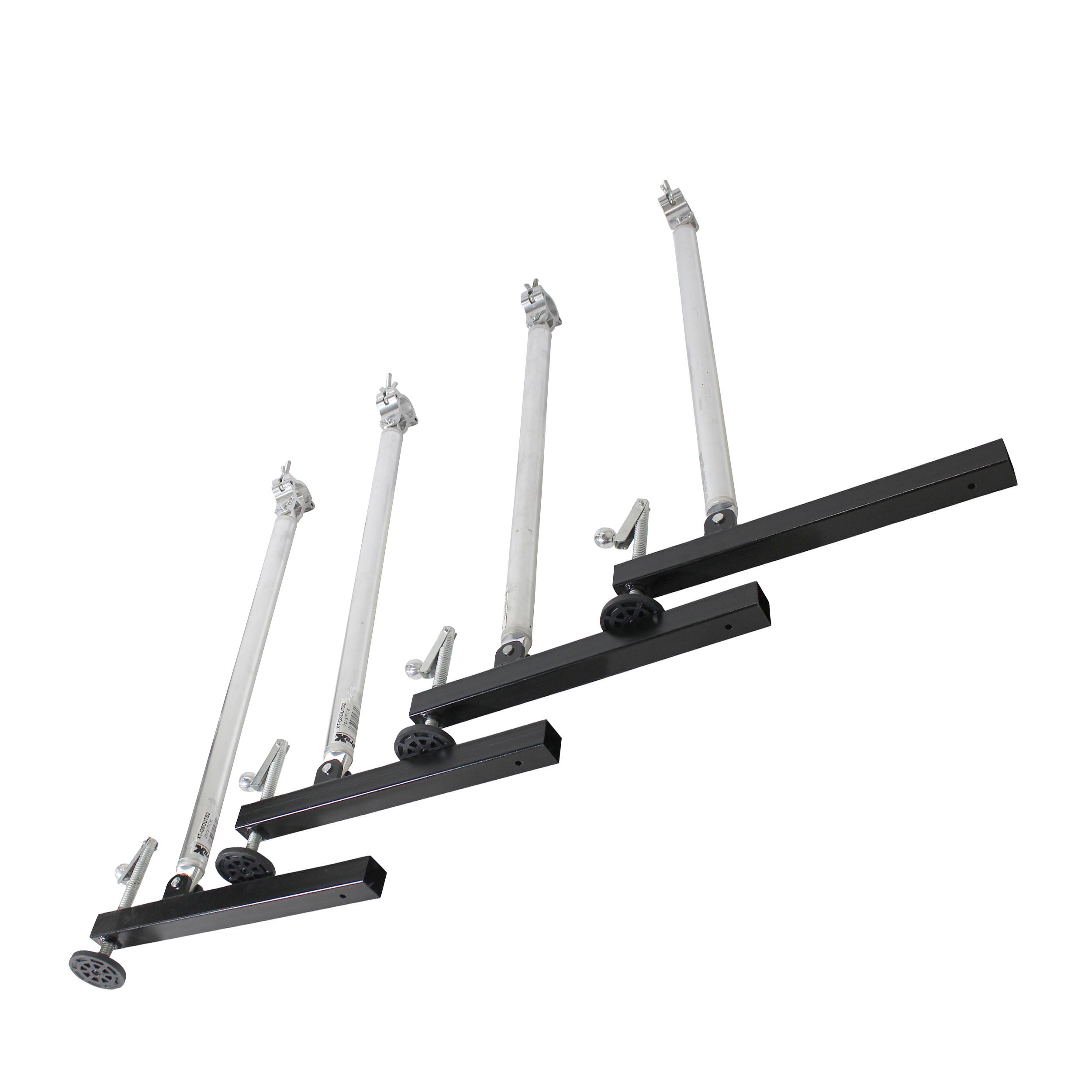

• XT-GSOUT3  3' Outrigger Brace Tubes (4) with clamps

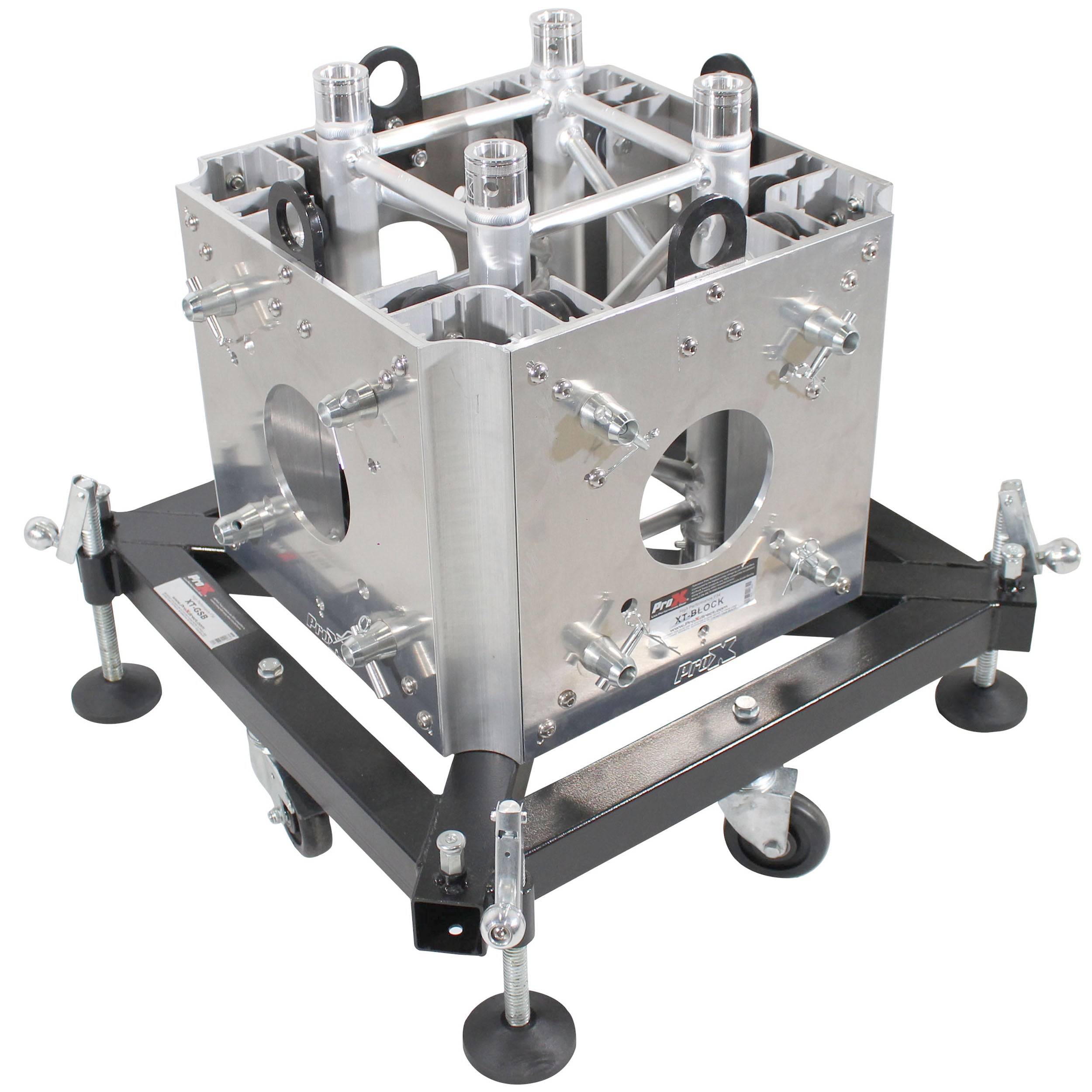

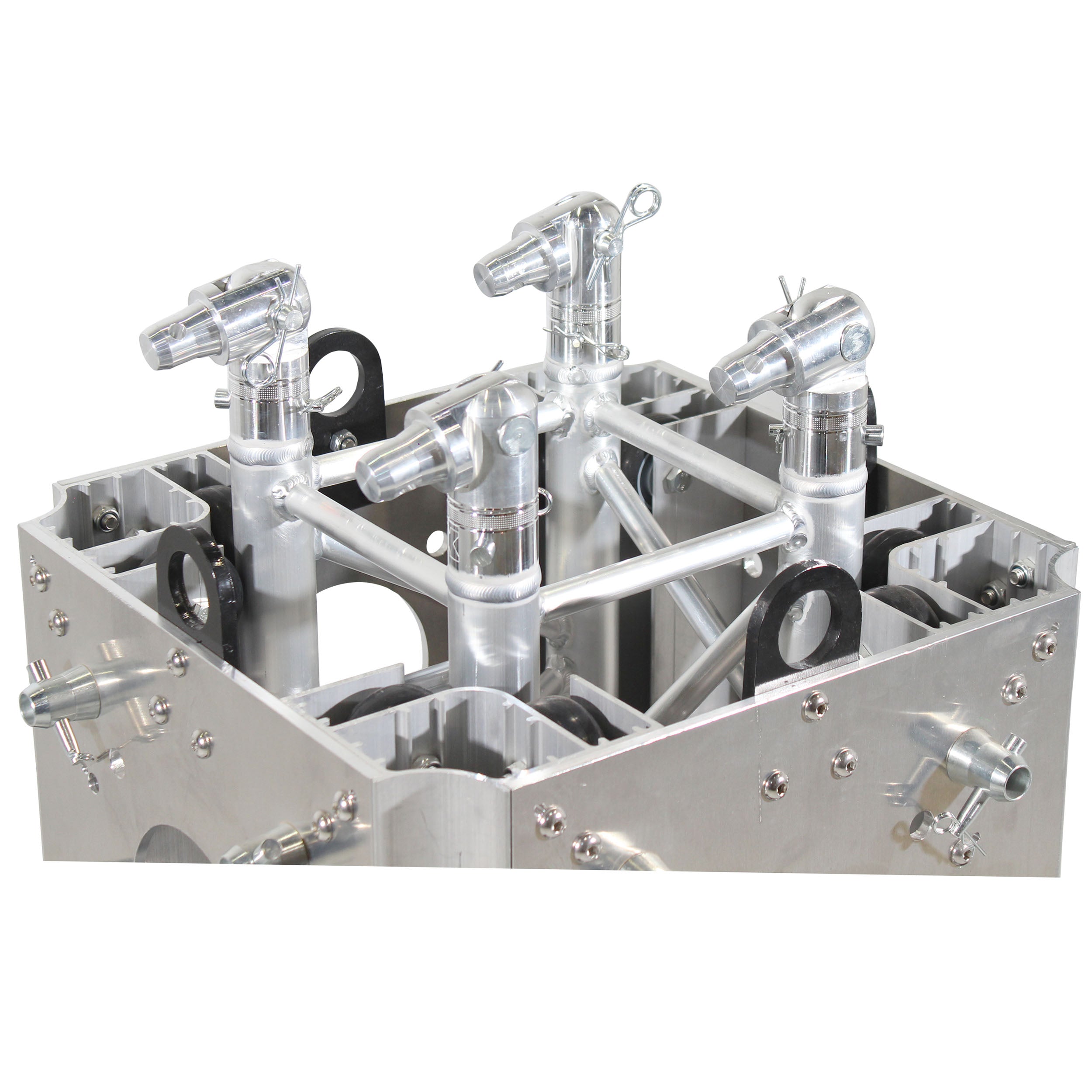

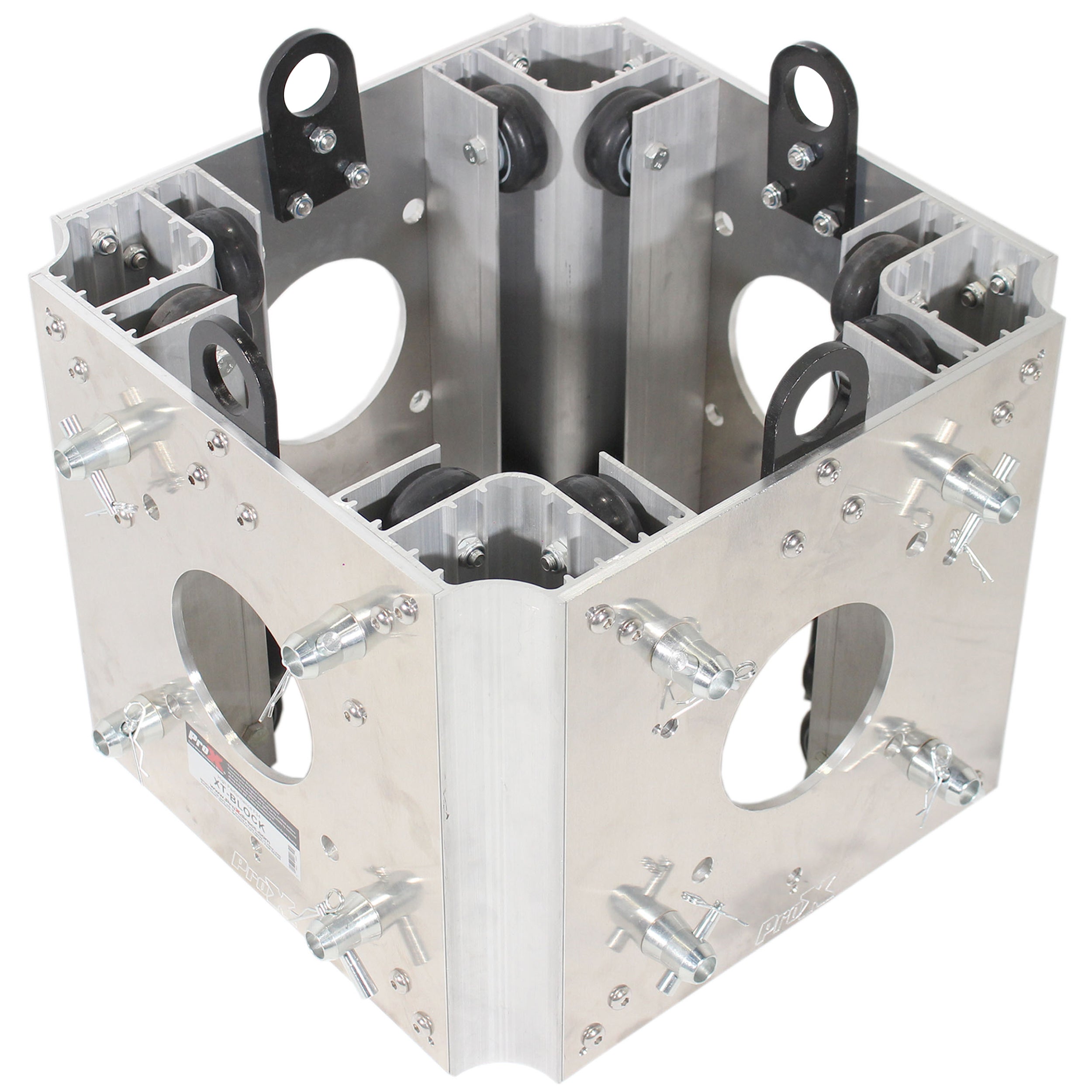

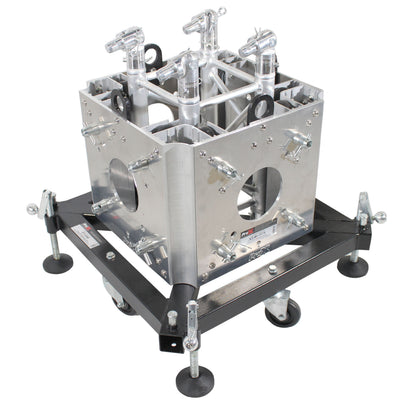

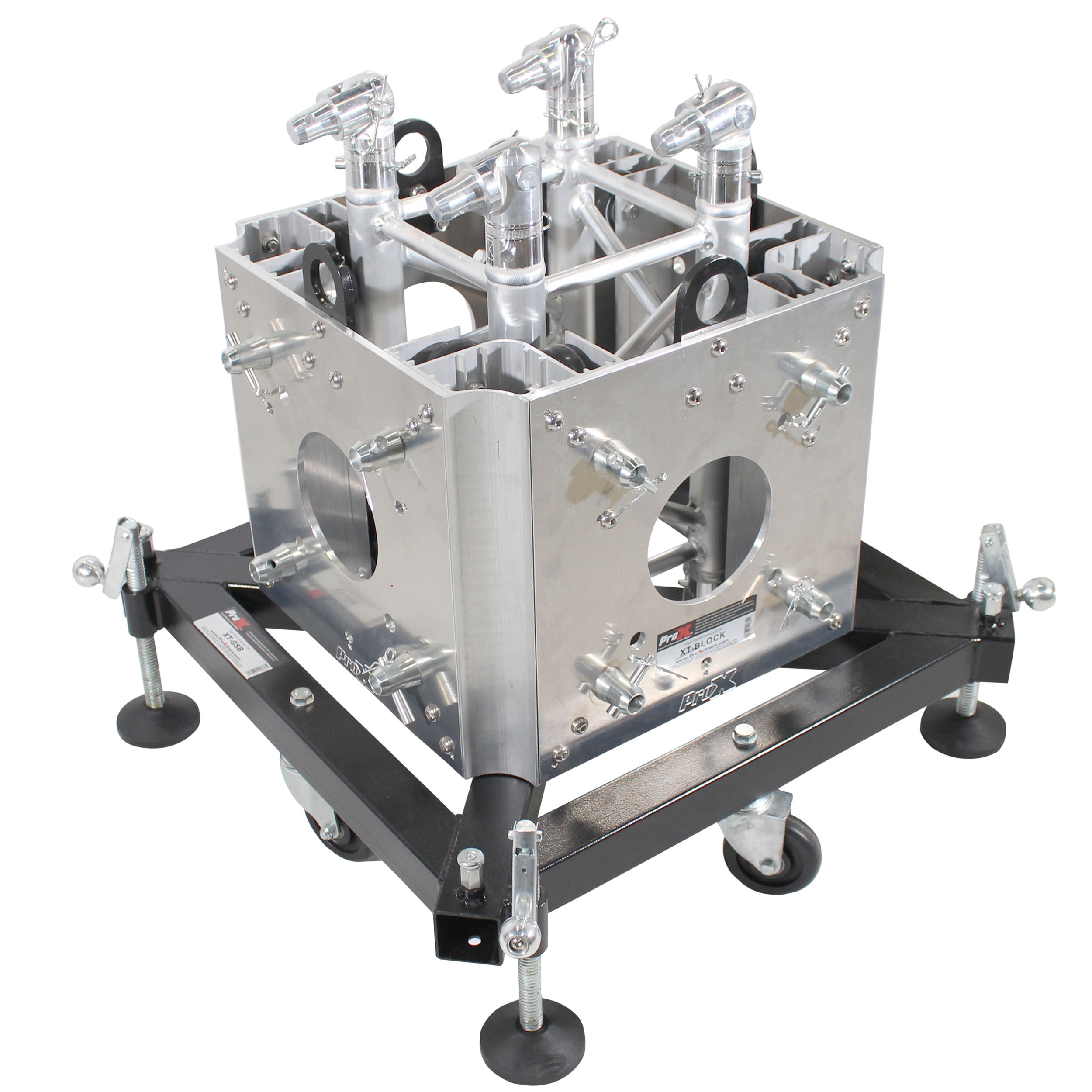

• XT-BLOCK  Sleeve Block 4-Way Junction box

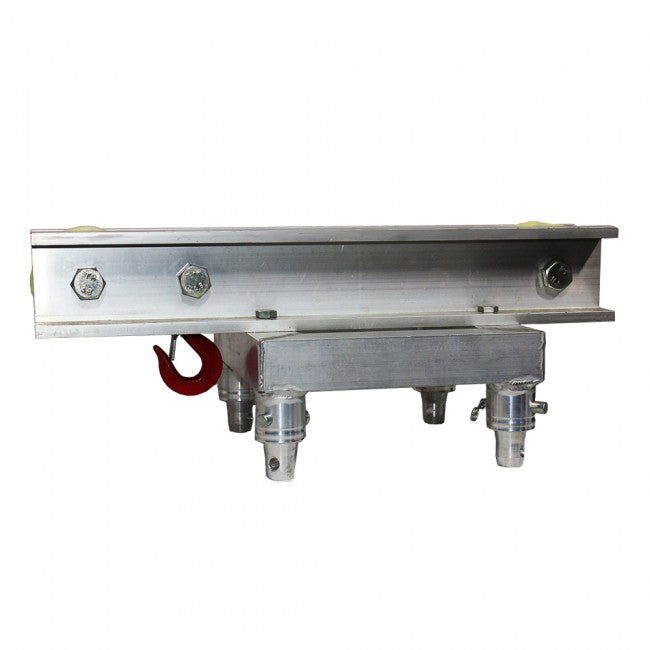

• XT-TOPCM  Truss Top with I-Beam mount with chain Pulley wheels

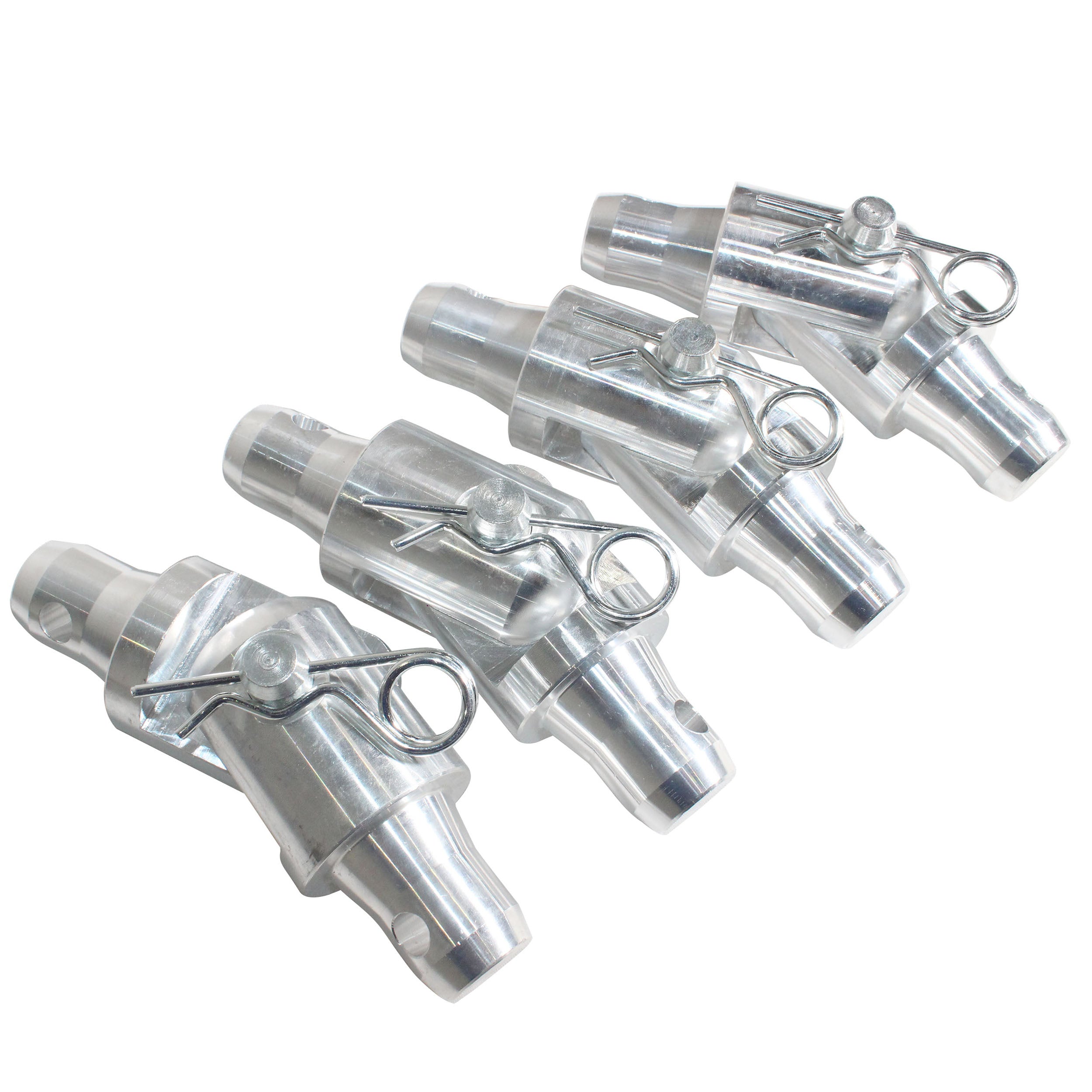

• XT-HINGE  4 Hinge block set
• (Lift Hoist NOT included)

ProX Trussing is a rugged and durable truss solution perfect for live outdoor or indoor productions, exhibitions, retail displays as well as nightclubs, and other permanent installations. ProX also manufactures a comprehensive selection of trussing accessories including clamps, hanging & lifting points, spacers, box corners, mounting poles, base/top plates and much more to complete your ideas and make your design an impressive rigging project or a simple show booth.  Always consult an engineer for complex designs!

ProX XT-SQF34 2MM SERIES DIMENSIONS:

• Height: 11.42in / 290mm
• Width: 11.42in / 290mm
• Weight: 21lb/9,5kg per 3.28 ft / 1 meter
• Main Tube: 2in / 50mm
• Wall Thickness:  .08in / 2mm
• Braces: .75in / 20mm

IMPORTANT:  Always know your load weight for your equipment: XT-SQ Truss Loading Chart

• Manufactured to Exacting Specifications in our Own Factory!
• Tolerance Free Standard Conical Connectors
• Truss Main Tube Wall Thickness of .08in / 2mm
• Load Capacity is 1 Ton (2000 lbs) per unit
• Material: EN-AWT6 6082 Aluminum and Welded Steel (Painted Black)
• TUV Certified Aluminium/Steel Welding

TUV is a 3rd Party Certification Body and a Nationally Recognized Testing Laboratory (NRTL).  TUV provides inspections, testing, certification & training, with the ultimate objectives of reliability, safety & high quality.

ProX Truss products utilize industry-standard dimensions to be compatible to connect to/ and work with many other manufacturers' F34 trussing products with conical connectors.
