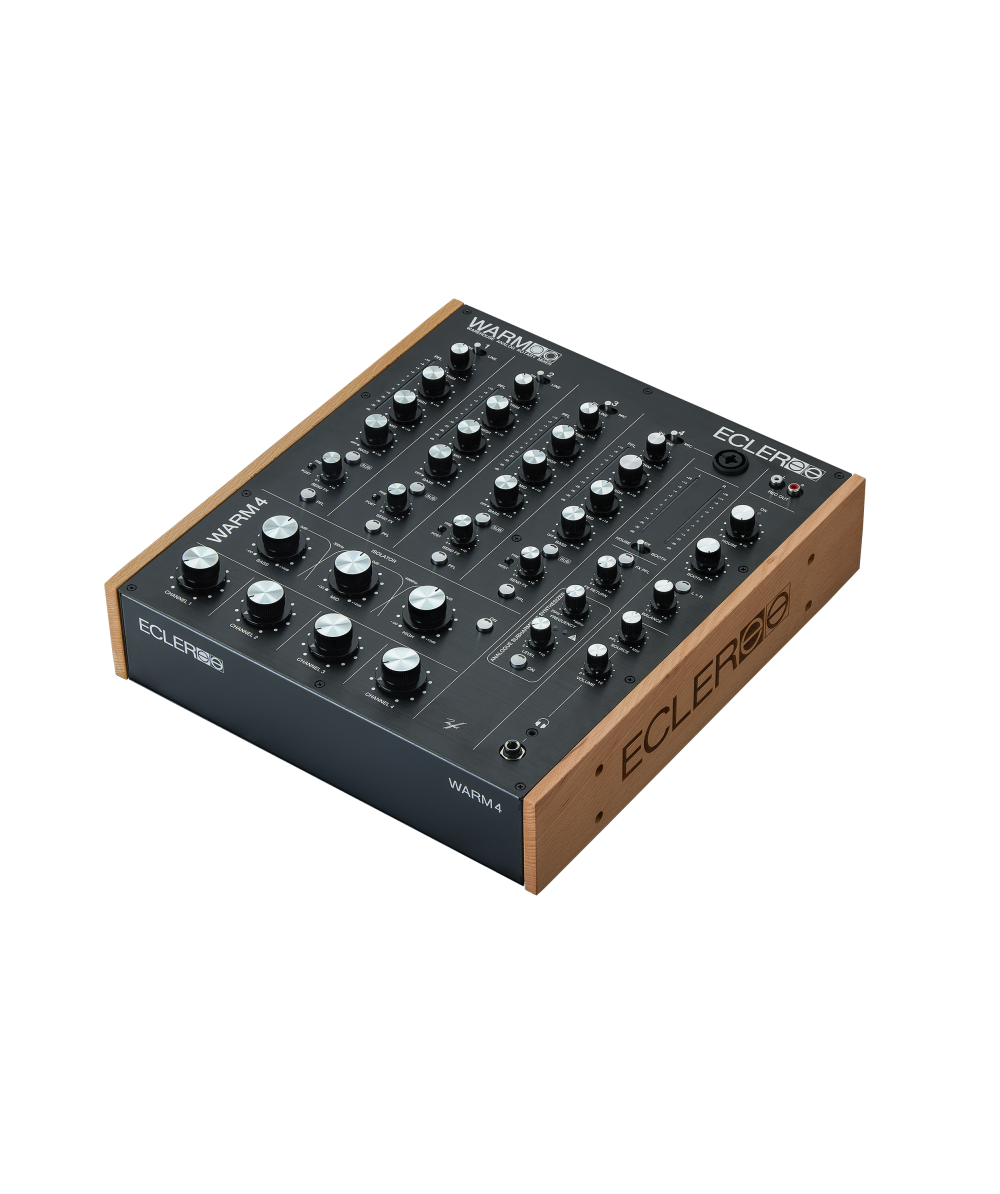

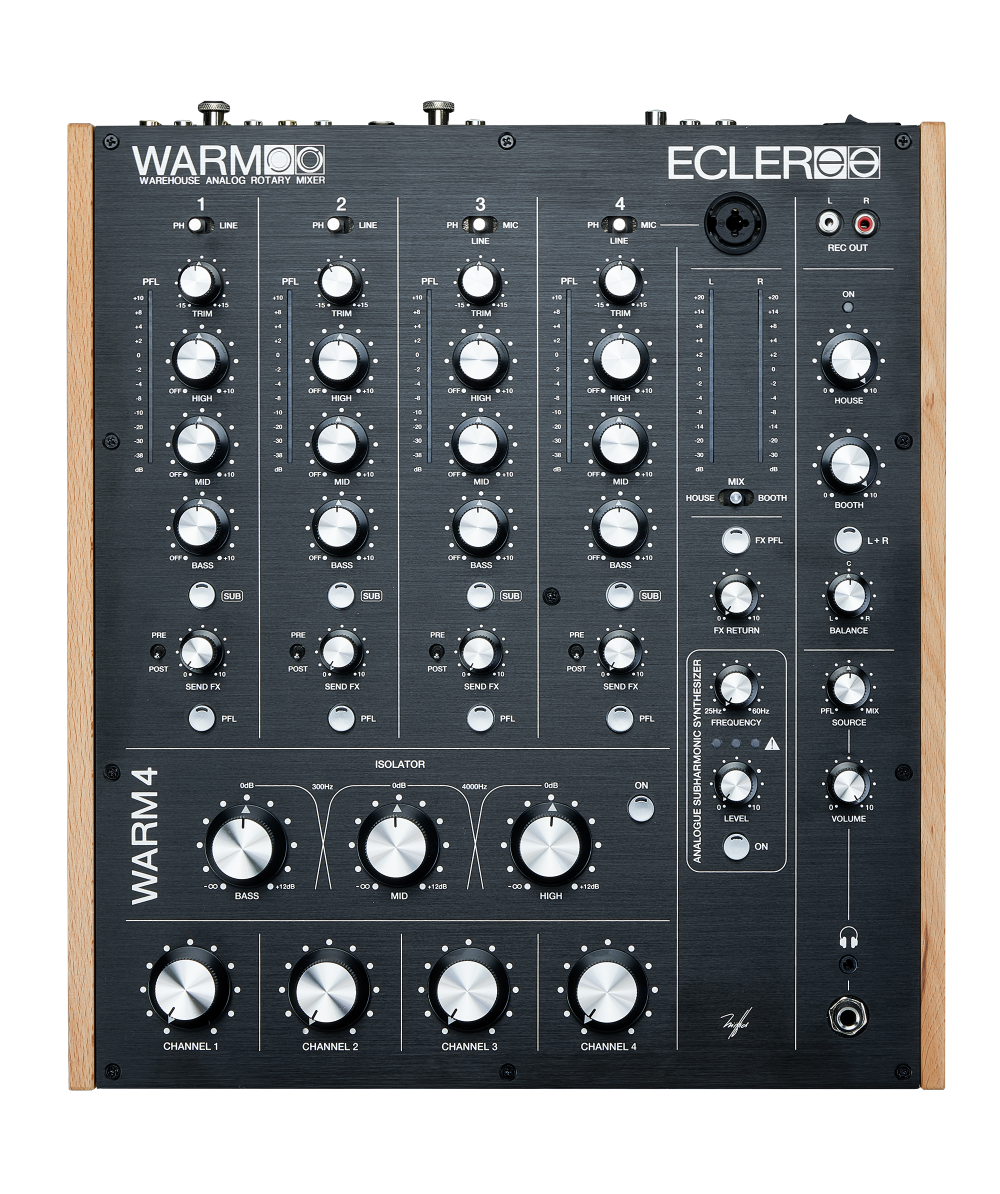

WARM4 is a professional four-channel analogue rotary DJ mixer, designed and manufactured by ECLER in Barcelona.
Featuring 4 phono/line channels, 2 MIC inputs, classic sharp filters and a 4th order Isolator. WARM4 includes a unique feature, an Analogue Subharmonic Synthesizer selectable per channel, specially designed to generate and reinforce ultra-low frequencies.
Key Features:
- 4 Mixing channels.
- 4 PHONO inputs.
- 4 LINE inputs.
- 2 MICRO inputs.

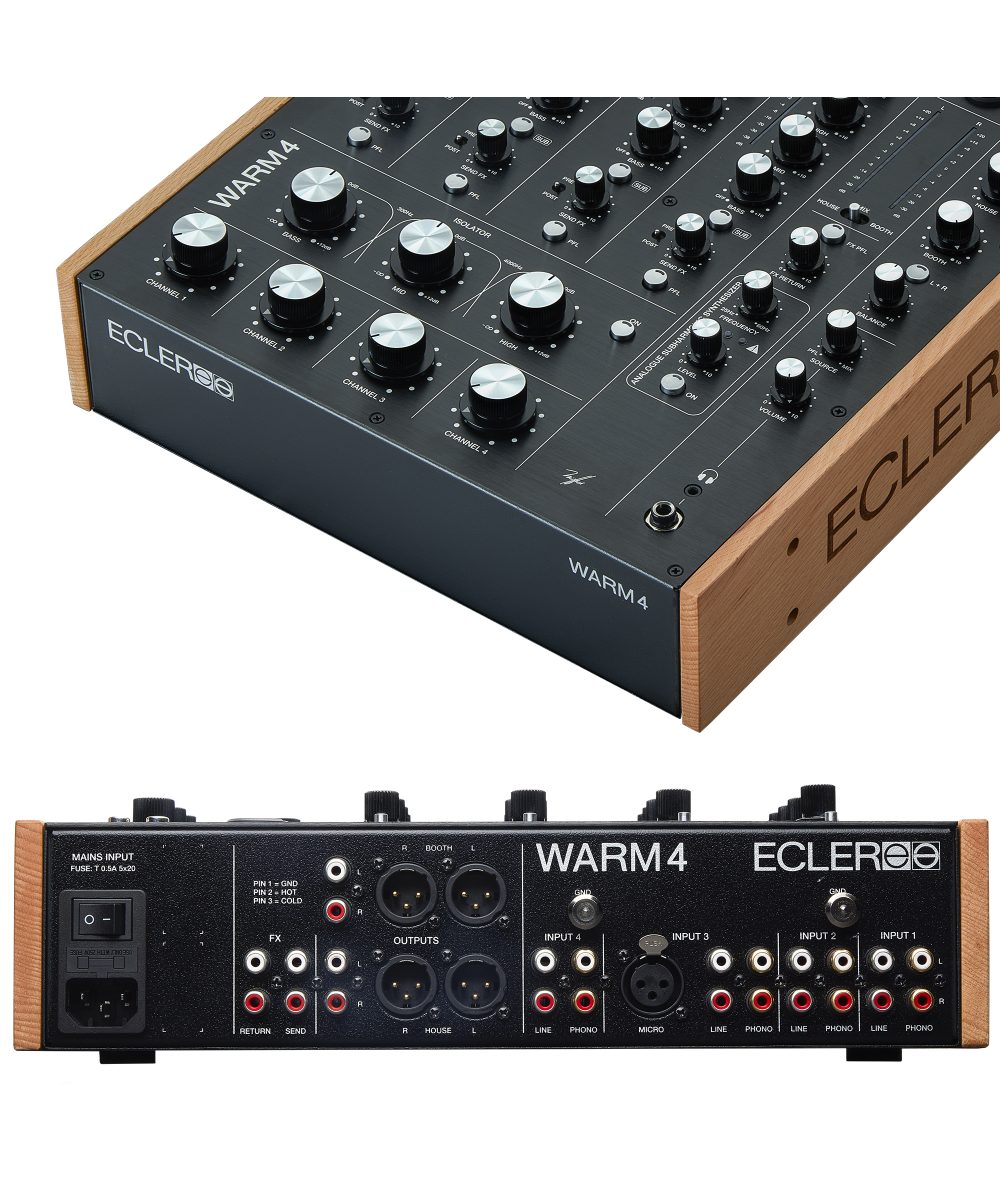

- Master Output on XLR and RCA connectors.
- Booth Output on XLR and RCA connectors.
- Headphone Monitor Output on 6.3mm Jack and 3.5mm mini-jack.
- 3 Band full EQ cut.
- 3 Band Isolator (300Hz and 4KHz, -∞/+12dB, 4th order 24dB/oct ).
- Analogue Subharmonic Synthesizer for sub-bass frequency reinforcement selectable per channel.
- Maximum Output without distortion: 21dBV (23dBu).
- FX Send control and Pre/Post fader selector per channel.
- FX Return control and PFL.
- Alps metal shaft high quality potentiometers.
- Mechanized from a solid block of aluminium knob, without visible screw. Ecler Unique design.
- Wooden side panels included.
WARM4 is Ecler's newest rotary analogue mixer, inspired by New York's Paradise Garage, described by François Kevorkian as the "temple of music" and whose influence has significantly shaped some of today's best clubs. Designed and manufactured in Ecler's Barcelona facilities, WARM4 is a mixer that keeps in mind the classic Ecler mixers structure, with completely redesigned circuitry and mechanics.
This goes from the new PCB board that further improves noise level and dynamic range, to the front-plate screwed potentiometers, carefully hand-assembled by their production team. Keeping alive its innovative spirit since the first A4 mixer in 1971, Ecler introduces a dj tool never included in a mixer before: an analogue subharmonic synthesizer. Inspired by the original device installed in the Paradise Garage booth, Ecler has created their own circuit that allows the subharmonic generator to be tuned to different frequencies so that the dj can adapt it according to the recorded song and the features of the sound system.
In WARM4 you will also find the 4th order Isolator filter already included in WARM2, as well as 4 mixing channels, 3-band full EQ cut per channel and Alps metal shaft high quality potentiometers. Using your favourite external effects module has never been easier. WARM4 offers you the opportunity to send the PRE/POST fader signal, as well as regulate and pre-listening to the amount of effects return. WARM4 is specially designed for sound systems capable of reproducing this type of subsonic frequencies, clubs, festivals and events where subwoofers are of vital importance. Bring to your audience an unprecedented experience on the dancefloor and a different way
of feeling the music.
