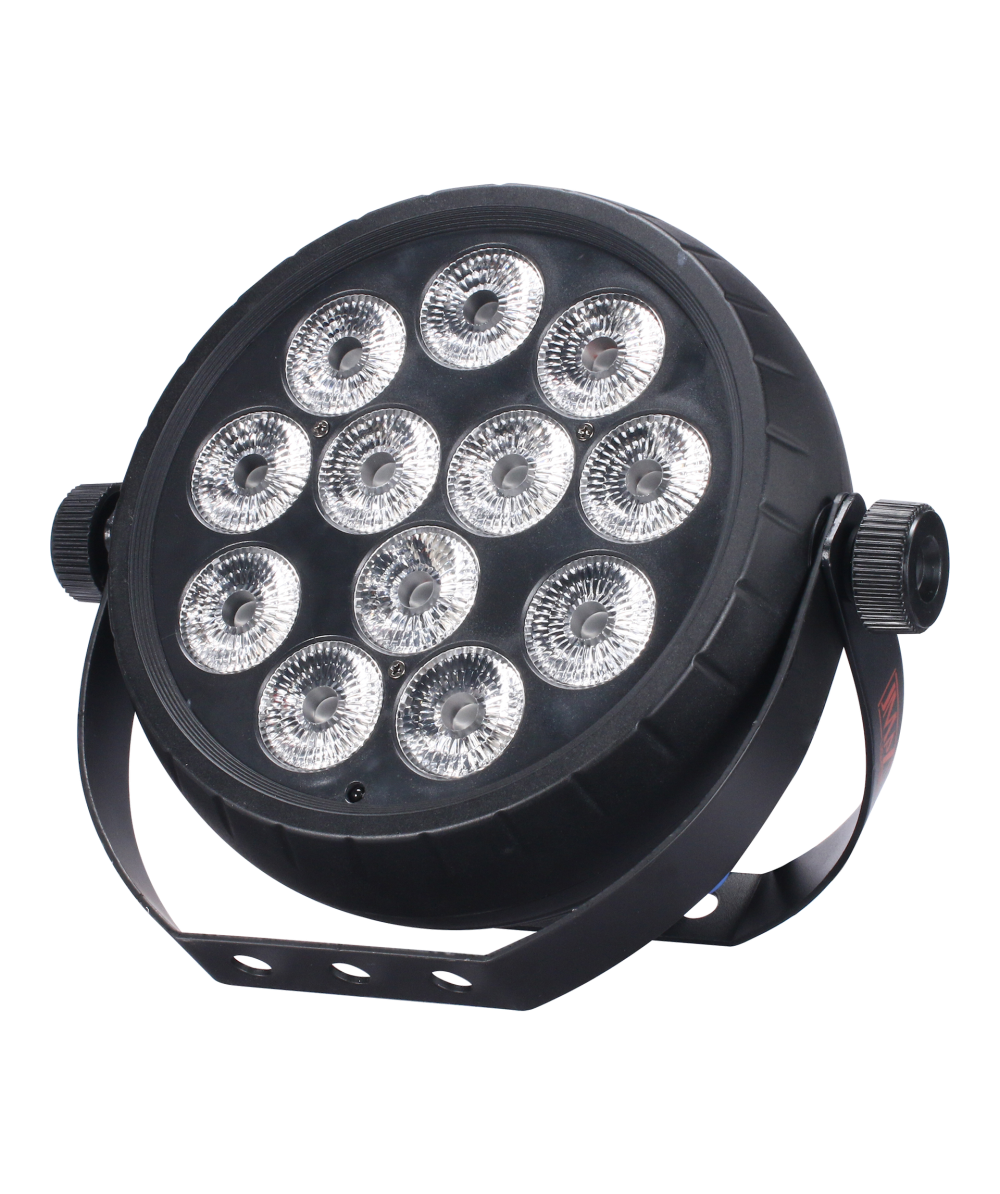

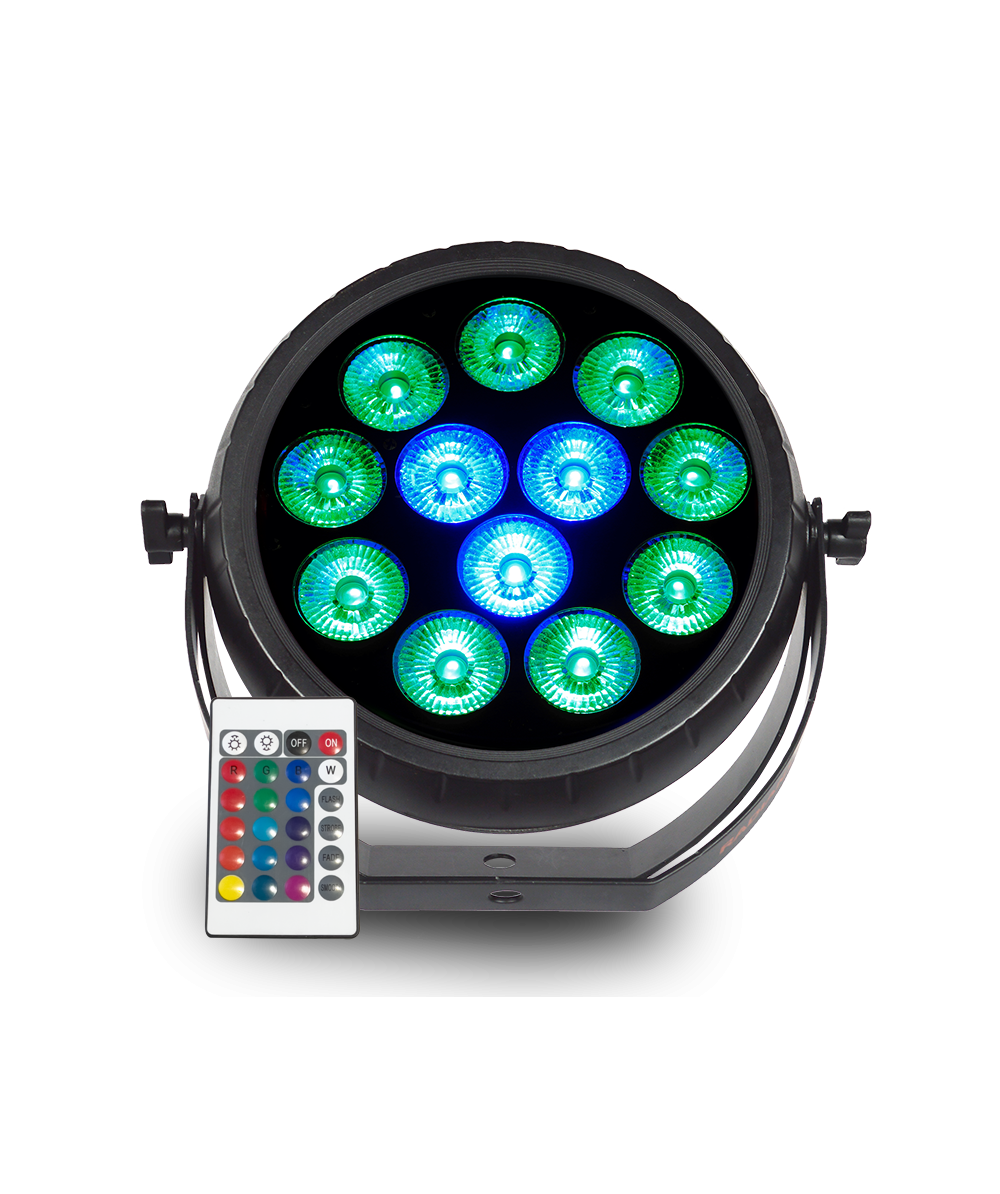

The JMAZ RADIANT PAR QUAD12 is a 120W RGBA LED wash light with a broad CCT range of 2800K – 8000K and a 60° wash beam angle. It features a dynamic ring effect, 25Hz strobe, 15 preset color programs, 12 auto programs, and 11 advanced sound active modes. Compatible with 5-pin DMX512 and IR remote, it includes powerCON In/Out, an IR remote, powerCON cable, and DMX cable for flexible lighting setups.
Light Source |
120W RGBA LEDs |
|
CCT: 2800K – 8000K |
Color System |
RGBW LEDs |
Optics |
Wash Beam Angle: 60° |
Dynamic Effect |
15 Preset Color Programs |
|
12 Auto Bulit In Programs |
|
11 Advanced Sound Active Mode |
|
Dynamic Ring Effect |
|
Strobe 25Hz |
|
Wash Effect |
Control |
Protocols: 5-Pin In/Out DMX512 |
|
Personalities: 3 Modes 4/10/18 |
|
Wireless Control: IR Remote |
Electronics |
Dimmer: 0-100% Linear Dimmer |
Body |
ABS Die-Cast Plastic w/ Aluminum Structure |
Physical |
Cooling Fan |
|

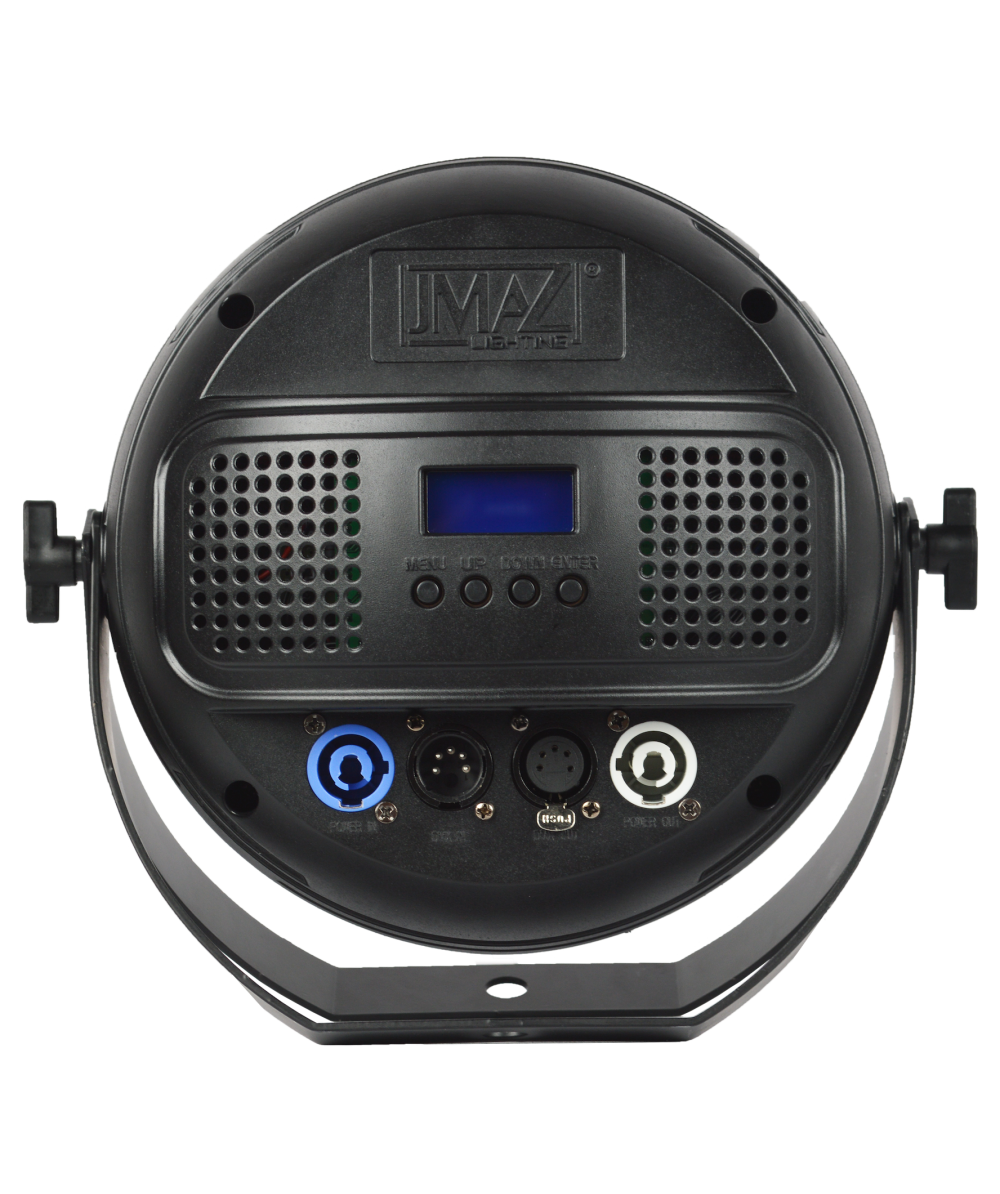

5-PinDMX In/Out |
|
powerCON In/Out |
Electrical |
Max Power Consumption: 140W |
|
Input Voltage: AC 90-260V, 50HZ/60HZ |
Box Content |
1 x User Manual |
|
1 x 5-pin DMX Cable |
|
1 x powerCON Cable |
|
1 x IR Remote |
Item Dimensions & Weight |
Dimensions: 10.4″ x 8.3″ x 4.6″ |
|
Weight: 5.2 lbs |
Warranty |
2 Years |
- JMAZ RADIANT PAR QUAD12
- 1 x User Manual
- 1 x 5-pin DMX Cable
- 1 x powerCON Cable
- 1 x IR Remote
