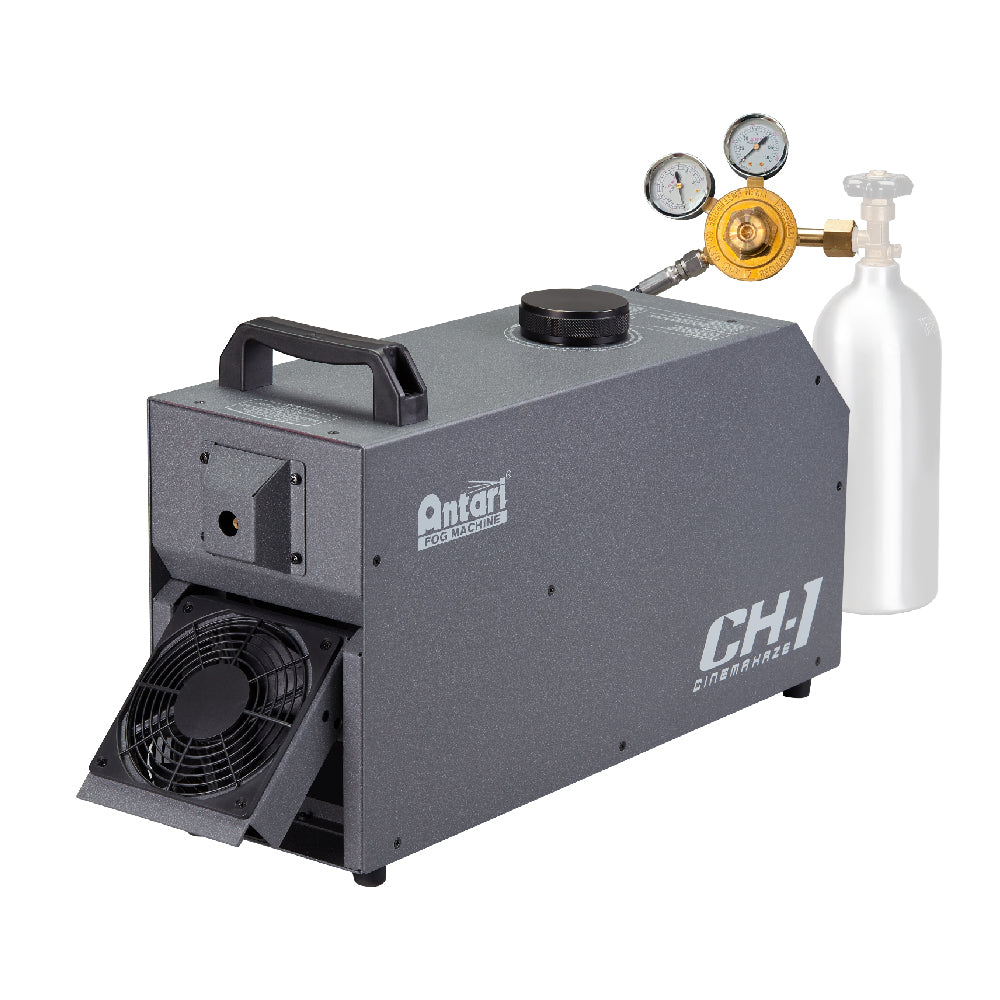

Antari CH-1D - Theatrical Pump-less Haze Machine - Requires Compressed Gas

Meet the Antari CH-1, the inaugural CO2 machine setting new standards in performance. Its pioneering design delivers whisper-quiet operation, seamlessly blending into any environment. With extended hang time, it creates an enchanting atmosphere, perfect for elevating events to unforgettable heights with its unmatched reliability and sophistication.

• Color Touch Screen Panel
• Low Fluid Consumption
• Quiet Operation

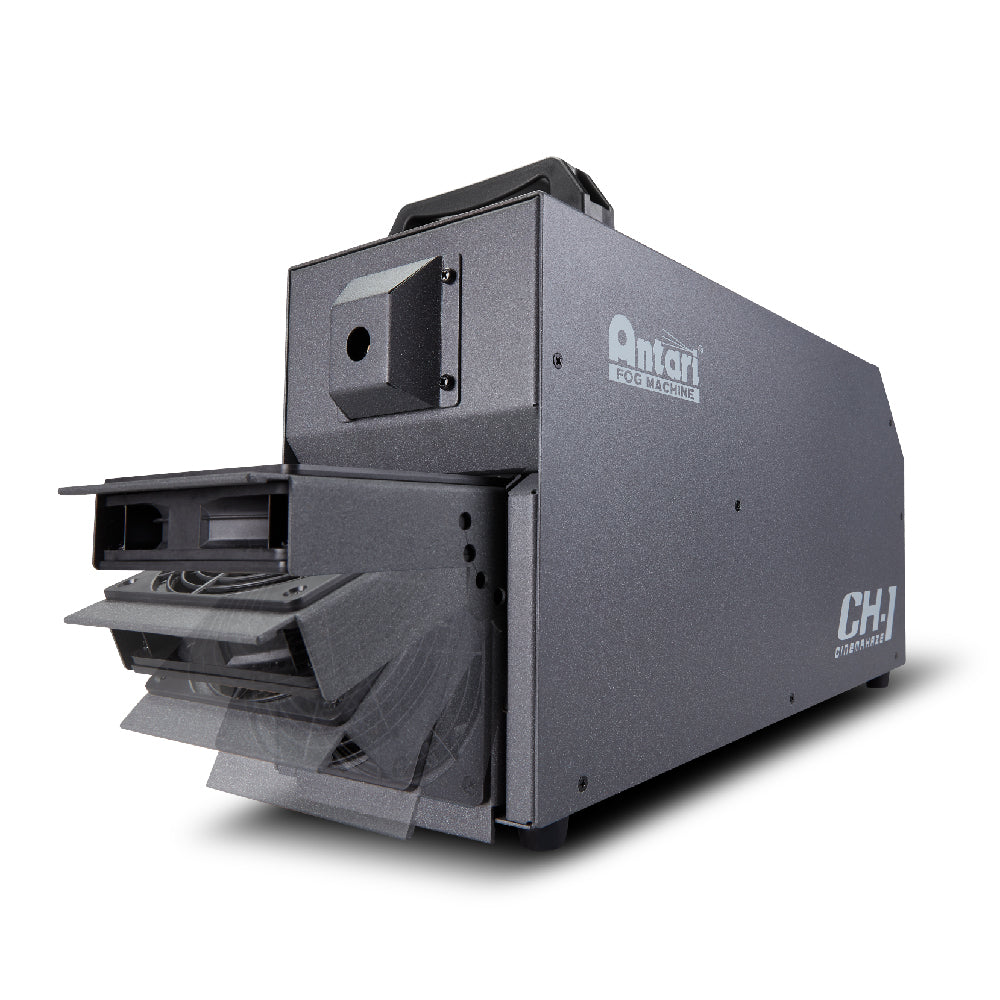

• Adjustable Fan
• Long Hang Time

Note: This machine is only compatible with high-pressure CO2 cylinders; do not use siphon (dip tube) cylinders.

Input Voltage: AC 100-240V, 50/60 Hz
Rated Power: 120V 6.0A 700W; 240V 5.5A 1250W

Warm-Up Time: 8 Minutes (approx)
Ambient Temp. Range: 0°C - 40°C (32°F - 104°F)

Fluid Consumption: 2 ml/min @ 40psi / 2.76bar (100% Output)
Fluid Tank Capacity: 2.5 Liters (0.66 Gallon)
Compatible Fluid: Antari CHL-2 Haze Fluid

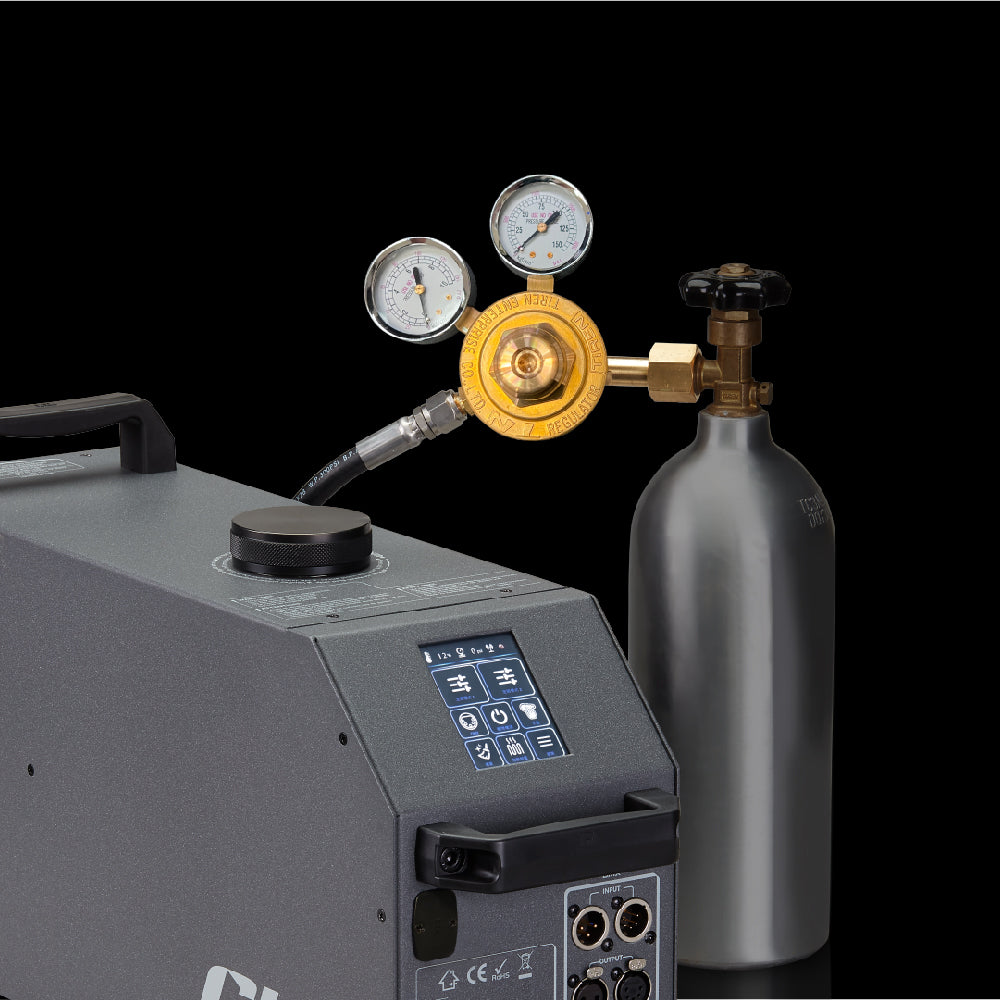

Gas Type: CO2, N2
Gas Pressure Range: 50 - 60psi / 3.4 - 4.1bar
Gas Consumption: 0.36 kg/hr @ 40 psi; 0.18 kg/hr @ 20 psi
Cylinder Note: High-pressure CO2 cylinders only; do not use siphon (dip tube) cylinders

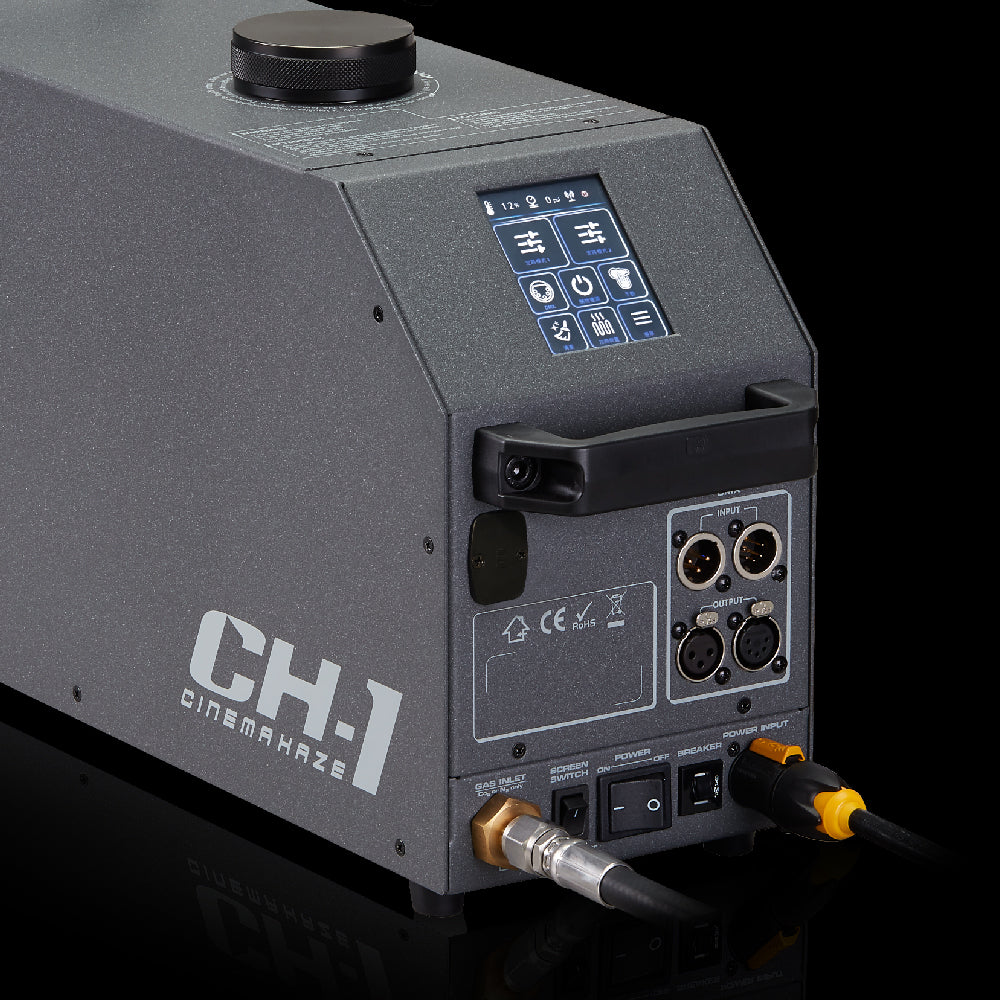

Control Interface: TFT LCD Touch screen
Control Methods: Manual, Timer, DMX 512, Wireless DMX (Optional)
DMX Channels: 1 / 3 / 5 Channel
Interface: Neutrik powerCON TRUE1 (Power); XLR 3-Pin & 5-Pin (DMX); 9/16-18 R.H (Gas inlet)

Included Accessories: Pressure Gauge, Air Hose
Optional Accessories: TIMO-W-DMX-PCBR Wireless DMX; FCH-1 Flight Case

Dimensions: L579 x W164 x H311 mm (L22.79 x W6.46 x H12.25 in)
Weight: 17.0 kg (37.48 lbs)

Manufacturer: Antari
Model: CH-1D (Antari CH-1)
UPC: 4710586554052

1x Antari CH-1 CO2 Haze Machine (CH-1D)
1x Pressure Gauge
1x Air Hose
