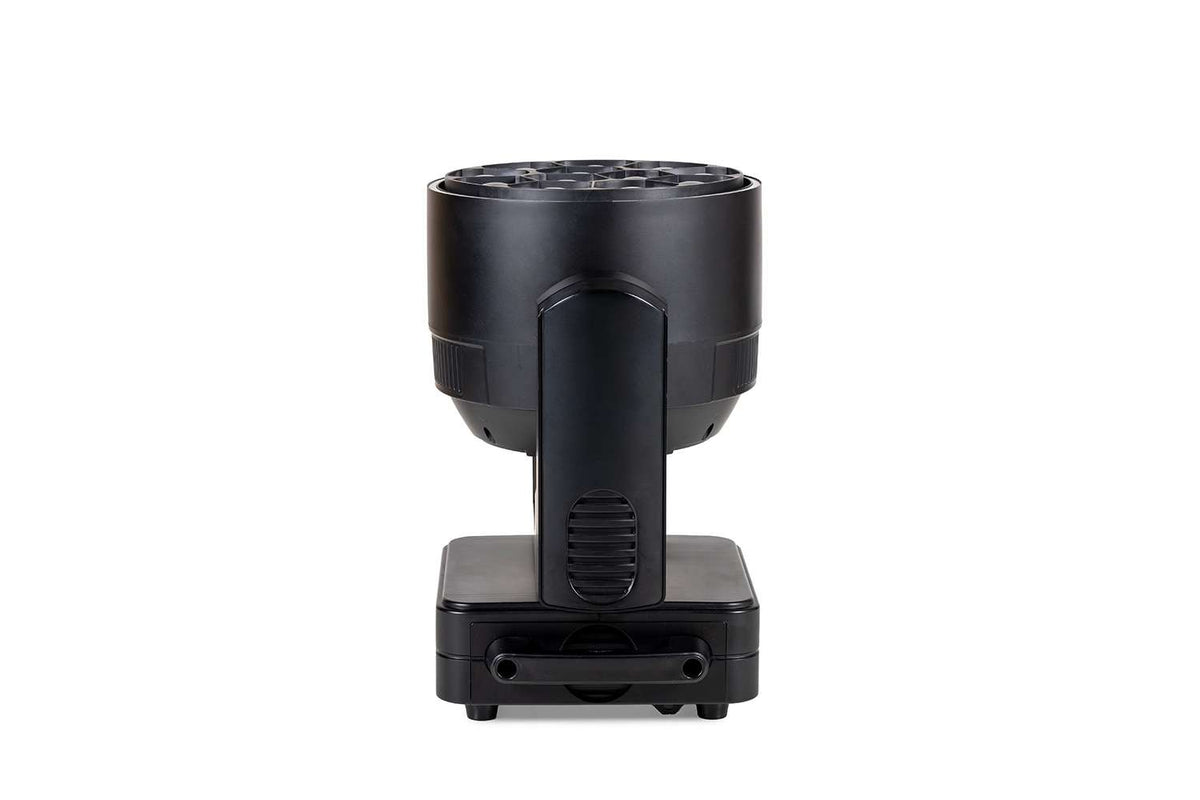

Colorkey Creator BX12 Wash - 480W Bee-Eye LED Moving Head

Colorkey Creator BX12 Wash - 480W Bee-Eye LED Moving Head

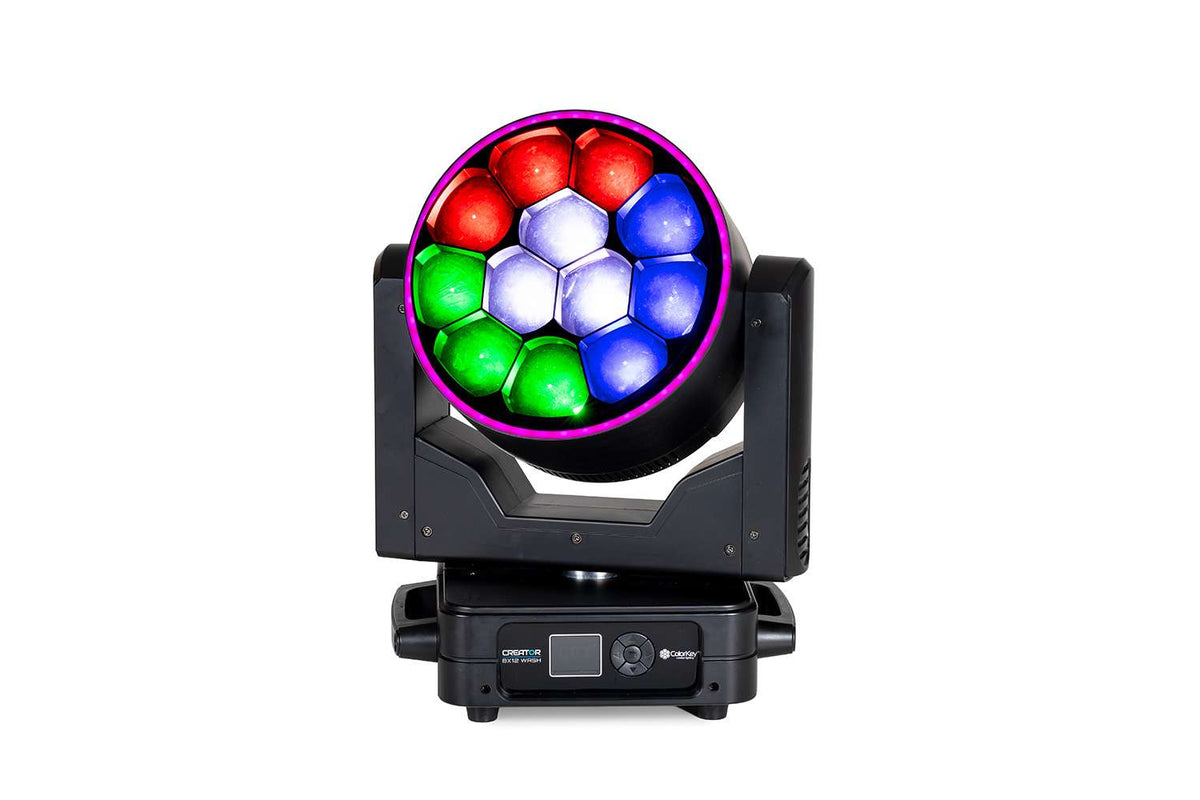

The Creator BX12 Wash is a 480W bee-eye moving head with twelve 40W RGBW LEDs, built for DJs, event production and permanent installs that want one fixture to cover both wash and beam duty.

Wash and Beam in One Head

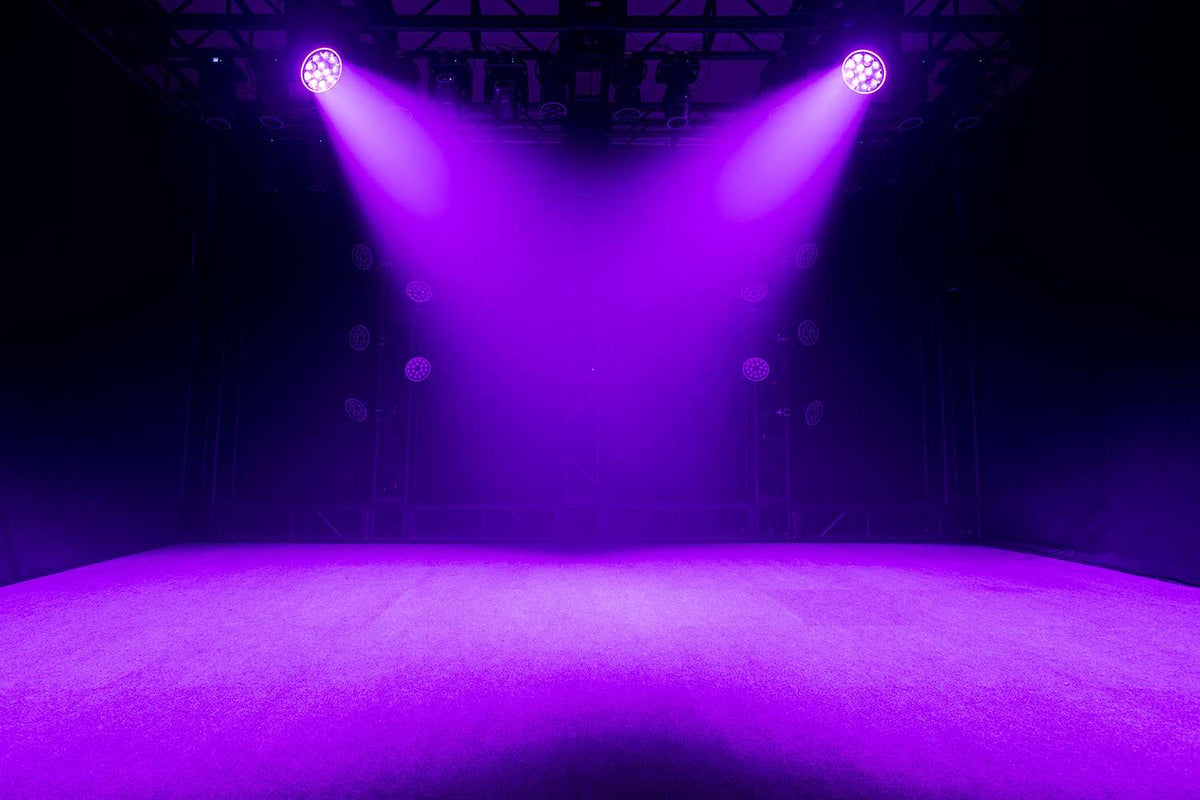

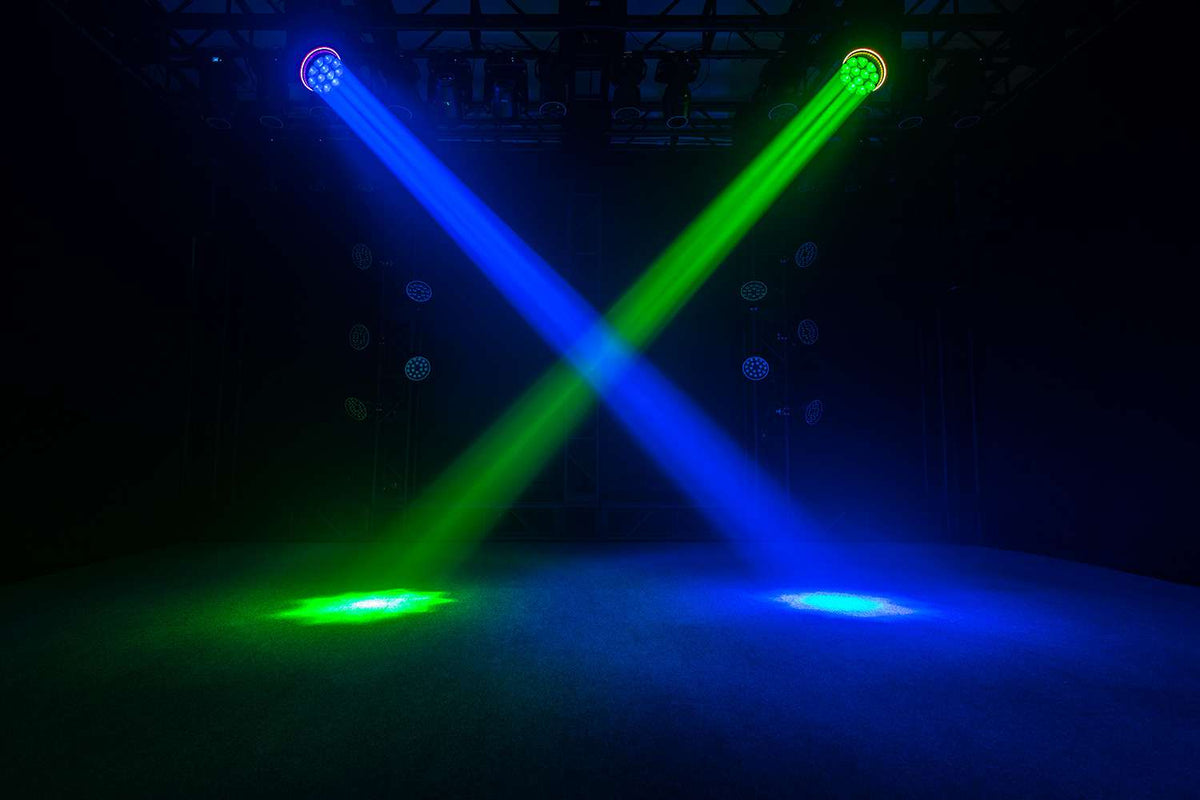

Motorized zoom runs from a 5° beam to a 25° zoom, with a 30° wash field. Zoomed wide it gives even color coverage; zoomed tight it throws punchy aerial beams rated at 111,700 lux at 2 meters.

Lens Rotation and Pixel Control

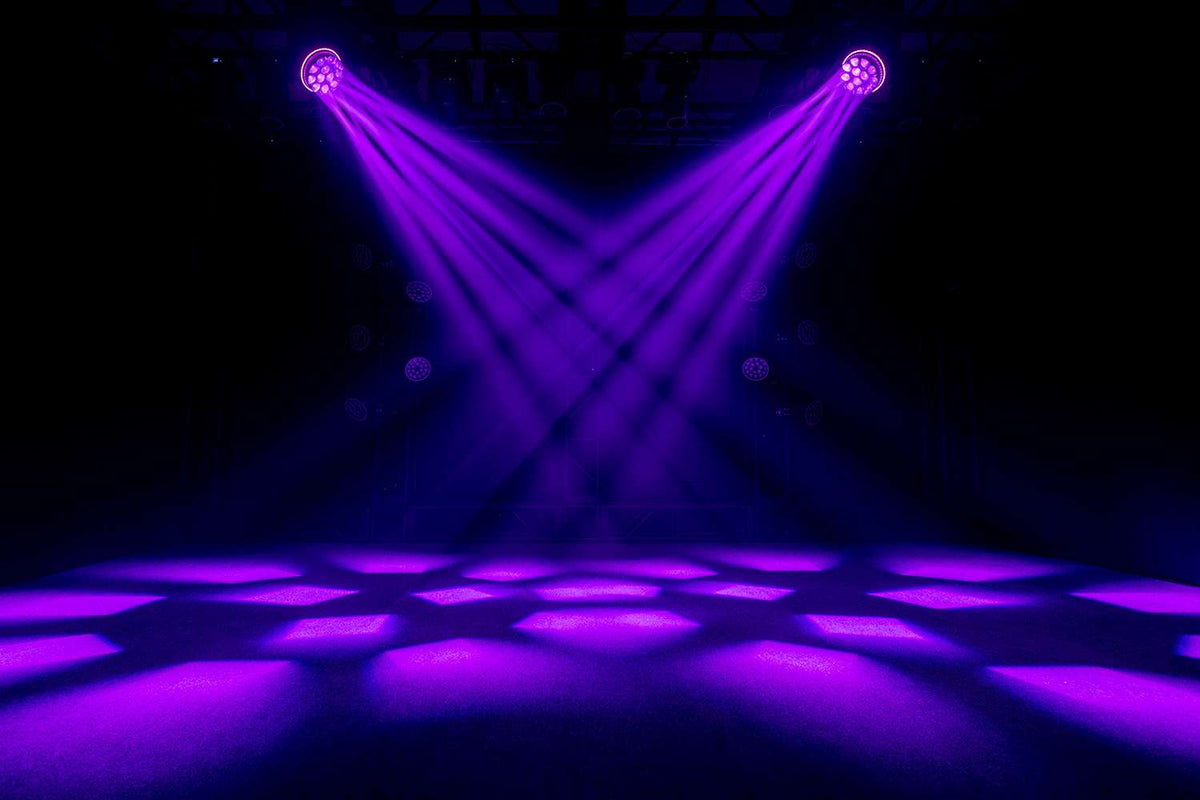

The front lens rotates continuously in both directions for flower and kaleidoscope looks. Each LED can be controlled individually for chases and color waves, and 50 preset pixel patterns are built in for quick programming.

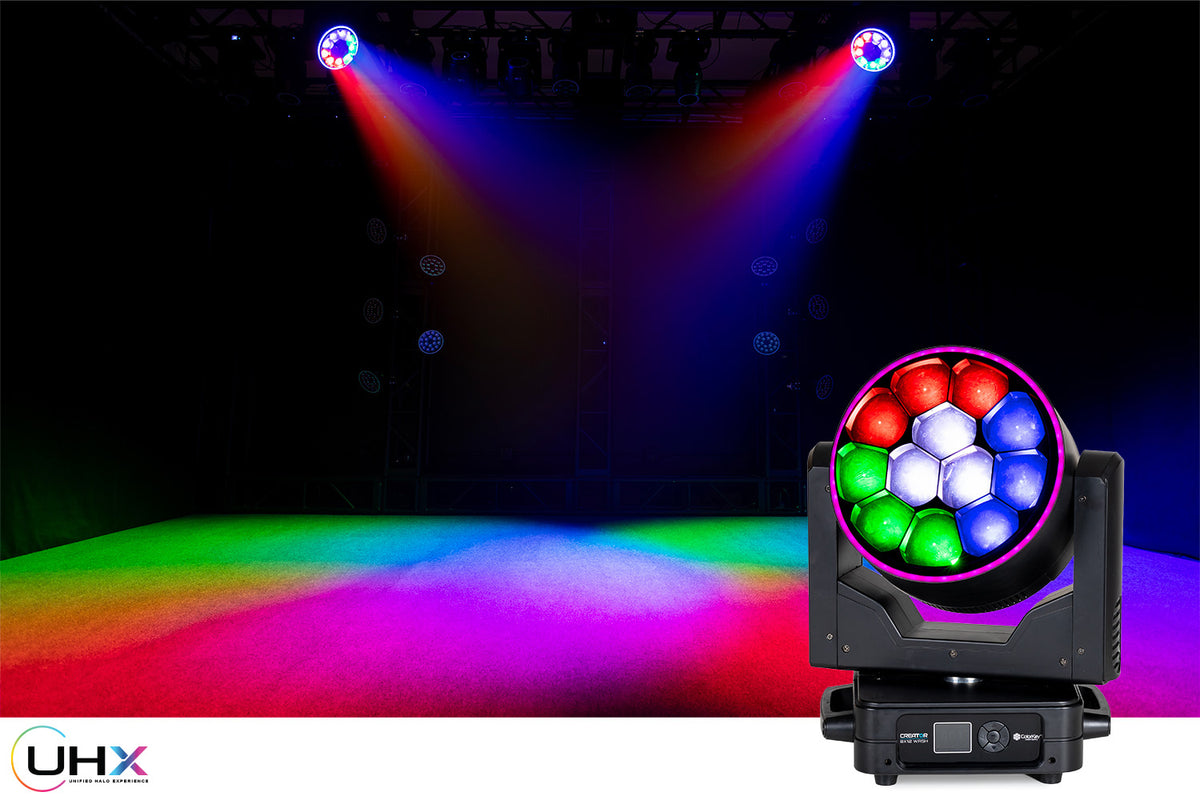

UHX Halo

An 84-LED multicolor halo syncs with other UHX fixtures. The wash and halo have independent dimmer and strobe control.

Show-Ready Details

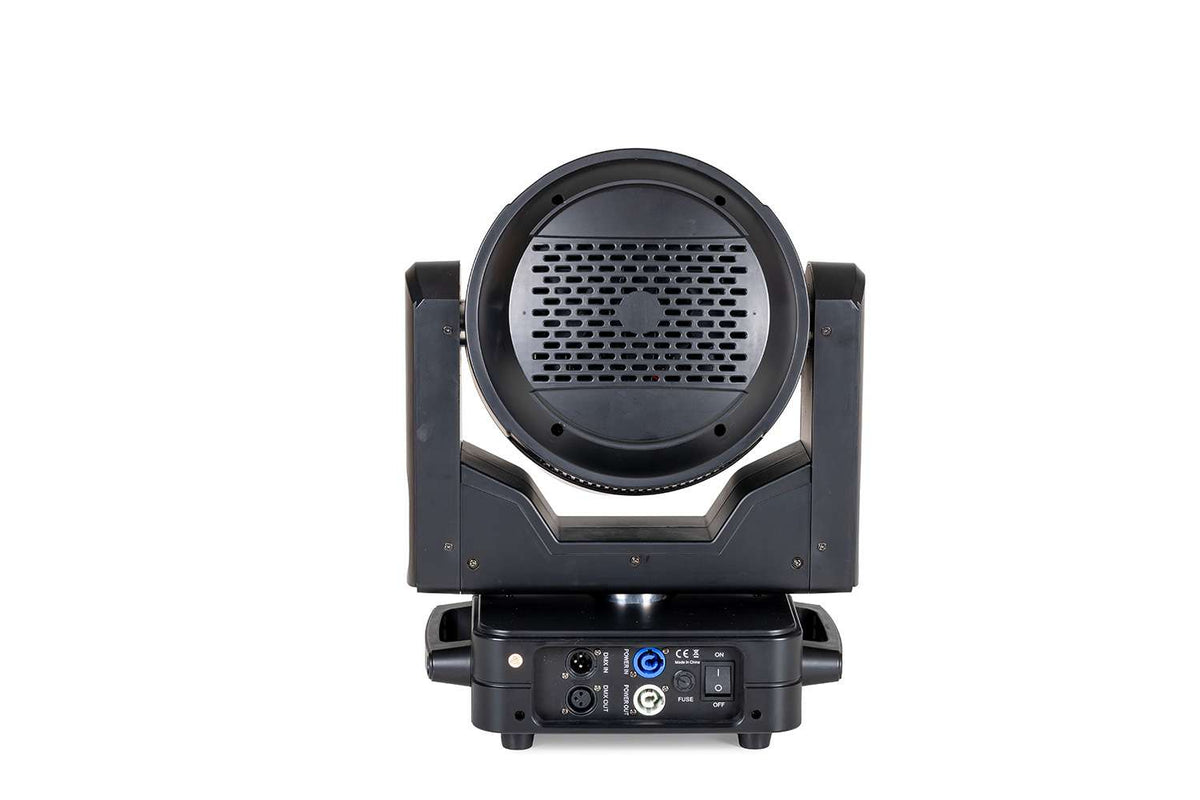

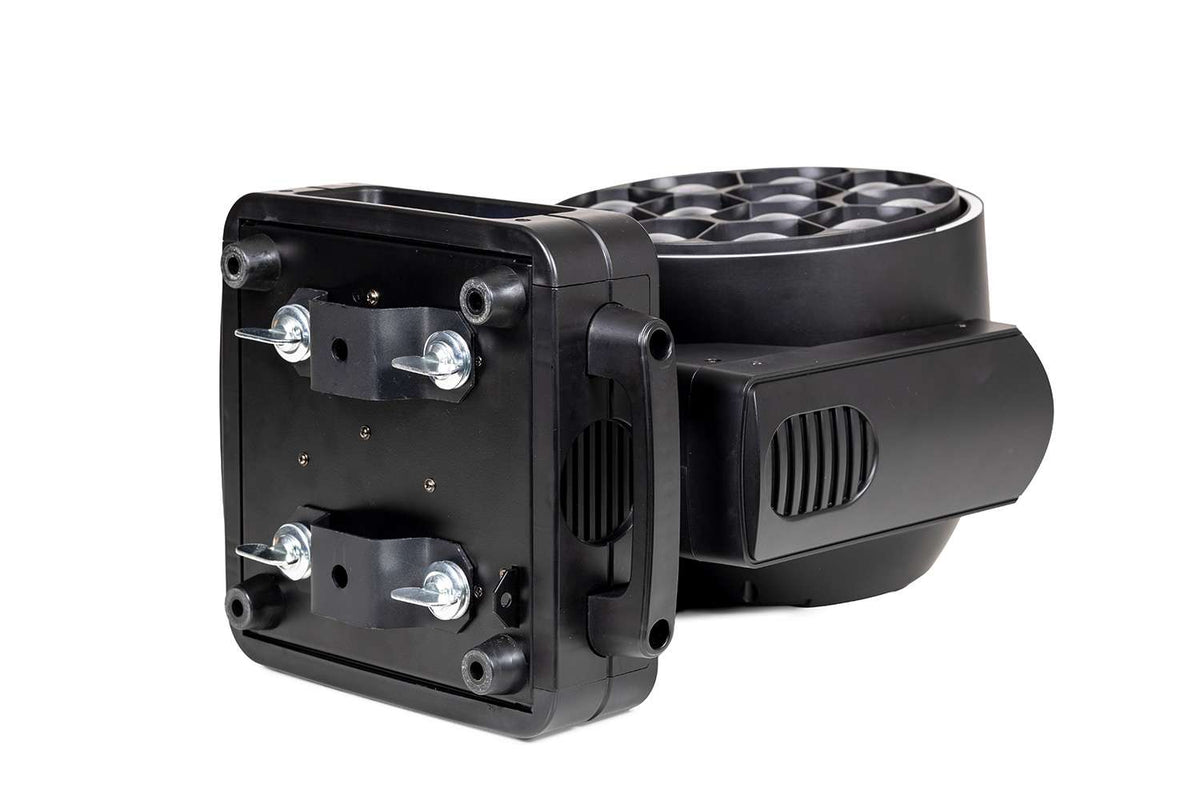

Frame Set position control (Frame Forward and Frame Up) limits where the light can travel, and DMX Hold keeps the last values on signal loss. A quick-release bracket, PowerCon locking in/out, RDM and a color LCD round it out. A 2-piece flight case is sold separately.

Key Features:

• 12 x 40W RGBW LEDs, 2,800K-8,500K
• Motorized zoom from 5° beam to 25°, 30° wash field
• Continuous bi-directional lens rotation
• Individual pixel control with 50 preset patterns
• 84-LED UHX halo with independent dimmer and strobe
• Frame Set position limits and DMX Hold
• DMX512 and RDM, PowerCon locking in/out

What's Included:

• 1x Colorkey Creator BX12 Wash

Specifications:

• Light Source: 12 x 40W RGBW LEDs
• Halo: 84 x 0.2W RGB LEDs
• Color Temperature: 2,800K-8,500K
• Illuminance: 111,700 lux @ 2 m (5°); 17,600 lux @ 2 m (18°)
• Zoom Beam Angle: 5-25°
• Wash Field Angle: 30°
• Strobe: 1-30 Hz
• Dimmer: 0-100% linear
• Pan / Tilt: 540° / 250° with fine
• DMX Channels: 25 / 73
• Control Modes: DMX512, Auto, Master-slave, Sound Active, RDM
• Display: 1.77-inch LCD
• Power Connection: PowerCon locking in/out
• DMX Connectors: 3-pin in/out
• LED Lifetime: 50,000 hours
• Max Power Consumption: 500W
• Voltage: AC100-240V, 50/60 Hz
• Size: 13.2 x 9.8 x 15.9 in (33.5 x 25 x 40.5 cm)
• Weight: 29 lb (13.15 kg)

Light Source: 12 x 40W RGBW LEDs
Halo: 84 x 0.2W RGB LEDs
Color Temperature: 2,800K-8,500K
Illuminance: 111,700 lux @ 2 m (5°); 17,600 lux @ 2 m (18°)
Zoom Beam Angle: 5-25°
Wash Field Angle: 30°
Strobe: 1-30 Hz
Dimmer: 0-100% linear
Pan / Tilt: 540° / 250° with fine
DMX Channels: 25 / 73
Control Modes: DMX512, Auto, Master-slave, Sound Active, RDM
Display: 1.77-inch LCD
Power Connection: PowerCon locking in/out
DMX Connectors: 3-pin in/out
LED Lifetime: 50,000 hours
Max Power Consumption: 500W
Voltage: AC100-240V, 50/60 Hz
Size: 13.2 x 9.8 x 15.9 in (33.5 x 25 x 40.5 cm)
Weight: 29 lb (13.15 kg)

1x Colorkey Creator BX12 Wash
